Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body)

Export reference
MSRP N/A
Horsepower: 141
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 3.45ton
Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 4.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Karry Green Card Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) is a Light Truck featuring 4.2m cargo length, stake body cargo body, 3Personnel volume and 4.495t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China V emissions.

China V 141 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SQR1090H03D
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonISF3.8s5141
transmission: WLYWLY6TS55
Cab length: 5.995m
Cab width: 2.35m
Cab height: 2.26m
Front track width: 1680mm
rear track: 1635mm
Curb Weight: 3.45ton
Rated payload: 4.495ton
GVWR: 8.575ton
Max. speed: 110km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 19°
departure angle: 13°
market segment: Building materials, agricultural products
Front/rear suspension: 1.125/1.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 2.05，2.25m
Cargo box height: 0.4m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 3048kg
rear axle description: 6T reinforced
rear axle allowable load: 5527kg
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16LT 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: pneumatic
Power Windows:
Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Service brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

Exterior3

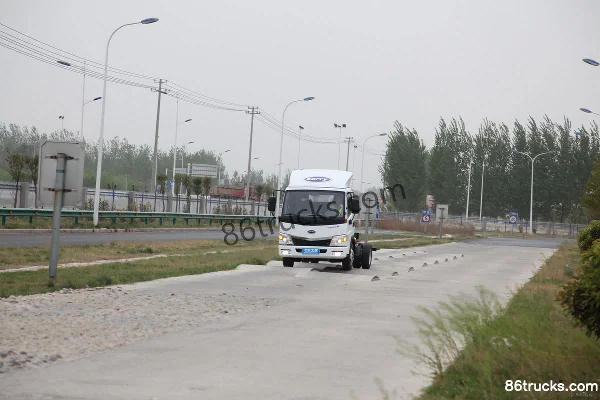

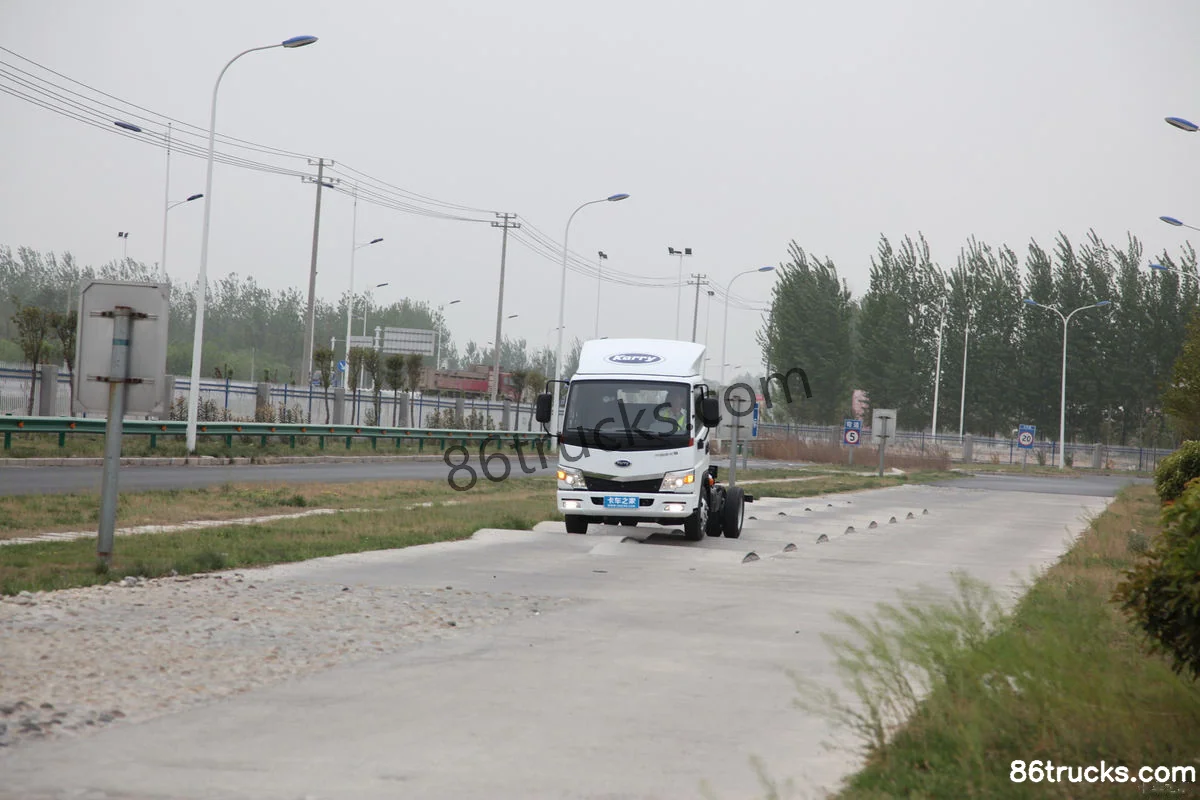

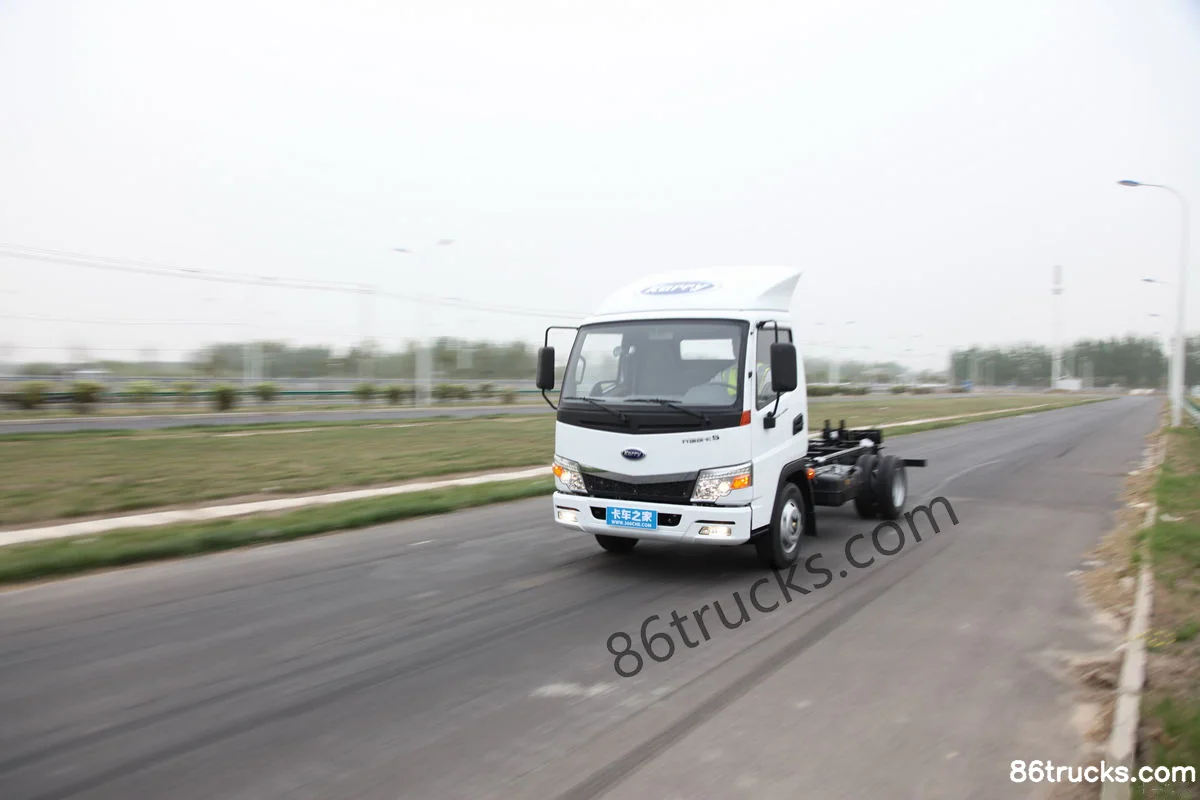

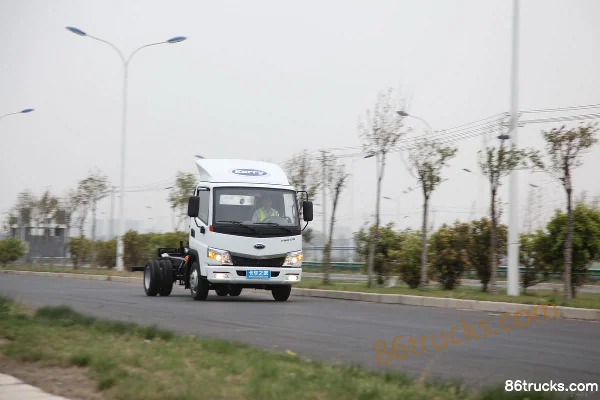

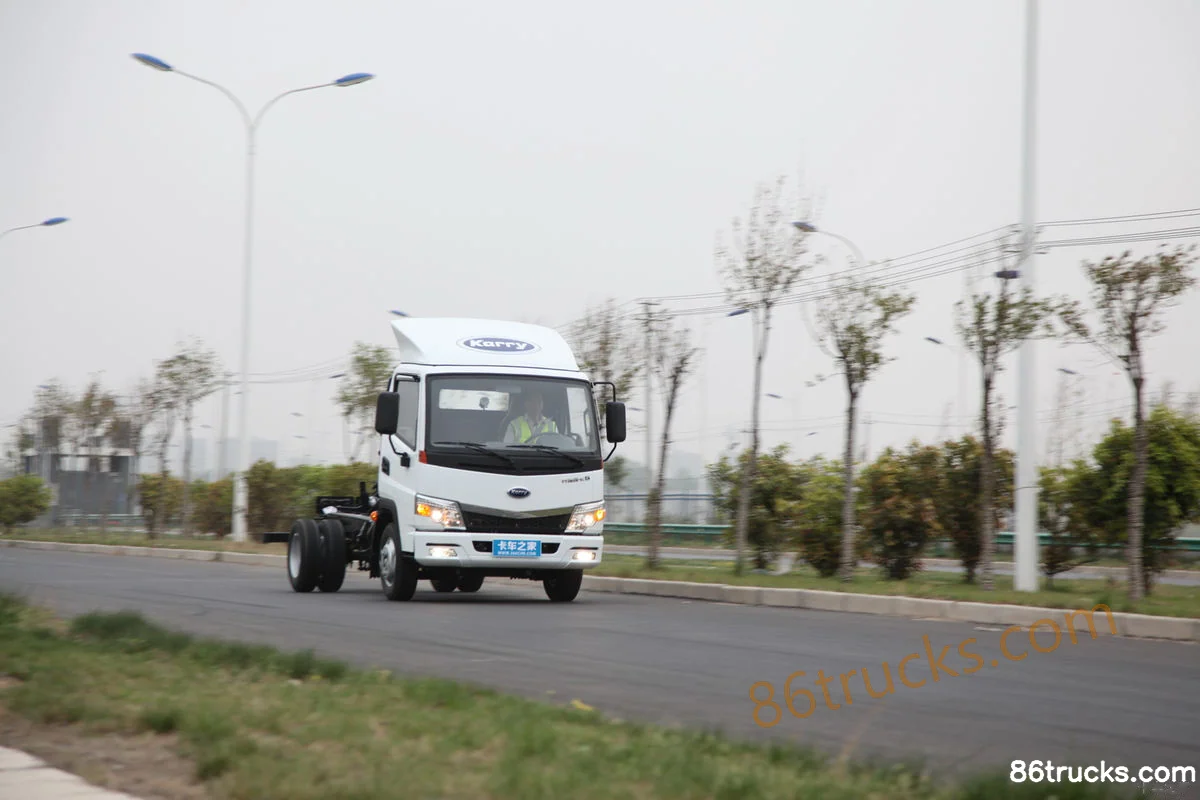

Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Exterior (1) | 86Trucks Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Exterior (2) | 86Trucks Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Exterior (3) | 86Trucks

Cab3

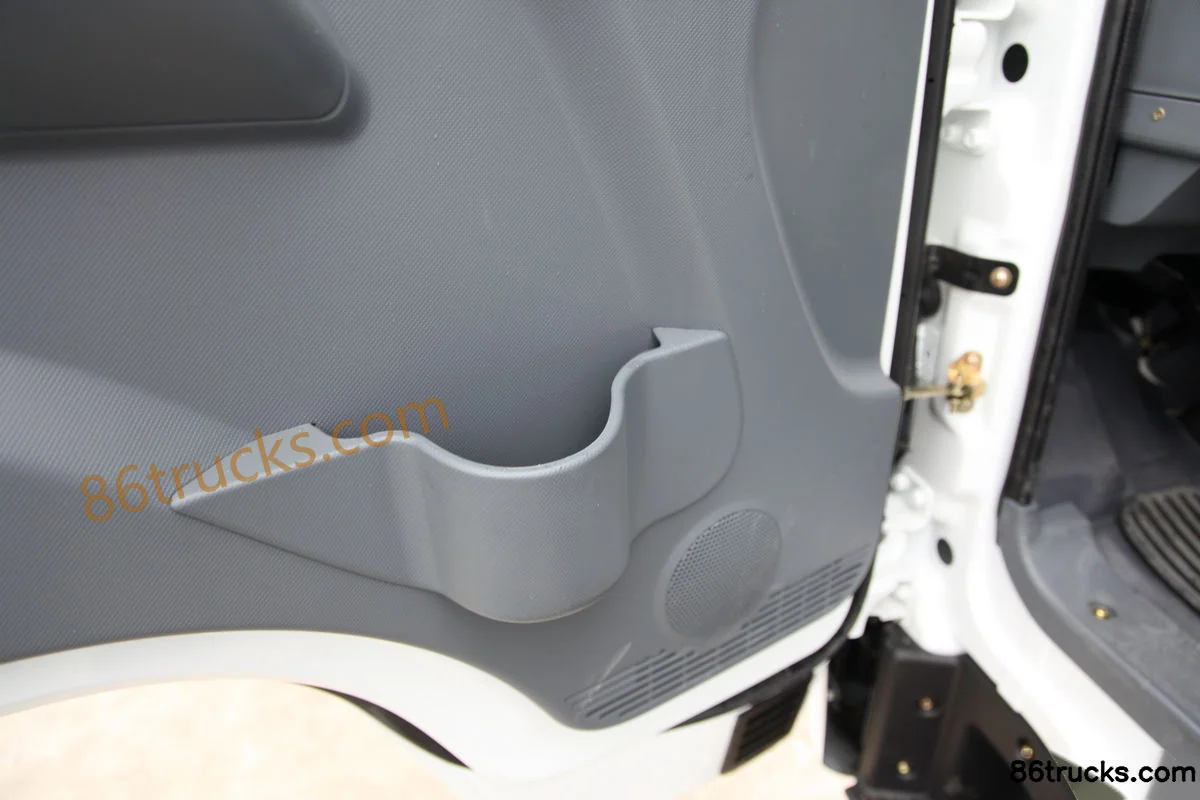

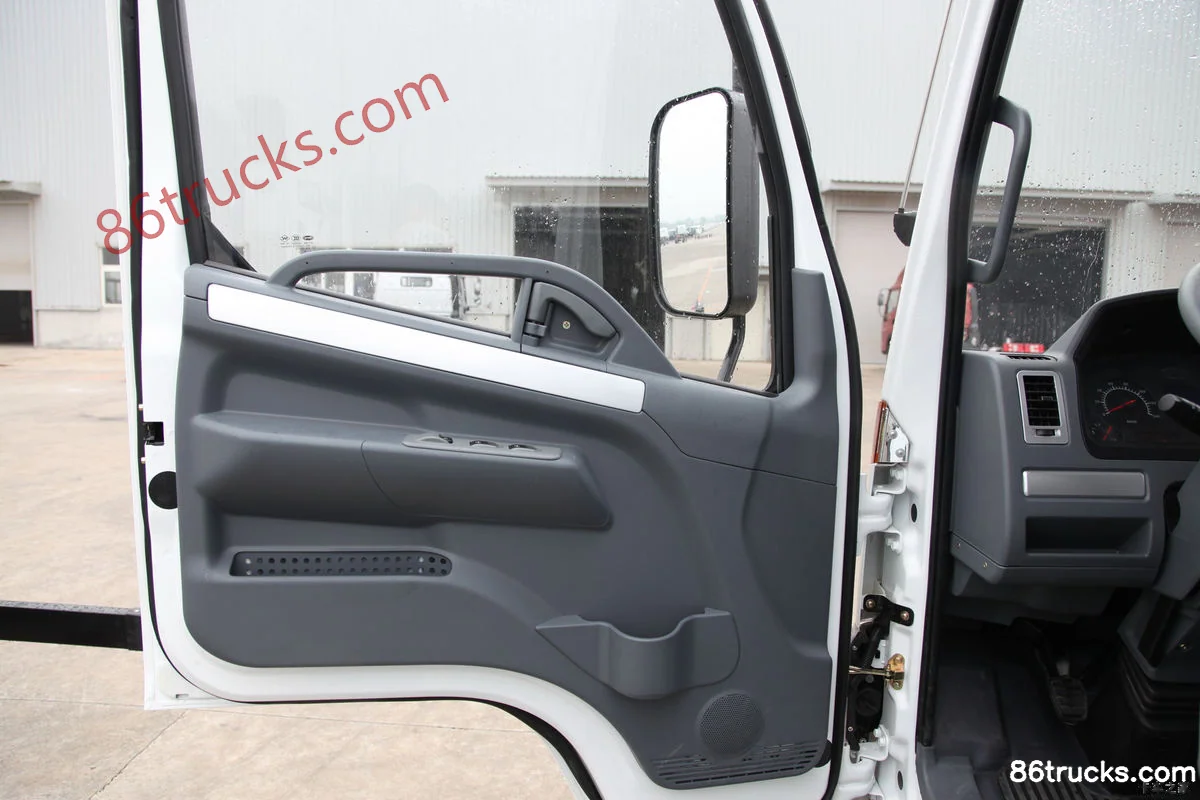

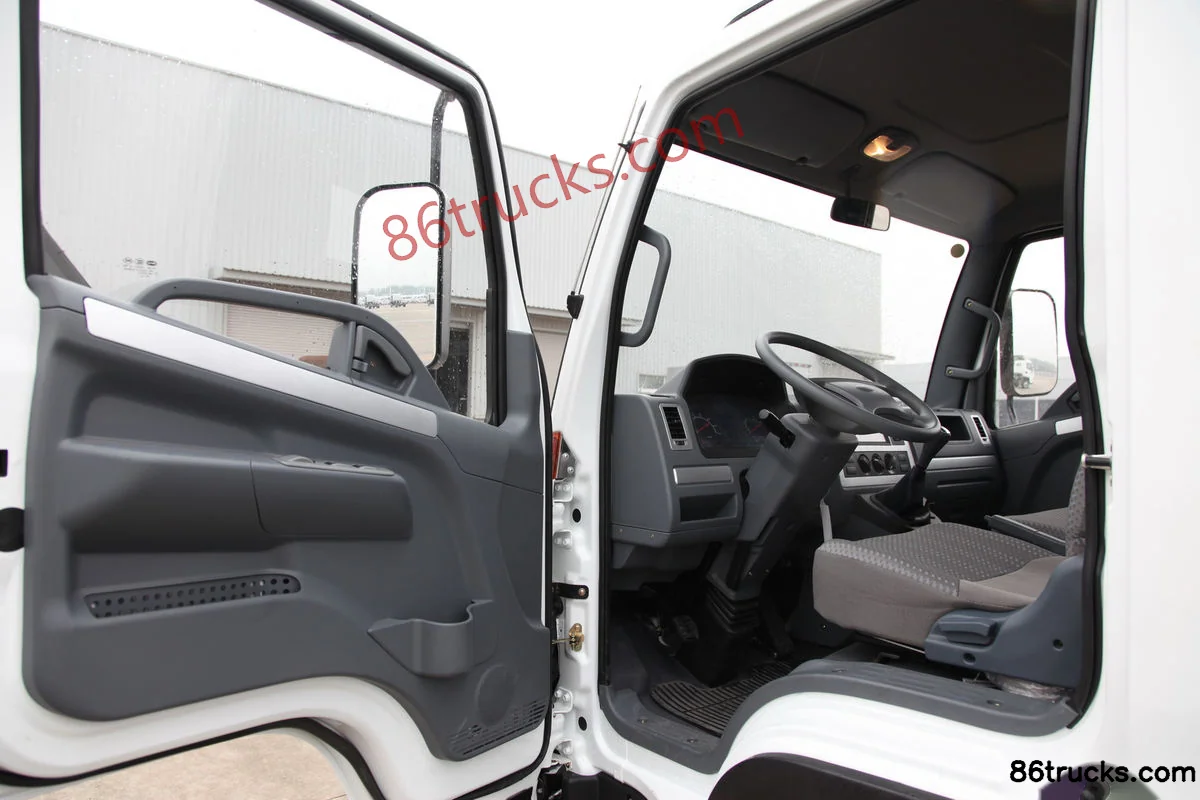

Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Cab (1) | 86Trucks Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Cab (2) | 86Trucks Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Cab (3) | 86Trucks

Chassis3

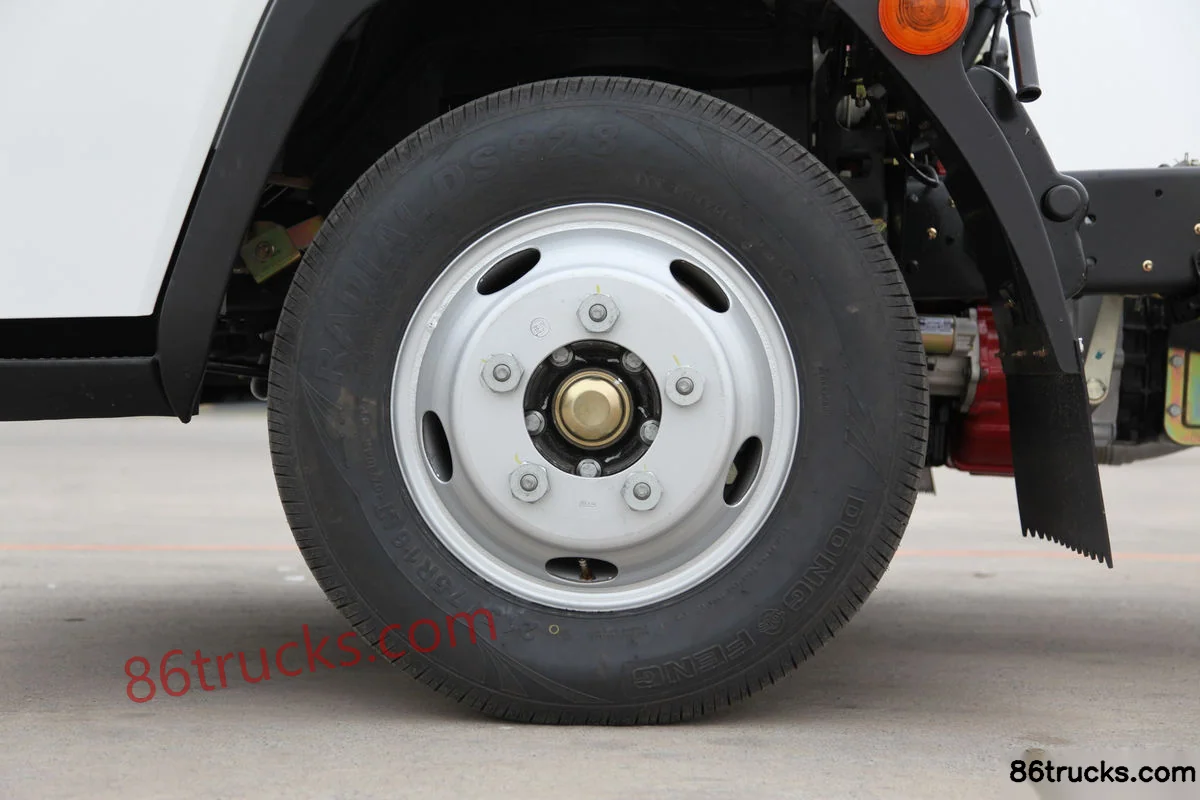

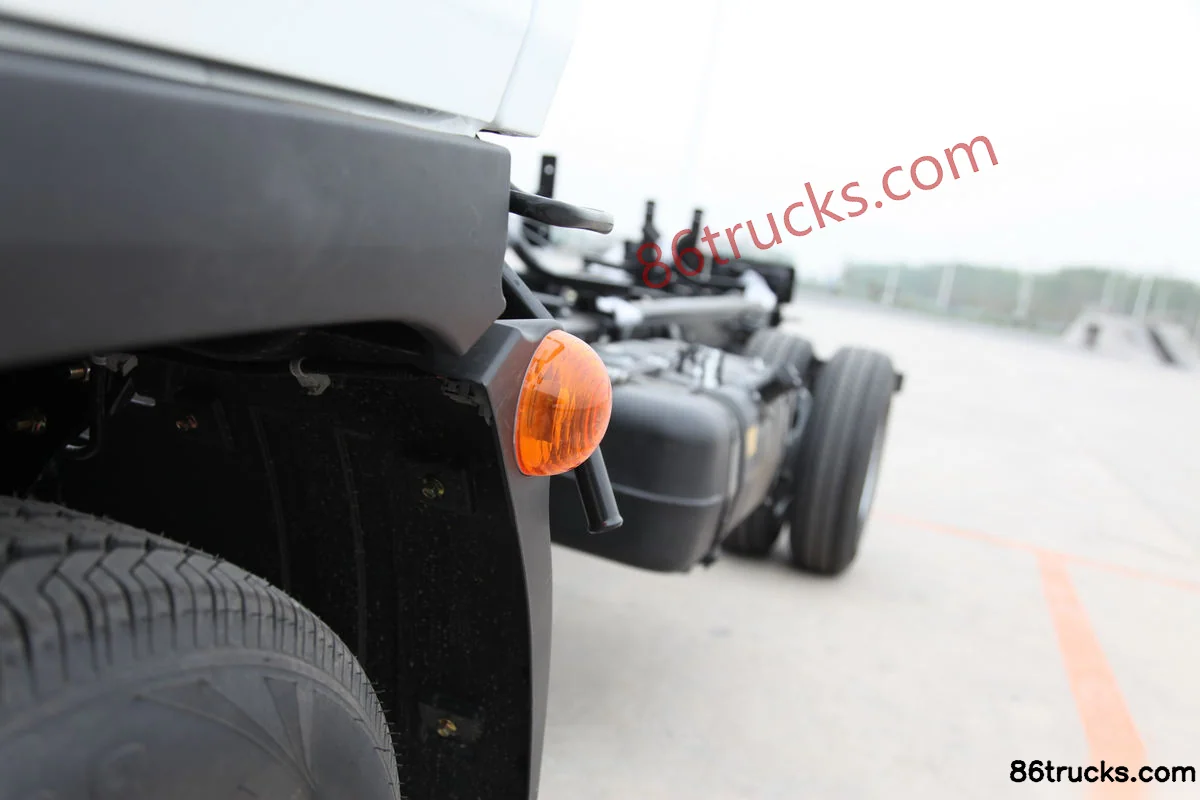

Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Chassis (1) | 86Trucks Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Chassis (2) | 86Trucks Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body)?

Key specs of Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body): Drive: 4x2; Horsepower: 141 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) suited for?

Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) differ from other variants in the same series?

Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body) belongs to Karry Green Card S Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry GreenCard S 141hp 4X2(6 wheels) 4.2m single-row flatbed light truck (wide body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
