Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 154
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Curb Weight:: 4.56ton
Wheelbase:: 3800mm
seating capacity: 3Personnel
Rated payload: 4.93ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis is a Medium-duty truck featuring 5.15m cargo length, Chassis cargo body, 3Personnel volume and 4.93t payload. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China V emissions.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5109XXY-FC
Type: Chassis
Drive type: 4X2
Wheelbase: 3800mm
Box length class: 5.2m
engine: FotonISF3.8s5154
transmission: 6-speed manual
Rear Axle Ratio: 4.33
Cab length: 6.995m
Cab width: 2.25m
Cab height: 3.45m
Front track width: 1665mm
rear track: 1630mm
Curb Weight: 4.56ton
Rated payload: 4.93ton
GVWR: 9.685ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Medium-duty truck
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: 6-speed manual
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 5.15m
Cargo box width: 2.1m
Cargo box height: 2.3m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 3870kg
rear axle allowable load: 5815kg
Axle ratio: 4.33
Leaf spring count: 9/11+7
Tire
Tire Size: 8.25R16
Number of tires: 6pcs

Photos

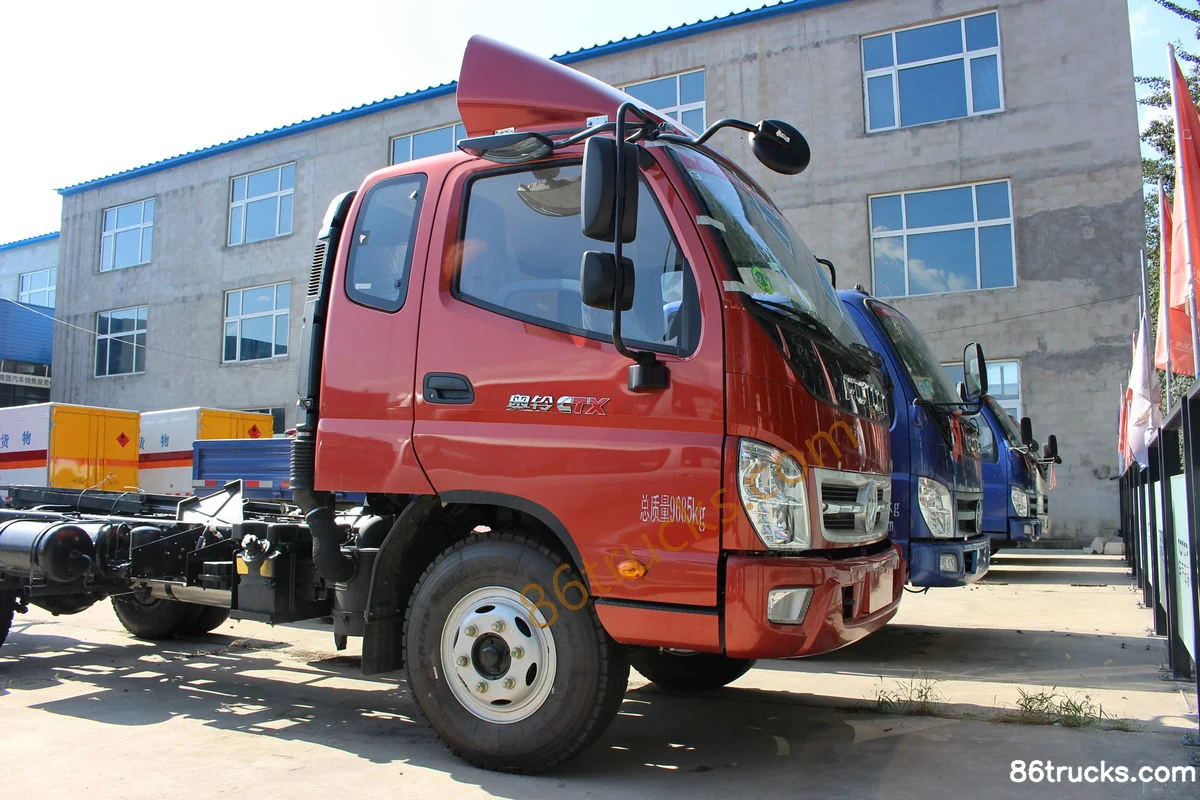

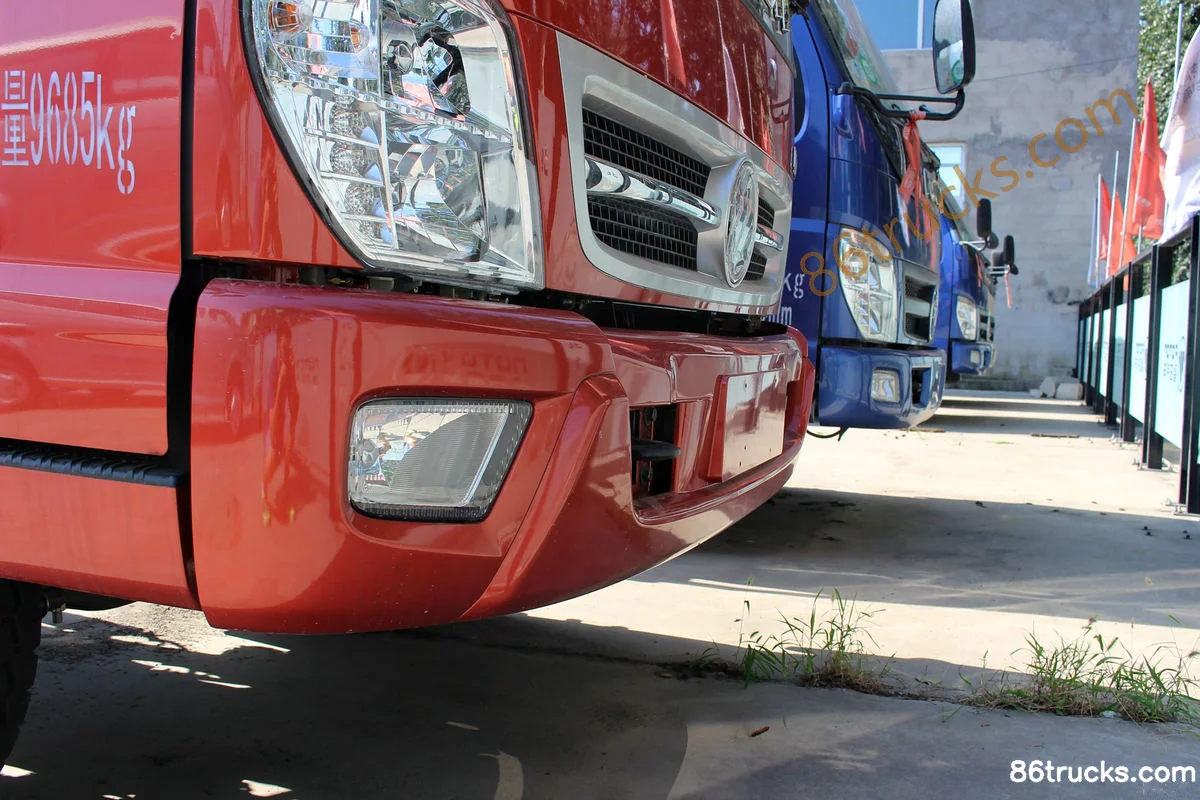

Exterior2

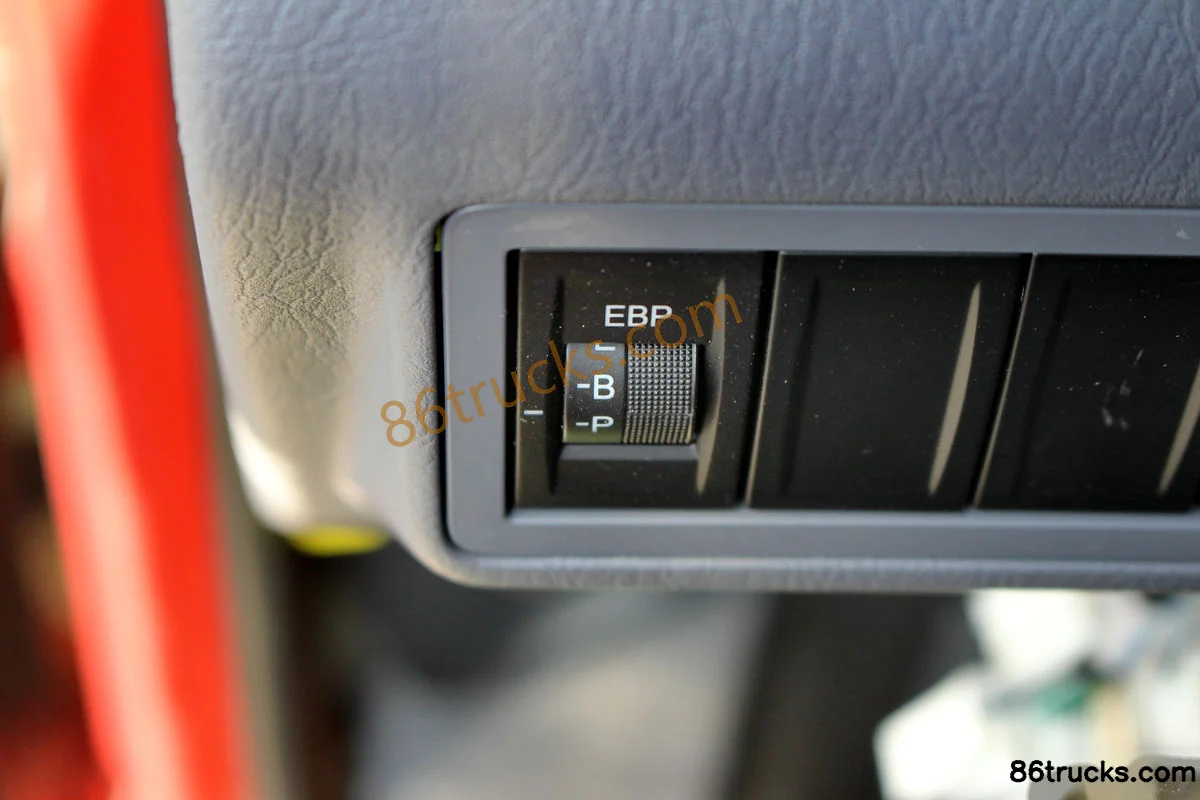

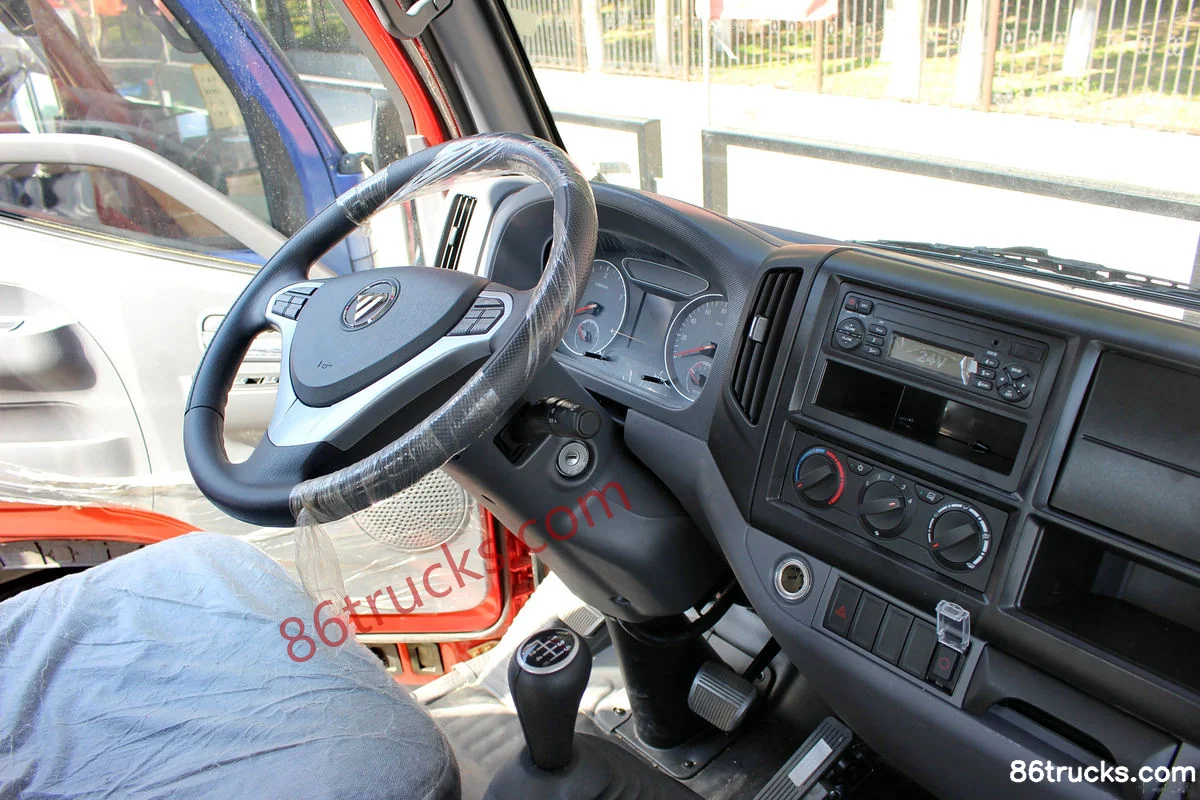

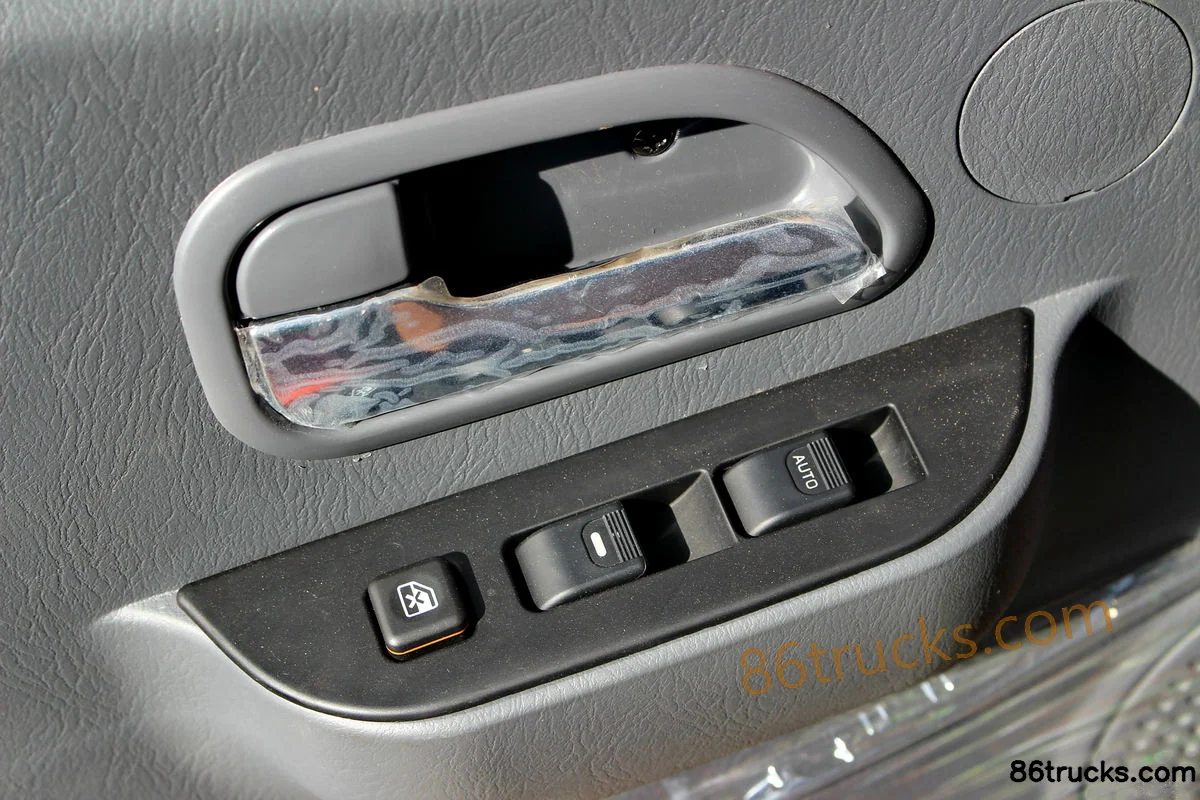

Cab3

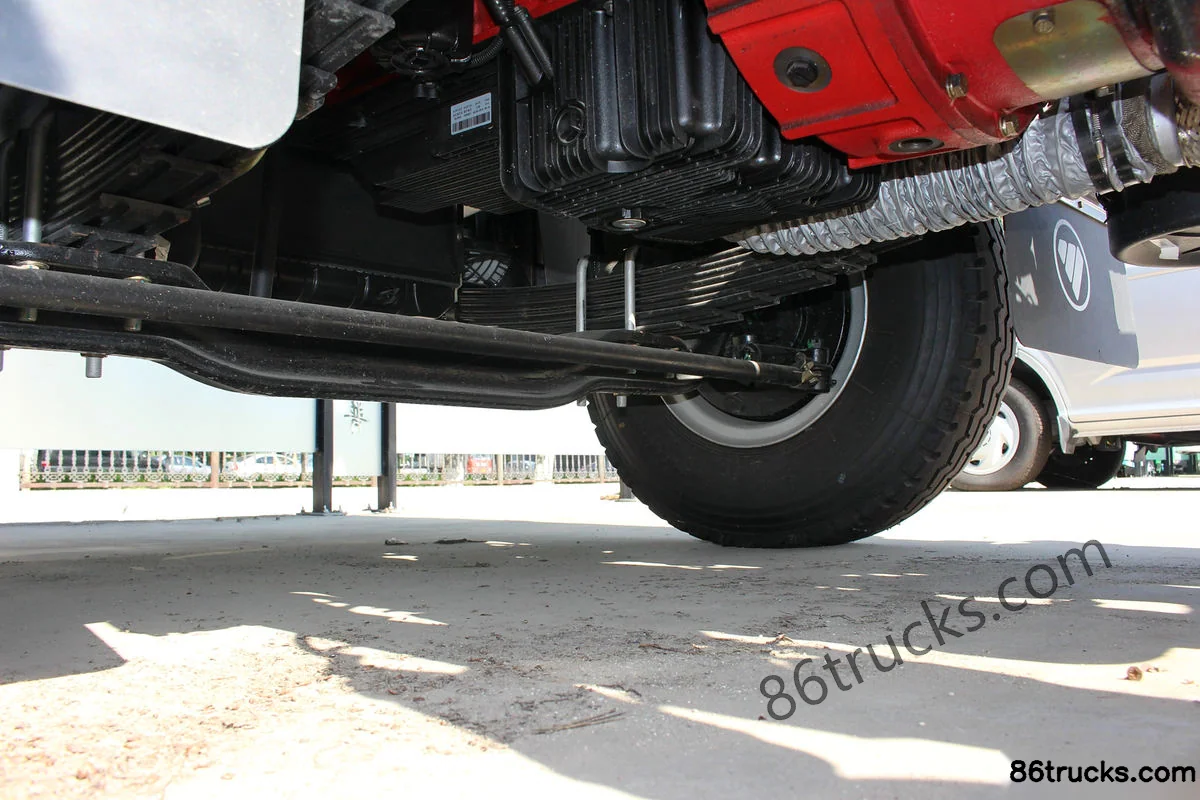

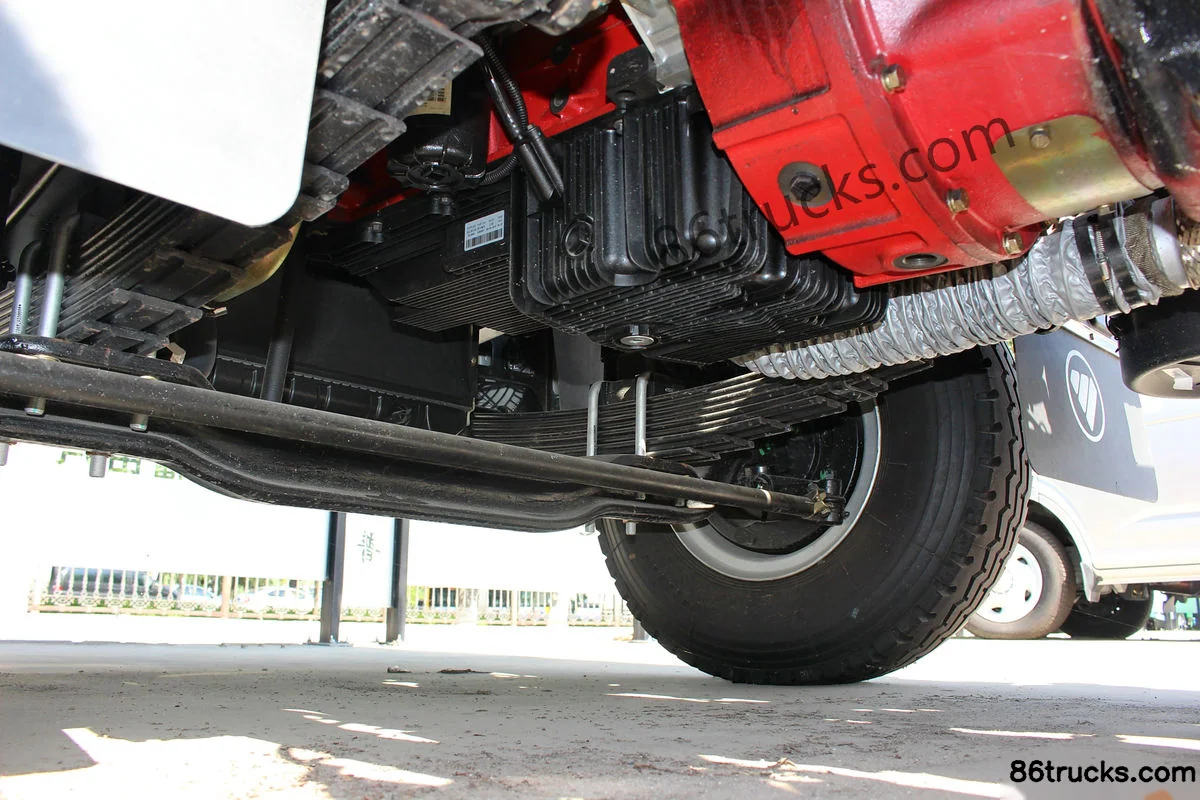

Chassis3

8 photos

FAQ

What emission standard does Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis?

Key specs of Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis suited for?

Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis differ from other variants in the same series?

Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTX Medium Truck 156 hp 4X2(6 wheels) 5.15m Semi-Sleeper Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
