Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck

Export reference
MSRP N/A
Horsepower: 108
Emission: China IV
Fuel: Diesel
Engine: Dachai498
Transmission: FAW Jiefang
Curb Weight:: 2.675ton
Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck exterior
View more photos (9)
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Shenyang Jinbei Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck is a Light Truck featuring 3.1m cargo length, Van body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a Dachai498 engine, 108 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 108 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SY5044XXYS-Z9
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3350mm
Box length class: 3.1m
engine: DachaiCA4DC2-10E4
transmission: FAW JiefangCA5TBX028M
Cab length: 5.995m
Cab width: 2m
Cab height: 2.95m
Front track width: 1486mm
rear track: 1400mm
Curb Weight: 2.675ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Shenyang, Liaoning
tonnage class: Light Truck
Approach angle: 21°
departure angle: 20°
Front/rear suspension: 1.115/1.53m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-10E4
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China IV
Max output power: 79kW
Max hp: 108Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: FAW JiefangCA5TBX028M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.1m
Cargo box width: 1.9m
Cargo box height: 1.9m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1760kg
rear axle allowable load: 2735kg
Leaf spring count: 8/9+3,3/3+3
Tire
Tire Size: 6.50-16 10PR,7.00-16 8PR,6.50R16 10PR,7.00R16 8PR
Number of tires: 6pcs

Photos

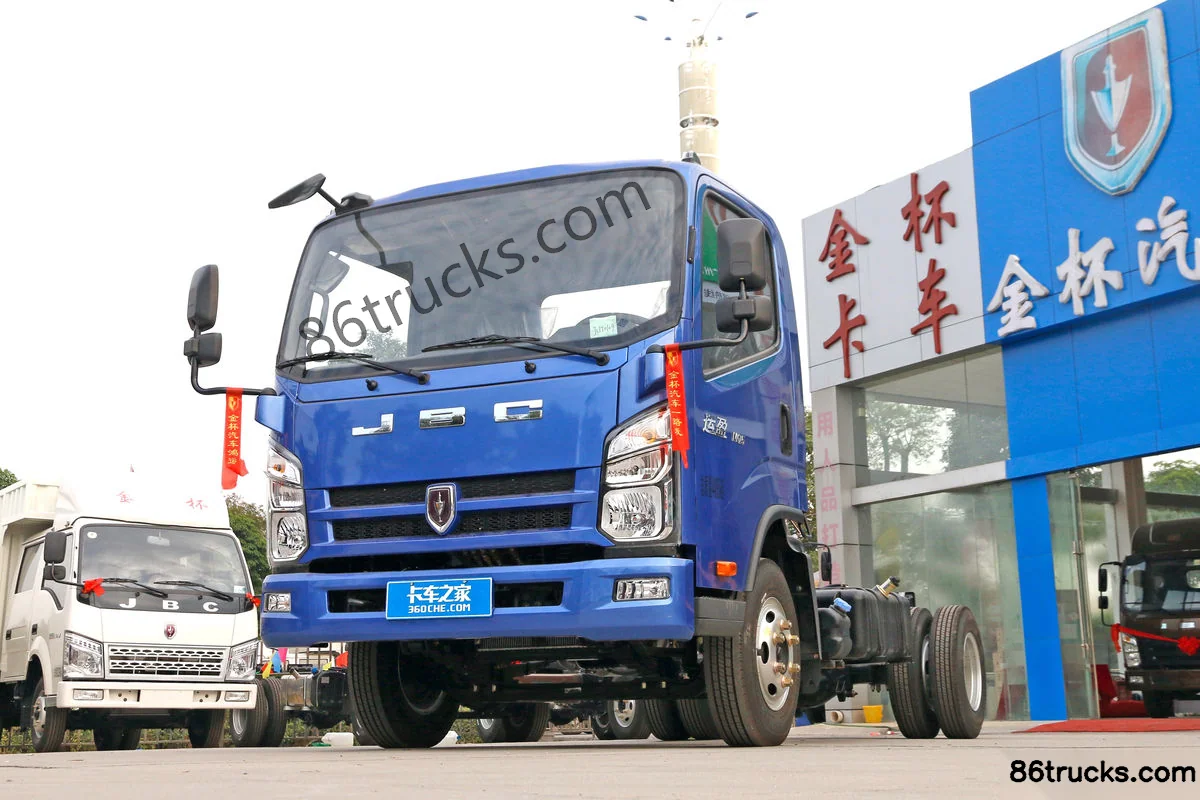

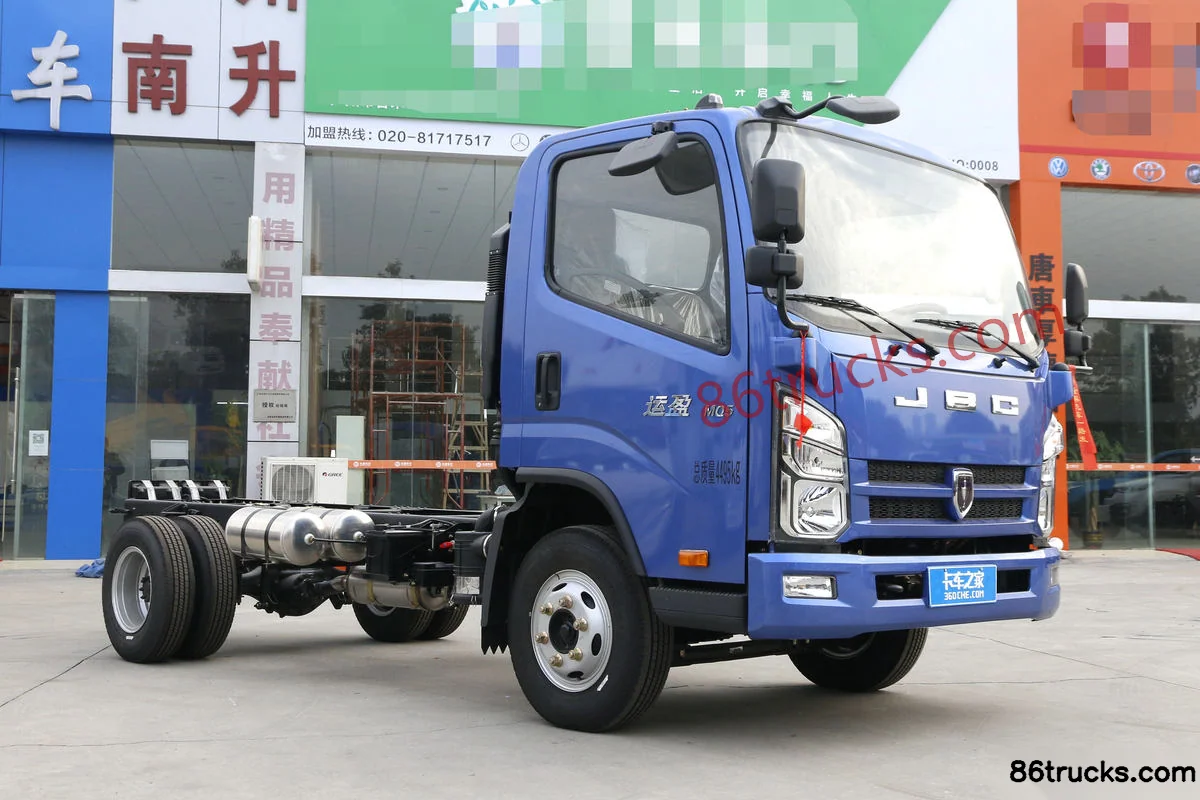

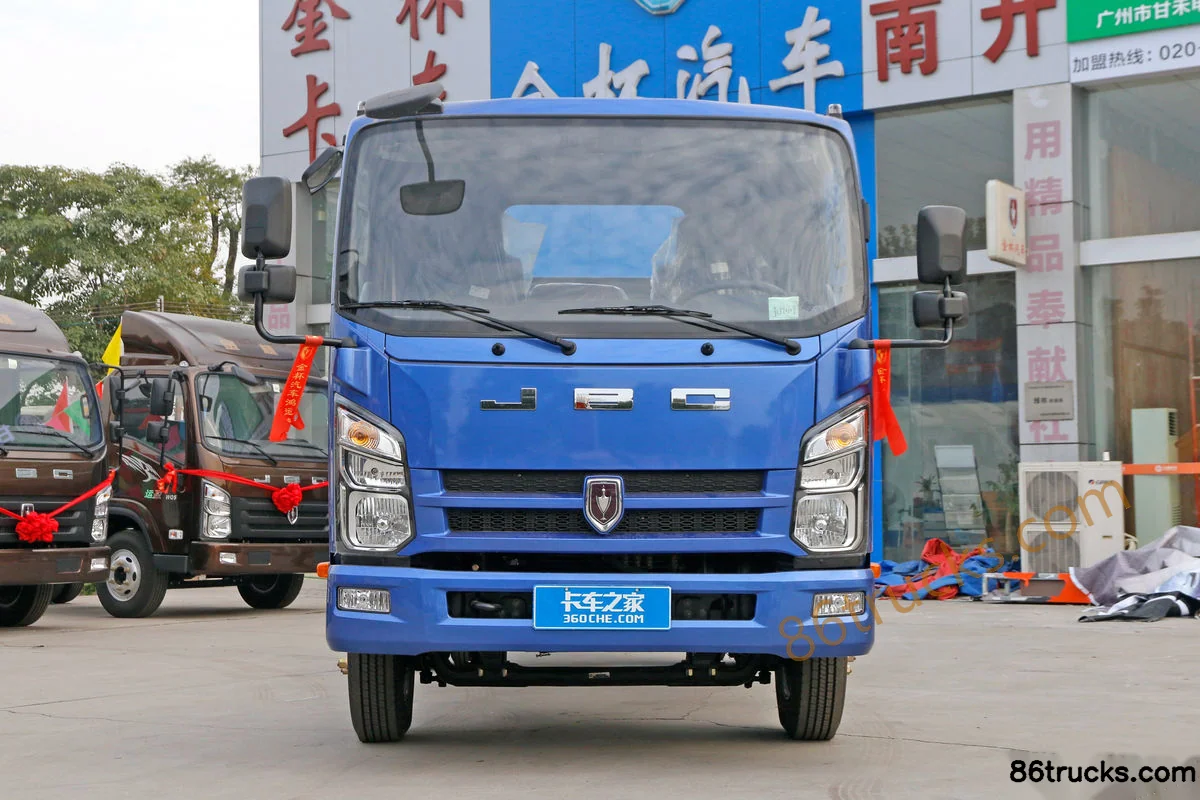

Exterior3

Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Exterior (1) | 86Trucks Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Exterior (2) | 86Trucks Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Exterior (3) | 86Trucks

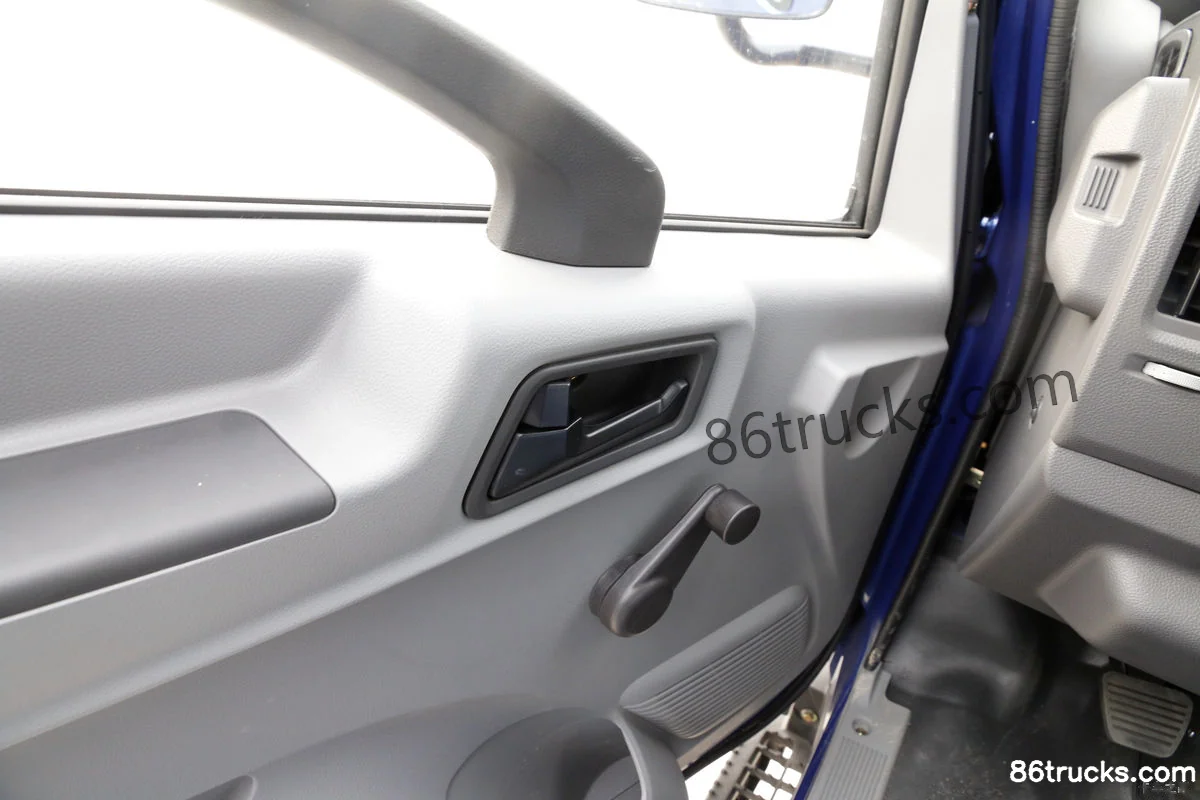

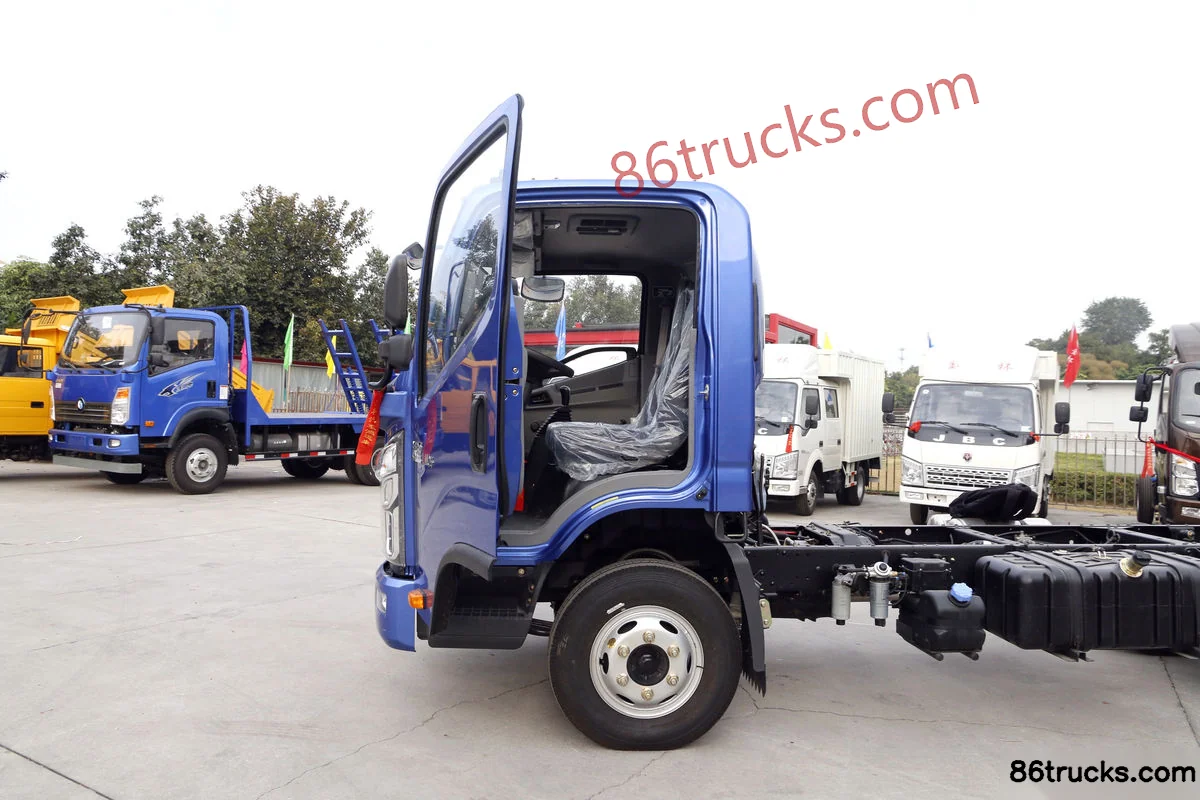

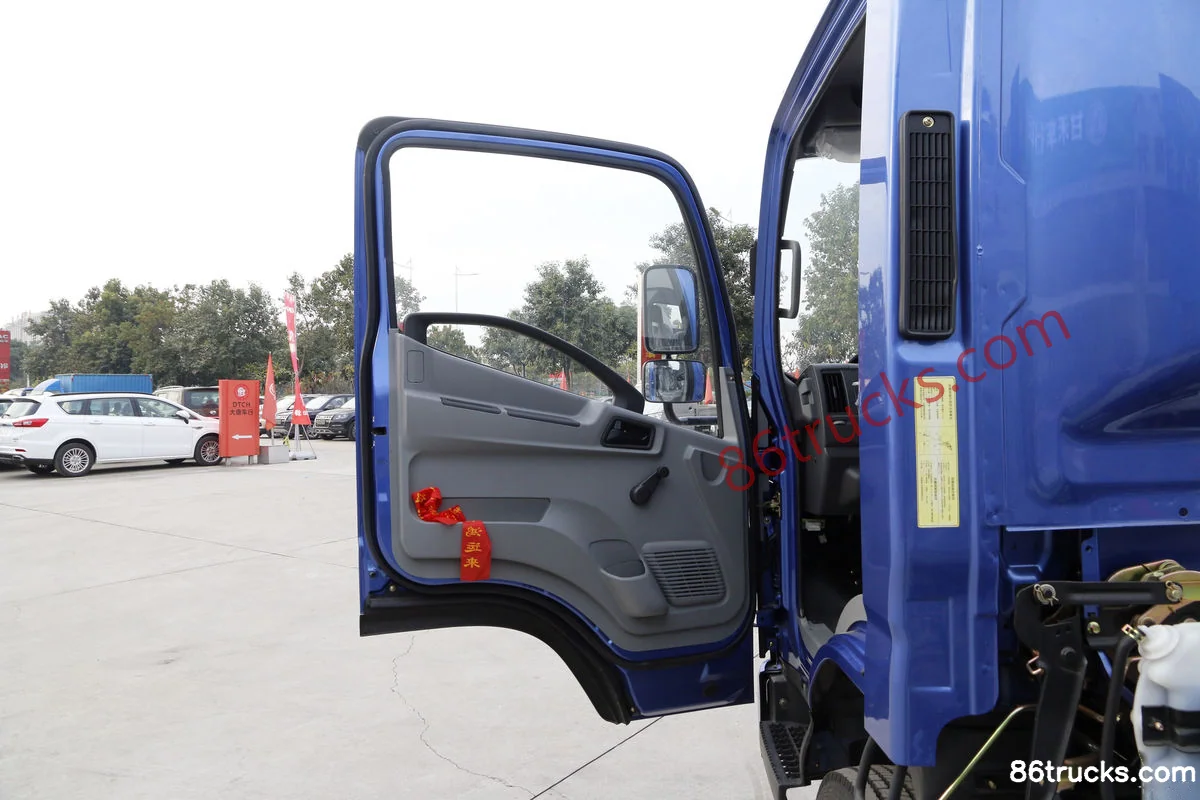

Cab3

Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Cab (1) | 86Trucks Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Cab (2) | 86Trucks Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Cab (3) | 86Trucks

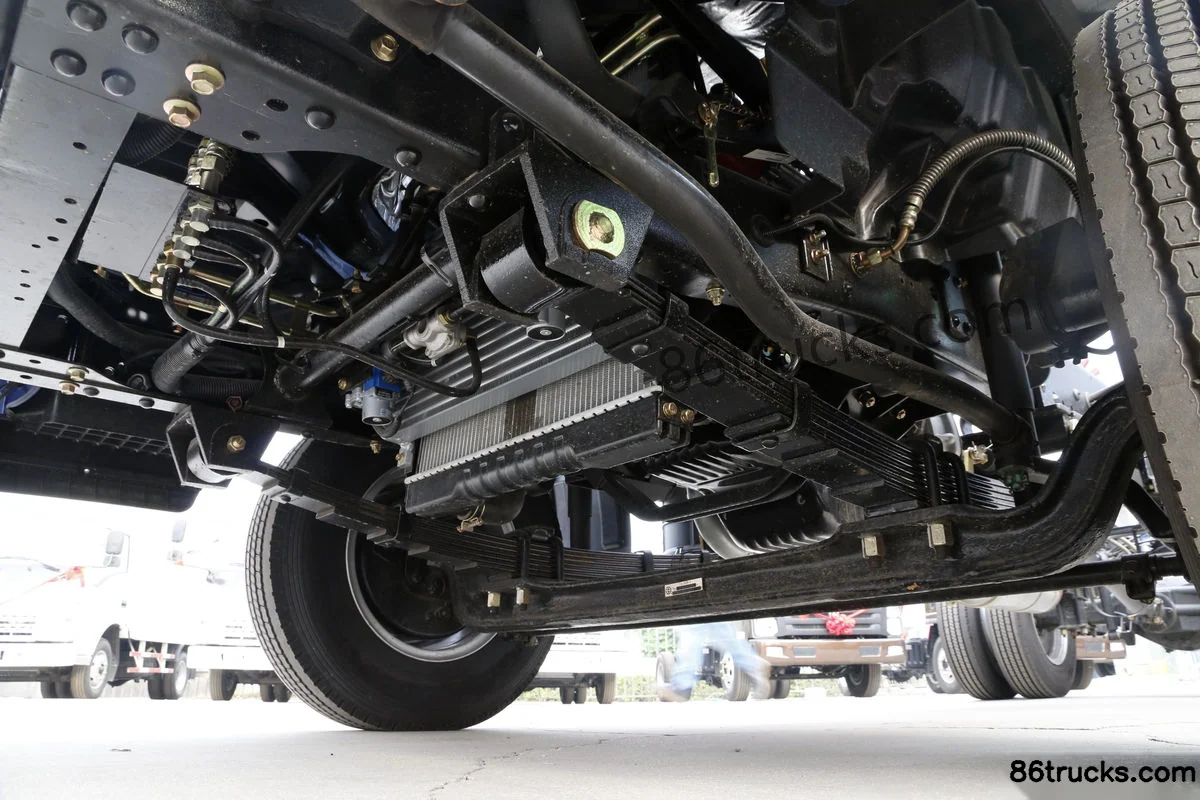

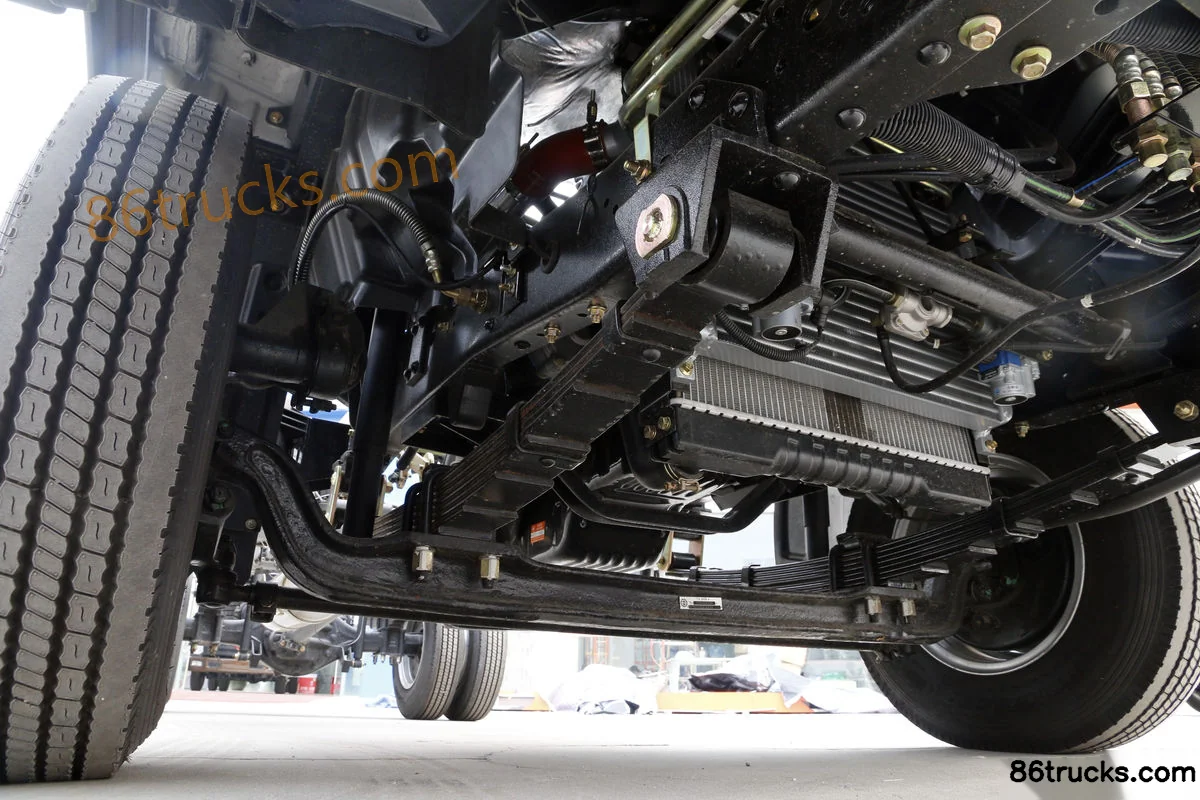

Chassis3

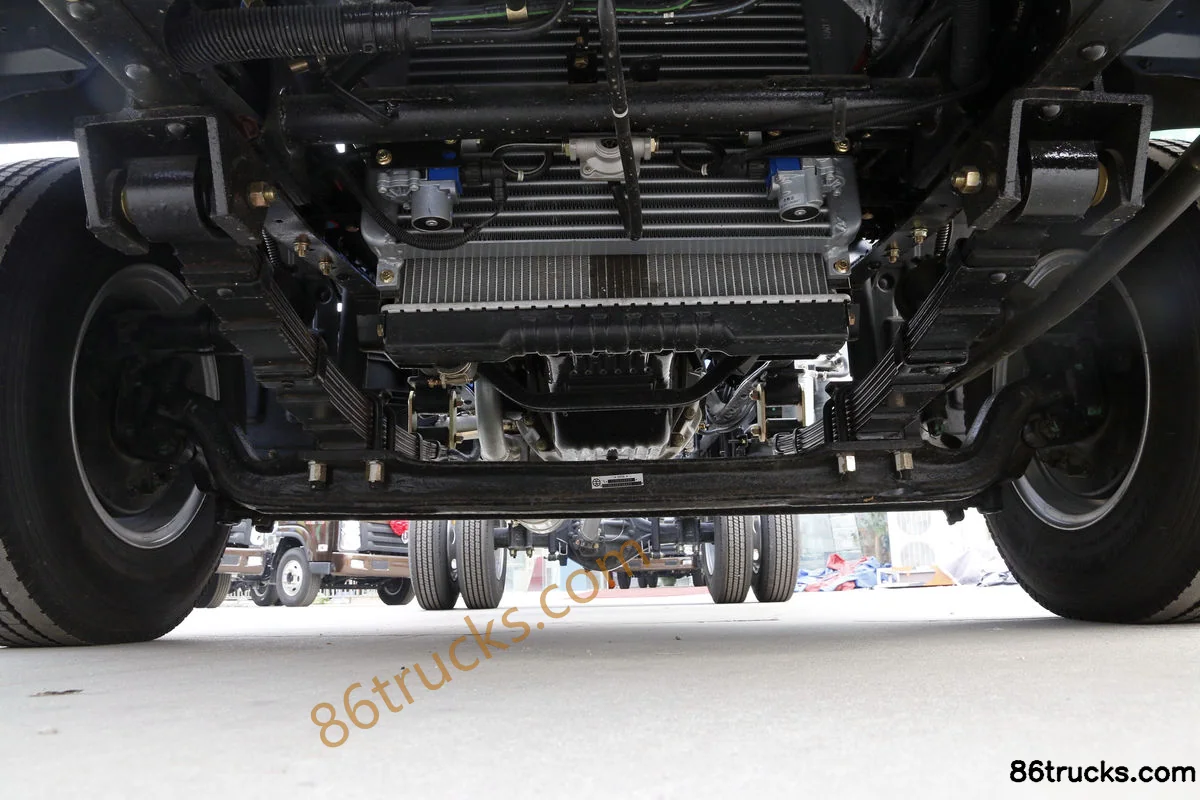

Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Chassis (1) | 86Trucks Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Chassis (2) | 86Trucks Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck?

Key specs of Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck: Drive: 4x2; Horsepower: 108 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai498; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck suited for?

Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck differ from other variants in the same series?

Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck belongs to Jinbei Yunying Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei Yunying 108 hp 4X2(6 wheels) 3.1m Double Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
