Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh

Export reference
From $46,250
MSRP ¥33.3M CNY
Rated payload:: 8.605ton
Wheelbase:: 5700mm
Cargo box type:: Van body
Model code (announced):: LZ5180XXYH5AZBEV101
Type:: enclosed cargo truck
Box length class:: 7.8m
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Tebest
Curb Weight: 9.2ton

Overview

The Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh is a Medium-duty truck featuring 220km battery/range, Tebest motor, 4X2 (6 wheels) drive and 8.605t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5180XXYH5AZBEV101
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.8m
Cab length: 10.1m
Cab width: 2.55m
Cab height: 4m
CLTC range: 220km
Curb Weight: 9.2ton
Rated payload: 8.605ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ380XSTPG67
Motor Type: Permanent magnet synchronous motor
total rated power: 120kW
Peak power: 185kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.8h
Battery capacity: 246.67kWh
fast charge range: 20%-80%
Transmission Parameters
Transmission Model: TS-04.12
shift method: AMT manual/auto
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.8m
Cargo box width: 2.48m
Cargo box height: 2.7m
Cab parameters
Cab: M31V
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 9T rear axle
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
AEB automatic emergency braking system:

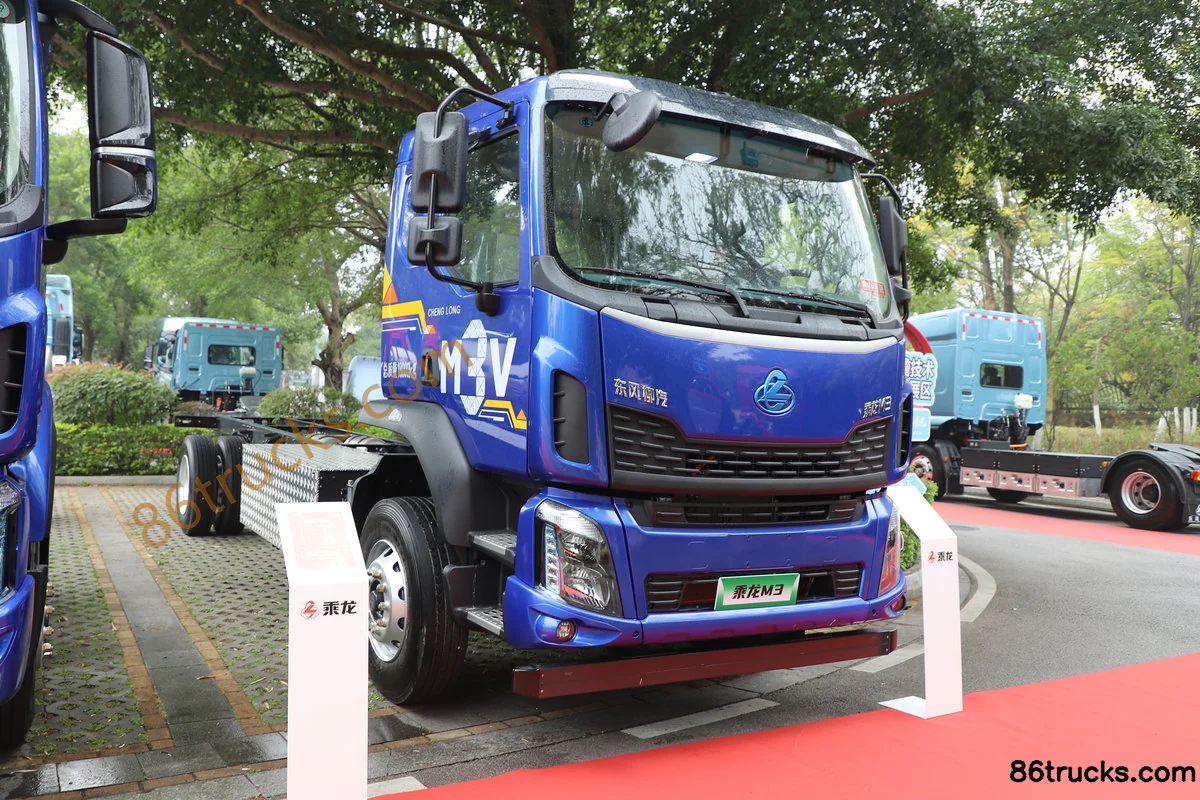

Photos

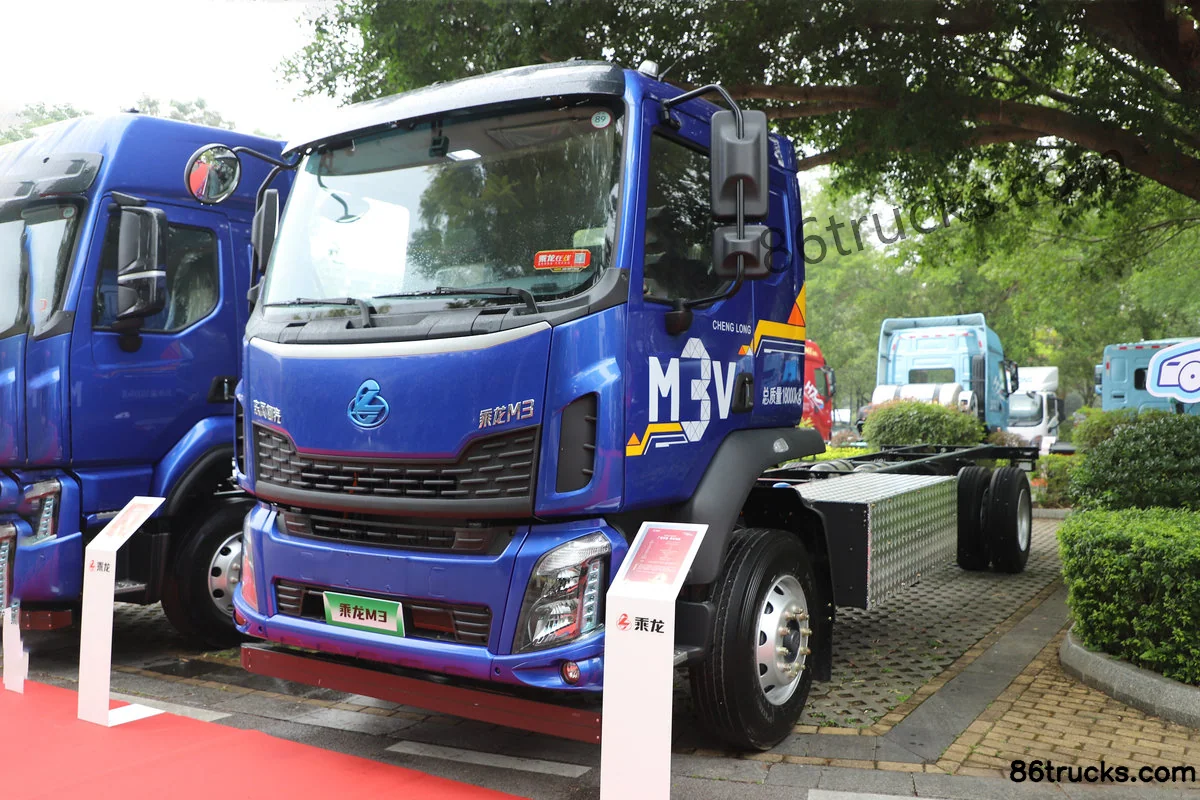

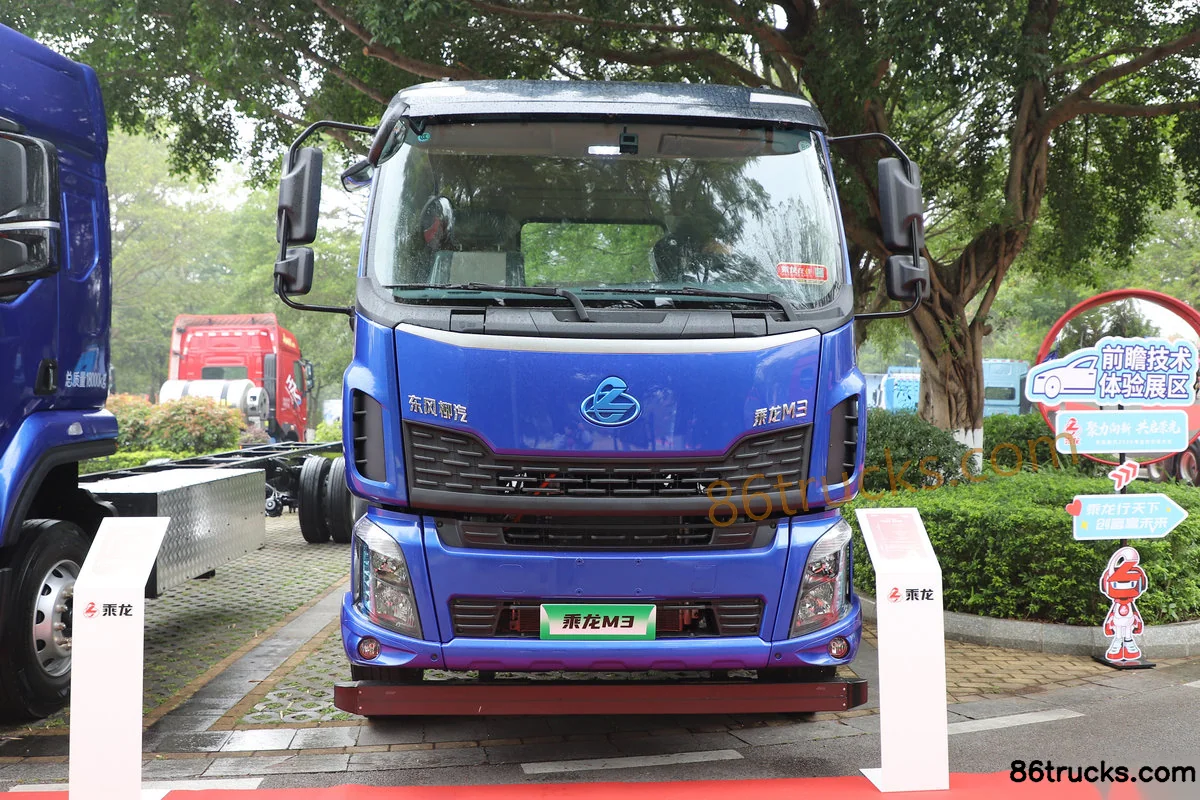

Exterior3

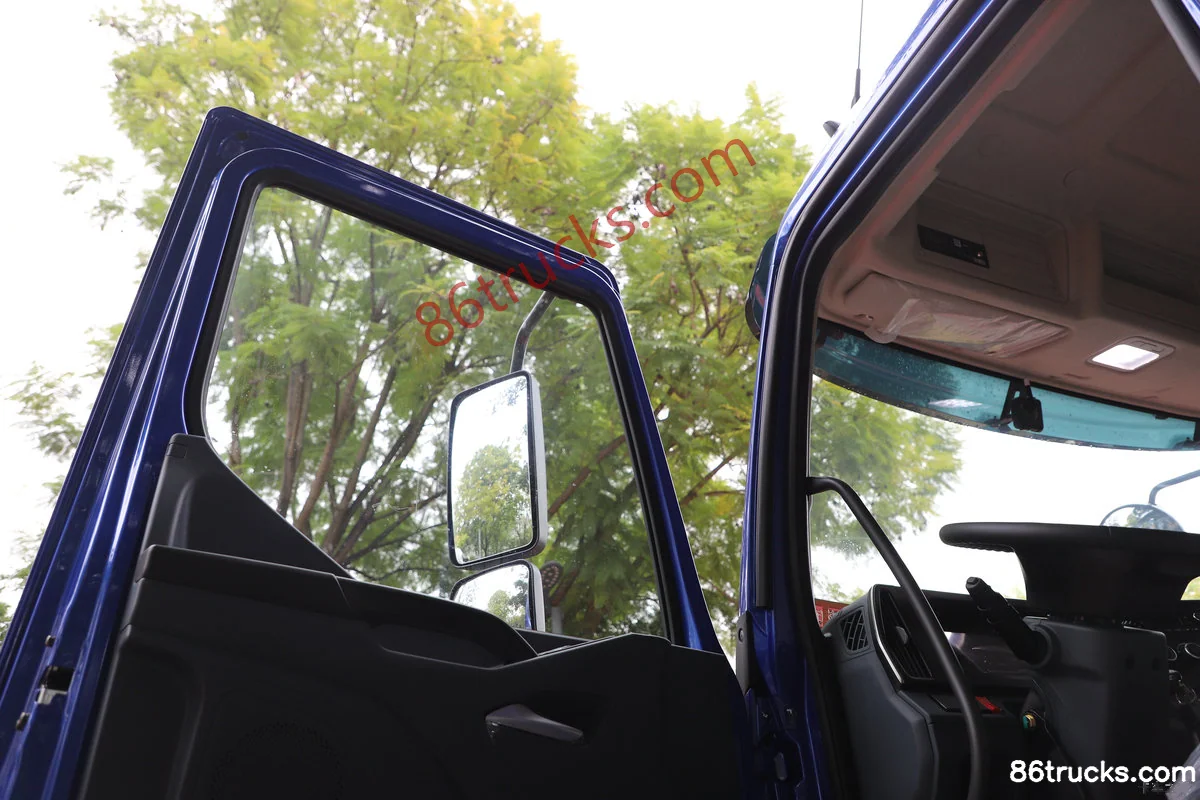

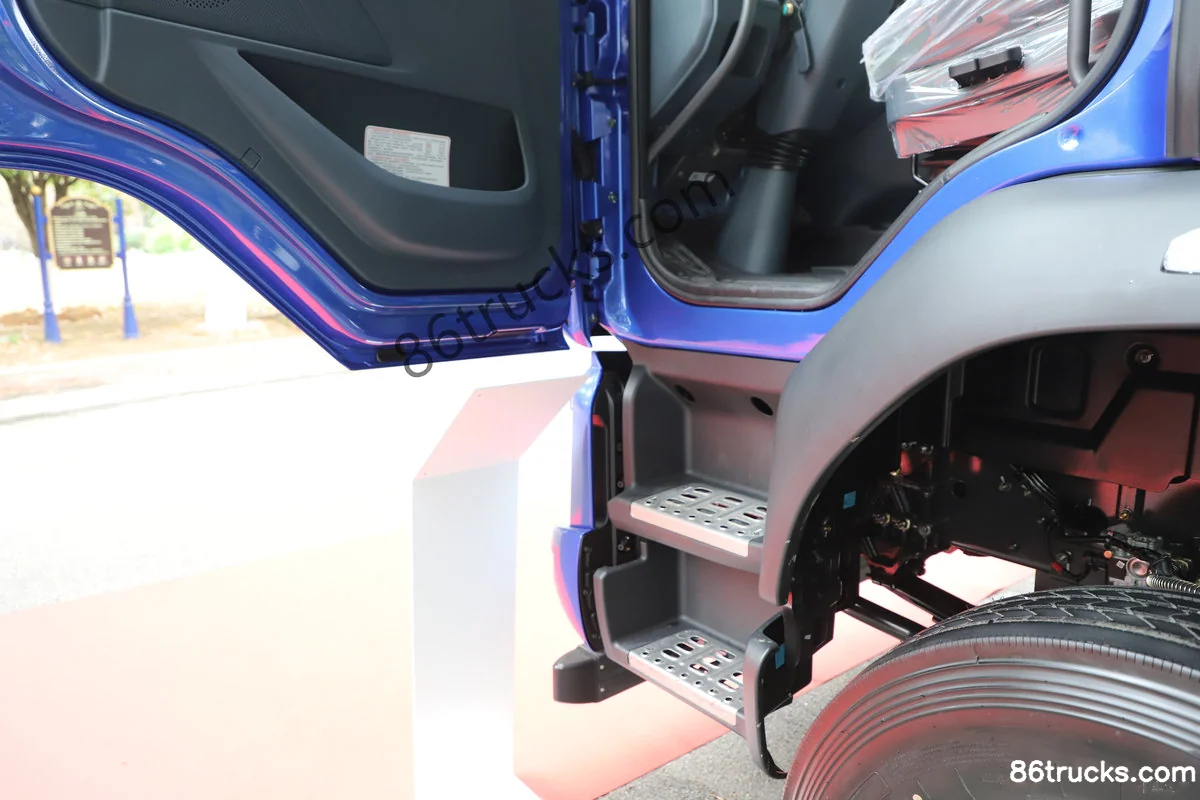

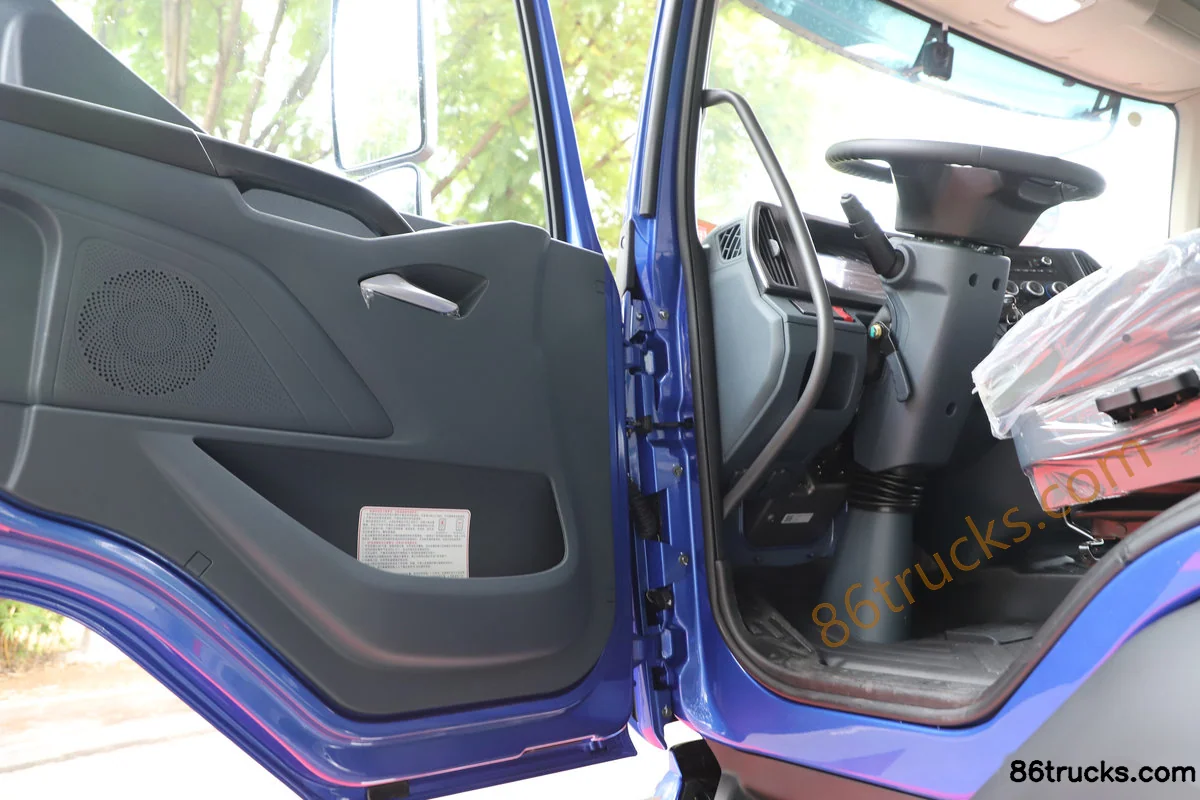

Cab3

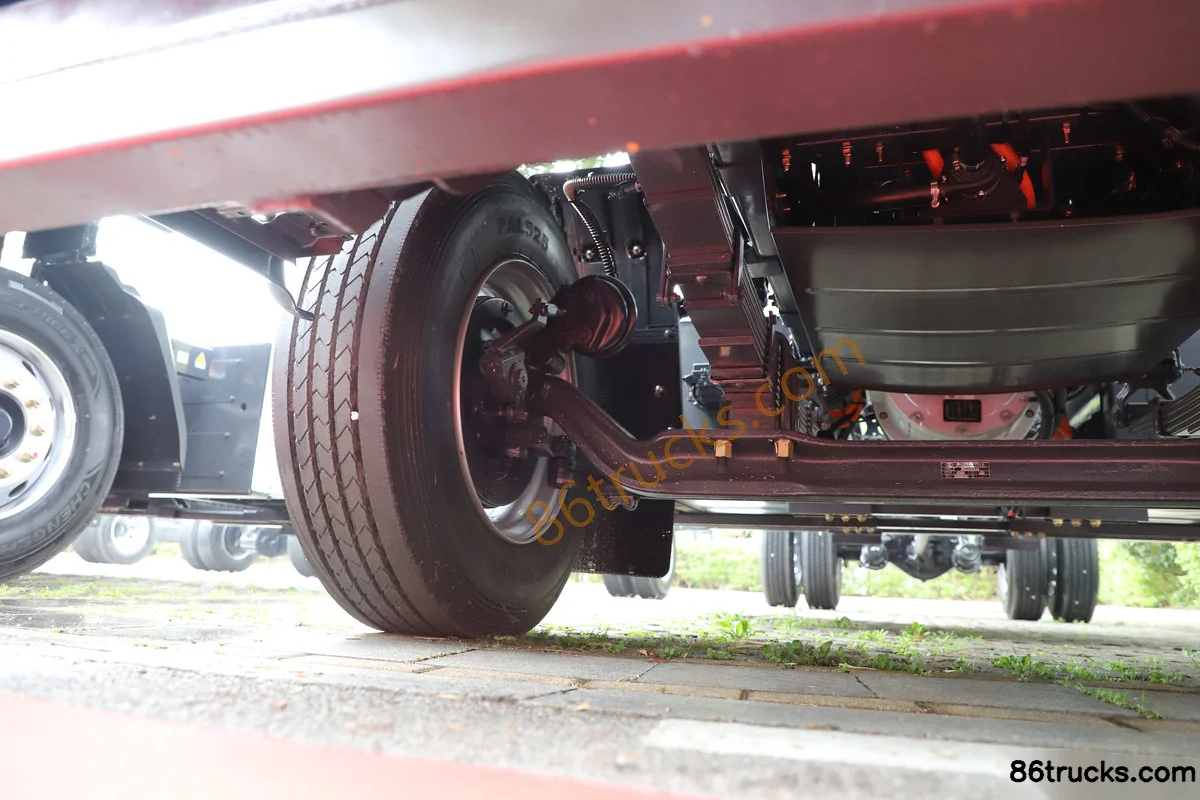

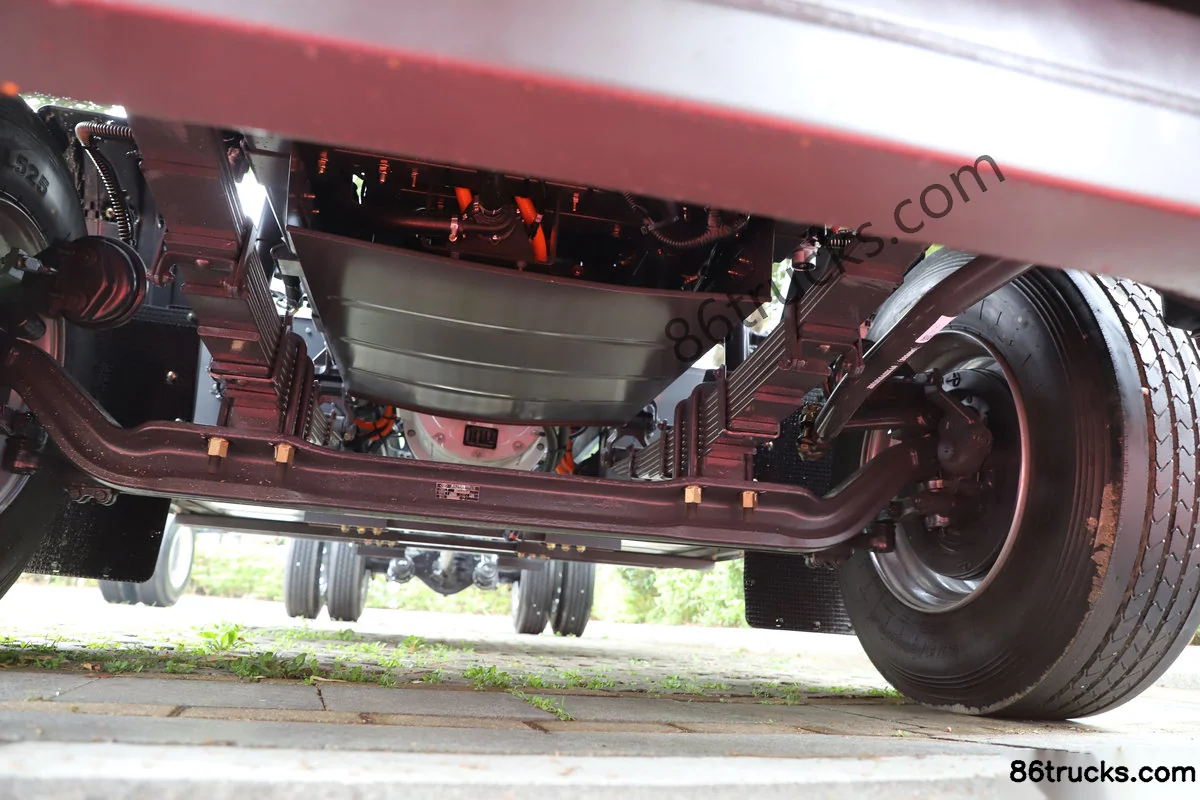

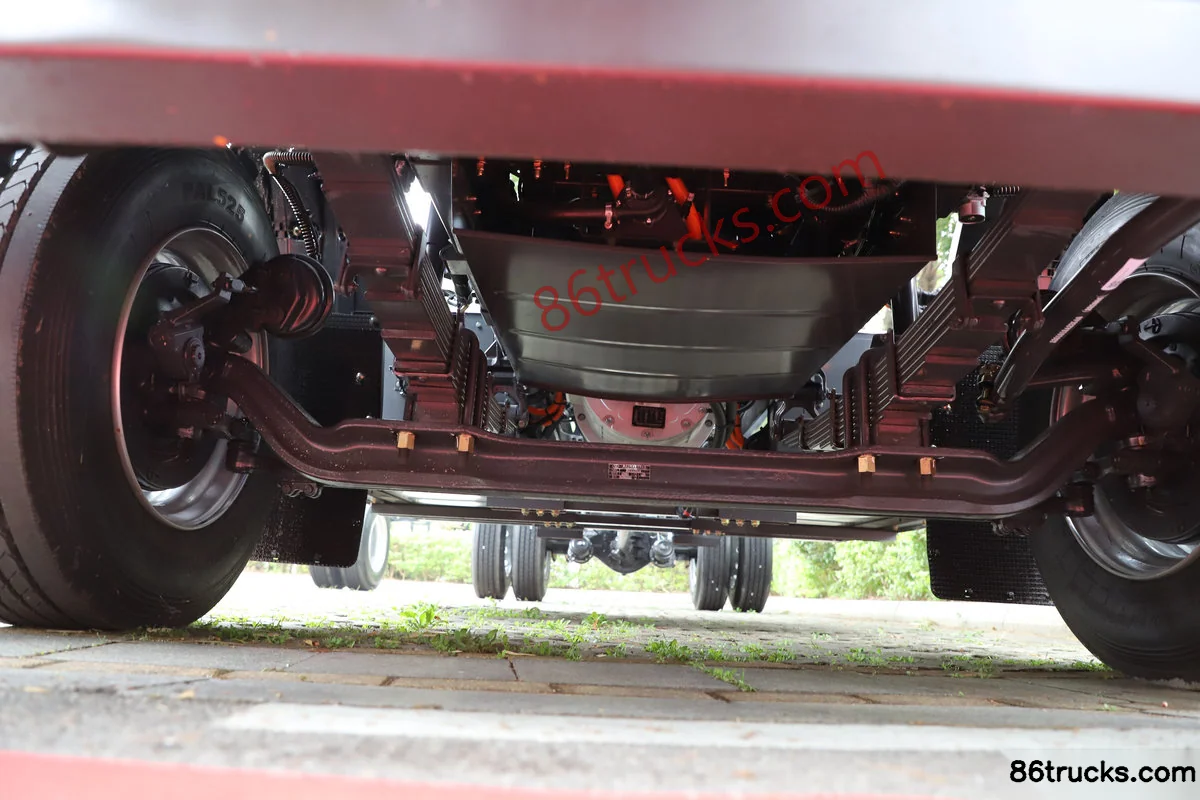

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh, and what does it include?

Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh export reference is about From $46,250; MSRP is ¥33.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh?

Key specs of Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh suited for?

Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh belongs to Dongfeng Chenglong M3V Medium Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3V 4X2(6 wheels) 7.8m Pure Electric Van Cargo Truck CATL 246.67kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
