JAC ES9 4.18m Single Row Pure Electric Box Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $41,083
Export quote

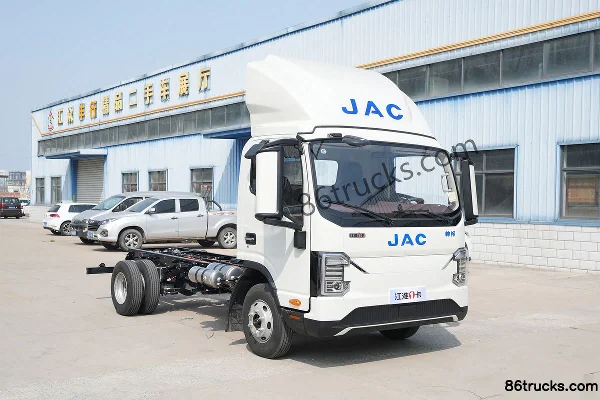

JACES9 electric cargo truck
Main model photos
34 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC ES9 4.18m Single Row Pure Electric Box Light Truck CATL 140.41kWh 4X2(6 wheels) | 4x2 | From $41,083 | |
| JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) | 4x2 | From $48,611 | |
| JAC ES9 4.15m Single Row Pure Electric Van Light Truck CATL 165.15kWh 4X2(6 wheels) | 4x2 | From $48,611 | |
| JAC ES9 4.18m Single Row Pure Electric Flatbed Light Truck CATL 140.41kWh 4X2(6 wheels) | 4x2 | From $40,250 | |
| JAC ES9 4.15m Single Row Pure Electric Van Truck CATL 140.41kWh 4X2(6 wheels) | 4x2 | From $41,639 |
JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels)
EXW
From $48,611
Export quote
JAC ES9 4.15m Single Row Pure Electric Van Light Truck CATL 165.15kWh 4X2(6 wheels)
EXW
From $48,611
Export quote
JAC ES9 4.18m Single Row Pure Electric Flatbed Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $40,250
Export quote
JAC ES9 4.15m Single Row Pure Electric Van Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $41,639
Export quote
Series Specs
Basic Info
Model code (announced): HFC5043XXYP5EV1N / HFC5043CCYP4EV2 / HFC5043XXYP4EV2 / HFC1043P4EV1 / HFC5043XXYP4EV1 / HFC5043CCYP4EV1 / HFC1042EV5 / HFC5042CCYEV7 / HFC5042XXYEV5
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3600 / 3365mm
Box length class: 4.2m
Cab length: 5.995 / 5995m
Cab width: 2.2 / 1920m
Cab height: 3.34 / 2.7 / 3.3 / 2.475 / 3.18 / 3.12m
CLTC range: 420 / 350km
Curb Weight: 3.405 / 3.46 / 3.41 / 2.85 / 3.1 / 3.25ton
Rated payload: 0.895 / 0.84 / 0.89 / 1.45 / 1.2 / 1.05ton
GVWR: 4.495ton
Max. speed: 90 / 100km/h
Origin: Suining, Sichuan / Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong / Bosch / JAC Motors
Motor 1 Model: TZ270XS-LKM0401 / TZ230XS001 / TZ220XSJ300
Motor Type: Permanent magnet synchronous motor
Peak power: 200 / 167 / 170kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery / NMC lithium battery pack
fast charge time: 0.6h
Battery capacity: 140.41 / 165.15 / 120.27kWh
fast charge range: 20%-80%
Cargo box parameters
Cargo box volume: 18.3m³
Cargo box type: Van body / Stake type / stake body
Cargo box length: 4.18 / 4.15m
Cargo box width: 2.1m
Cargo box height: 2.3 / 0.5 / 0.4 / 2.1m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1900kg
rear axle description: 6T
rear axle allowable load: 2595kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
FAQ
What kind of truck is JAC JACES9 electric cargo truck?
JAC JACES9 is an export-oriented electric cargo truck lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JACES9 electric cargo truck?
JACES9 electric cargo truck export reference is about $38,861 – $48,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JACES9 electric cargo truck cover?
JACES9 electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JACES9 electric cargo truck?
For JACES9 electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JACES9 electric cargo truck include?
JACES9 electric cargo truck currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JACES9 electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
