JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels)

Export reference
From $48,611
MSRP ¥35M CNY
Rated payload:: 0.84ton
Wheelbase:: 3365mm
Cargo box type:: Stake type
Model code (announced):: HFC5043CCYP4EV2
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Bosch
Curb Weight: 3.46ton

Overview

The JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) is a Light Truck featuring CATL battery/range, Bosch motor, 4X2 (6 wheels) drive and 0.84t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043CCYP4EV2
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.34m
Curb Weight: 3.46ton
Rated payload: 0.84ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ230XS001
Motor Type: Permanent magnet synchronous motor
total rated power: 90kW
Peak power: 167kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: NMC lithium battery pack
Battery capacity: 165.15kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.1m
Cab parameters
Cab width: 1920mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1900kg
rear axle allowable load: 2595kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
smart configuration
Cruise control (CCS):

Photos

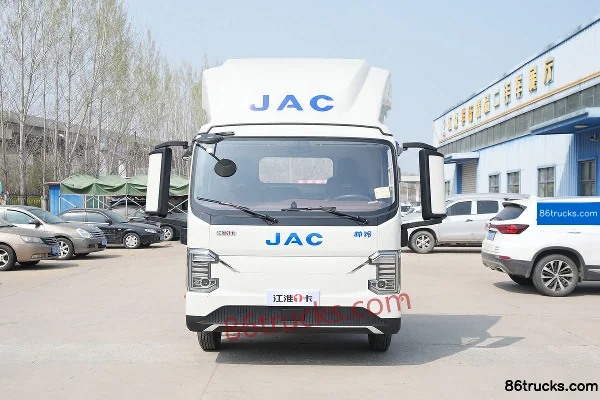

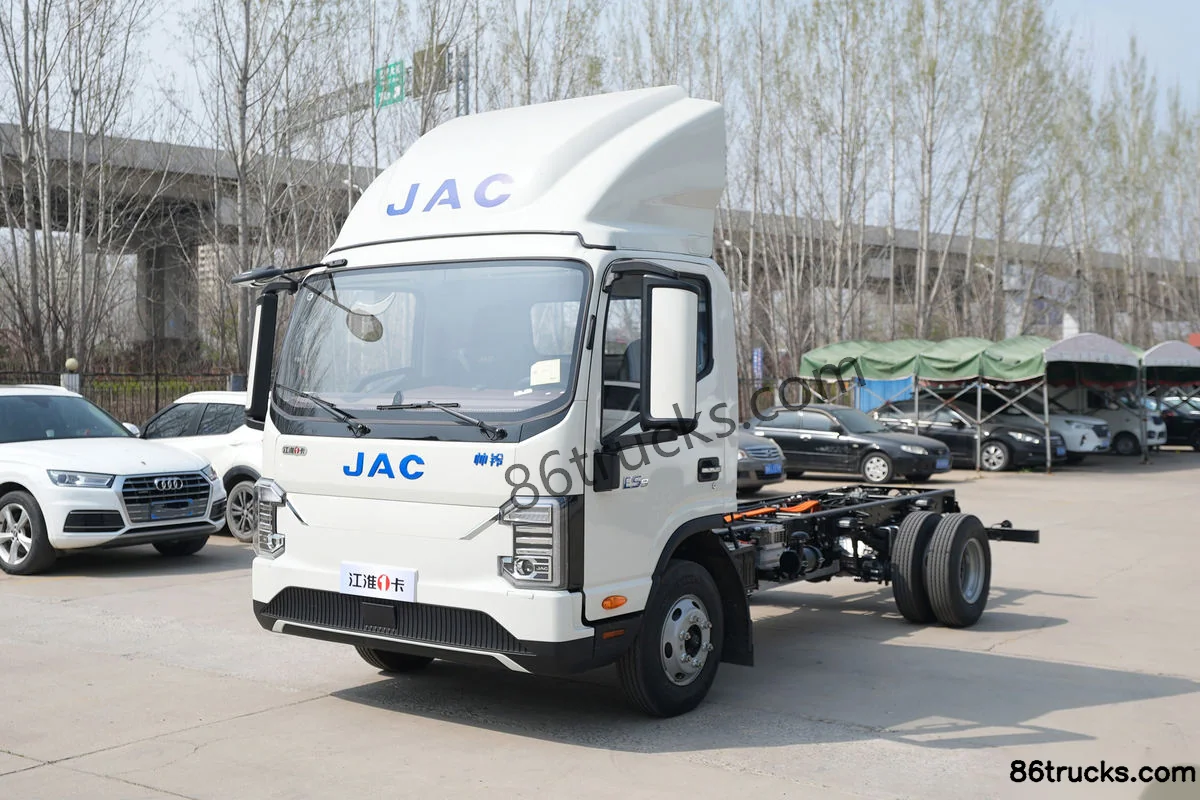

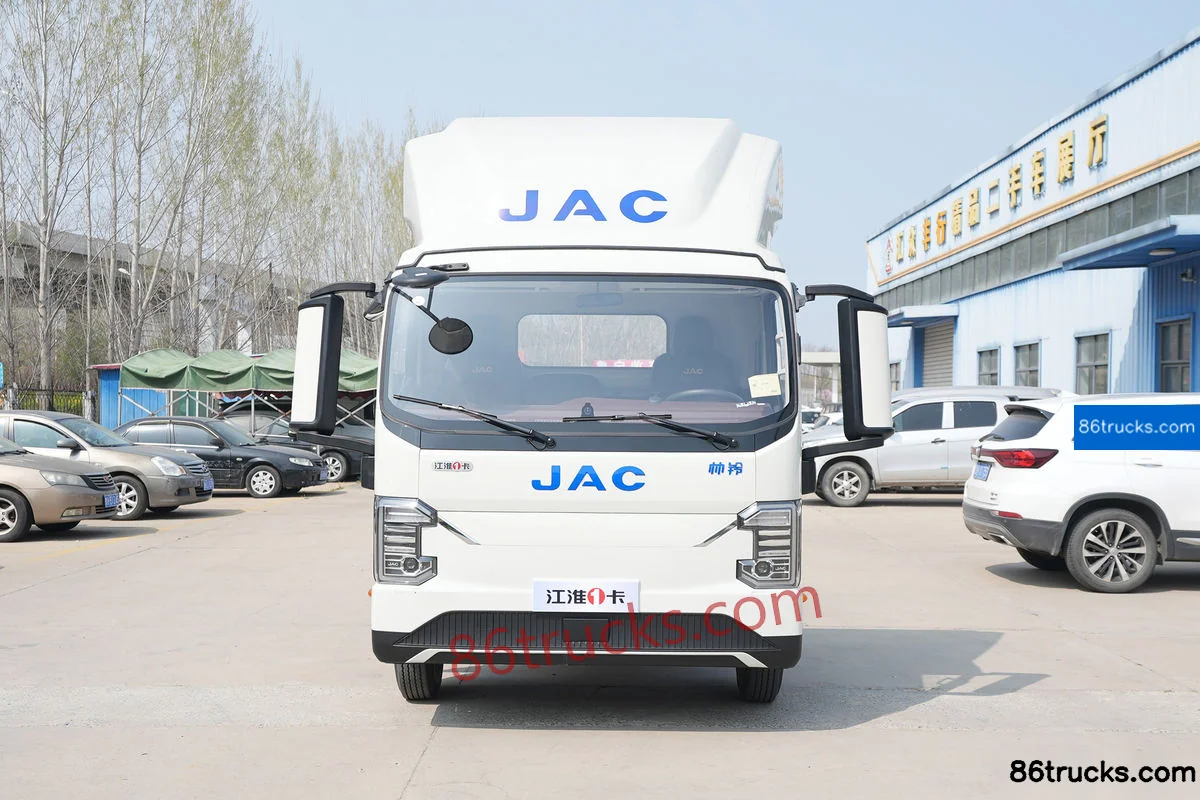

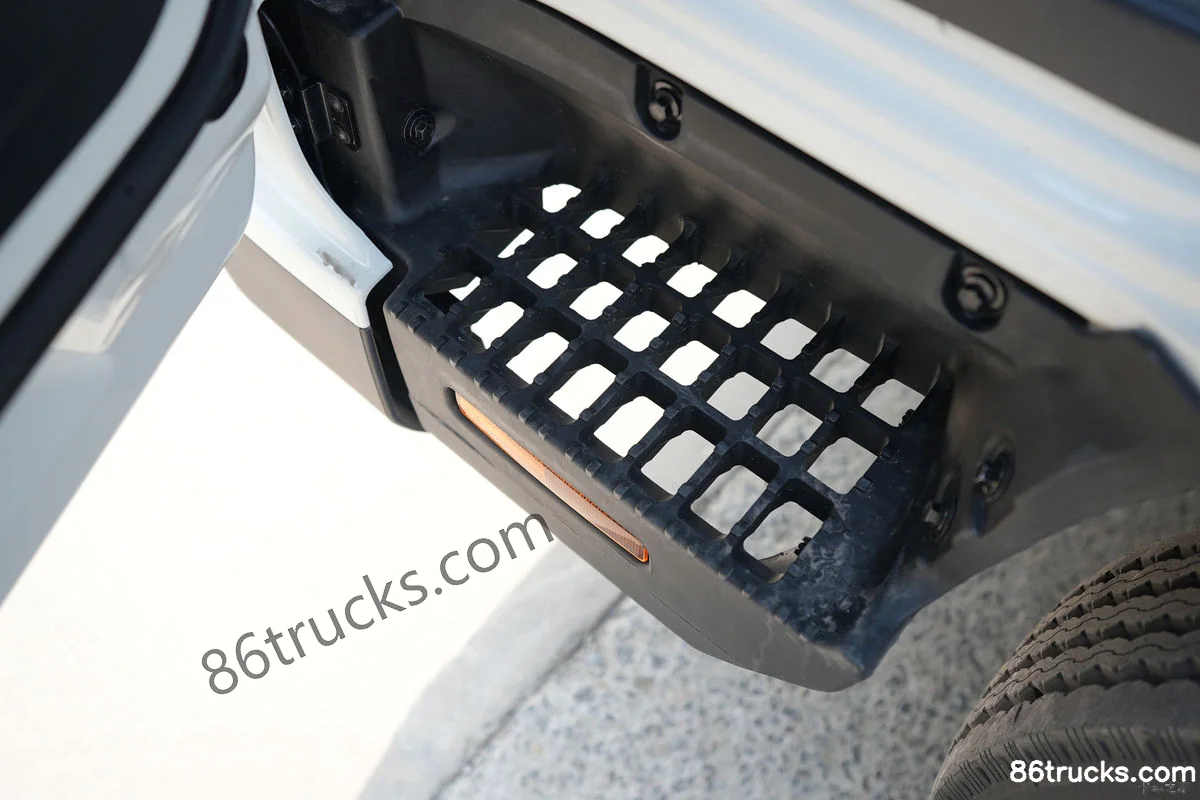

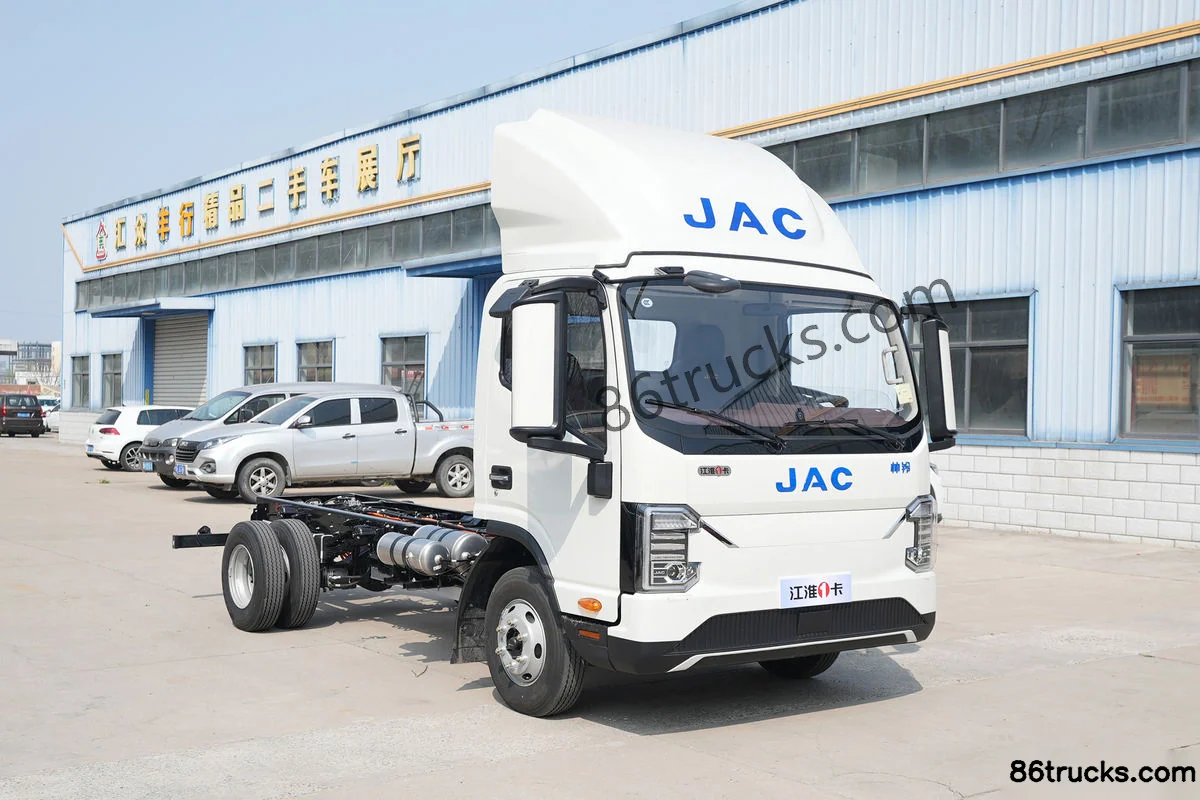

Exterior3

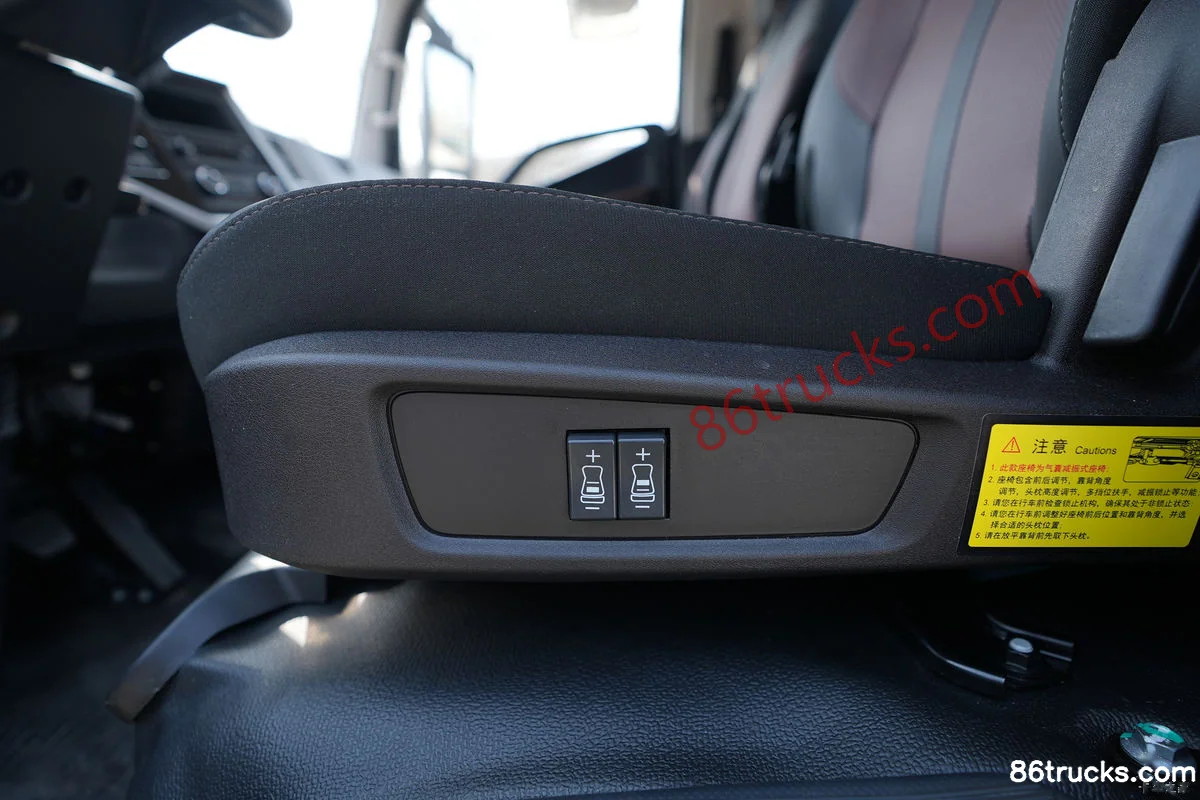

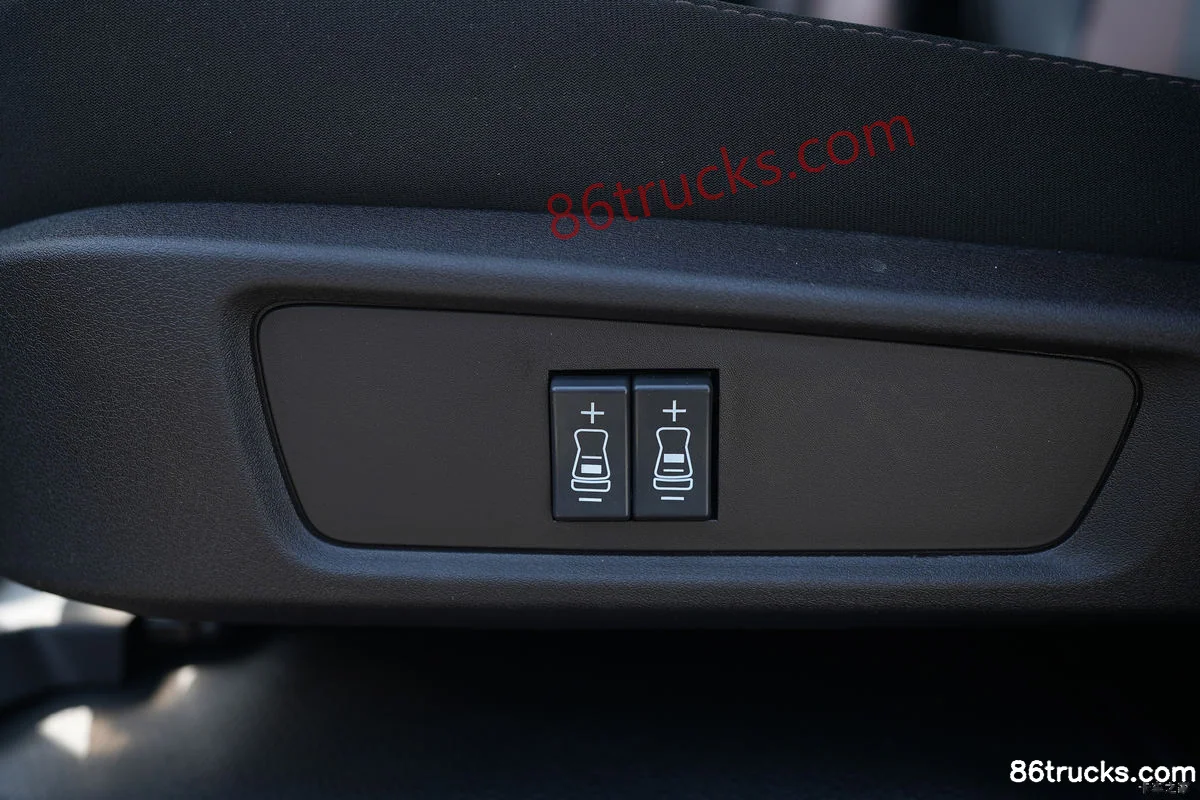

Cab3

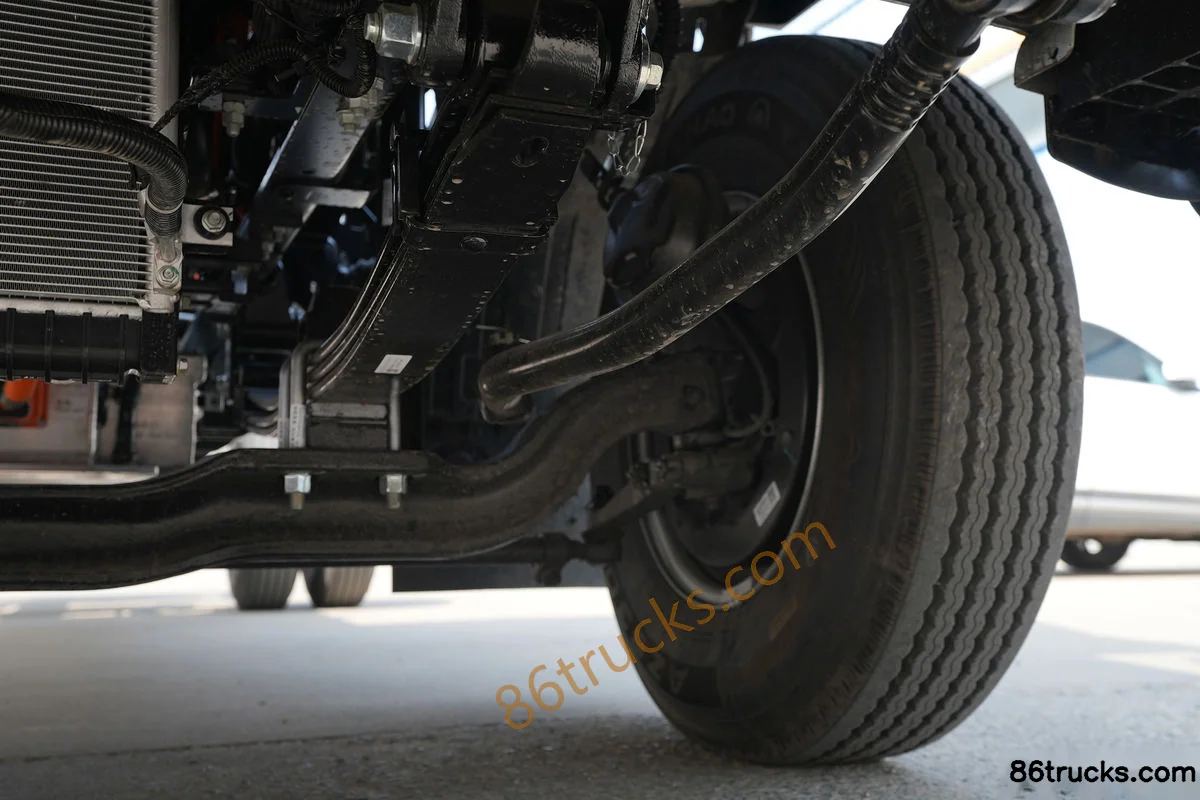

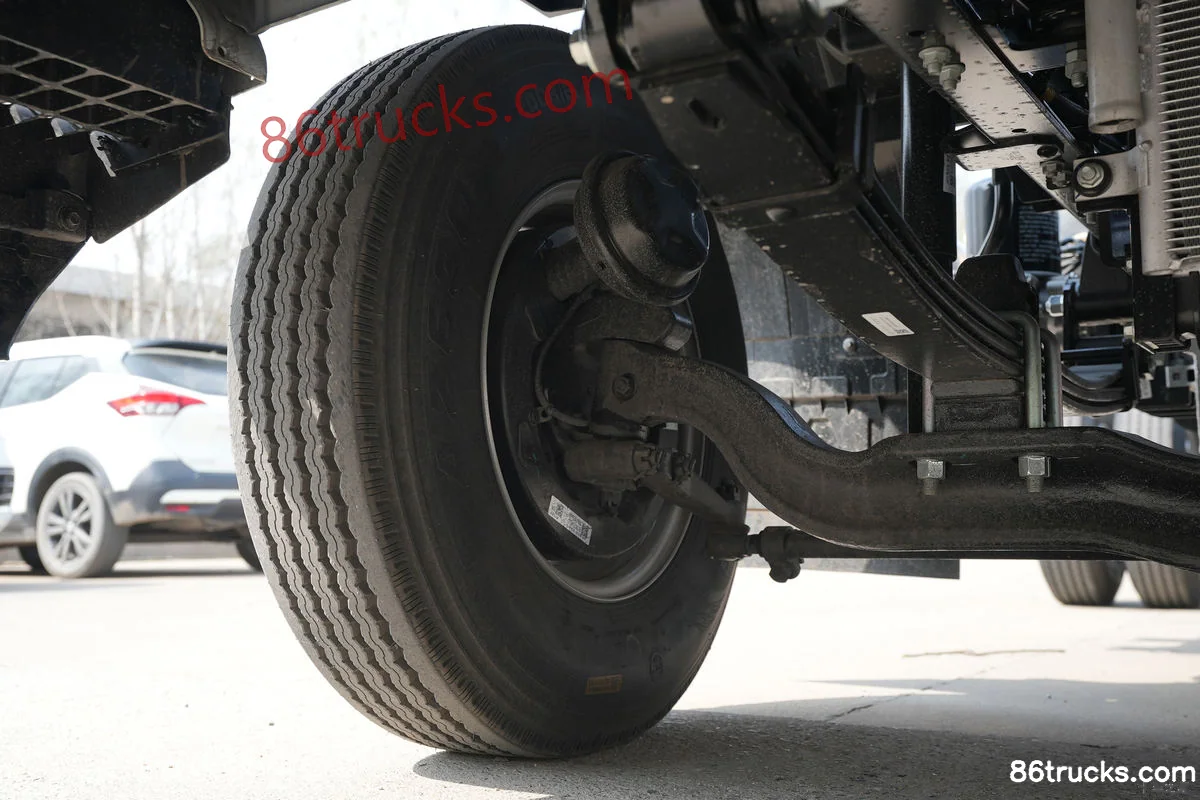

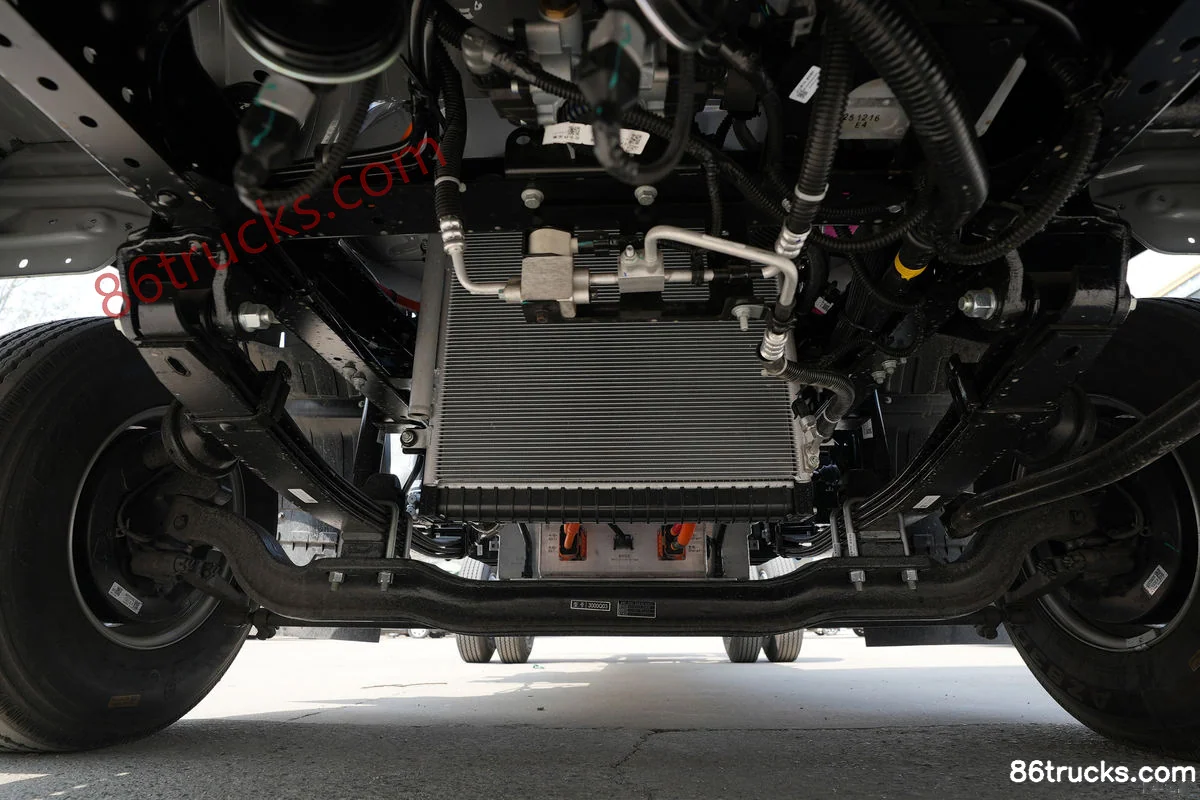

Chassis3

9 photos

FAQ

What is the export price of JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels), and what does it include?

JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) export reference is about From $48,611; MSRP is ¥35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels)?

Key specs of JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) suited for?

JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) differ from other variants in the same series?

JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels) belongs to JACES9 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC ES9 4.18m Single Row Pure Electric Stake Light Truck CATL 165.15kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
