FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels)

Export reference
From $31,528
MSRP ¥22.7M CNY
Rated payload:: 1.15ton
Wheelbase:: 3300mm
Cargo box type:: stake body
Model code (announced):: CA1042P40K51L2E6PHEVA84
Type:: Cargo Trucks
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: Lishen
Motor 1 Brand: CRRC Times
Curb Weight: 3.15ton

Overview

The FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels) is a Light Truck featuring Lishen battery/range, CRRC Times motor, 4X2 (6 wheels) drive and 1.15t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1042P40K51L2E6PHEVA84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.395m
Curb Weight: 3.15ton
Rated payload: 1.15ton
GVWR: 4.495ton
Max. speed: 95km/h
tonnage class: Light Truck
Version: Standard Load Edition
Energy Type: Hybrid
electric motor
Motor 1 Brand: CRRC Times
Motor 1 Model: TZ180XS018A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 40kW
Peak power: 60kW
Battery/Charging
Battery Brand: Lishen
Battery capacity: 38.4kWh
Engine parameters
Engine Model: XichaiCA4DB1-14E68
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 0.41m
Cab parameters
Cab: Hu 6G Single Row Wide Body
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: 270 rear axle
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

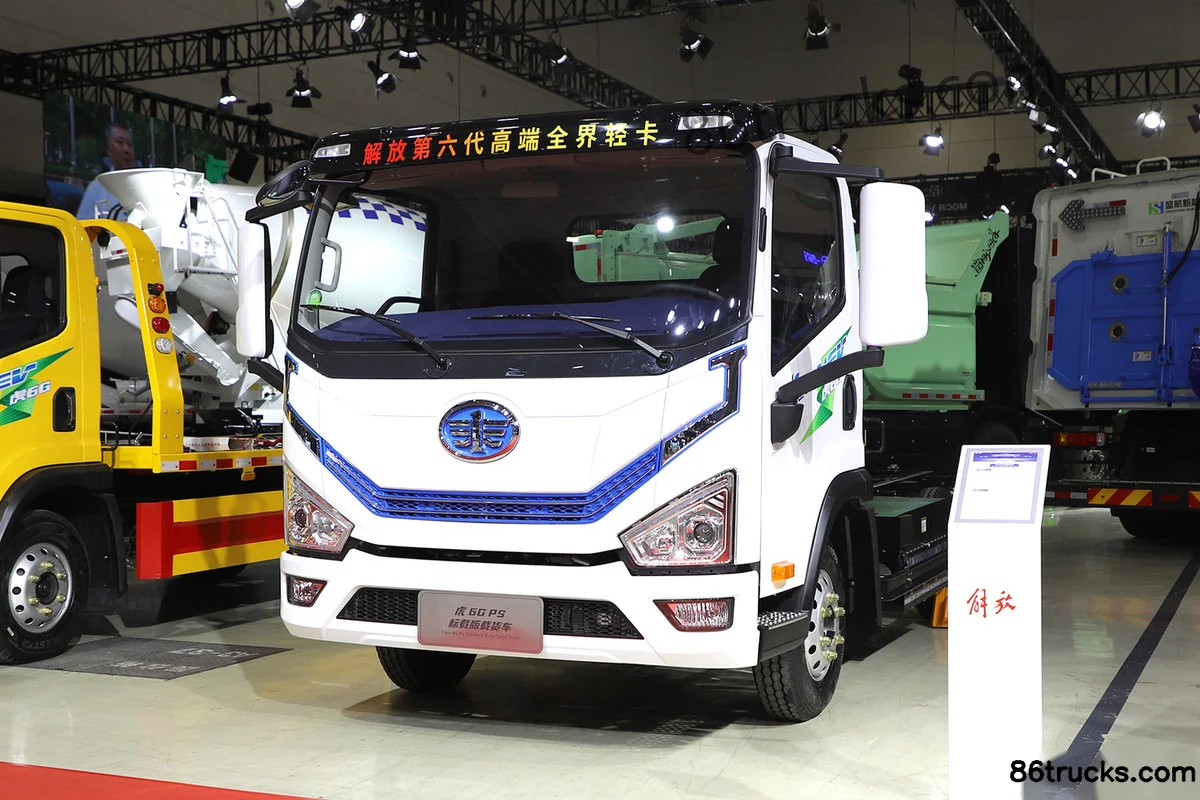

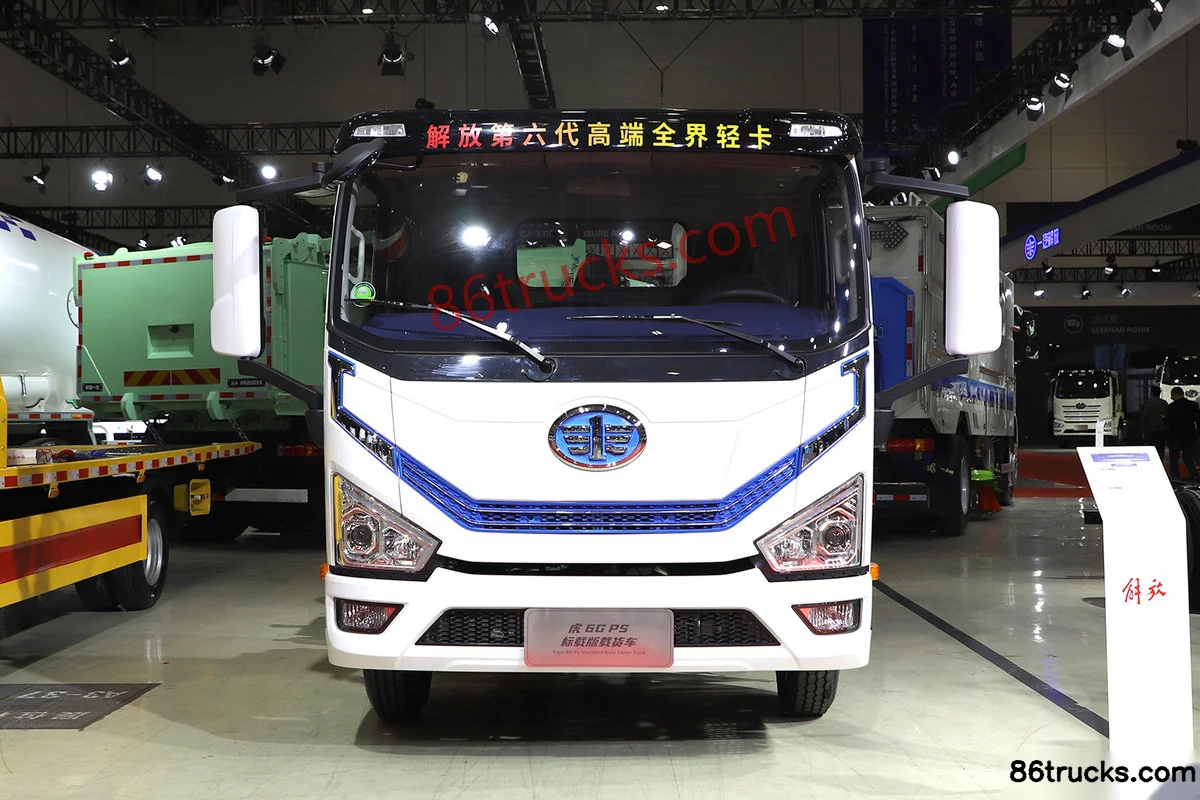

Exterior3

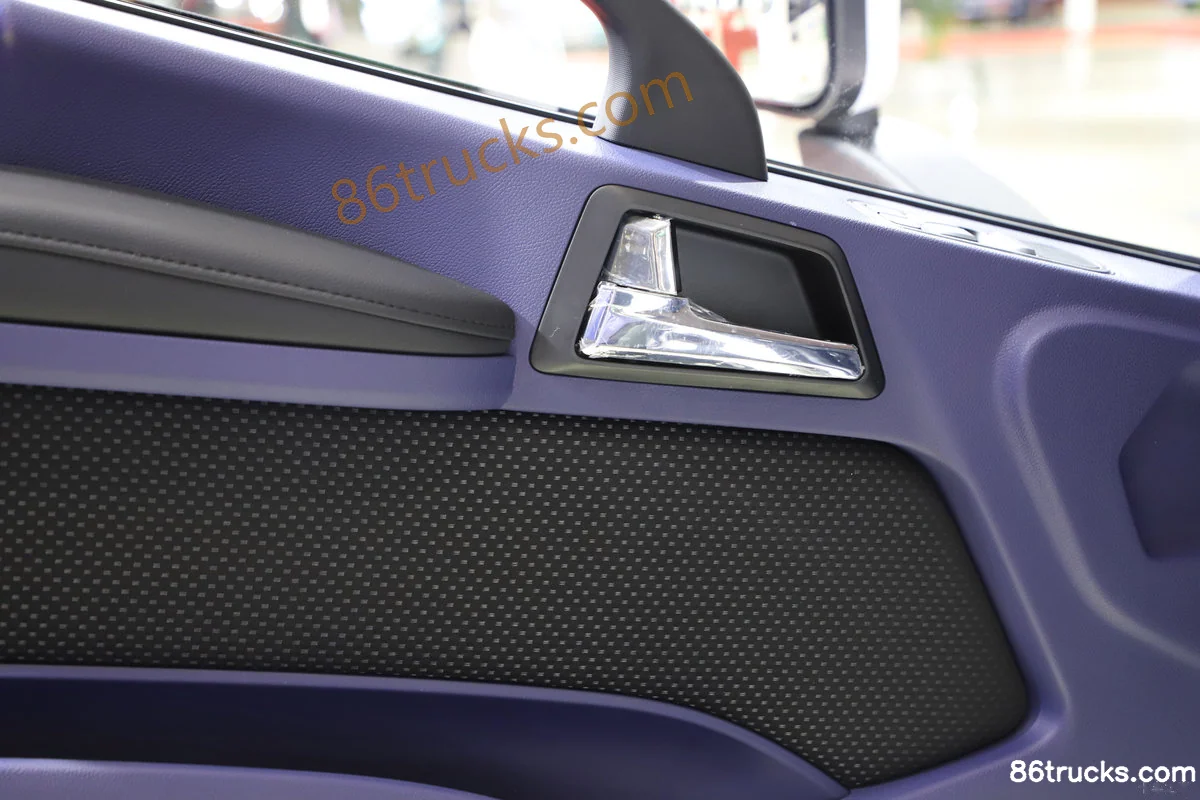

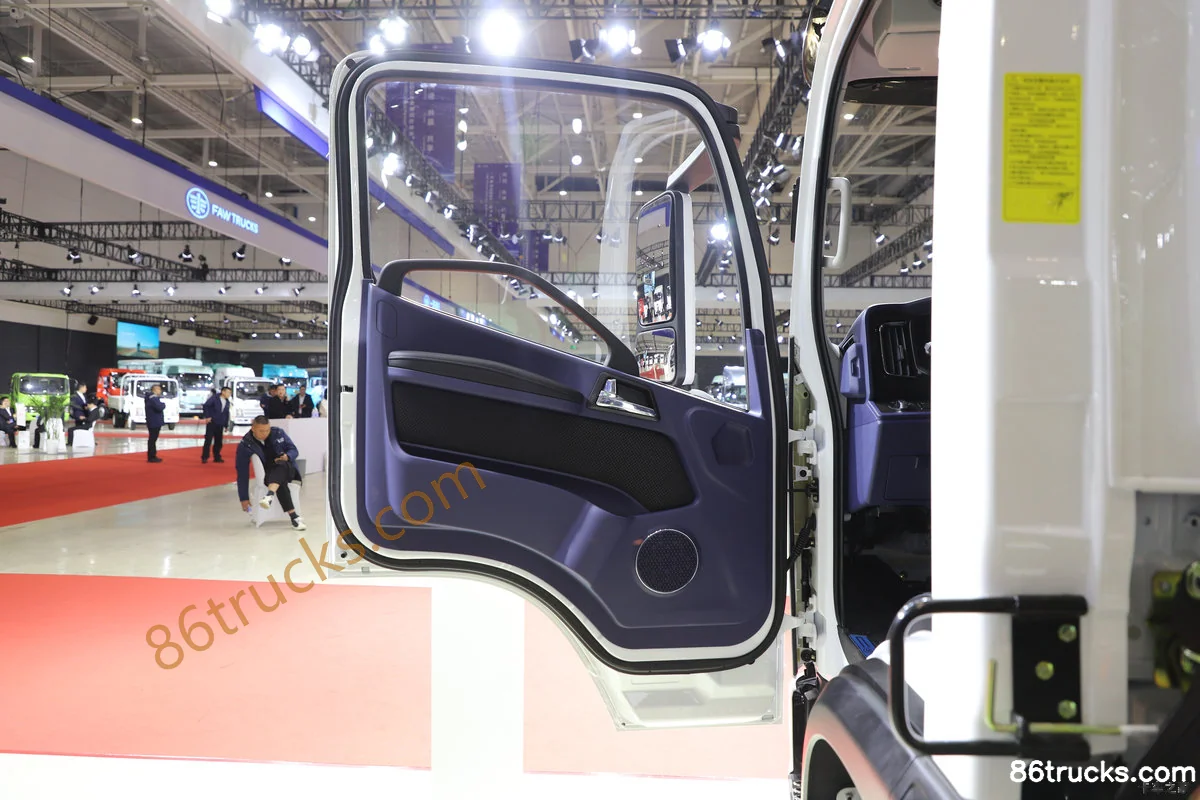

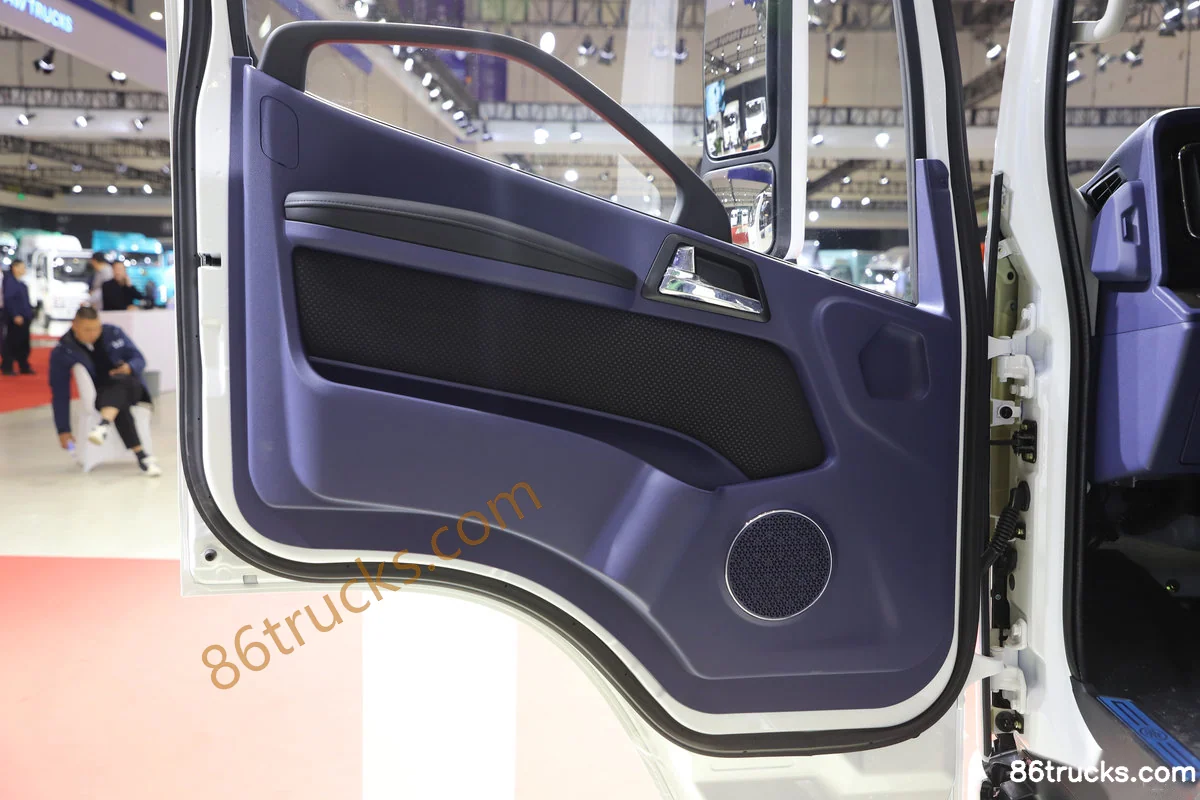

Interior3

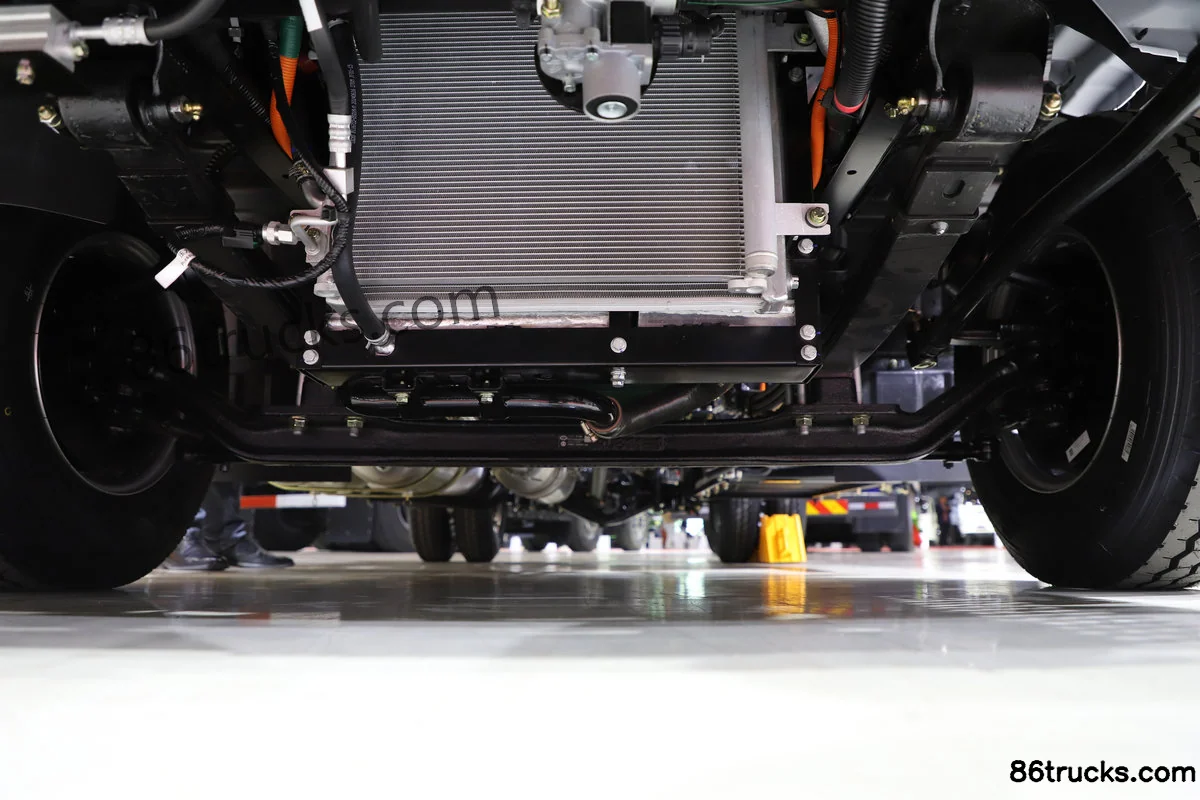

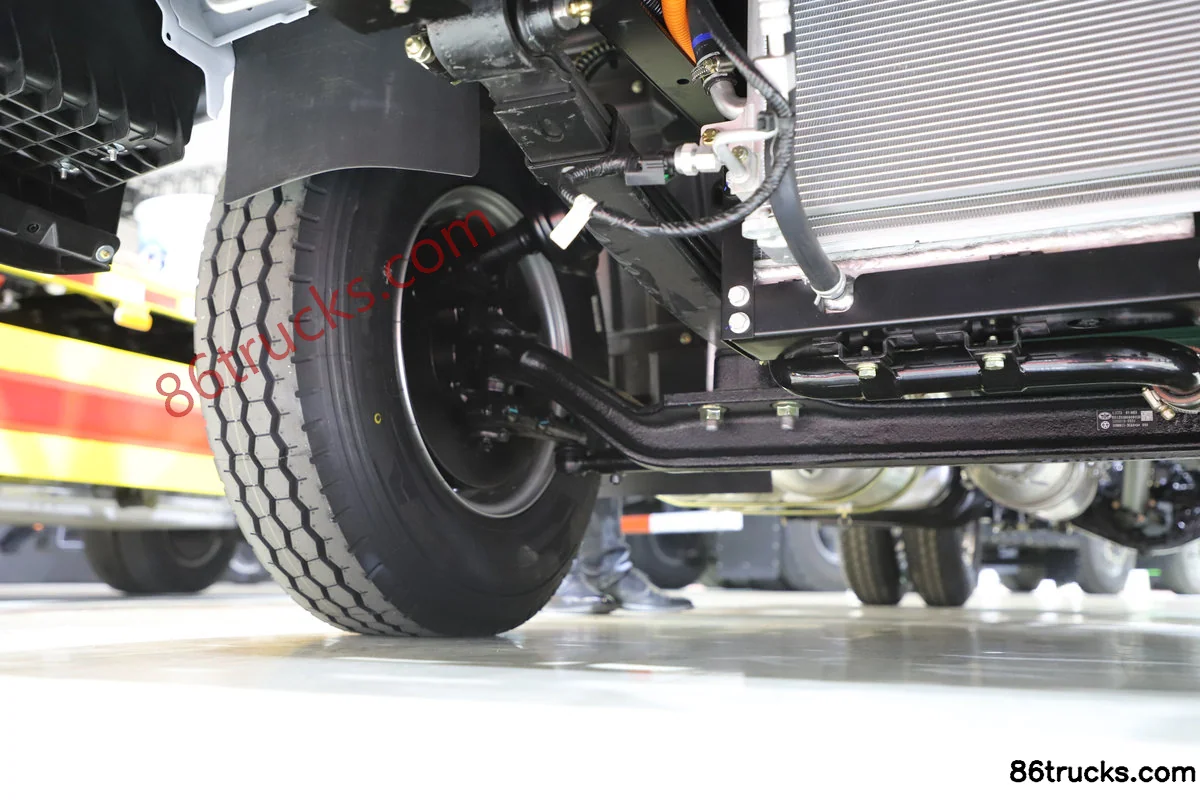

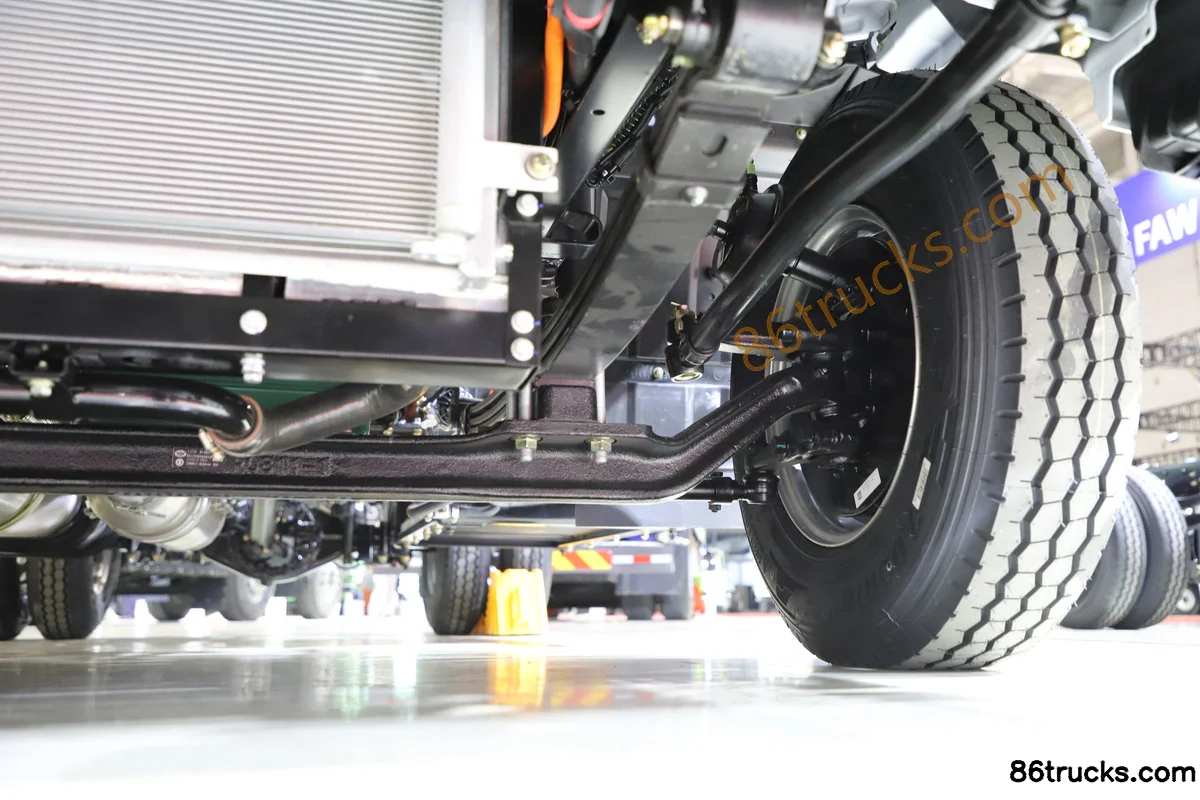

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels), and what does it include?

FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels) export reference is about From $31,528; MSRP is ¥22.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels)?

Key specs of FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels) suited for?

FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels) differ from other variants in the same series?

FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels) belongs to FAW Jiefang Hu 6G (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Tiger 6G Wide Body Standard Load Plate 4.5T 4.2m Single Row Plug-in Hybrid Panel Light Truck 38.4kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
