FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh

Export reference
MSRP N/A
Rated payload:: 6.9ton
Wheelbase:: 3825+1400mm
Cargo box type:: Dump type
Model code (announced):: DNC3250BEVK1
Cab length:: 8.55m
GVWR:: 25ton
Drive 6X4 (10 wheels)
Battery capacity: 322kWh
Motor 1 Brand: Dana
Curb Weight: 17.97ton

Overview

The FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh is a Heavy truck featuring 322kWh battery/range, Dana motor, 6X4 (10 wheels) drive and 6.9t payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DNC3250BEVK1
Drive type: 6X4
Wheelbase: 3825+1400mm
Cab length: 8.55m
Cab width: 2.55m
Cab height: 3.525m
Curb Weight: 17.97ton
Rated payload: 6.9ton
GVWR: 25ton
Max. speed: 80km/h
Origin: Nanchong, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Dana
Motor 1 Model: TZ368XSPE251WH
Motor Type: Permanent magnet synchronous motor
total rated power: 140kW
Peak power: 200kW
Battery/Charging
Battery capacity: 322kWh
Transmission Parameters
shift type: AMT manual/auto
Transmission Model: 6E240 EMT
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat Roof Wide Body Single Sleeper
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 16T axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

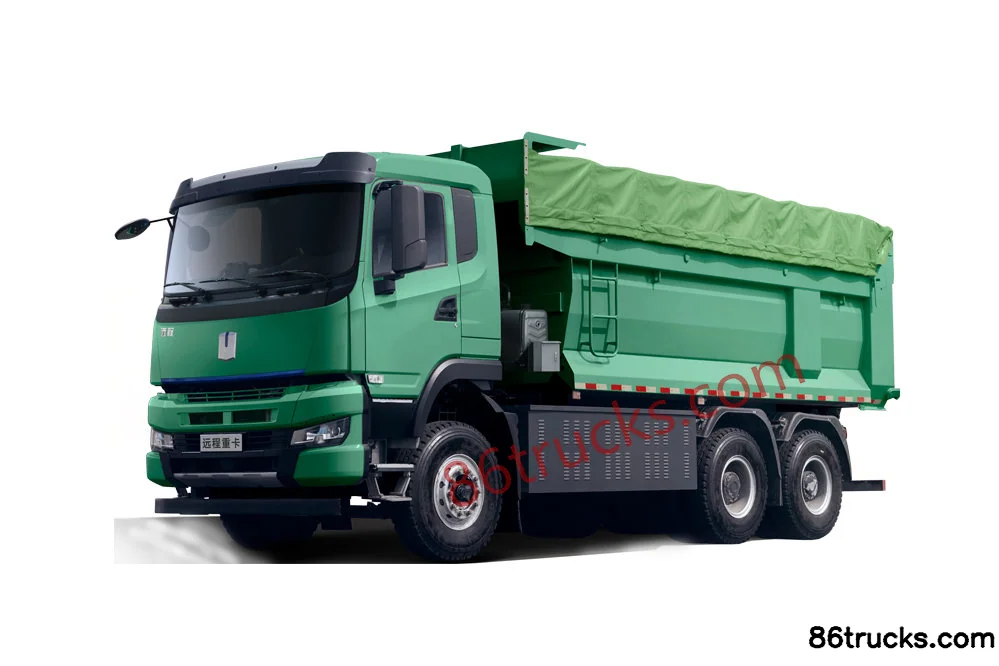

Exterior1

1 photos

FAQ

What are the key specs of FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh?

Key specs of FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh suited for?

FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh differ from other variants in the same series?

FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh belongs to FARIZONGHT (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON GHT Heavy Truck 25T 6X4(10 wheels) 5.6m Electric Dump Truck 322kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
