Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI)

Export reference
MSRP N/A
Horsepower: 260
Emission: China VI
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 9.1ton
seating capacity: 2Personnel
Rated payload: 21.505ton
Drive 8X2 (10 wheels)
Cargo box type: Van body

Overview

The Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI) is a Heavy-duty cargo trucks featuring 6.8m cargo length, Van body cargo body, 2Personnel volume and 21.505t payload. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 260 hp, 8X2 (10 wheels) drive and China VI emissions.

China VI 260 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5319XXYA6
Type: enclosed cargo truck
Drive type: 8X2
Wheelbase: 1850+3050+1300mm
Box length class: 6.8m
engine: YuchaiYCK05260-61
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 4.11
Cab length: 9.2m
Cab width: 2.2m
Cab height: 3.99m
Front track width: 1760/1760mm
rear track: 1760/1750mm
Curb Weight: 9.1ton
Rated payload: 21.505ton
GVWR: 31ton
Max. speed: 88km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle: 13°
market segment: Logistics Freight
Remarks: Self-adjusting arm; front underrun protection; anti-spray mudguard; standard air filter; eco-friendly terminals.
Front/rear suspension: 1.5/1.65m
Version: Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05260-61
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.13L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.1m
Cargo box height: 2.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: T280M Semi-High Roof Comfort
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 220L
Chassis Specs
Front axle description: 151 dual front (820 spring spacing, two-break) + lift air bag axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 250(8+5)mm
rear axle description: 153 shortened
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.11
Leaf spring count: 9/9/7+-/11+9
Tire
Tire Size: 10.00R20
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

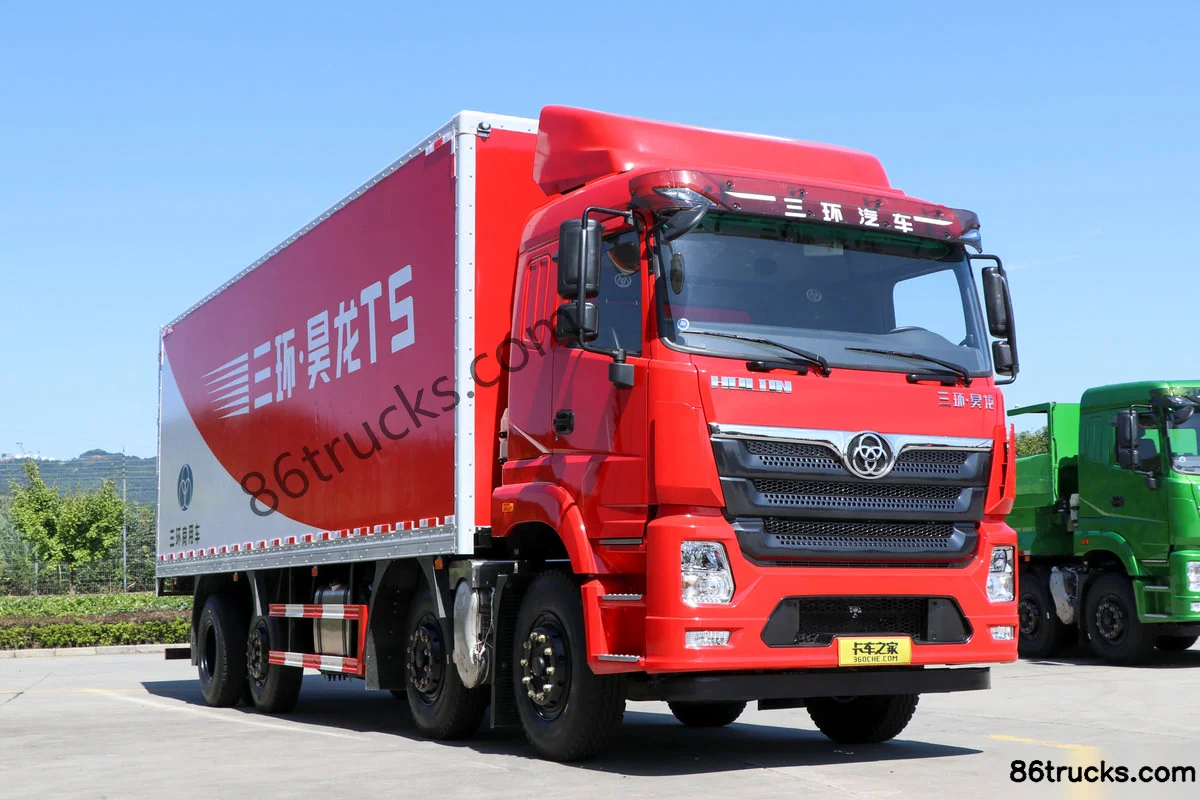

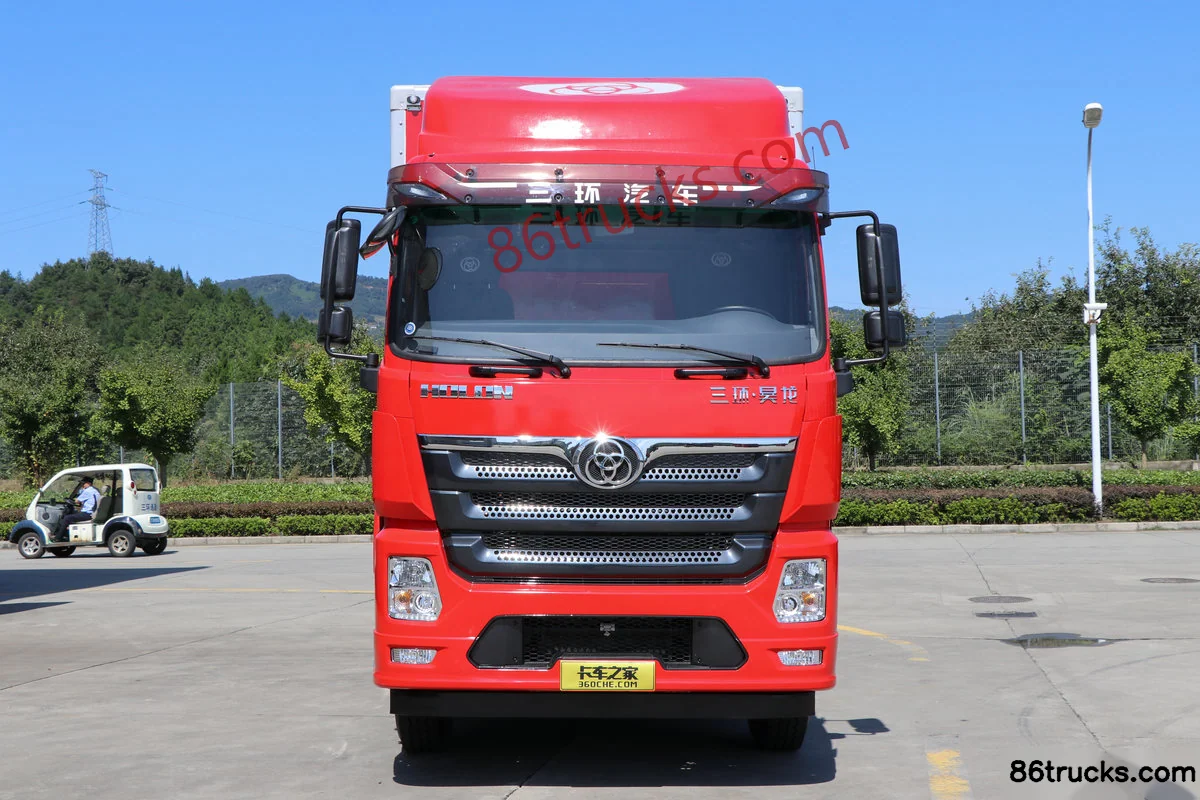

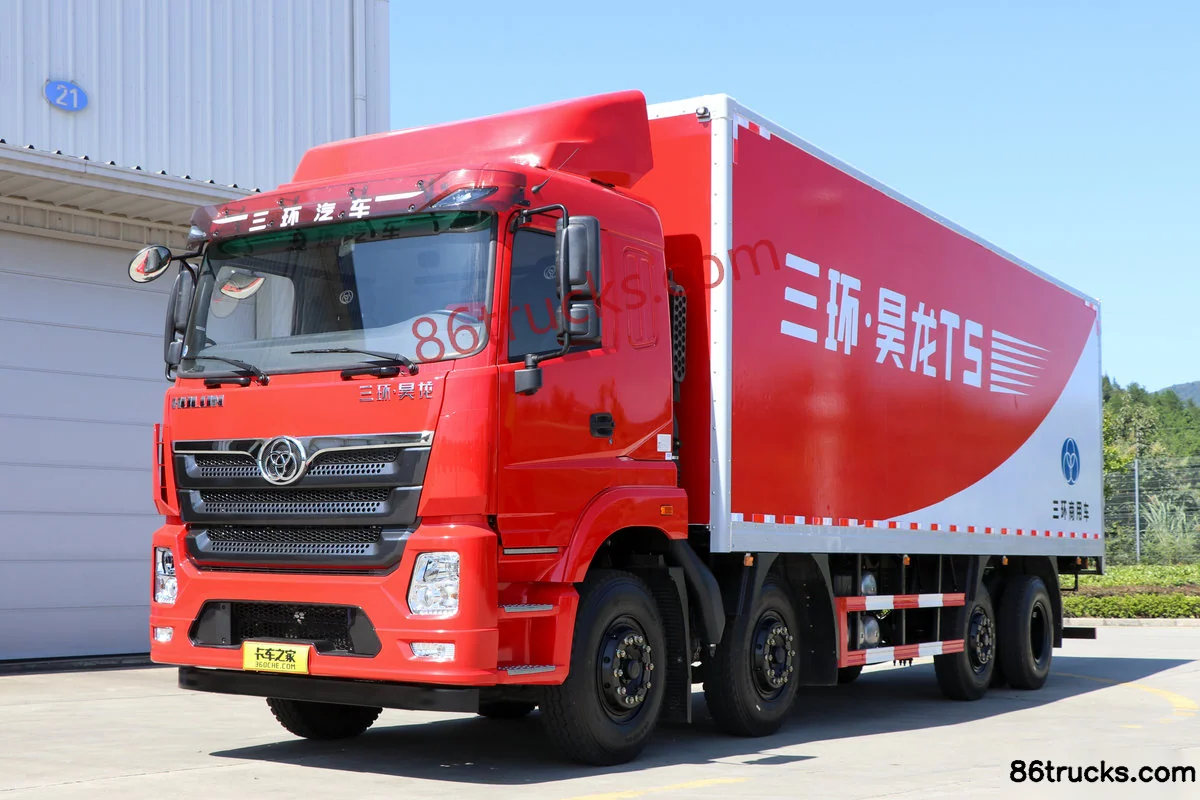

Exterior3

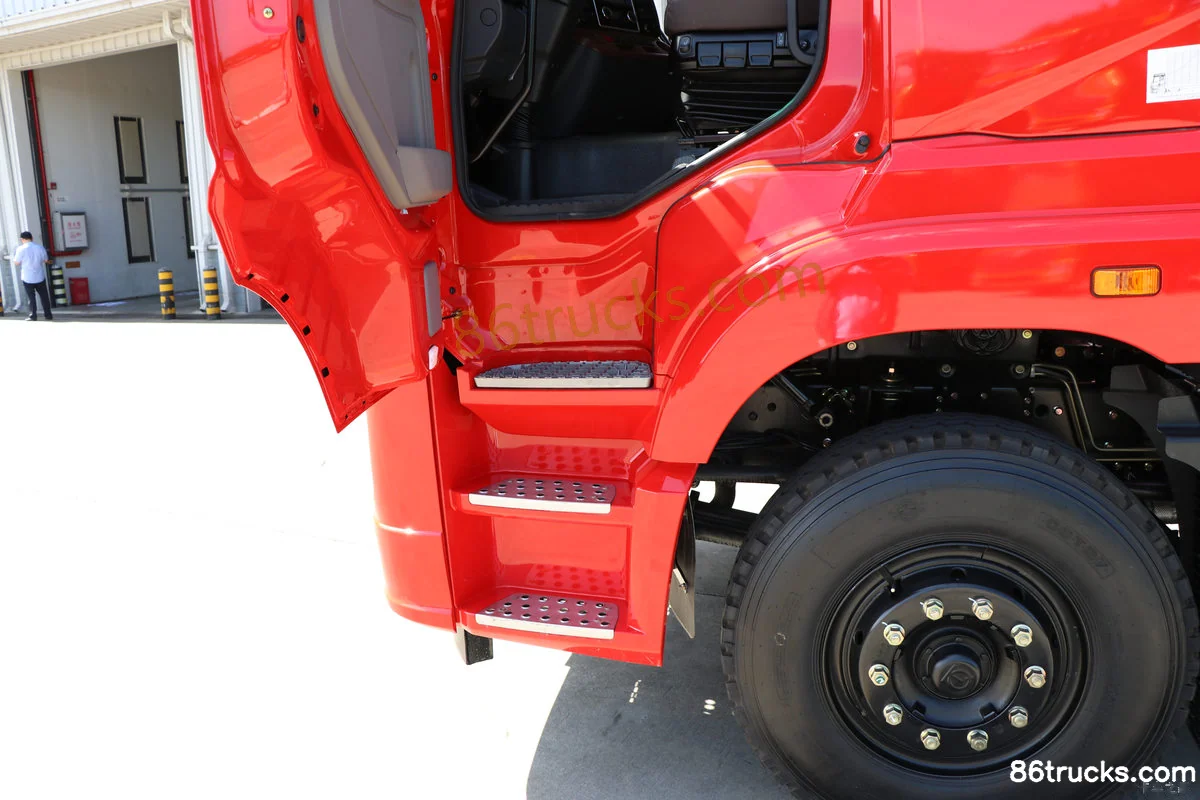

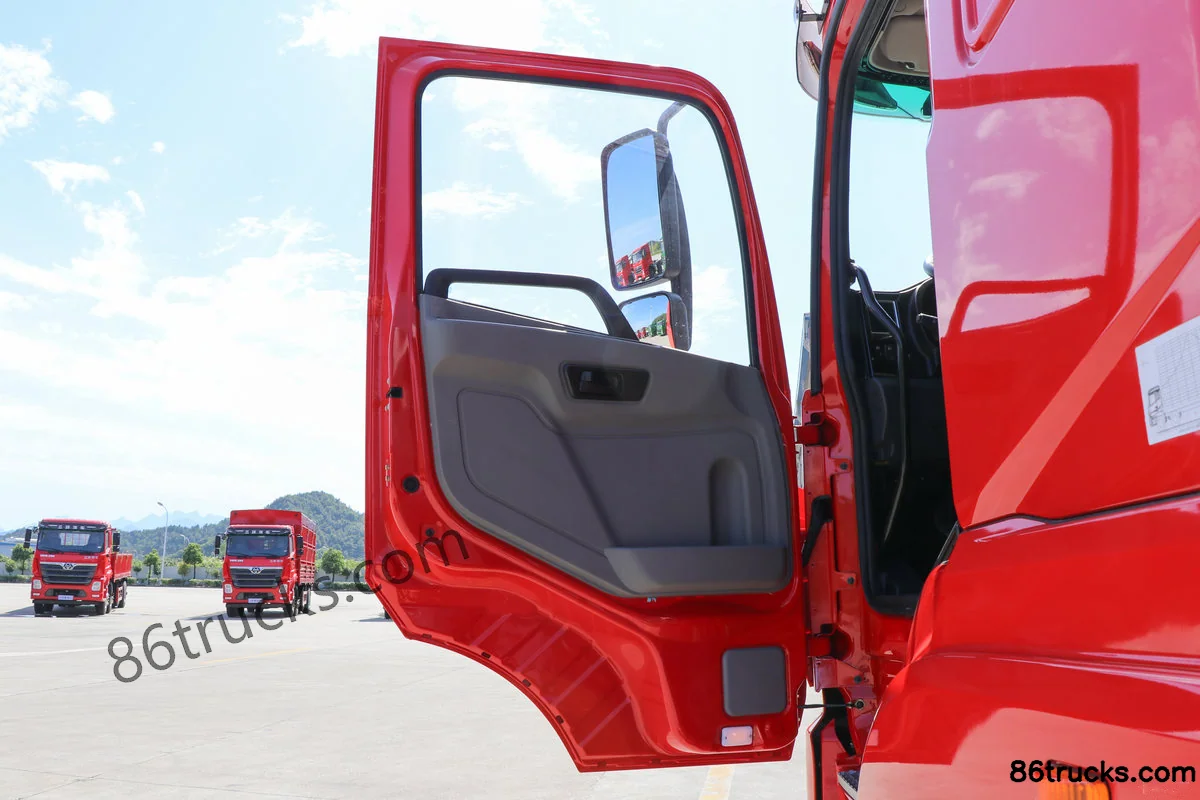

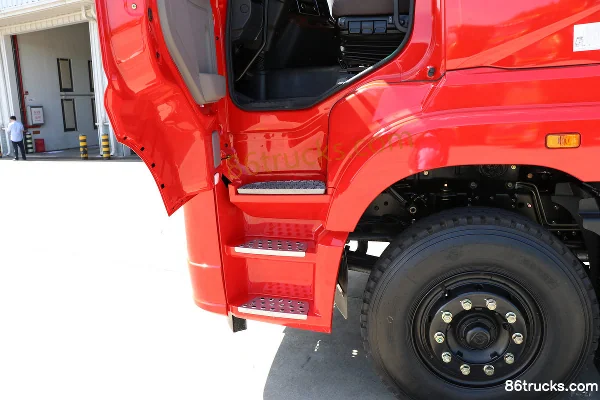

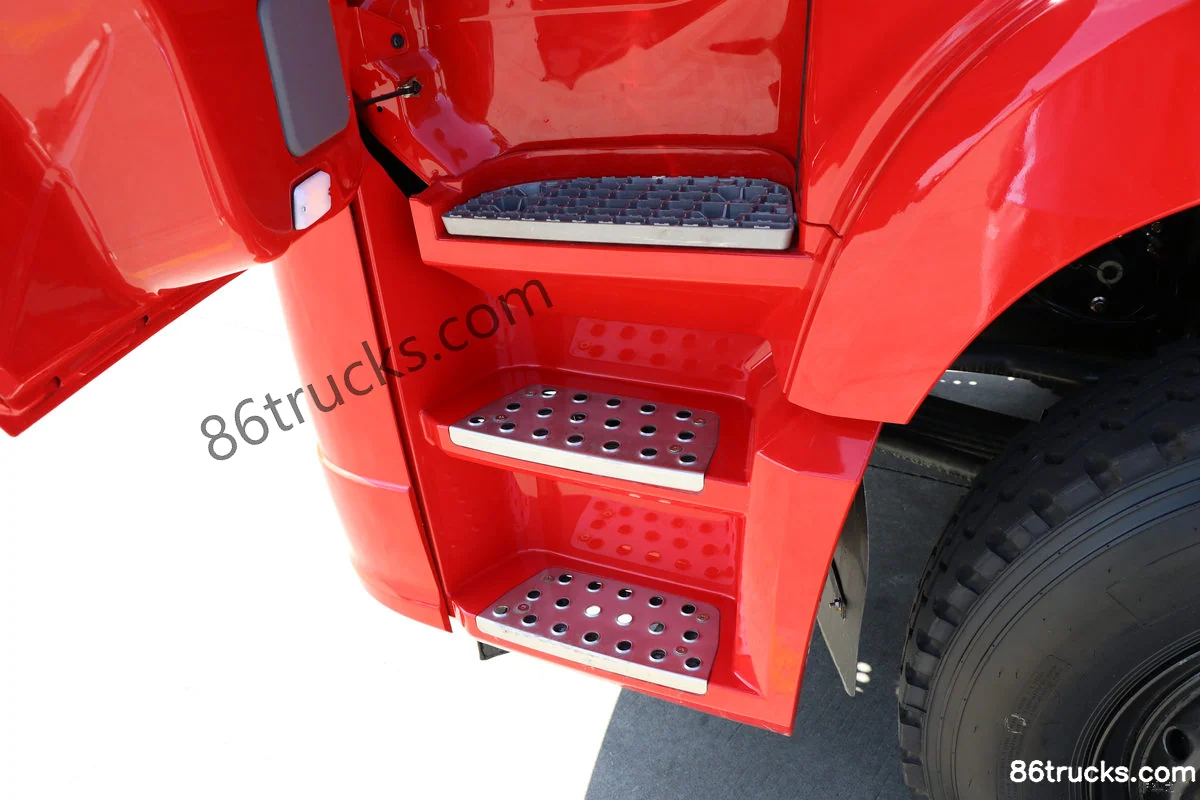

Cab3

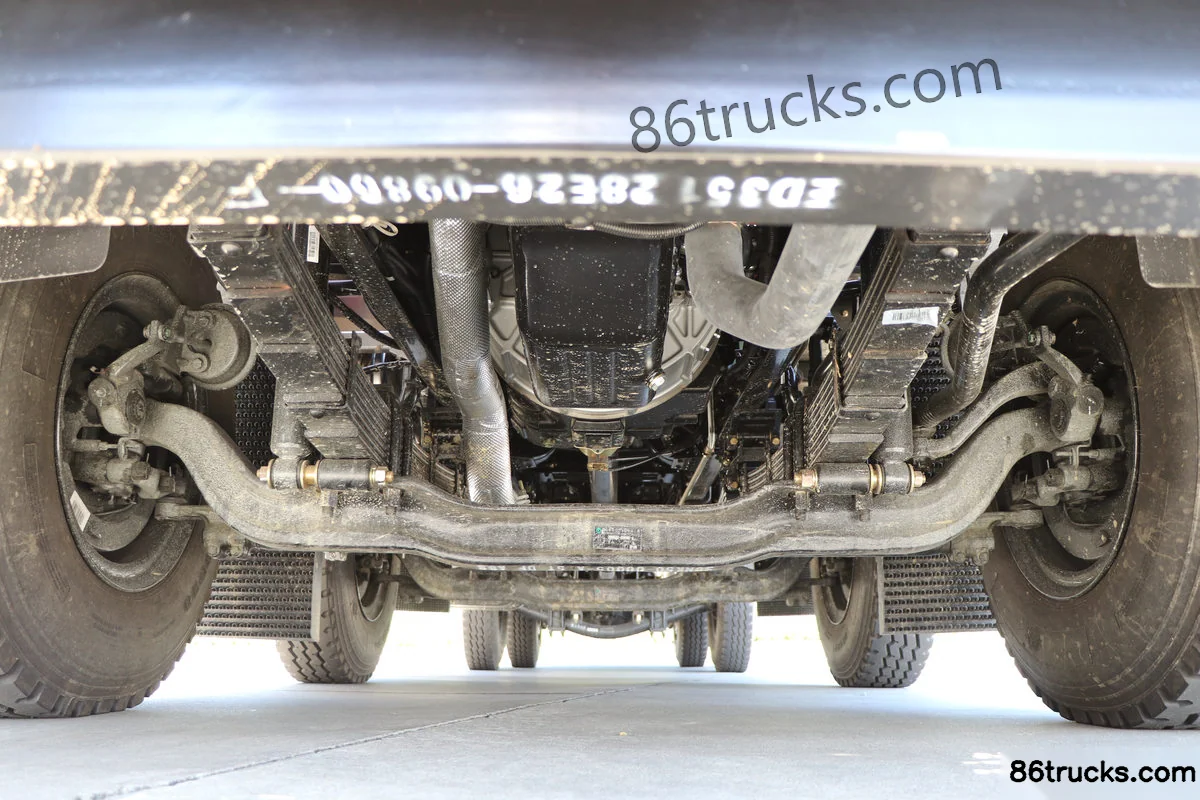

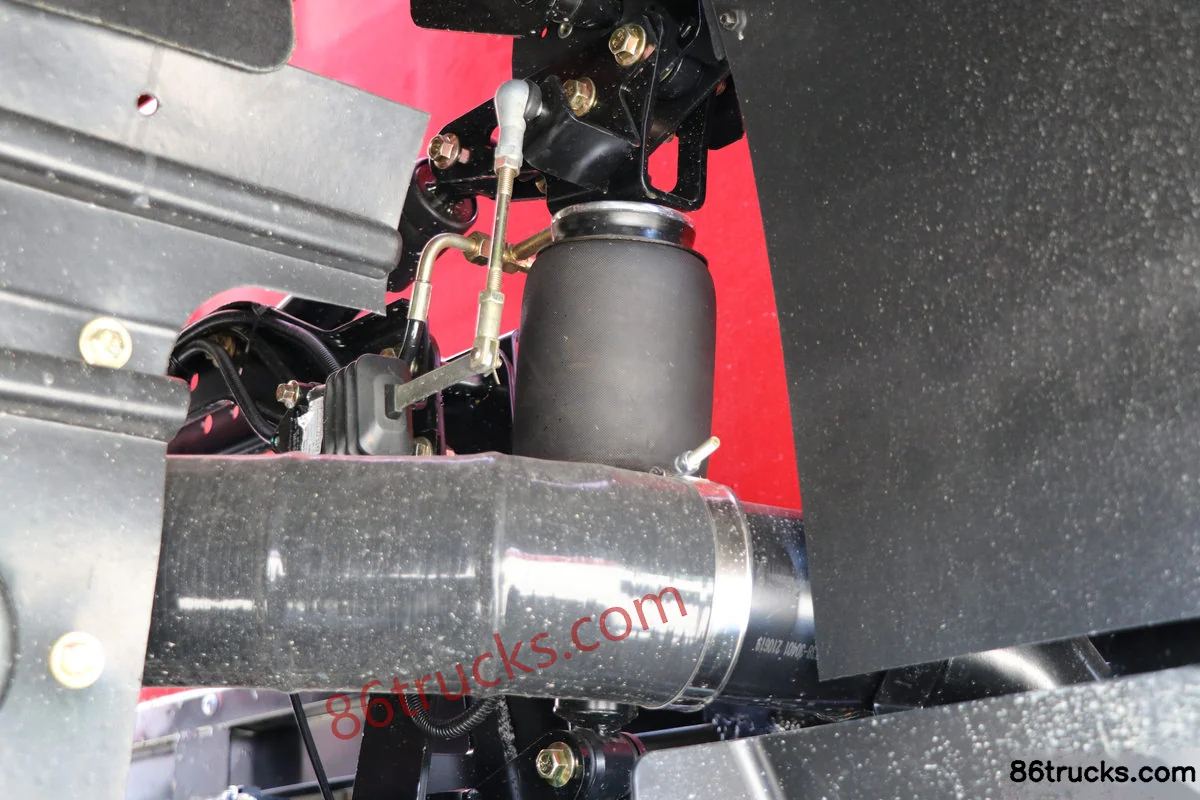

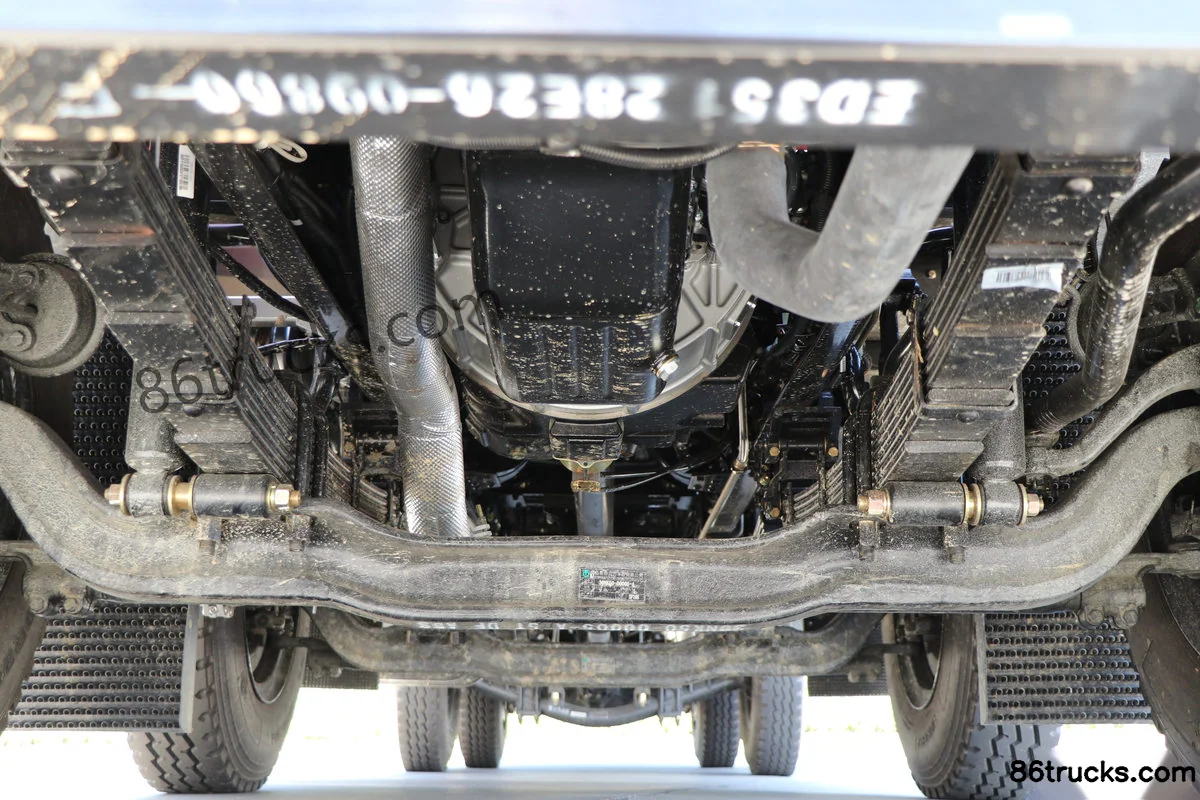

Chassis3

9 photos

FAQ

What emission standard does Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI)?

Key specs of Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI): Drive: 8x2; Horsepower: 260 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI) suited for?

Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI) differ from other variants in the same series?

Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI) belongs to Sanhuan Shitong Haolong Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong Comfort Edition 260 hp 8X2(10 wheels) 6.8m Van Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
