JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.45ton
Wheelbase:: 1800+2550+1350mm
Tire Size:: 11.00R20
Model code (announced):: HFC3311P1K6H25WS
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box type: Rear-dump body
Emission China VI

Overview

The JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI) is a Heavy truck featuring 31t GVW, Rear-dump body cargo body, 8X4 (12 wheels) drive and Sleeper cab cab. On the powertrain side, it comes with a WeichaiWP10H400E62 engine, 400 hp, China VI emissions and Fast Gear transmission.

China VI 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3311P1K6H25WS
Drive type: 8X4
Wheelbase: 1800+2550+1350mm
engine: WeichaiWP10H400E62
transmission: Fast Gear12JSD200T-B
Rear Axle Ratio: 4.76
Cab length: 8.695m
Cab width: 2.55m
Cab height: 3.5m
Curb Weight: 15.45ton
GVWR: 31ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Remarks: QH70 PTO, optional ratio 5.26
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10H400E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.5L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1900N·m
Max torque speed: 1200-1300rpm
Rated speed: 1900rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200T-B
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.35m
Cab parameters
Cab: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 400L
Chassis Specs
Front axle description: Forged steel, I-beam section
rear axle description: 16T dual-stage reduction
Axle ratio: 4.76
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

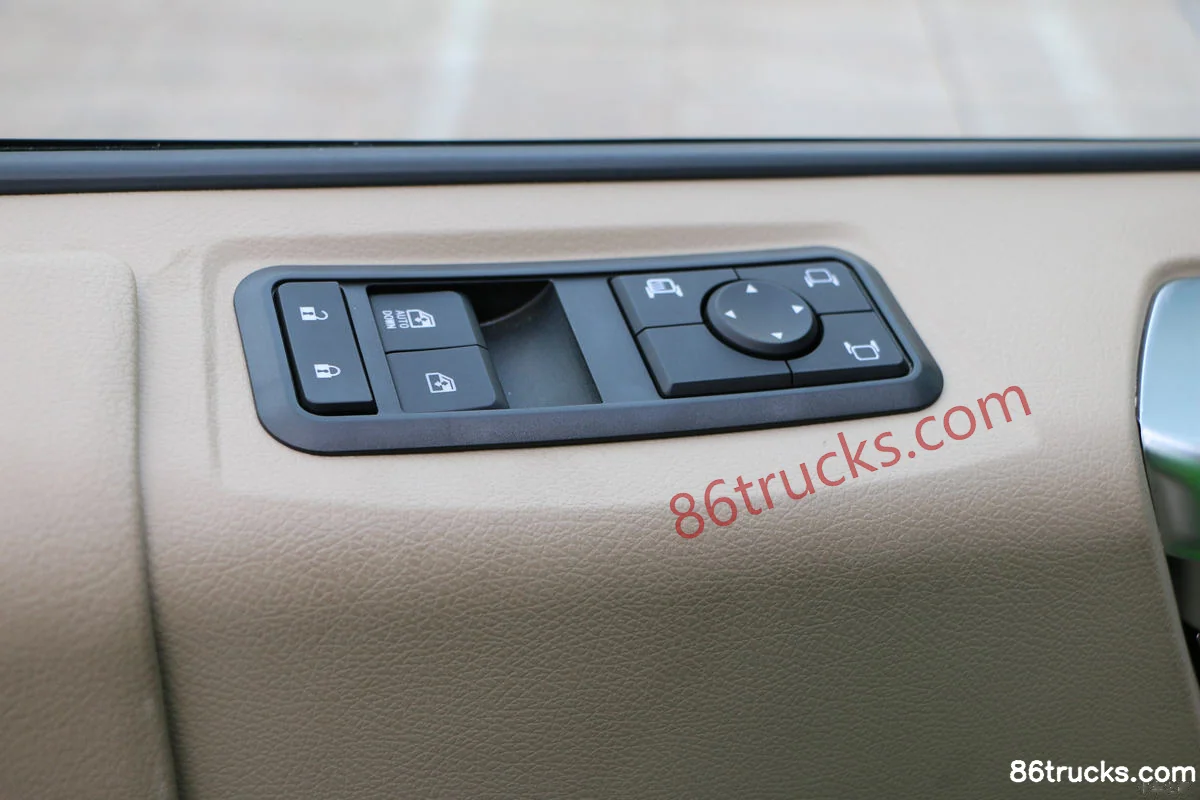

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Drum Type

Photos

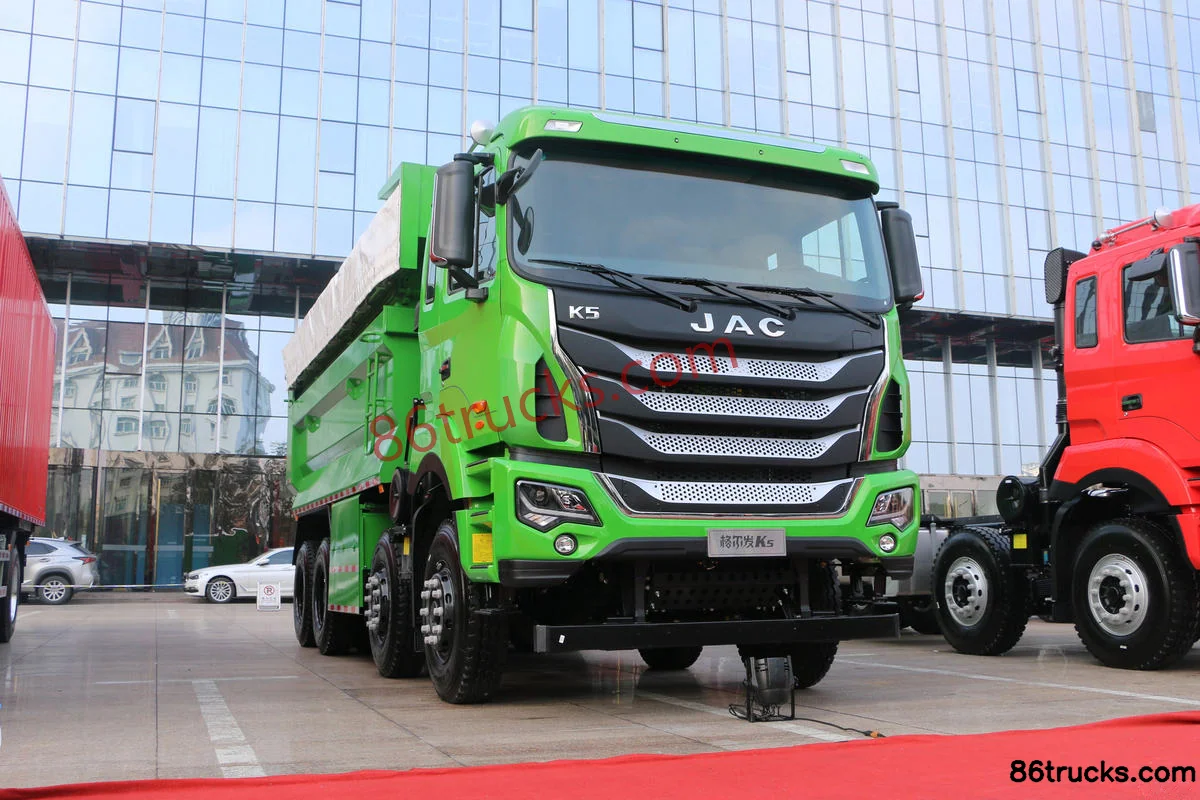

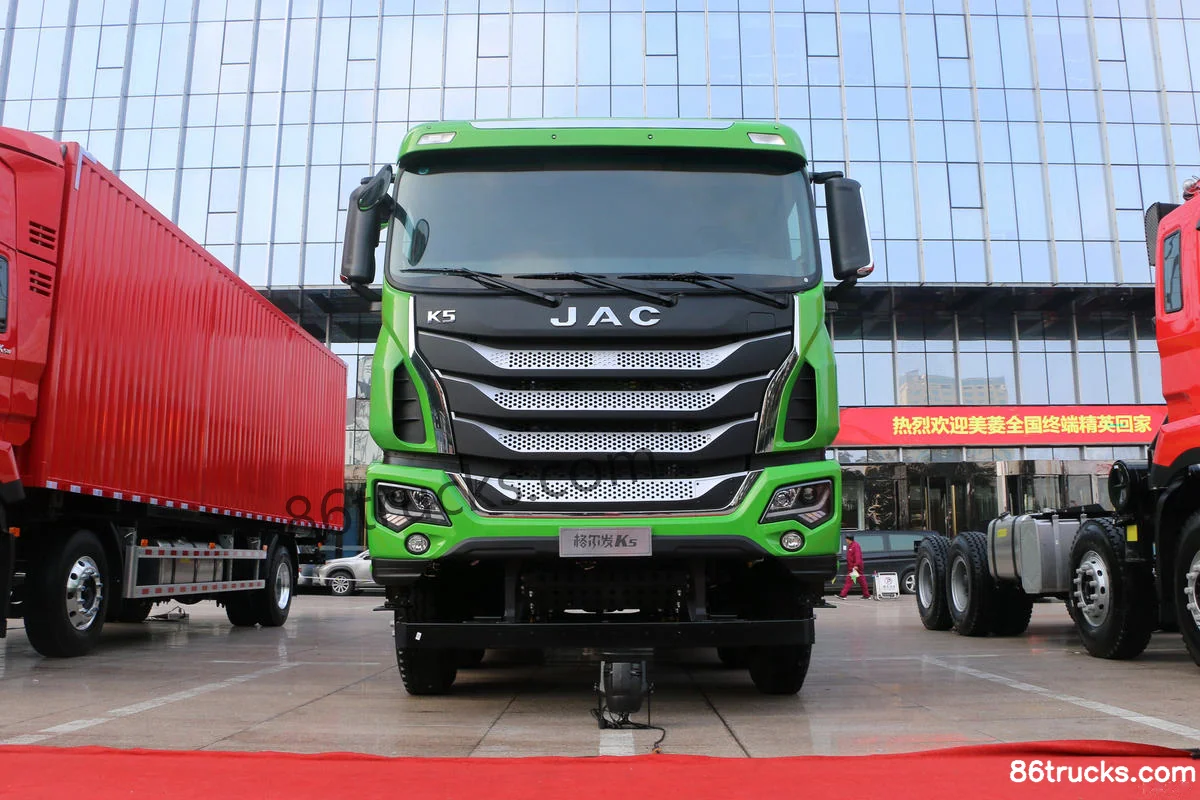

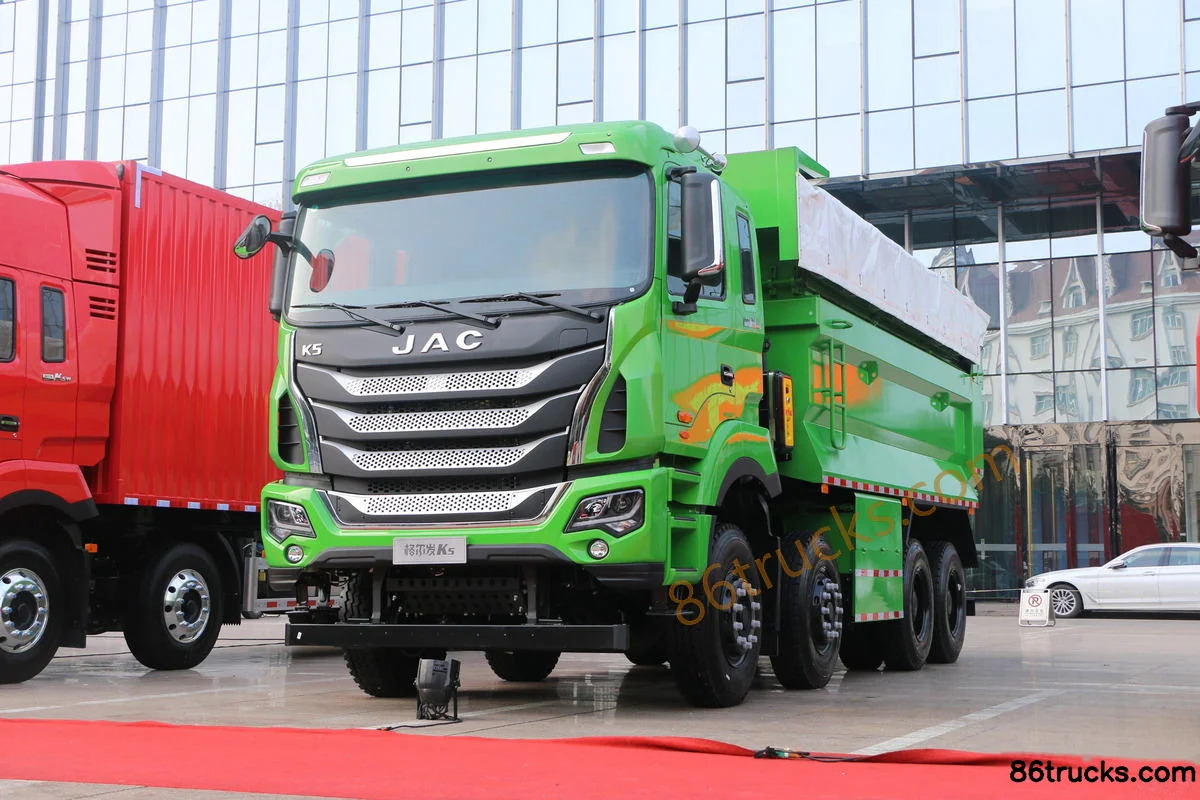

Exterior3

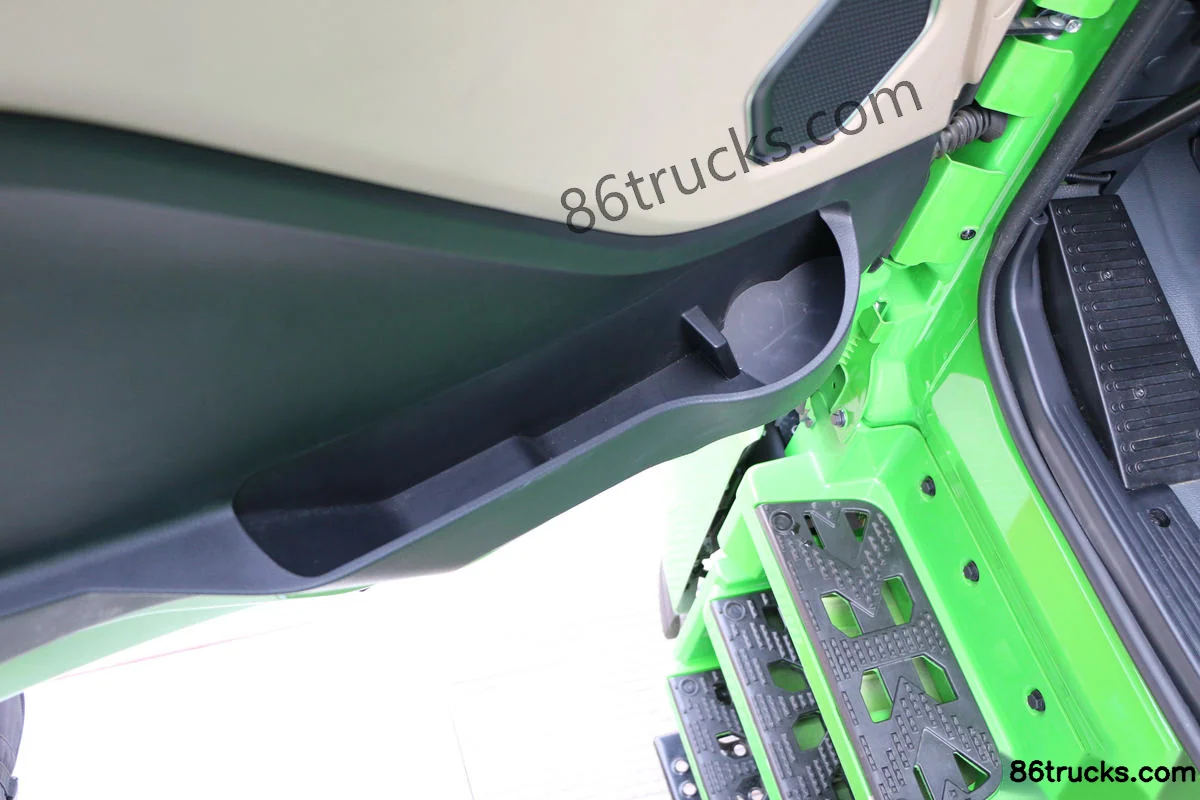

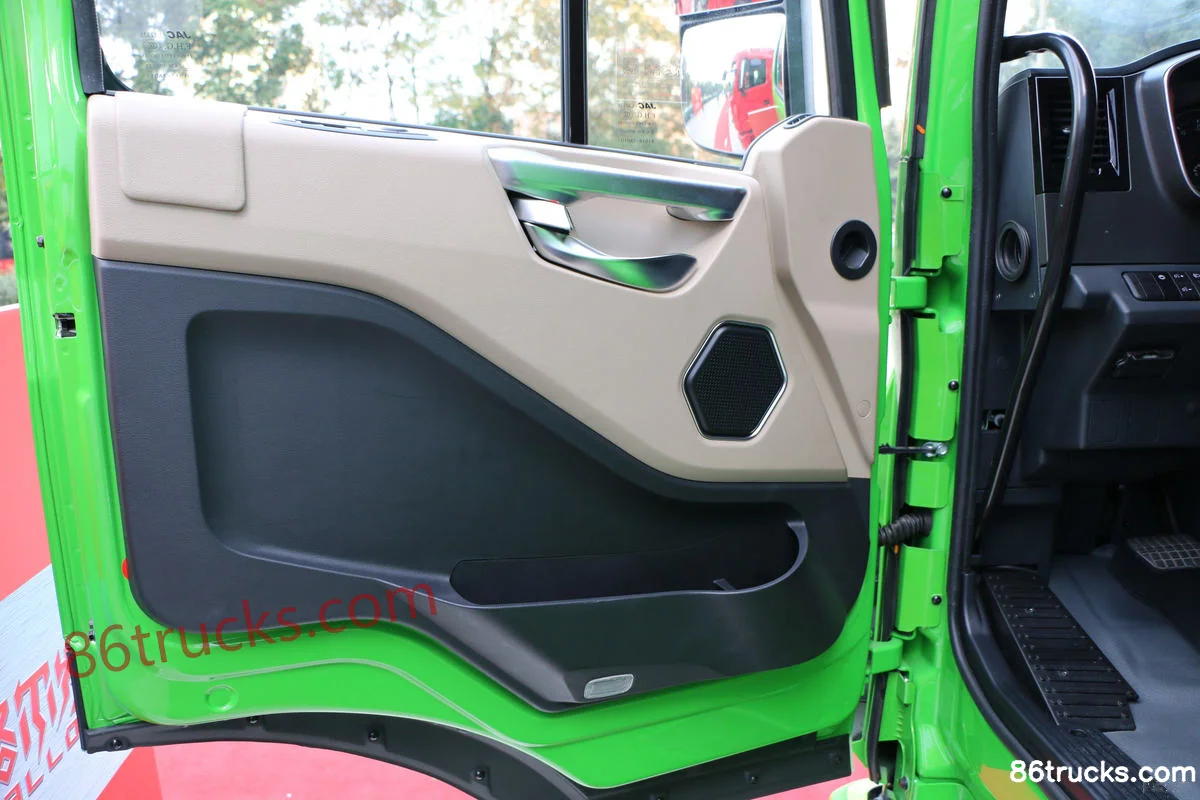

Cab3

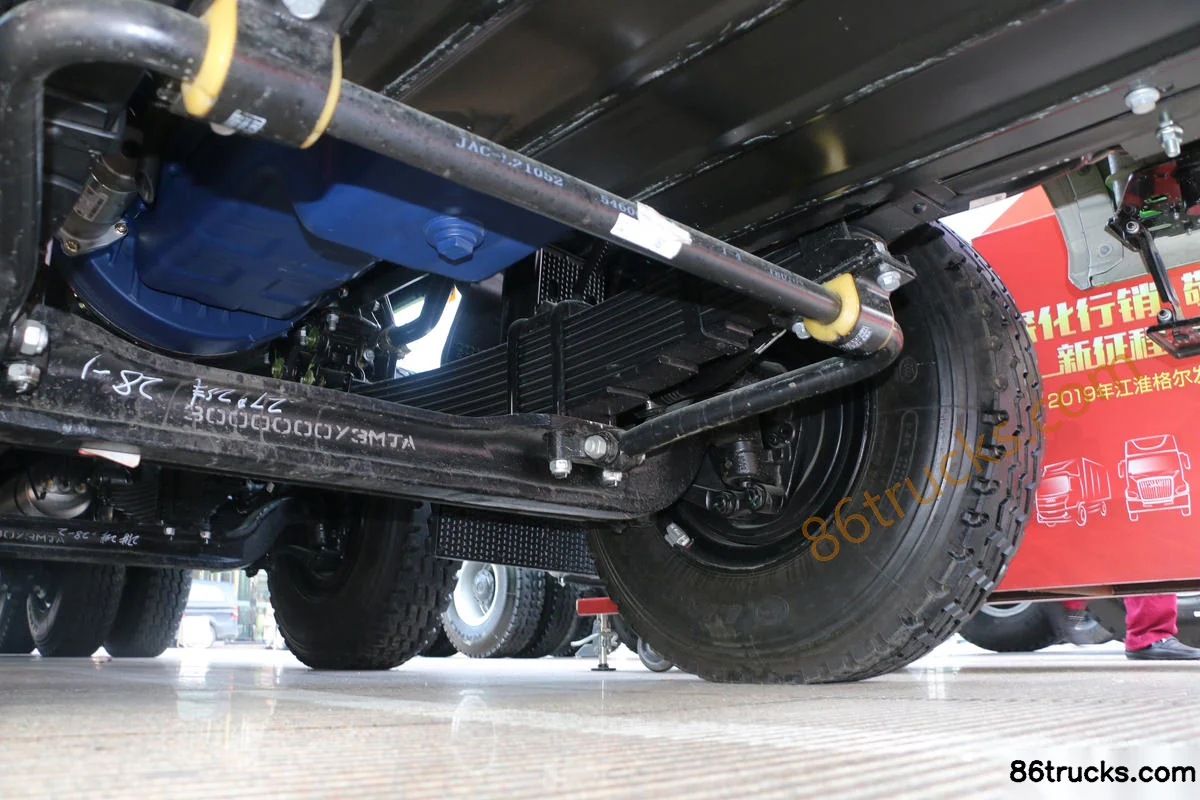

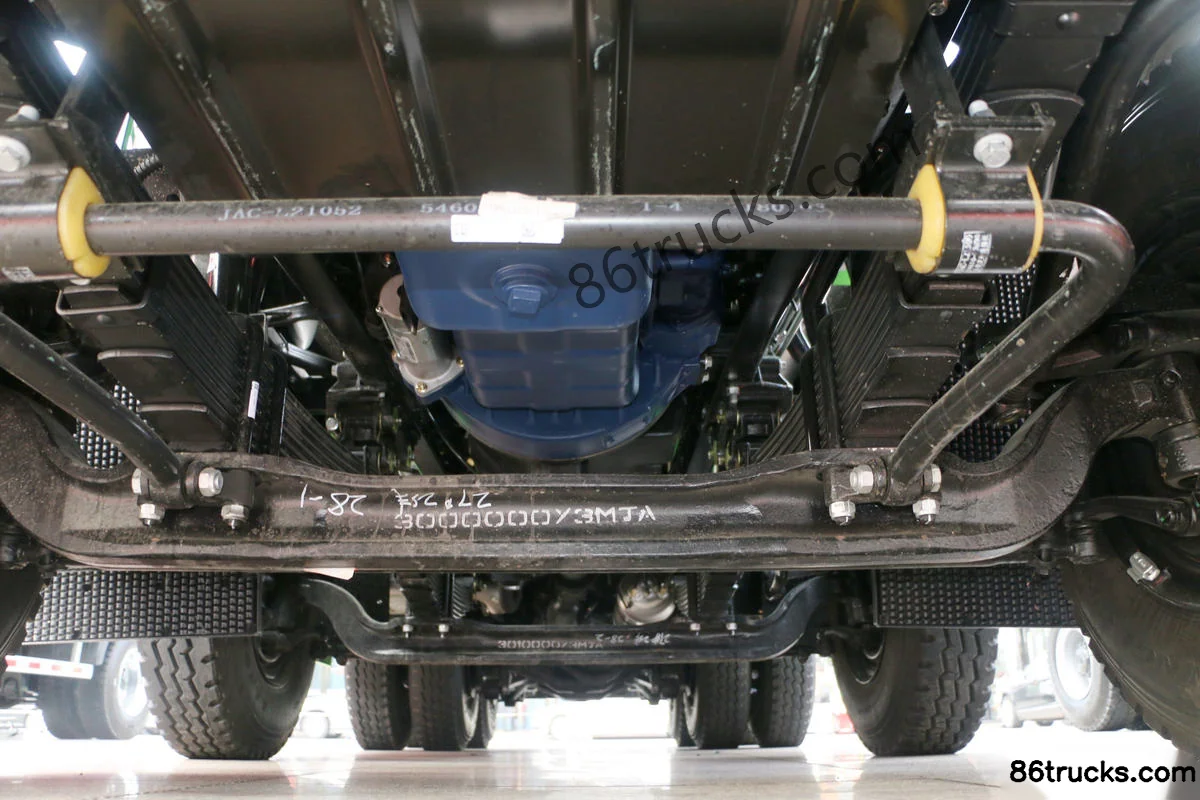

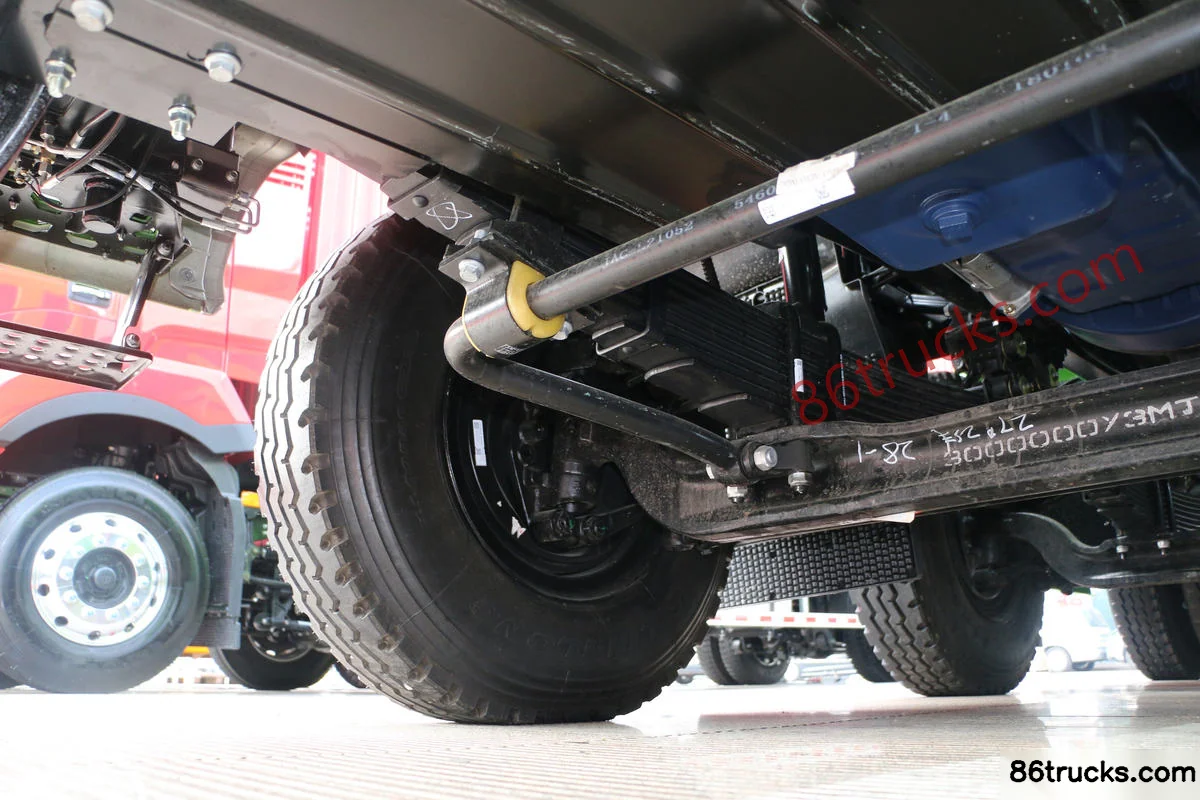

Chassis3

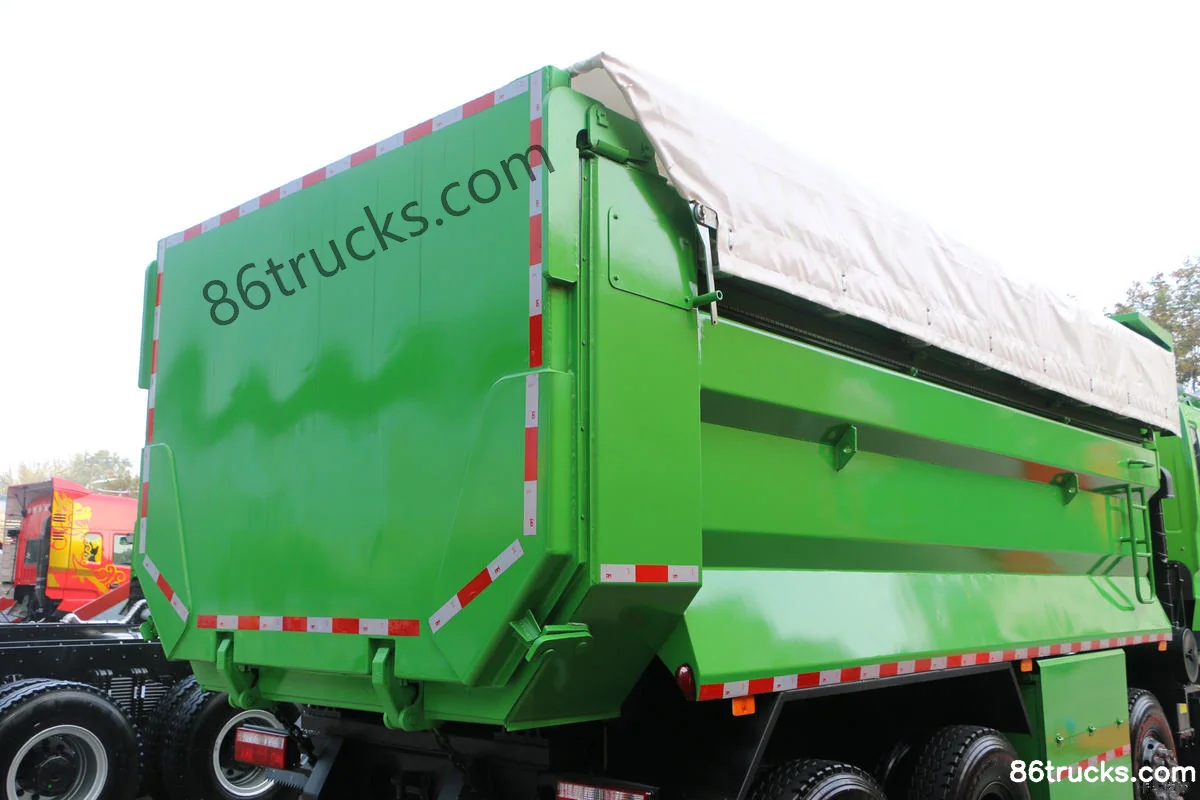

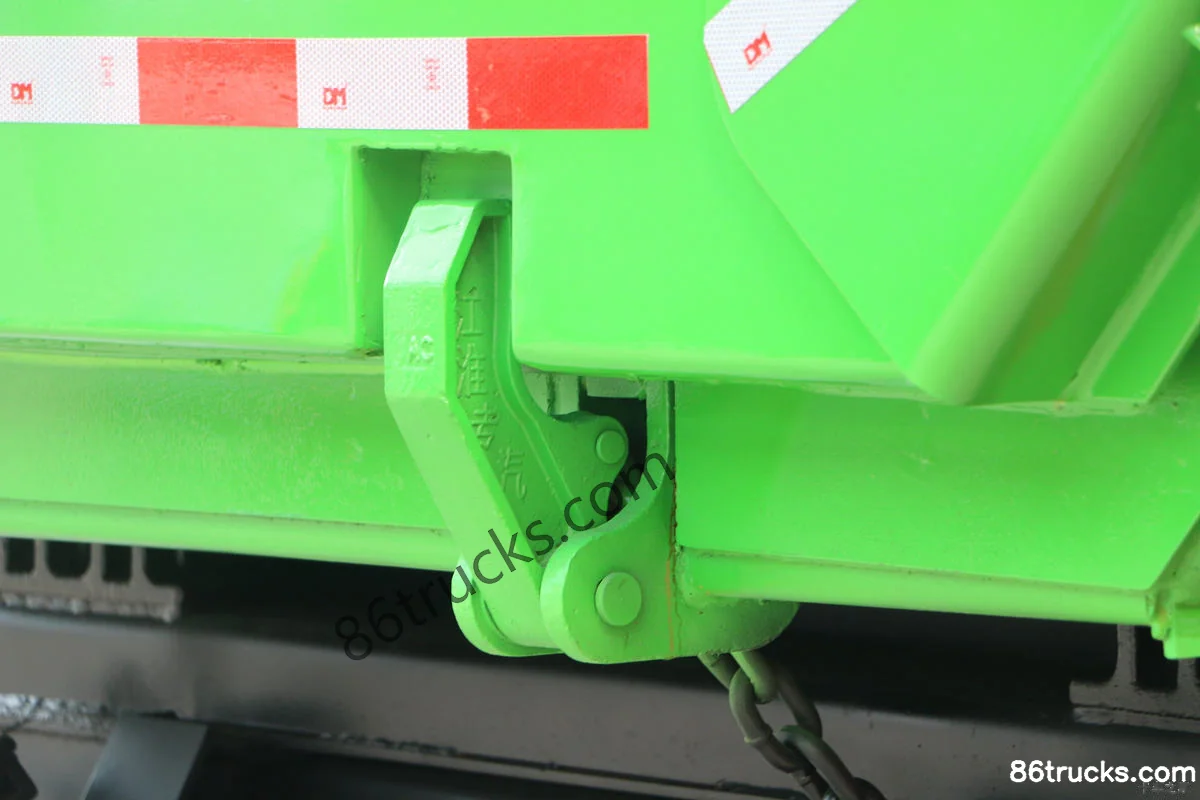

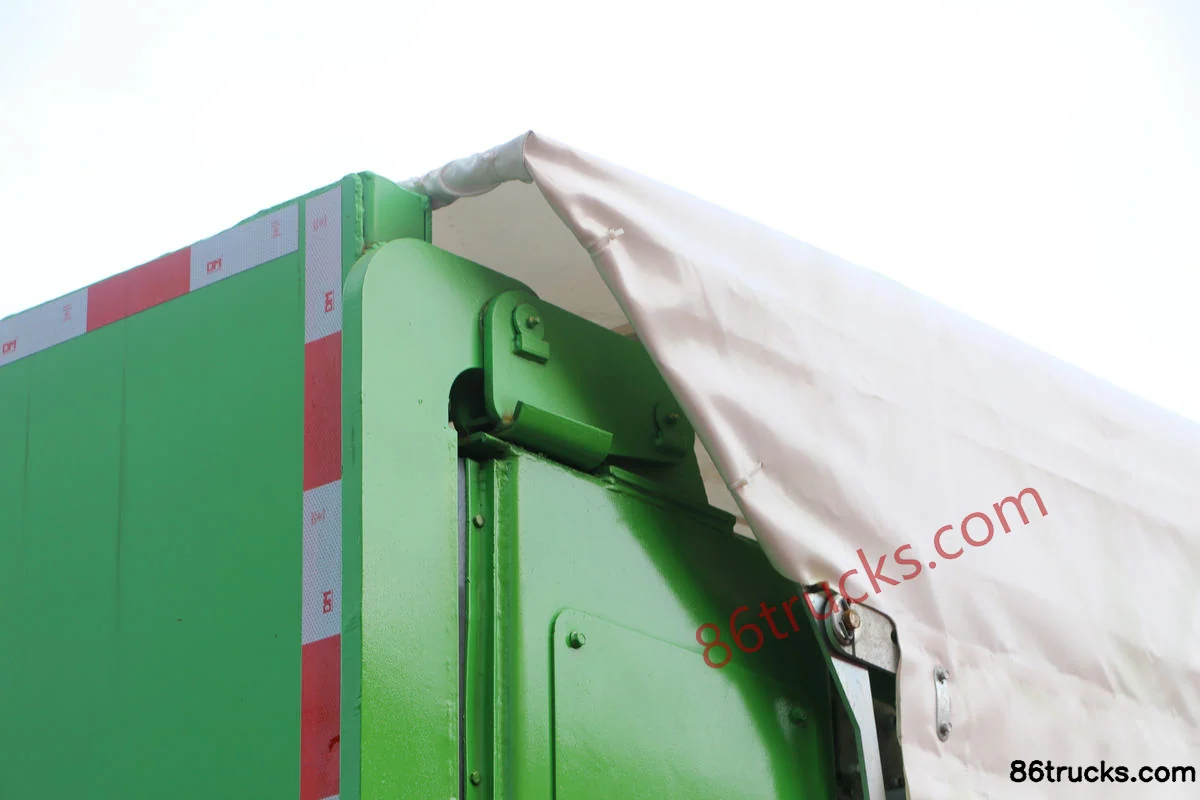

Body3

12 photos

FAQ

What emission standard does JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI)?

Key specs of JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI): Drive: 8x4; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI) suited for?

JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI) differ from other variants in the same series?

JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI) belongs to JAC Gallop K5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5W heavy truck 400 hp 8X4(12 wheels) 5.6m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
