JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck

Export reference
MSRP N/A
Horsepower: 290
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 12.32ton
seating capacity: 3Personnel
Rated payload: 18.5ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 18.5t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 290 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5311CCYP2K4H45F
Type: stake truck
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: WeichaiWP10.290E40
transmission: Fast Gear9JS119A
Rear Axle Ratio: 4.44
Cab length: 11.99m
Cab width: 2.495m
Cab height: 3.95m
Front track width: 2040/2040mm
rear track: 1847/1847mm
Curb Weight: 12.32ton
Rated payload: 18.5ton
GVWR: 30.95ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E40
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1420N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear9JS119A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.34m
Cargo box height: 0.55m
*Cargo box interior width: 2.3399999141693
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 302x90x8mm
rear axle description: 153 rear axle
rear axle allowable load: 17950kg
Axle ratio: 4.44
Leaf spring count: 3/3/4
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 12pcs

Photos

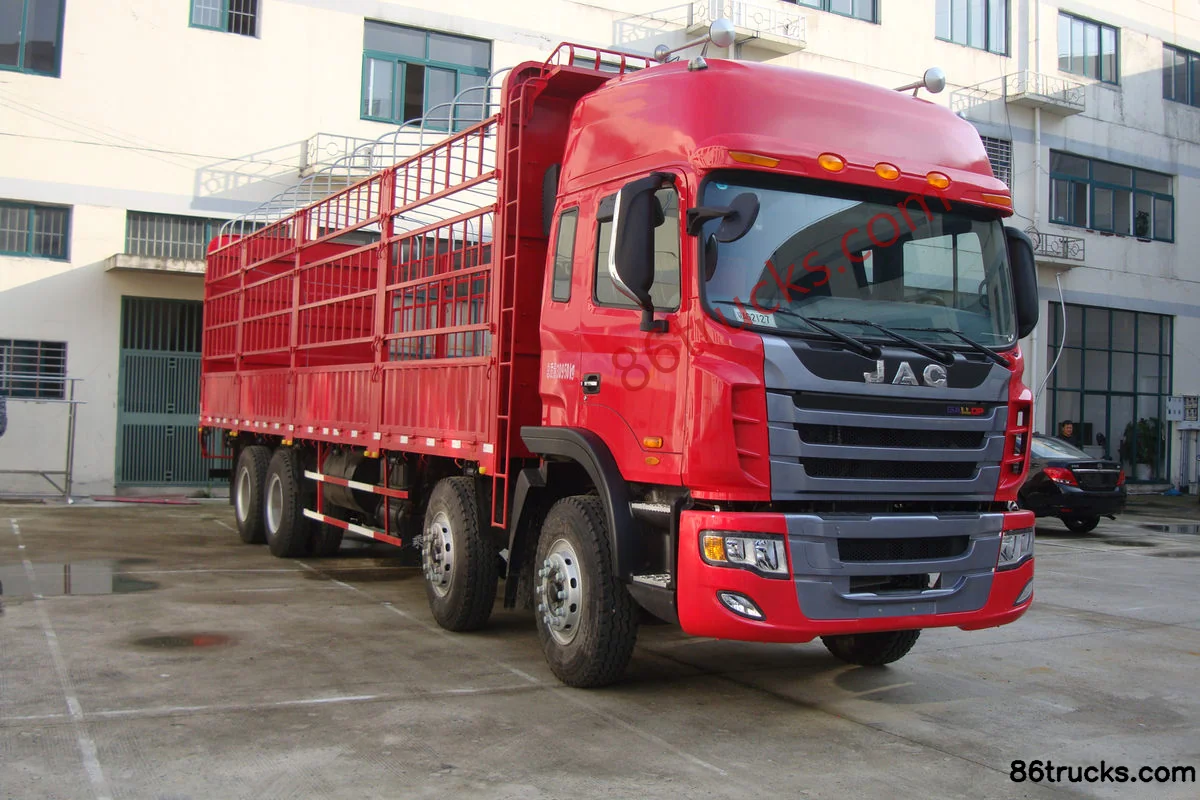

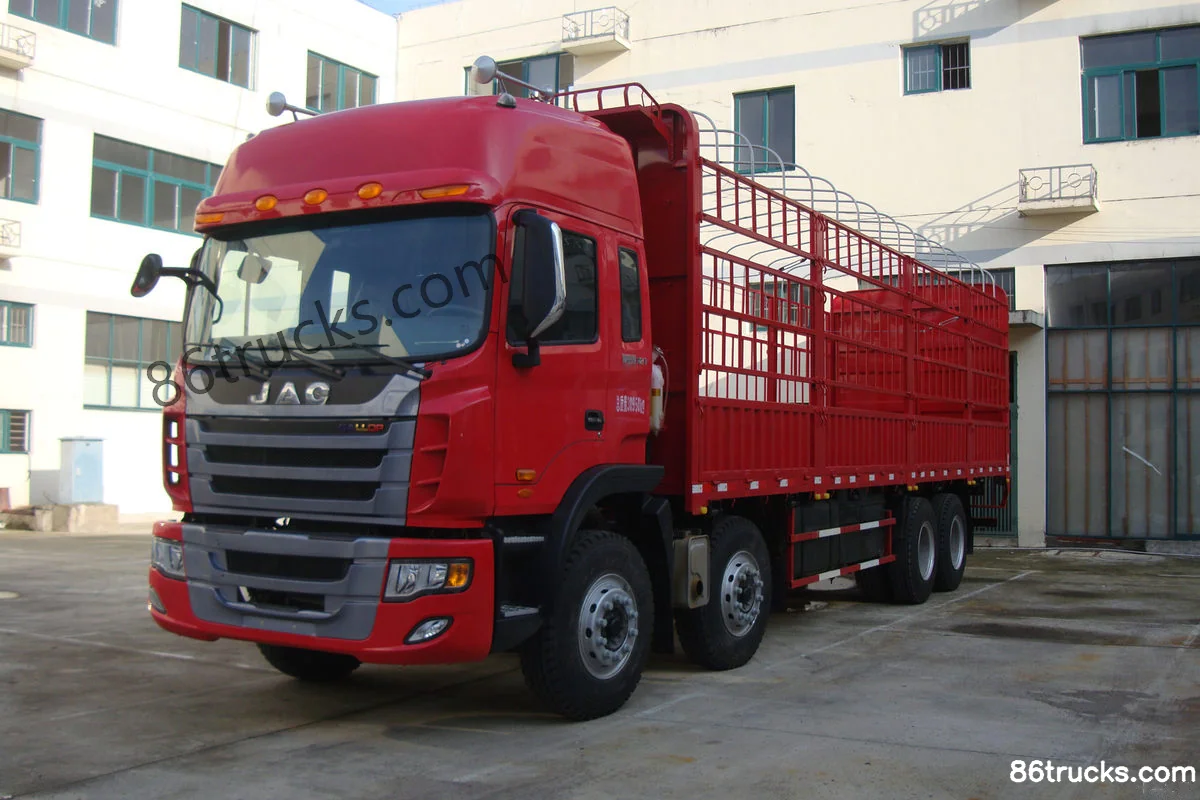

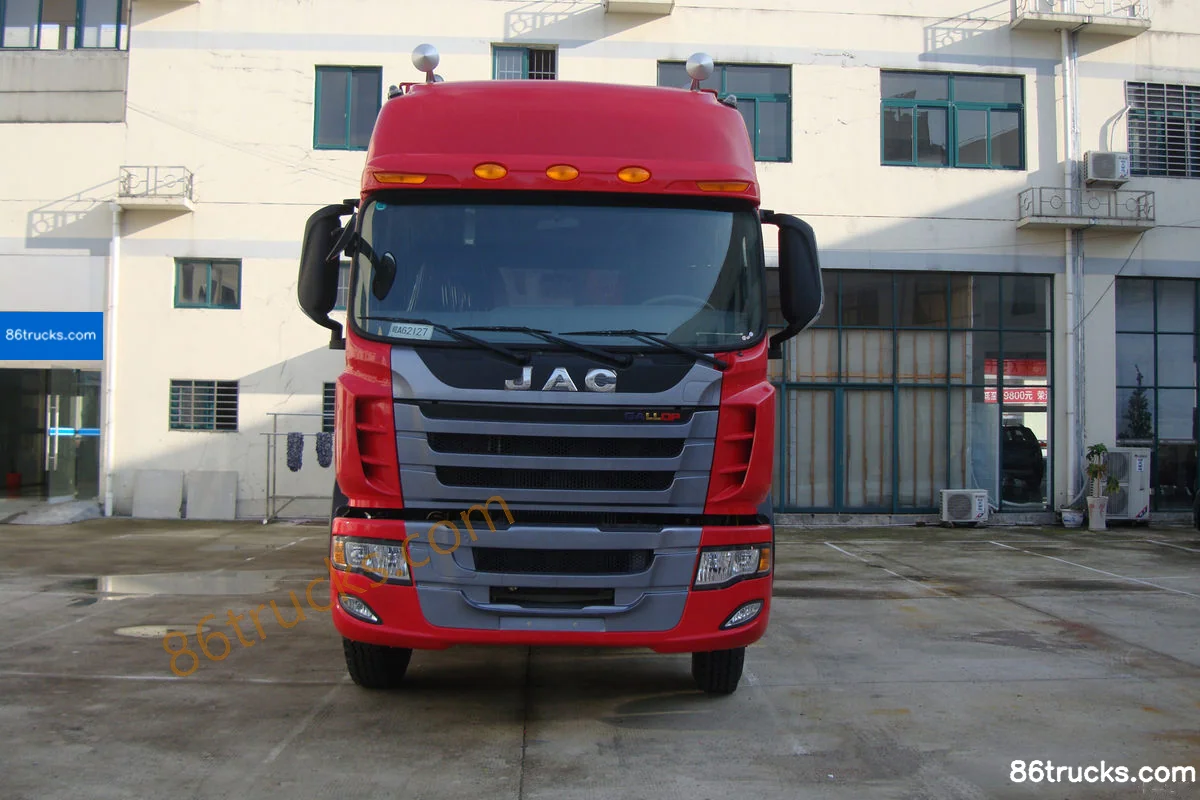

Exterior3

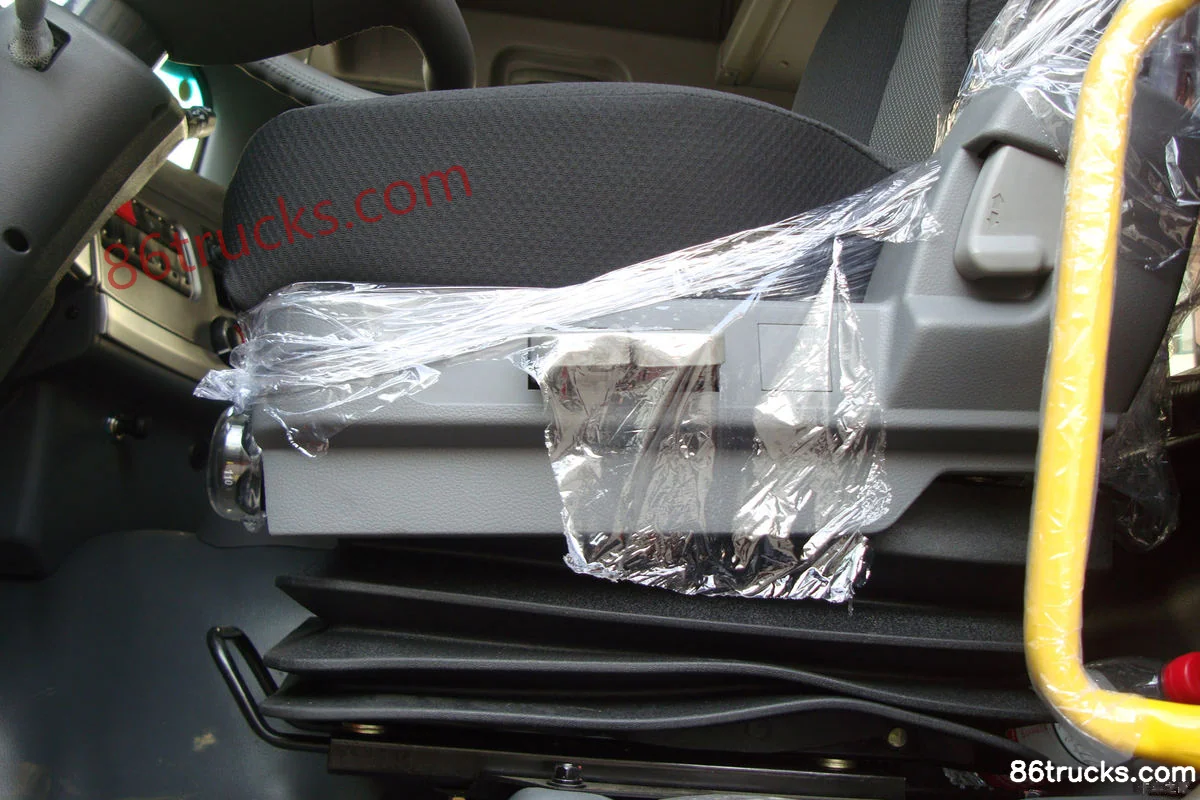

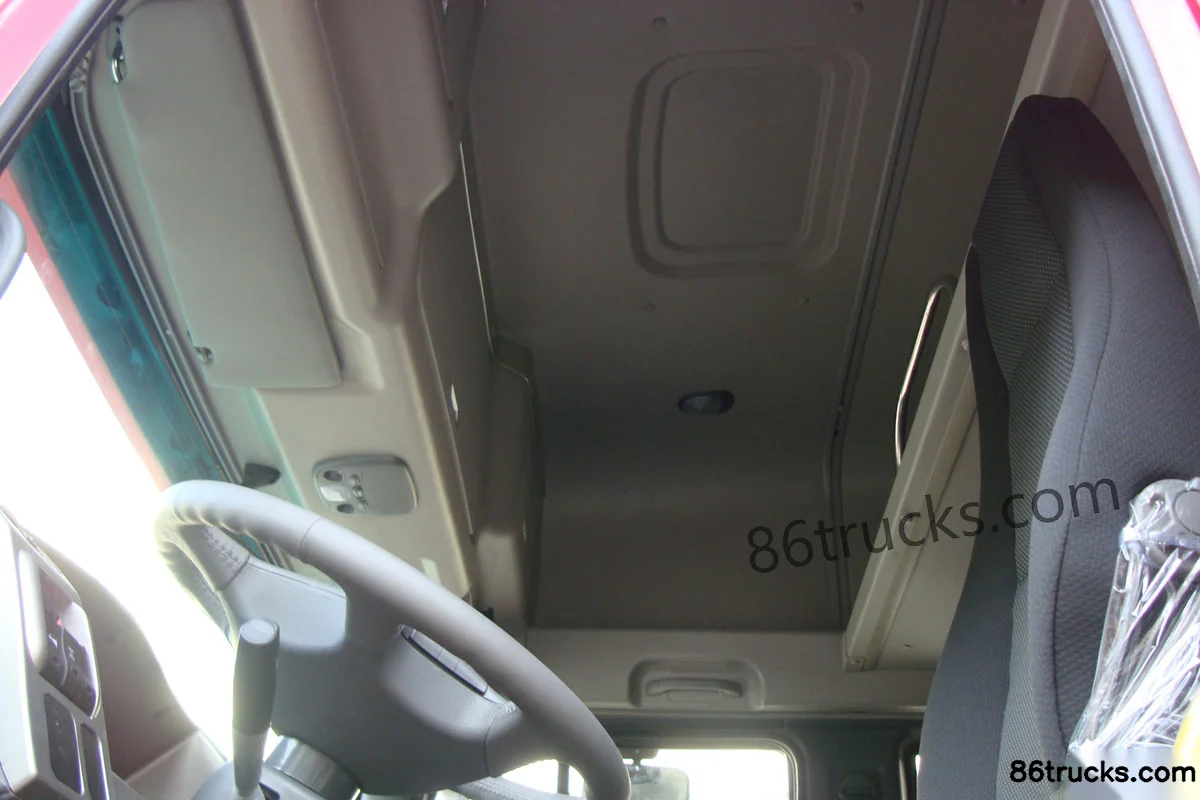

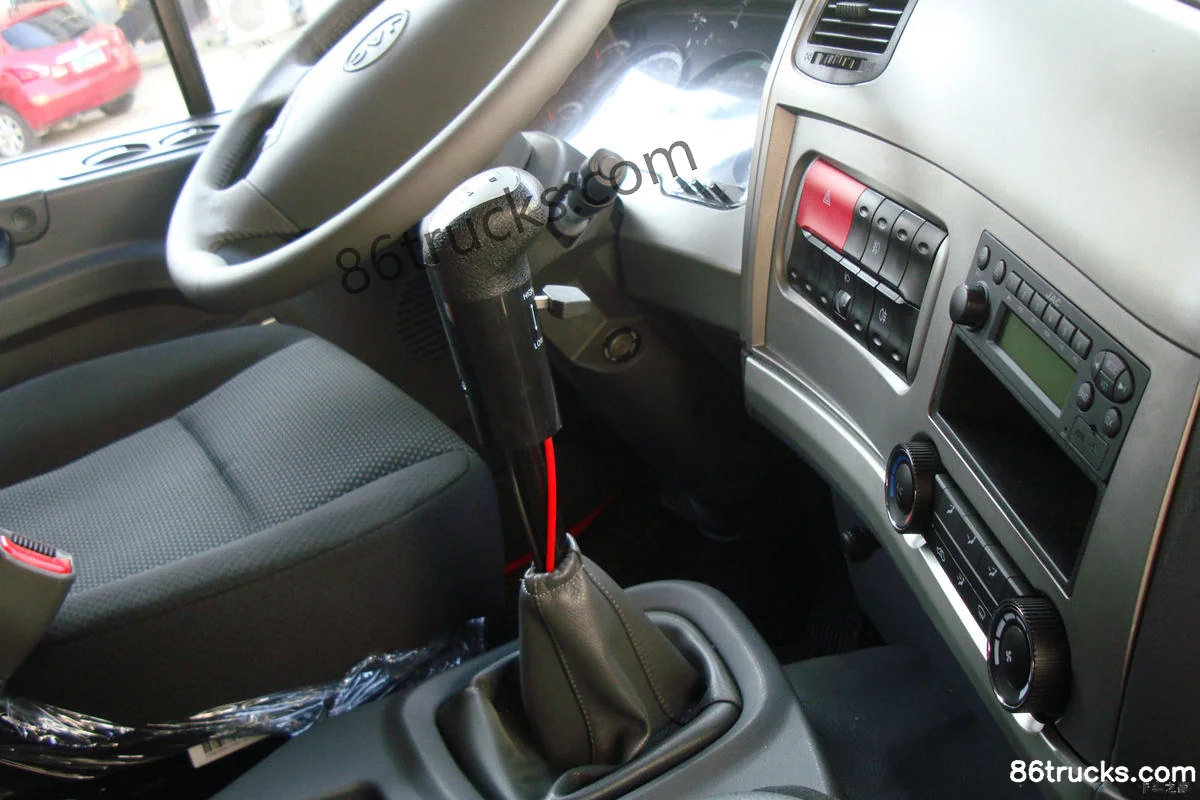

Cab3

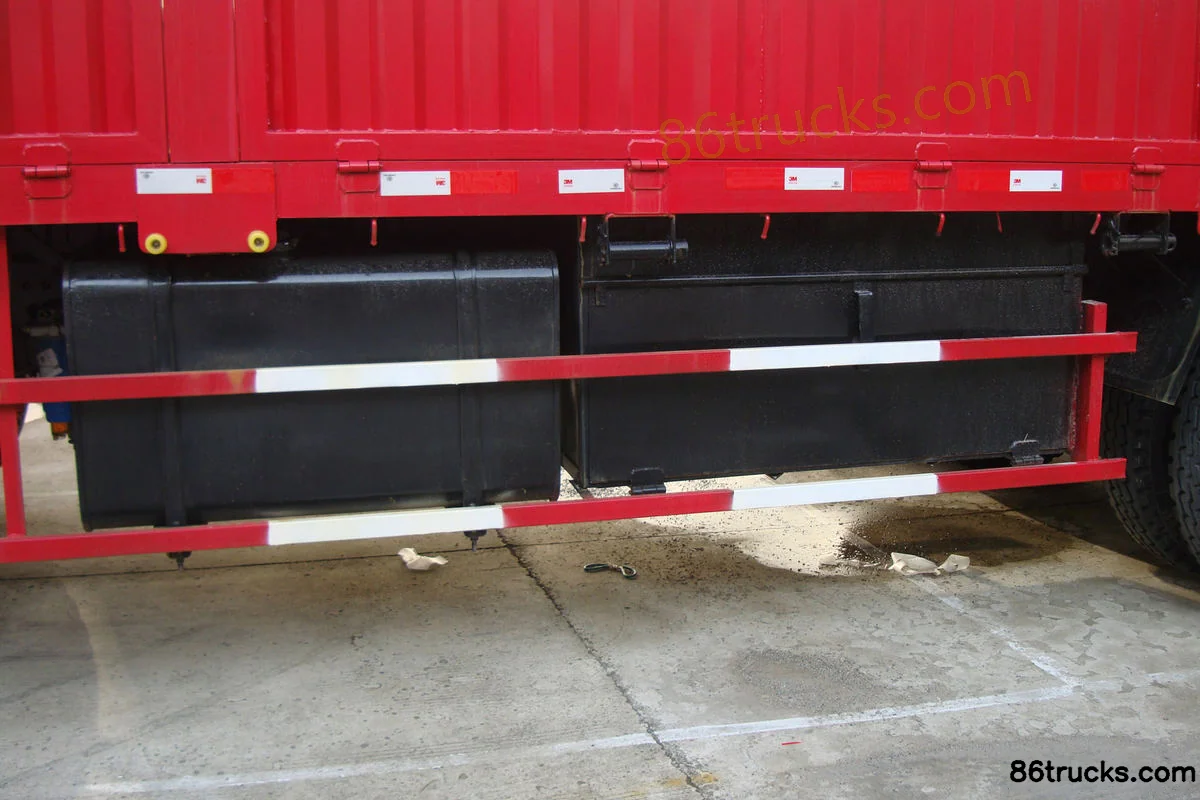

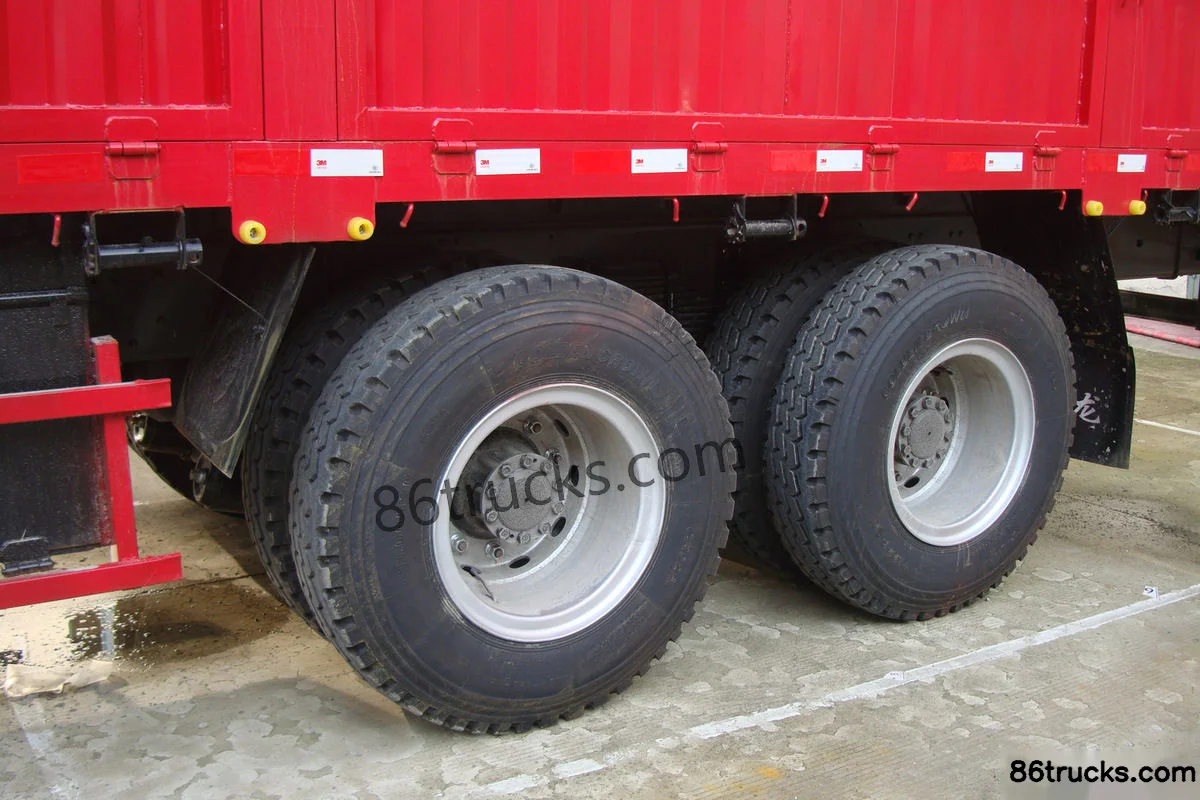

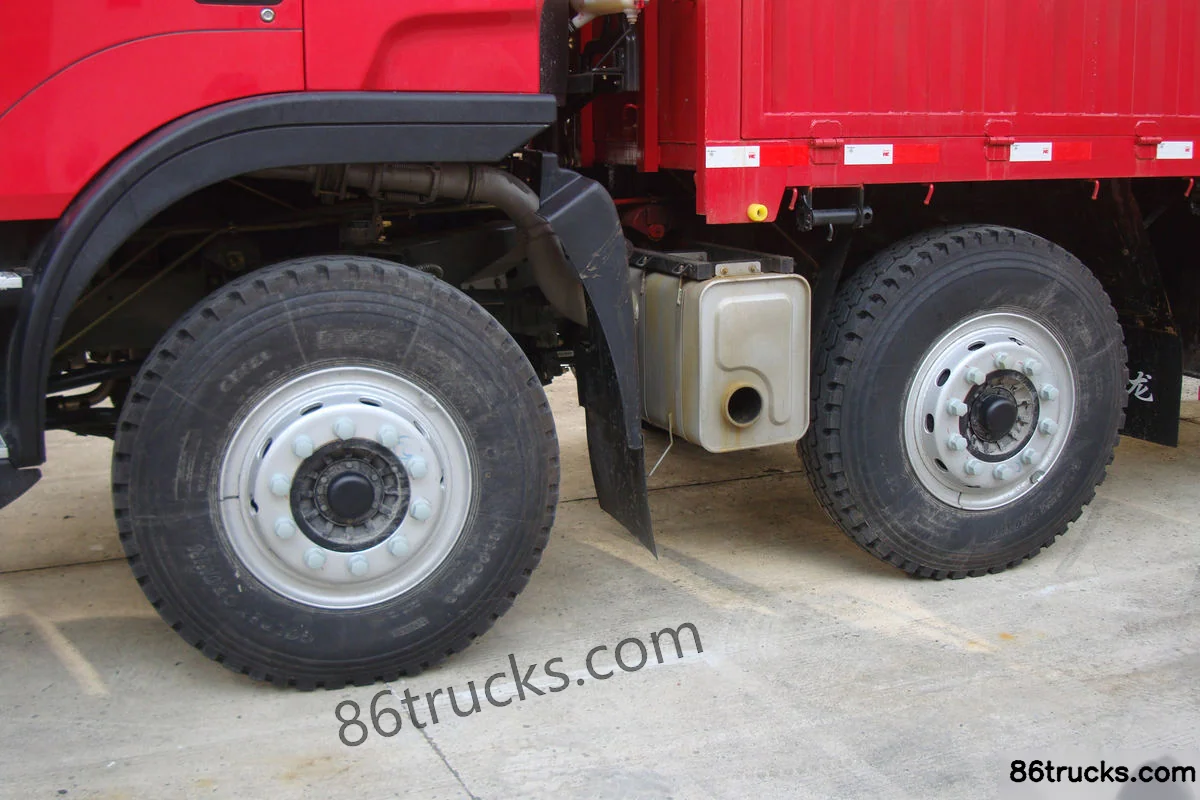

Chassis3

9 photos

FAQ

What emission standard does JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck?

Key specs of JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck suited for?

JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck differ from other variants in the same series?

JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3W Heavy Truck 290 hp 8X4(12 wheels) 9.5m Crew Cab Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
