Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck

Export reference
MSRP N/A
Horsepower: 154
Emission: China V (Beijing)
Fuel: Diesel
Curb Weight:: 6.305ton
Wheelbase:: 5200mm
Tire Size:: 8.25-20,8.25R20,9.00-20,9.00R20
Box volume: 35m³
Rated payload: 7.08ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 6.65×2.3×2.3m

Overview

The Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck is a Refrigerated Truck featuring 6.65×2.3×2.3m cargo body, 35m³ volume, 7.08t payload and 8.995×2.51×3.72m cab. On the powertrain side, it comes with 154 hp, 4X2 (6 wheels) drive, China V (Beijing) emissions and Diesel fuel.

China V (Beijing) 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.995×2.51×3.72m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 5200mm
Front track width: 1930mm
rear track: 1800mm
Curb Weight: 6.305ton
Rated payload: 7.08ton
Max. speed: 110km/h
Front/rear suspension: 1.3/2.495m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF3.8s5154
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V (Beijing)
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Cargo box parameters
Box volume: 35m³
Cargo box dimensions: 6.65×2.3×2.3m
Cargo box width: 2.3m
Cargo box height: 2.3m
Body Parameters
Vehicle certification code: BJ5149XLC-F1
Refrigeration unit: Thermo King/Carrier/Kaixue/Bingzhiyuan
Body Brand: Foton
Refrigeration temperature: 25/-18/-10/-5/°C
Chassis Specs
Chassis Series: Aoling CTX
Chassis Model: BJ1149VJPEK-F1
Axle ratio: 5.286
Leaf spring count: 8/10+10
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLY 6-speed
Tire
Tire Size: 8.25-20,8.25R20,9.00-20,9.00R20
Number of tires: 6pcs

Photos

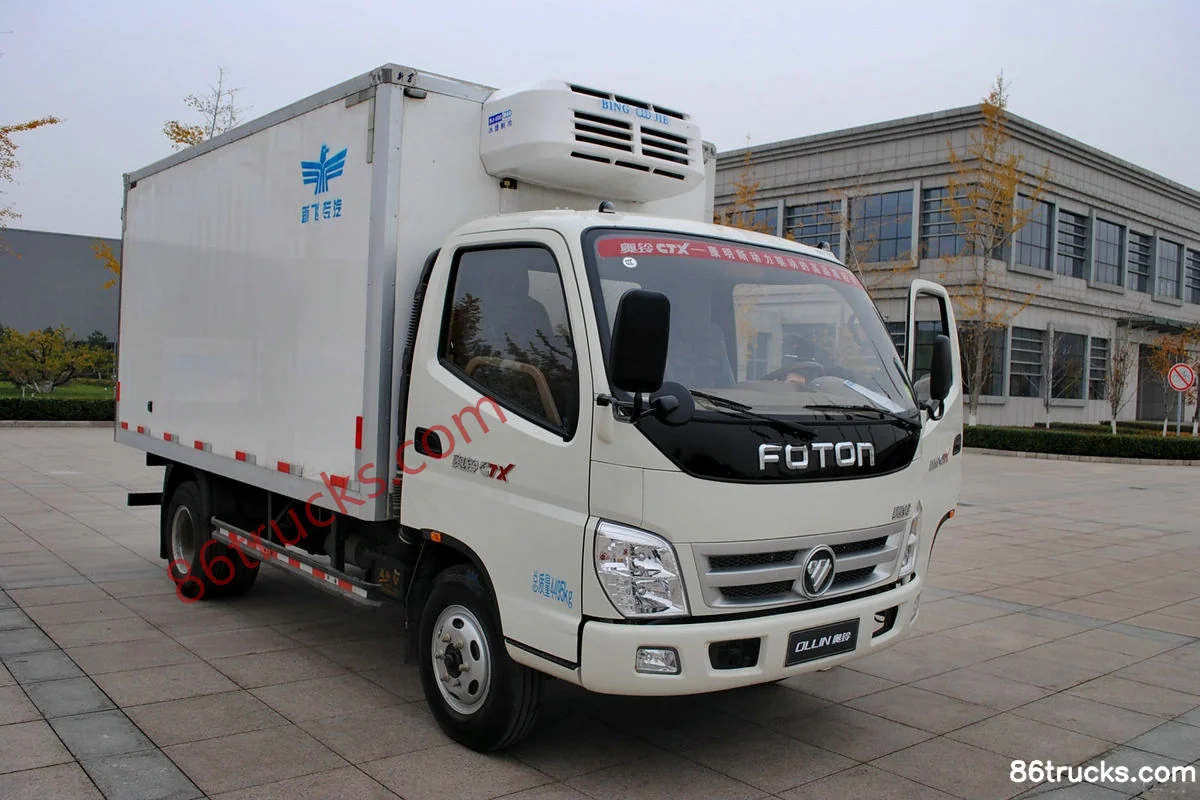

Exterior1

1 photos

FAQ

What emission standard does Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck use, and can it enter my country?

This model is listed as China V (Beijing). Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck?

Key specs of Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V (Beijing); Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck suited for?

Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck differ from other variants in the same series?

Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck belongs to Foton CTX Light Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 154hp 4X2(6 wheels) Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
