JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT)

Export reference
From $77,500
MSRP ¥55.8M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5,295/80R22.5
Front axle allowable load:: 7000kg
Displacement:: 12.419L
Drive 6X4 (10 wheels)
Horsepower 540
Emission China V
Transmission ZF

Overview

The JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) is a Heavy truck featuring 6X4 (10 wheels) drive, 540 hp, 25t GVW and China V emissions. Its segment focus covers Cold chain transport, matching those duty cycles. On the powertrain side, it comes with a SinotrukMC13.54-50 engine, ZF transmission and Diesel fuel.

China V 540 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4252P13K7E33S7V
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: SinotrukMC13.54-50
transmission: ZF12TX2621TD
Rear Axle Ratio: 2.85
Cab length: 6.94m
Cab width: 2.55m
Cab height: 3.858m
Front track width: 2070mm
Gross Trailer Weight: 40ton
rear track: 1860/1860,1880/1880mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Cold chain transport
Remarks: One-key start, xenon headlights
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13.54-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.419L
Emission standard: China V
Max output power: 400kW
Max hp: 540Horsepower
Max torque: 2500N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZF12TX2621TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 900L
Cab parameters
Cab: High roof
Cab width: 2550mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 6.5T
Fifth wheel: 150#/90#/50#
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×8mm
rear axle description: Meritor 166
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.85
Leaf spring count: 2/2+-/2+-
Aluminum wheels:
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 12R22.5,295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:
ASR traction control:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
hydraulic retarder:
Front wheel brake: Disc
Rear Wheel Brake: Disc brake
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):

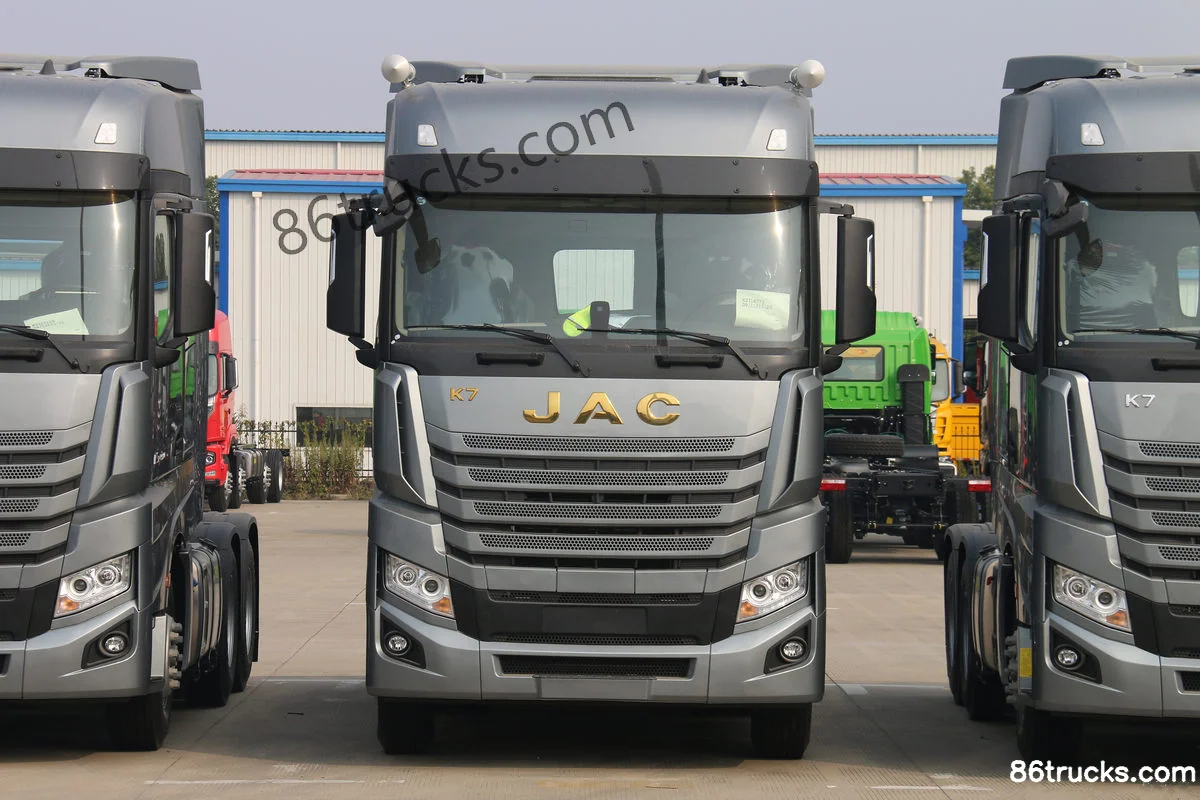

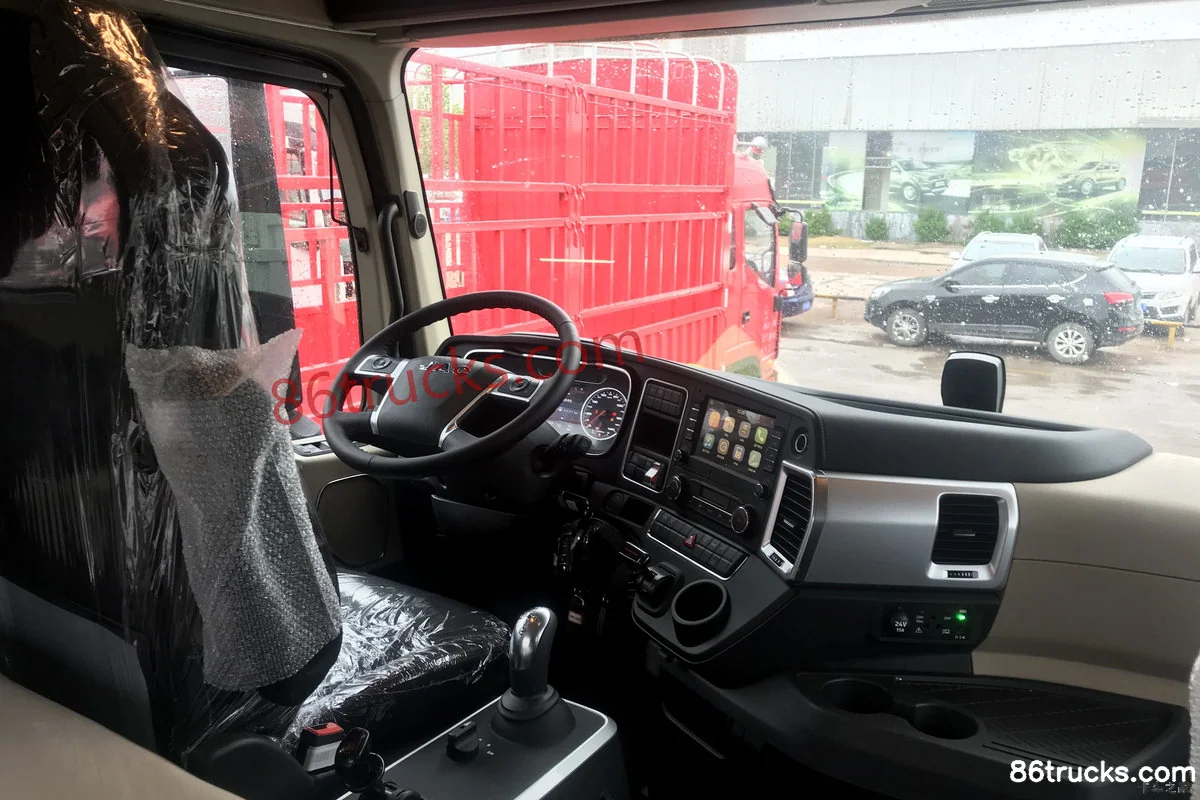

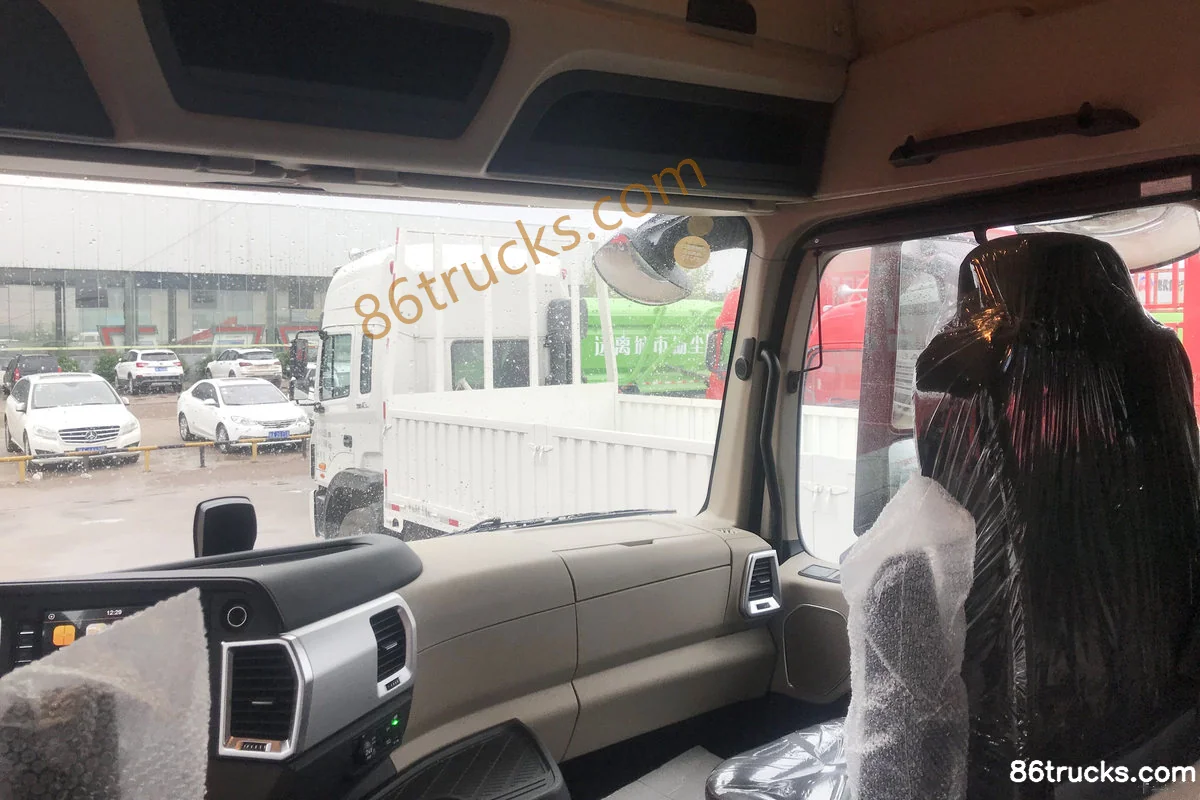

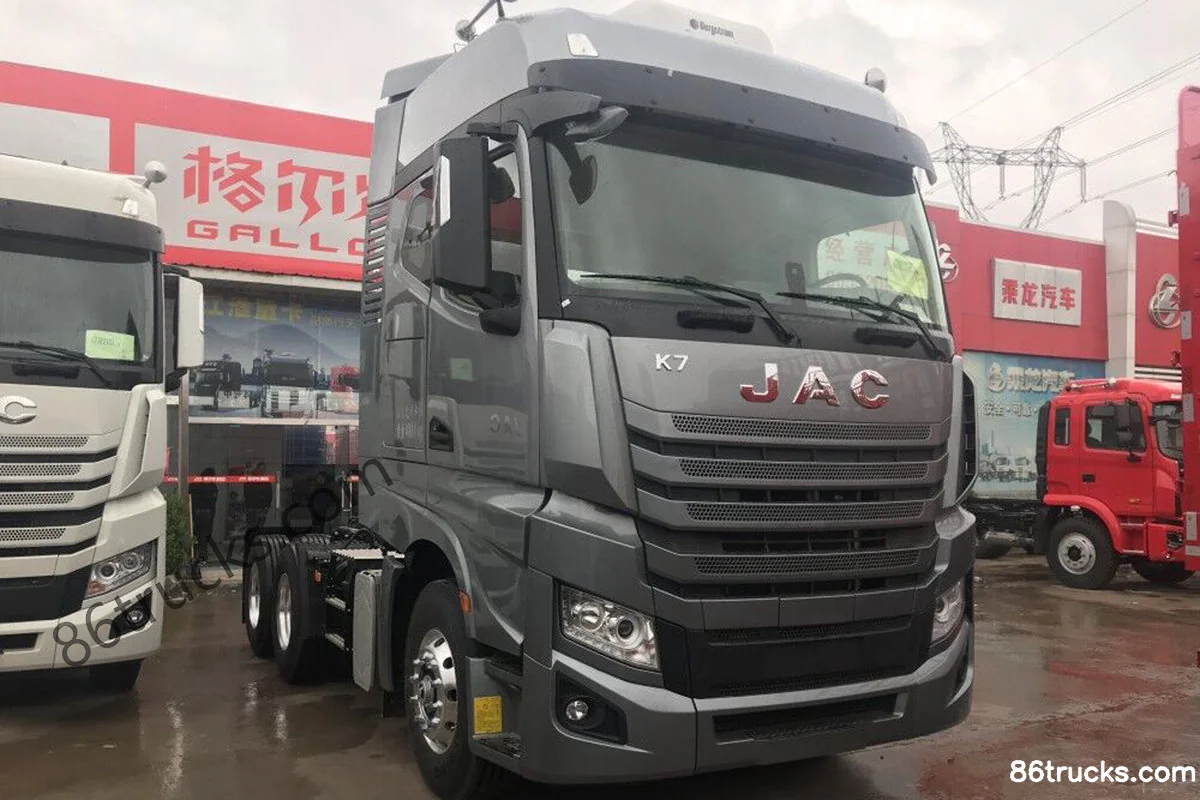

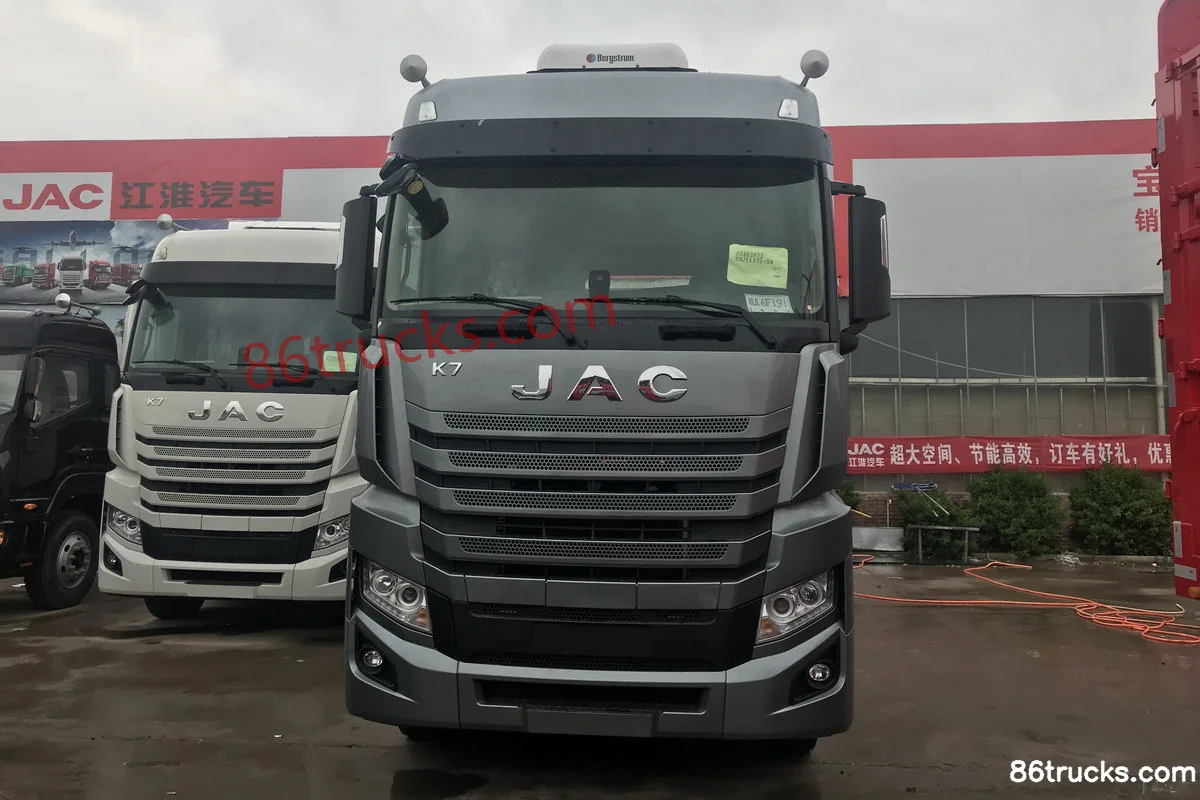

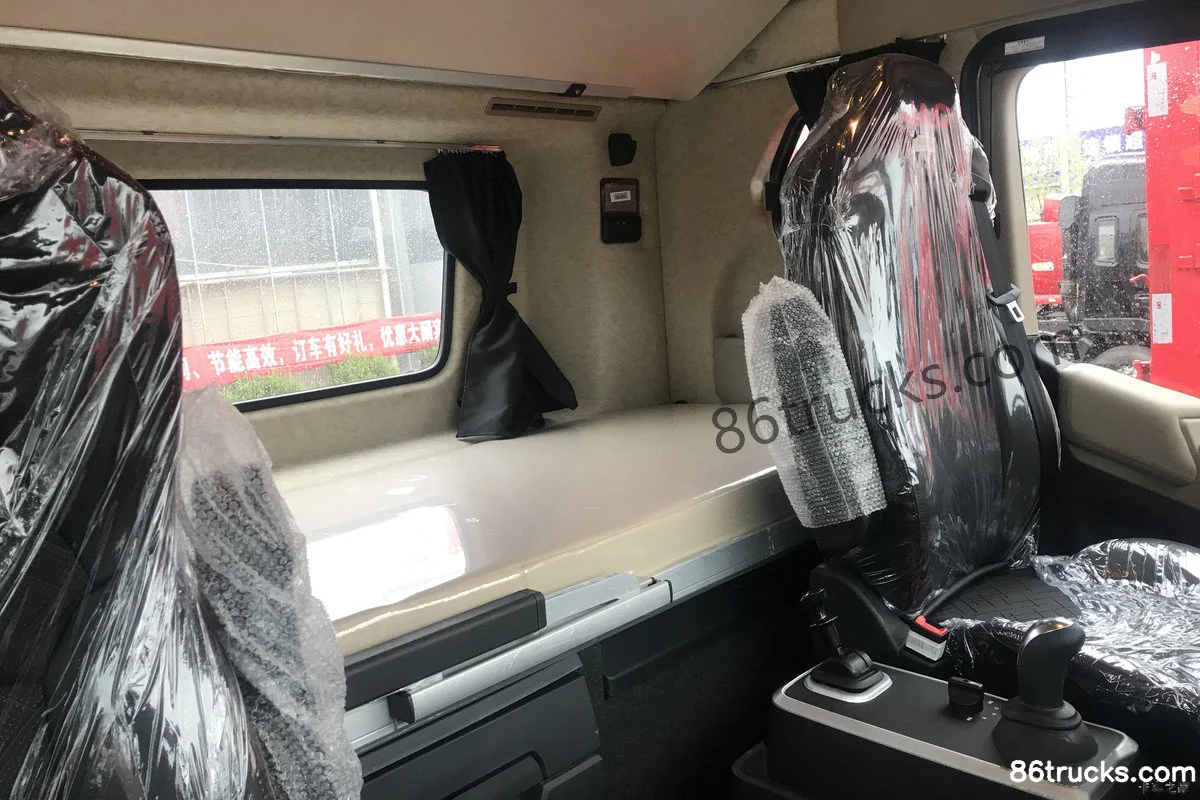

Photos

Exterior3

Cab3

6 photos

FAQ

What is the export price of JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT), and what does it include?

JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) export reference is about From $77,500; MSRP is ¥55.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT)?

Key specs of JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT): Drive: 6x4; Horsepower: 540 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) suited for?

JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) differ from other variants in the same series?

JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT) belongs to JAC Kuayue K7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K7W Heavy Truck Luxury Edition 540hp 6X4(10 wheels) Automatic Tractor Truck (Air Suspension)(ZF AMT)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
