SANY 100 Ton Truck Crane (QY100)

Export reference
MSRP N/A
Max gradeability:: 40%
Min turning radius:: 12m
Approach/departure angle:: 19°
Rated lifting capacity:: 100ton
Rated lifting moment:: 3600KN.m
Rated lifting moment (fully extended boom):: 1920KN.m

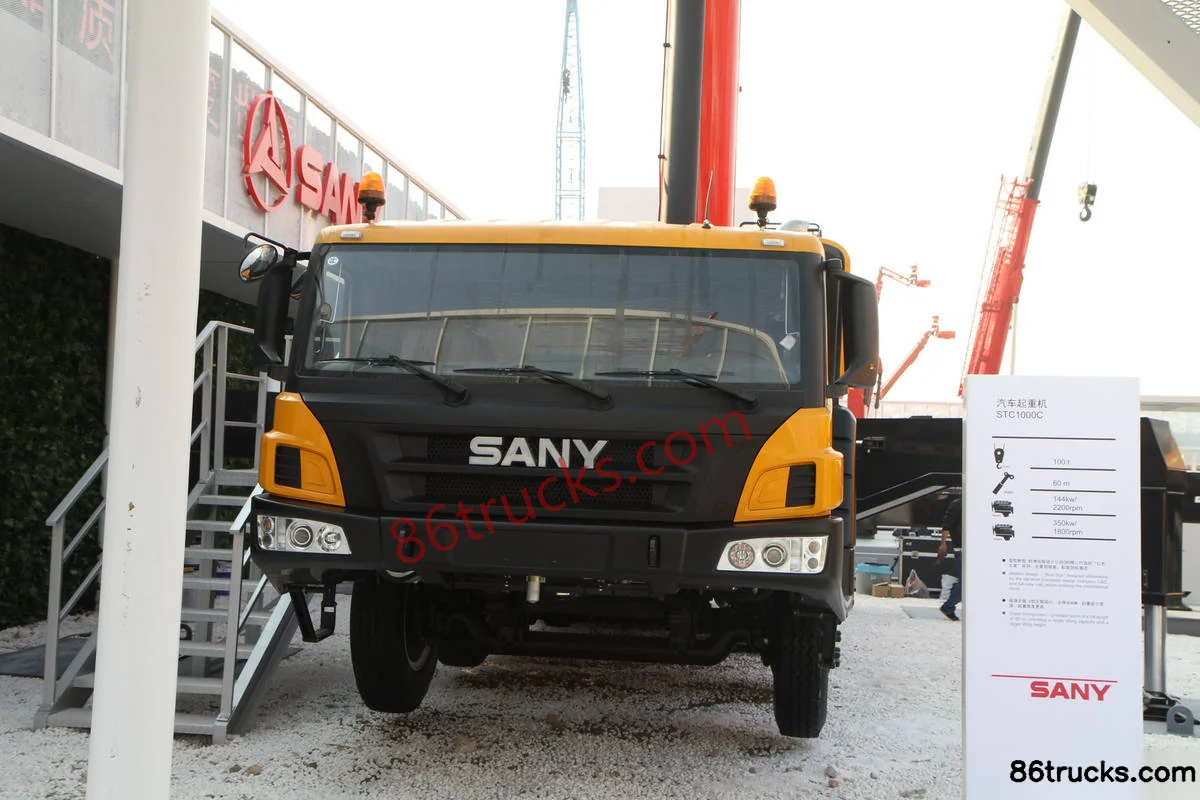

SANY 100 Ton Truck Crane (QY100) exterior
View more photos (1)
Max output power: 150kW
Model: QY100
Machine dimensions: L×W×H: 15.970×3×3.81m
Max travel speed: 80km/h

Overview

The SANY 100 Ton Truck Crane (QY100) is a crane truck featuring 150kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: QY100
Machine dimensions: L×W×H: 15.970×3×3.81m
Max travel speed: 80km/h
Max gradeability: 40%
Min turning radius: 12m
Approach/departure angle: 19°
Lifting capacity
Rated lifting capacity: 100ton
Rated lifting moment: 3600KN.m
Rated lifting moment (fully extended boom): 1920KN.m
Min working radius: 3m
Max lift height - base boom: 13.5m
Max lift height: 52m
Max lifting height - main boom + jib: 70m
Boom length - main boom: 13.5m
Boom length - fully extended: 52m
Operating Parameters
Max hoisting speed of main winch: 135m/min
Auxiliary winch max lift speed: 123m/min
Outrigger span: longitudinal × lateral: 7.56×7.6m
Boom full extension time: 80sec
Engine parameters
Engine Model: Mercedes-BenzOM502LA.III
Max output power: 150kW
Rated speed: 2200rpm

Photos

Exterior1

SANY 100 Ton Truck Crane (QY100) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is SANY 100 Ton Truck Crane (QY100) suited for?

SANY 100 Ton Truck Crane (QY100) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SANY 100 Ton Truck Crane (QY100) differ from other variants in the same series?

SANY 100 Ton Truck Crane (QY100) belongs to SANY truck crane (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 100 Ton Truck Crane (QY100)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 100 Ton Truck Crane (QY100)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
