JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.345ton
Wheelbase:: 2850mm
Cargo box type:: stake body
Model code (announced):: HFC1031EV5
Type:: Cargo Trucks
Box length class:: 3.5m
Drive 4X2 (6 wheels)
CLTC range: 295km
Motor 1 Brand: Shanghai Electric Drive
Curb Weight: 2.02ton

Overview

The JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels) is a mini truck featuring 295km battery/range, Shanghai Electric Drive motor, 4X2 (6 wheels) drive and 1.345t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1031EV5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.5m
Cab length: 5.56m
Cab width: 1.83m
Cab height: 2.09m
CLTC range: 295km
Curb Weight: 2.02ton
Rated payload: 1.345ton
GVWR: 3.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Shanghai Electric Drive
Motor 1 Model: TZ230XS62FE
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 100kW
total peak torque: 310N·m
Battery/Charging
Battery Brand: Oupeng
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 62.05kWh
Energy Density: 135.58
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.5m
Cargo box width: 1.72m
Cargo box height: 0.355m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1370kg
rear axle allowable load: 2125kg
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

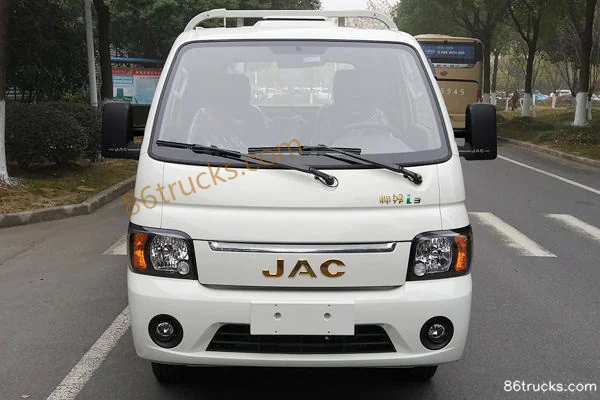

Exterior1

1 photos

FAQ

What are the key specs of JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels)?

Key specs of JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels) suited for?

JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels) belongs to JACEX5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing i3 3.5T 3.5m Single Row Pure Electric Flatbed Micro Truck 62.05kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
