Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck

Export reference
MSRP N/A
Horsepower: 140
Emission: China IV
Fuel: Diesel
Engine: SDEC4105
Transmission: WLY
Curb Weight:: 2.8ton
Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck exterior
View more photos (11)
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck is a Light Truck featuring 3.65m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. On the powertrain side, it comes with a SDEC4105 engine, 140 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 140 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJ5041XXYZFDCWZ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.7m
engine: SDECSC4H140Q4
transmission: WLYWLY6T120
Rear Axle Ratio: 4.875
Cab length: 5.98m
Cab width: 2.245m
Cab height: 3.195m
Front track width: 1767mm
rear track: 1586mm
Curb Weight: 2.8ton
Rated payload: 1.495ton
GVWR: 4.49ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 18°
departure angle: 15°
Front/rear suspension: 1.165/1.507m
Version: Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC4H140Q4
Engine info: SDEC4105
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.295L
Emission standard: China IV
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 550N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: 4-cylinder inline, electronic common rail, 4-valve, dry cylinder liner, 4-stroke, water-cooled, rear gear train
Transmission Parameters
Transmission Model: WLYWLY6T120
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.65m
Cargo box width: 2.11m
Cargo box height: 2.1m
*Cargo box interior width: 2.1099998950958
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Chassis Specs
Front axle allowable load: 1820kg
rear axle allowable load: 2670kg
Axle ratio: 4.875
Leaf spring count: 7/8+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.50-16LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power interface:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Radio:
Service brake
Exhaust brake:

Photos

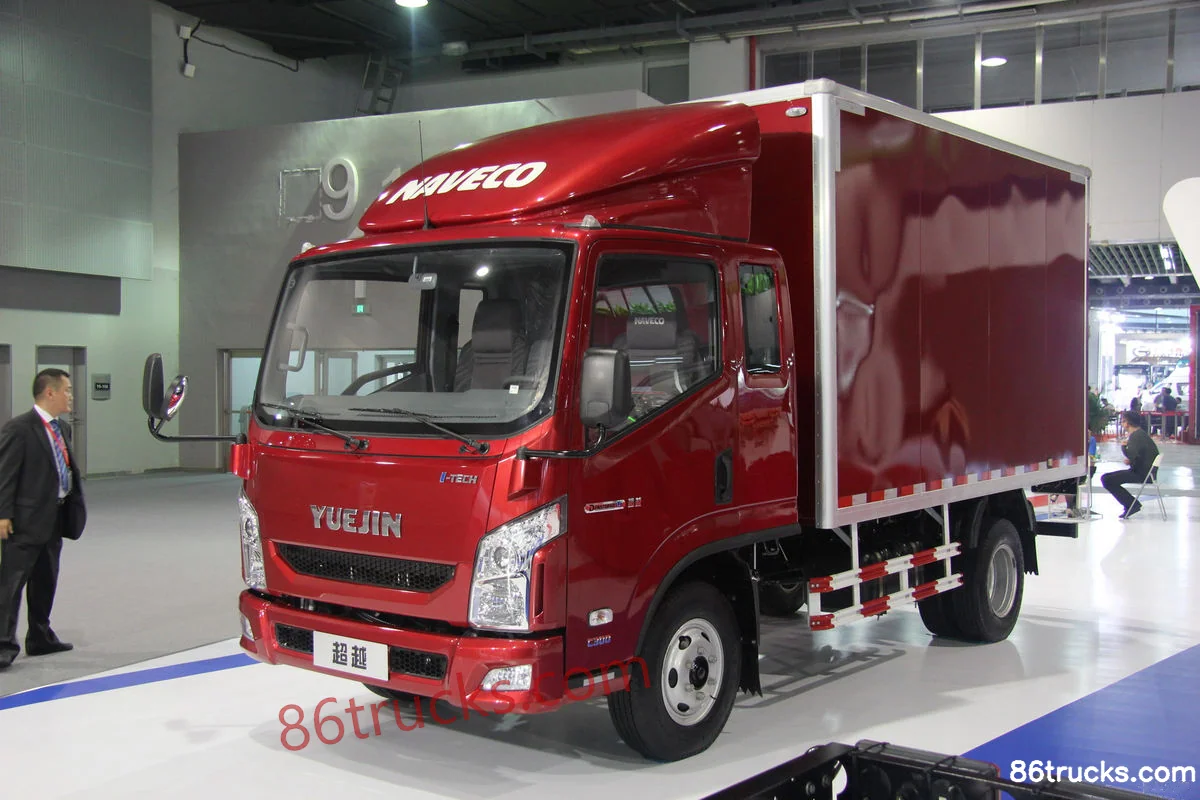

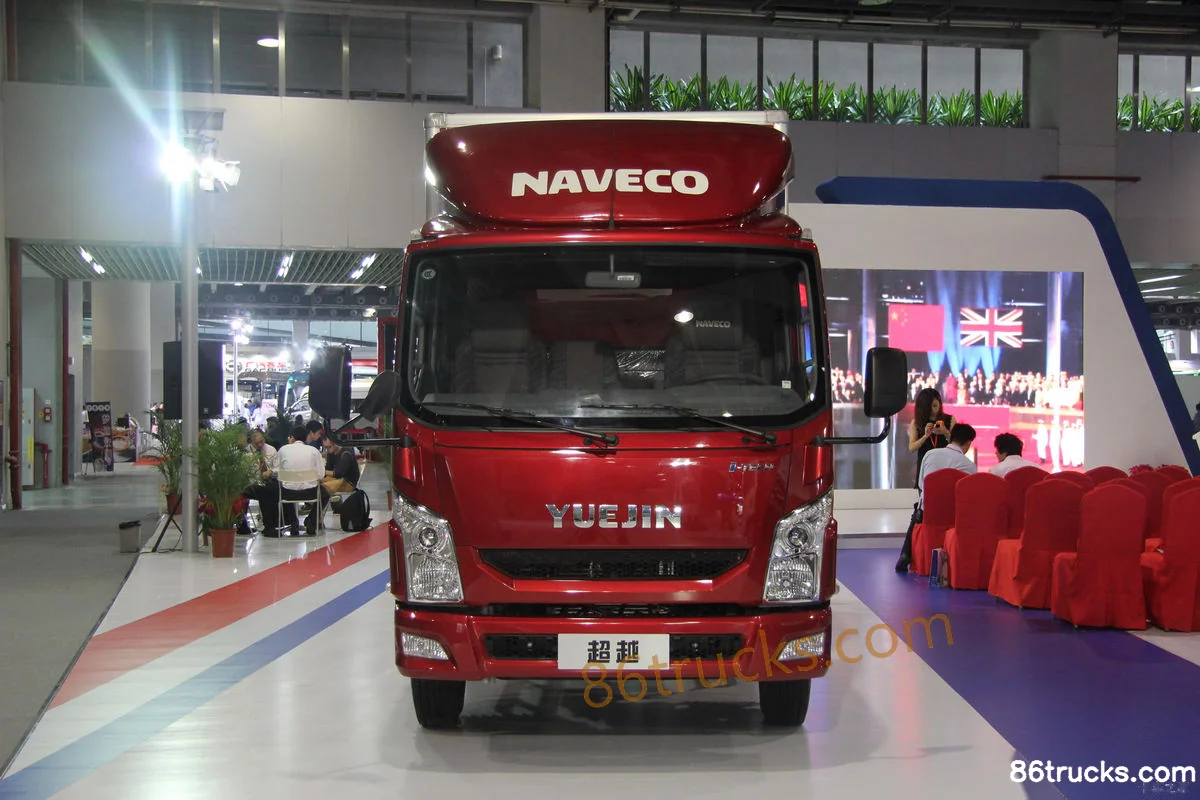

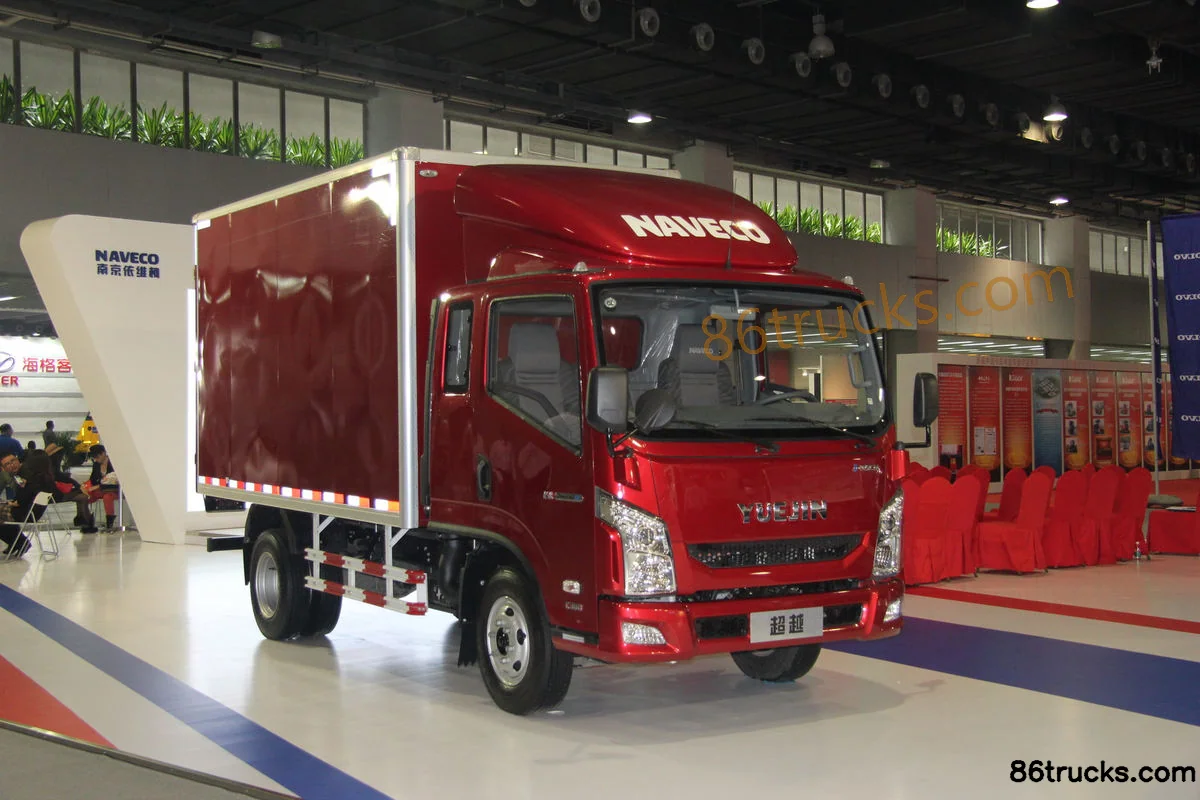

Exterior3

Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Exterior (1) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Exterior (2) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Exterior (3) | 86Trucks

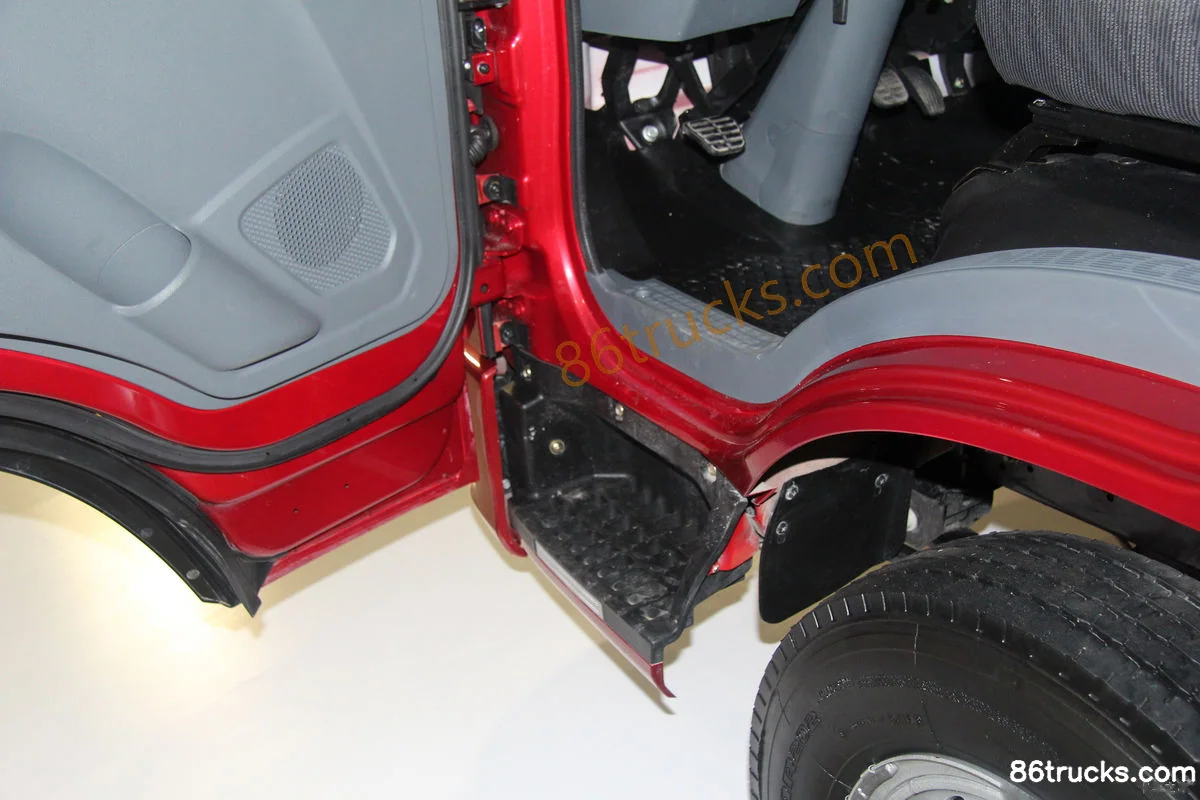

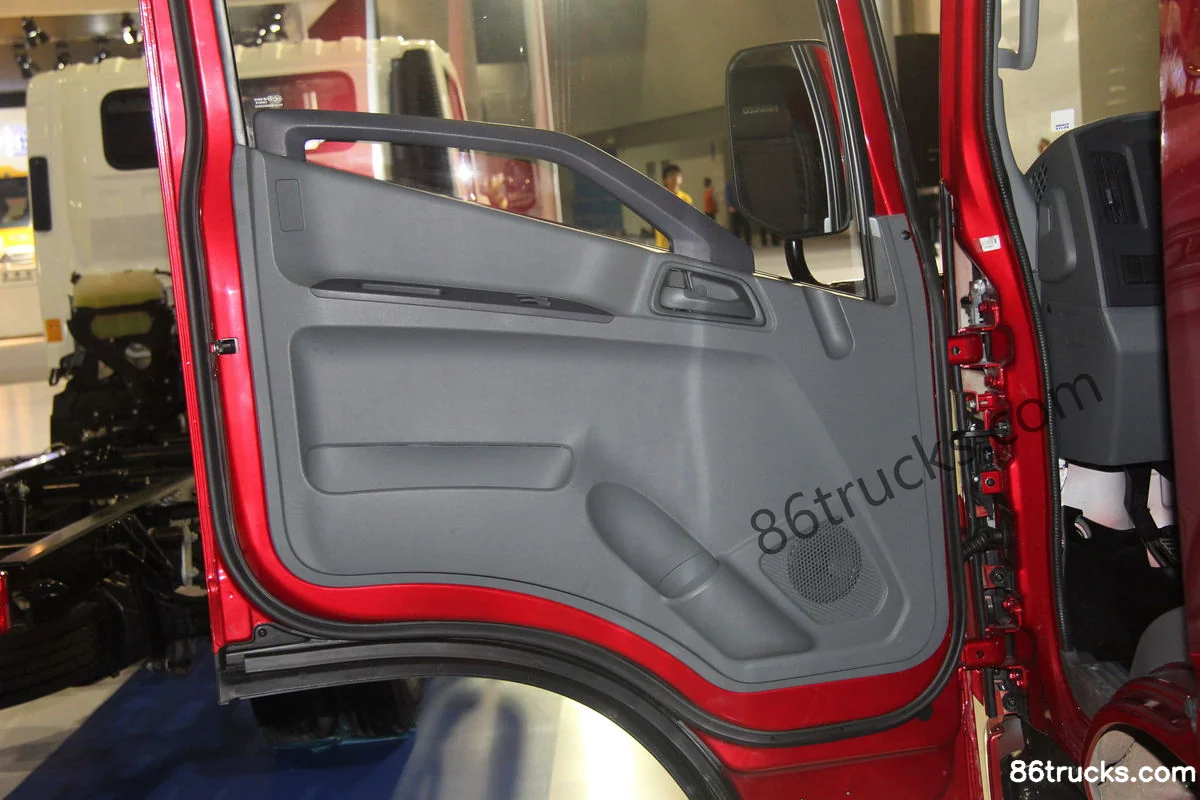

Cab3

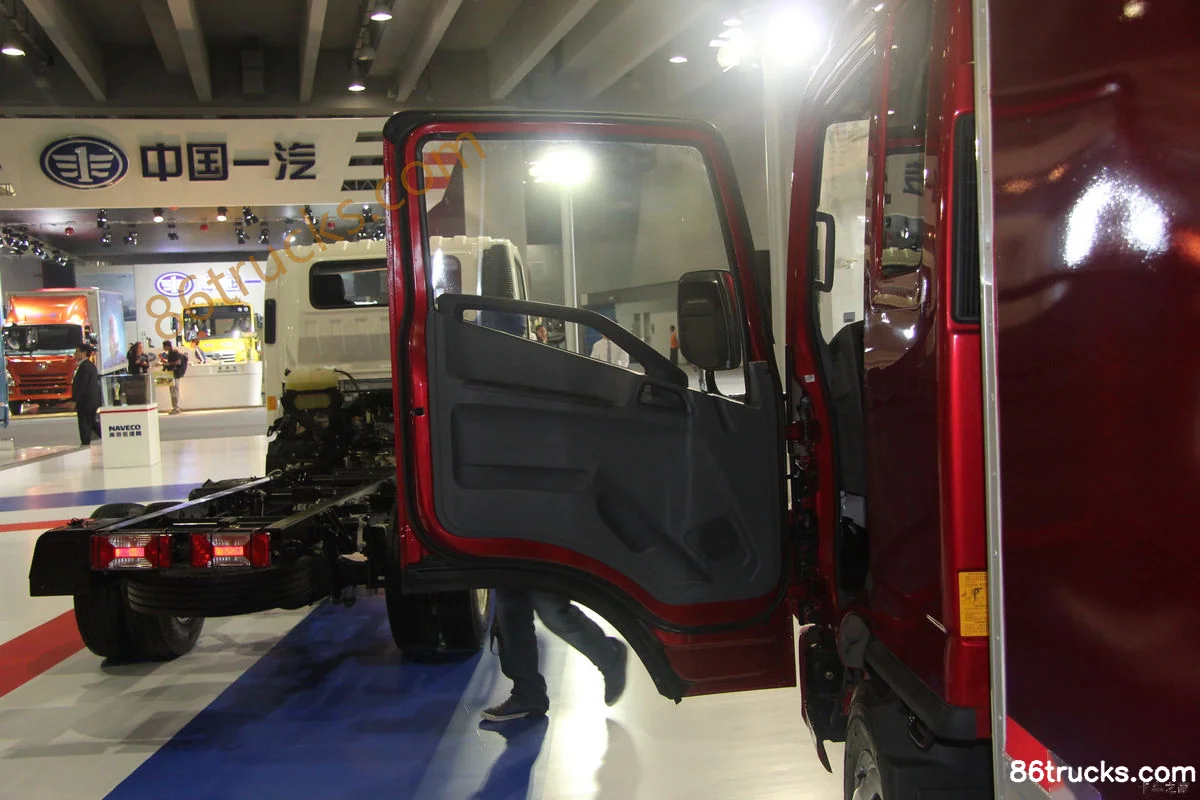

Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Cab (1) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Cab (2) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Cab (3) | 86Trucks

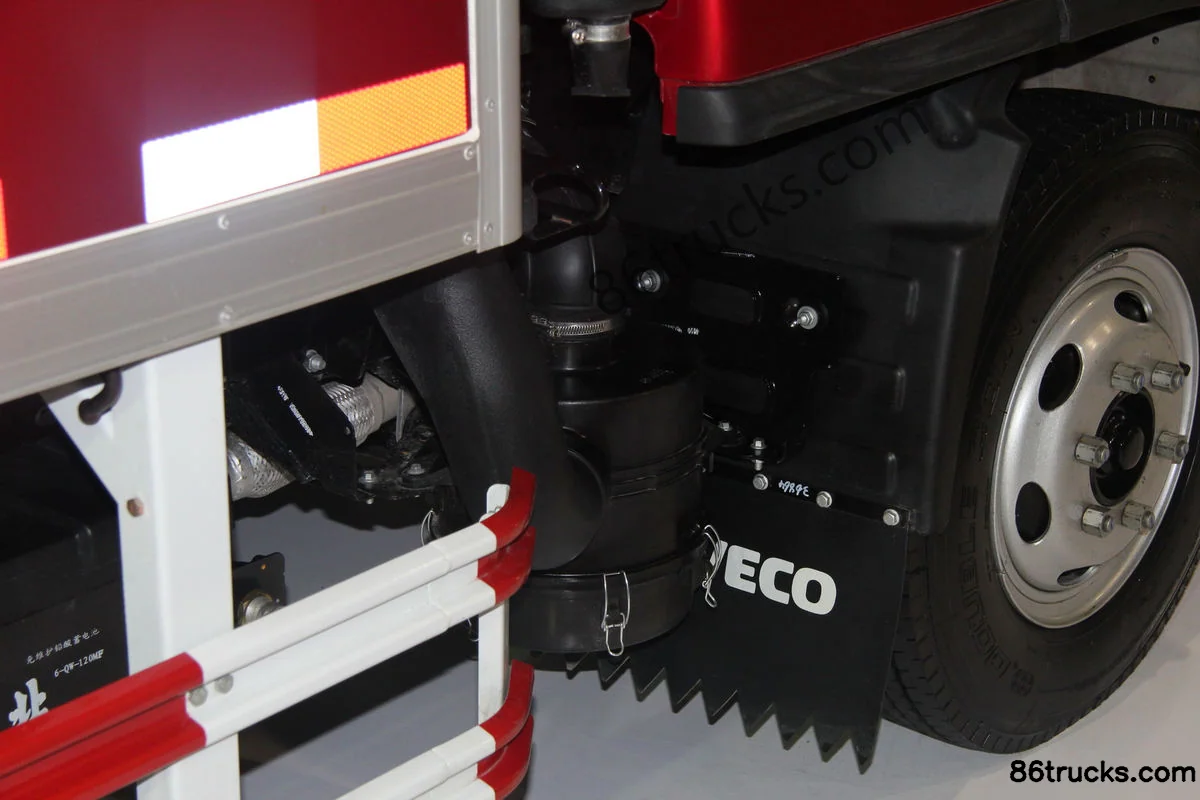

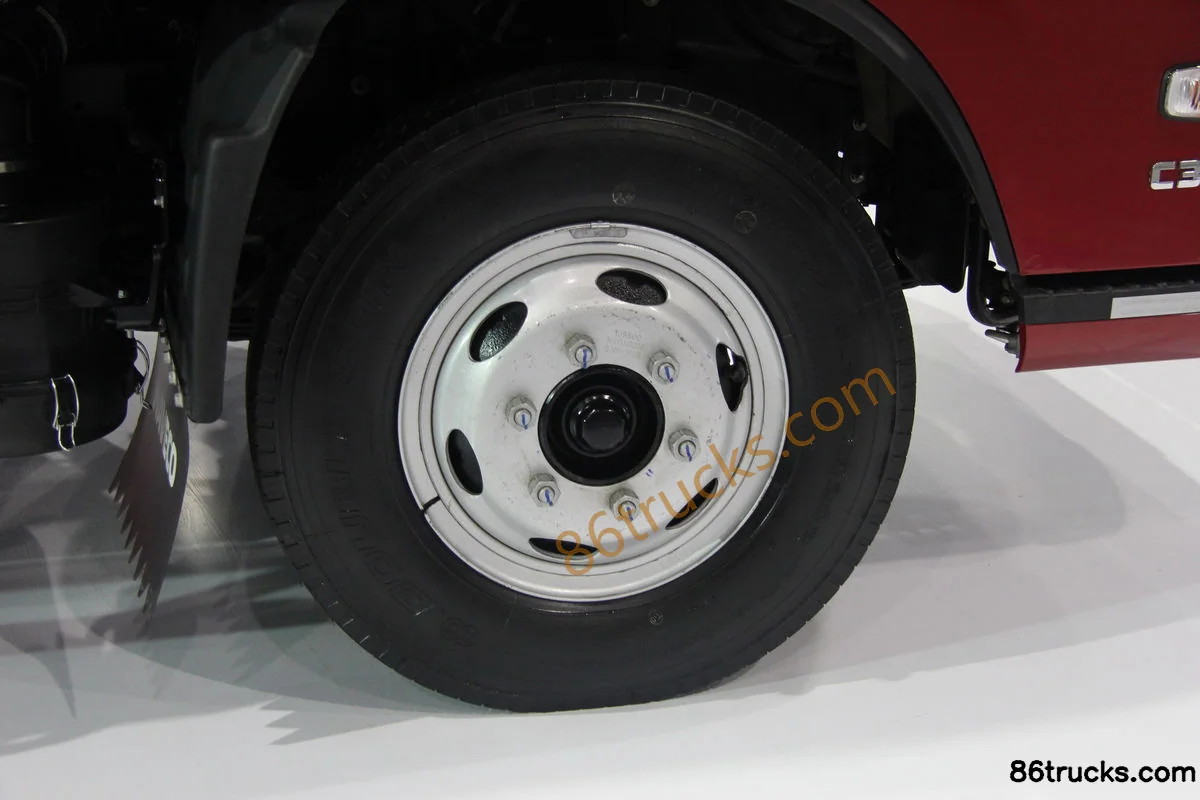

Chassis3

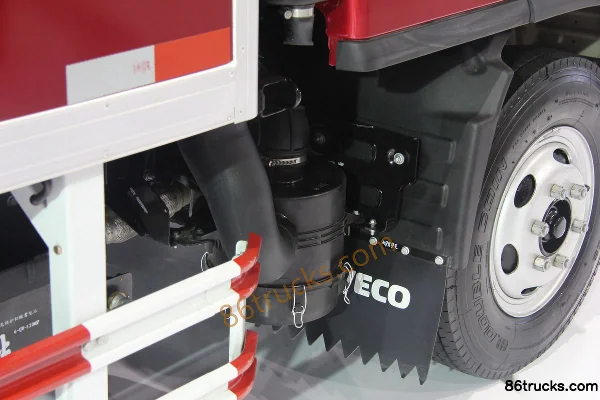

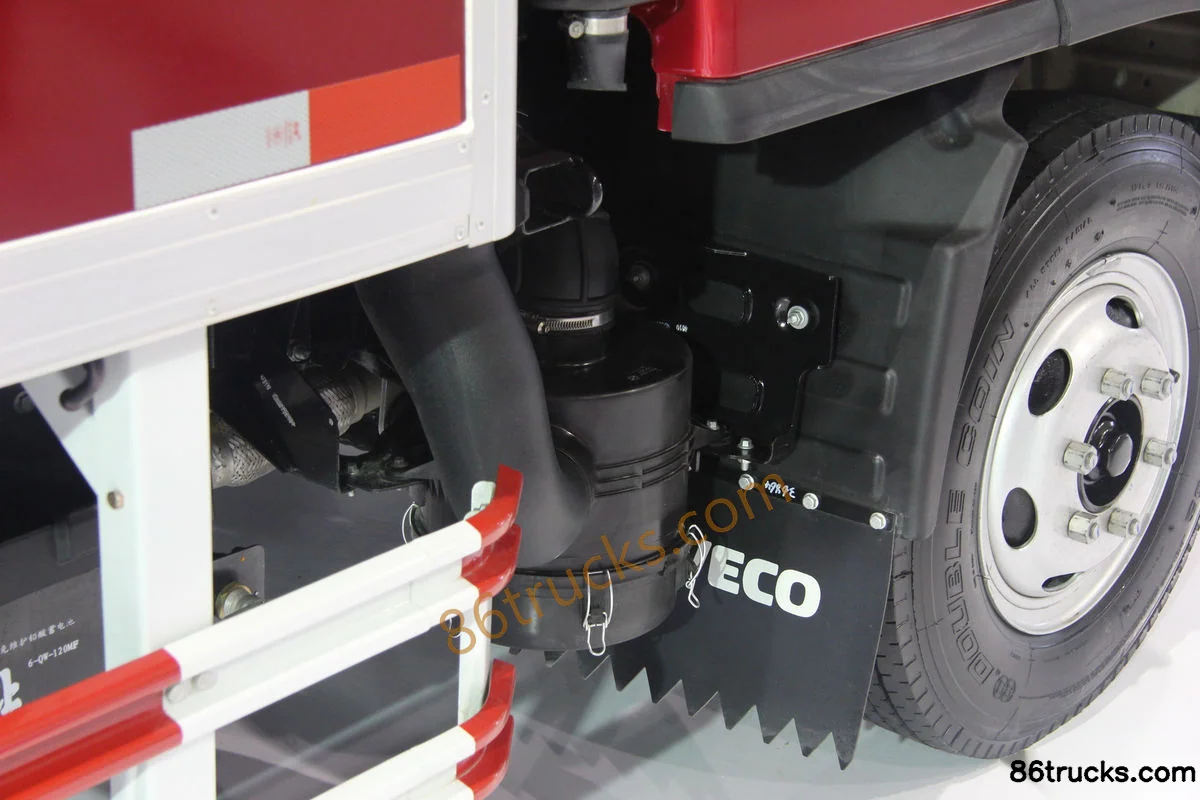

Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Chassis (1) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Chassis (2) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Chassis (3) | 86Trucks

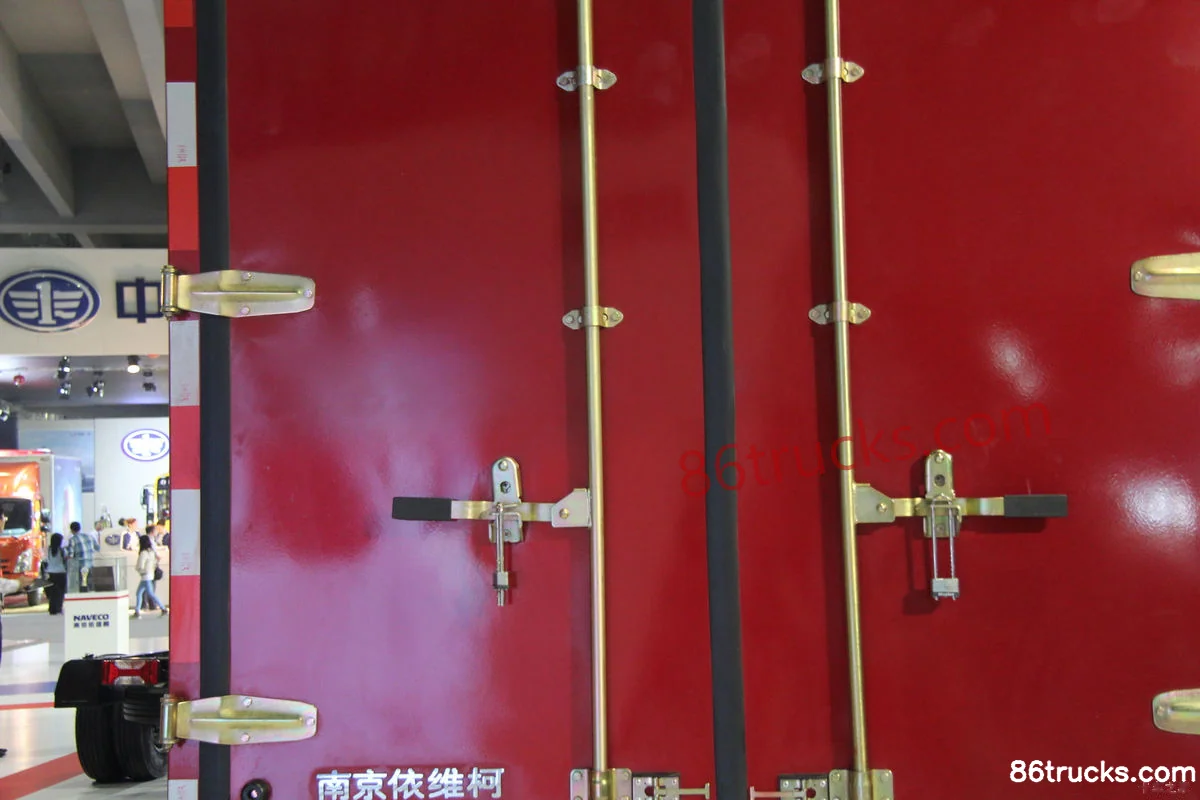

Body2

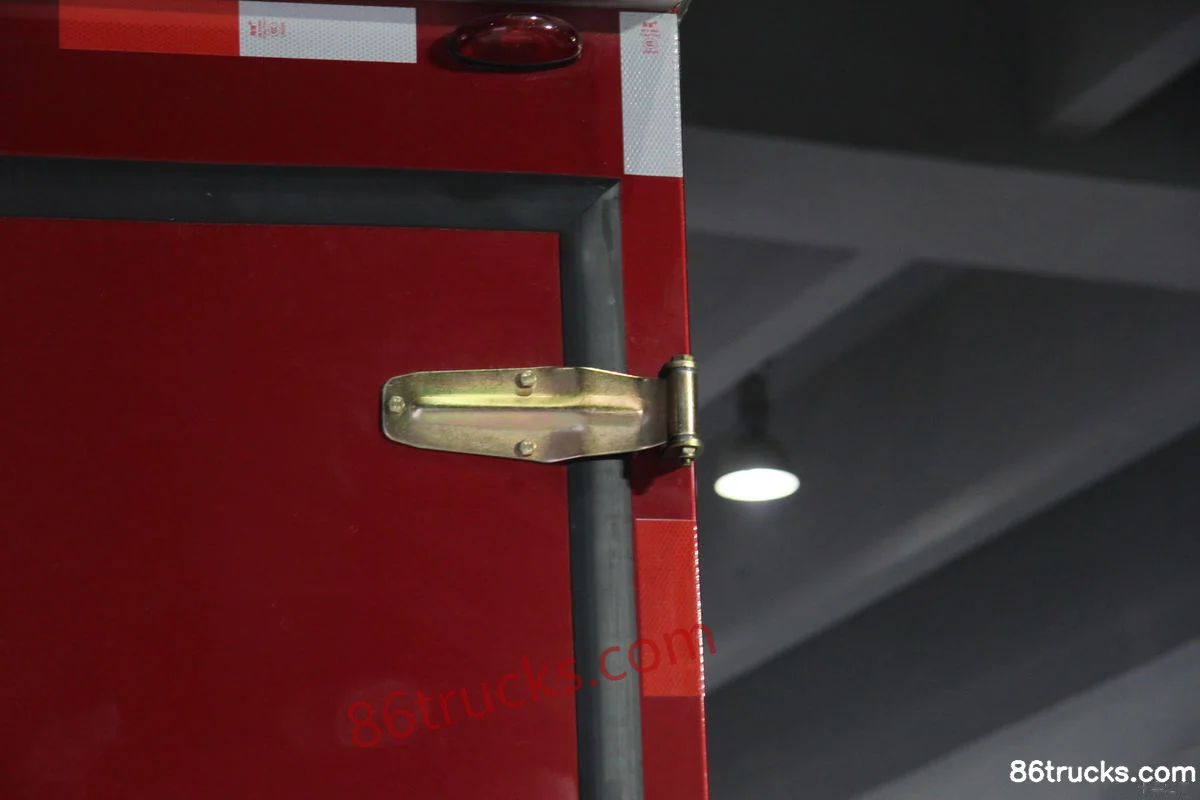

Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Body (1) | 86Trucks Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck Body (2) | 86Trucks

11 photos

FAQ

What emission standard does Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck?

Key specs of Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck: Drive: 4x2; Horsepower: 140 hp; Emission: China IV; Fuel: Diesel; Engine: SDEC4105; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck suited for?

Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck differ from other variants in the same series?

Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck belongs to Yuejin Chaoyue C Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C500-33 Comfort Edition 140hp 4X2(6 wheels) 3.65m semi-row van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
