JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck
EXW
From $29,347
Export quote
JAC Gallop A3 Heavy Truck Cargo Trucks
Main model photos
241 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck | 6x2 / 200hp / China IV | From $29,347 | |
| JAC Gallop A3 220 hp 6X2(8 wheels) Cage Cargo Truck | 6x2 / 220hp / China III / Euro III | ||
| JAC Gallop A3 160 hp 4X2(6 wheels) Cage Cargo Truck | 4x2 / 160hp / China III / Euro III | ||
| JAC Gallop A3 Medium Truck 160 hp 4X2(6 wheels) 5.8m Semi-Excluding Stake Truck | 4x2 / 160hp / China IV | From $19,167 | |
| JAC Gallop A3 Series Heavy Truck 380 hp 8X4(12 wheels) Flatbed Cargo Truck (High Top) | 8x4 / 380hp / China III / Euro III | From $30,556 |

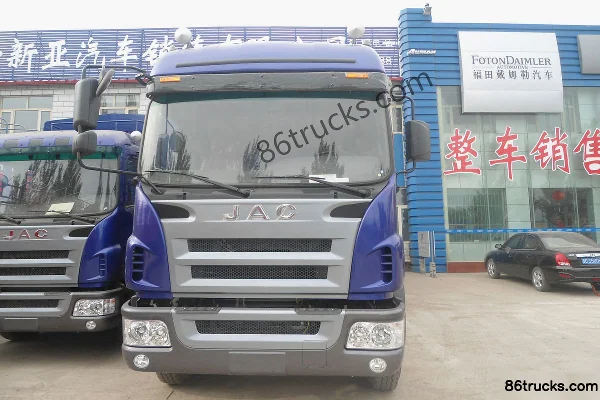

JAC Gallop A3 220 hp 6X2(8 wheels) Cage Cargo Truck
EXW
Export quote

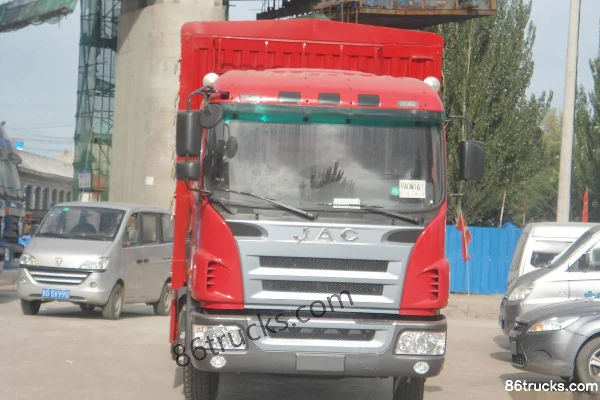

JAC Gallop A3 160 hp 4X2(6 wheels) Cage Cargo Truck
EXW
Export quote
JAC Gallop A3 Medium Truck 160 hp 4X2(6 wheels) 5.8m Semi-Excluding Stake Truck
EXW
From $19,167
Export quote
JAC Gallop A3 Series Heavy Truck 380 hp 8X4(12 wheels) Flatbed Cargo Truck (High Top)
EXW
From $30,556
Export quote
Series Specs
Basic Info
Model code (announced): HFC1241P3K1C46F / HFC5245CCYK3R1LT / HFC5162CCYK2R1HT / HFC5166CCYK1R1ZF / HFC1314K2R1LT / HFC5162CCYKR1ZT / HFC5202XXYK1R1LZT / HFC5122XXYKR1ZT / HFC5131XXYK2R1HT / HFC5162XXYK1R1T / HFC1314KR1T / HFC1131K2R1HT / HFC1162KR1ZT / HFC1162K1R1T / HFC1162K1R1ZT / HFC1257K1R1T / HFC5312XXYK1R1LAT / HFC5162XXYK2R1T / HFC5162CCYK2R1T / HFC1132KR1K3 / HFC1201KR1K3 / HFC5312CCYKR1LT / HFC1255K2R1T / HFC5255XXYK1R1T / HFC5255CCYK2R1T / HFC1202KR1K3 / HFC5202XXYK1R1 / HFC5202CCYK1R1 / HFC1312KR1LT
Type: Cargo Trucks / stake truck / enclosed cargo truck
Drive type: 6X2 / 4X2 / 8X4
Wheelbase: 1700+4600 / 1900+5400 / 5300 / 4500 / 1900+4500+1350 / 4700 / 1900+4500+1300 / 4800+1350 / 1700+4525+1350 / 1700+5000 / 1700+4525+1300 / 1700+5300mm
Box length class: 7.8 / 5.8 / 9.5 / 7.5 / 6.5 / 8.5m
Engine Model: YuchaiYC6J200-42 / YuchaiYC6J220-33 / YuchaiYC6J160-33 / YuchaiYC4E160-42 / YuchaiYC4E140-33 / XichaiCA4DF3-15E3 / YuchaiYC4E140-30 / XichaiCA6DF3-22E3F / XichaiCA6DF3-22E3 / XichaiCA6DF3-18E3F / XichaiCA6DF3-20E3 / WeichaiWP10.380E32 / DachaiCA6DE3-24E3F / XichaiCA6DF3-18E3 / XichaiCA6DF3-21E3
Transmission Model: Fast Gear8JS105A / Fast Gear8JS105 / Fast Gear 6-speed gearbox / WLYWLY653 / FAW JiefangCA6T123 / Fast Gear 8-speed / FAW JiefangCA6T138-85 / Fast Gear12JSD200 / DongfengDF6S550 / 6-speed transmission / Fast Gear6J80T-B / FAW Jiefang CA6T138-85 overdrive 1
Rear Axle Ratio: 4.875 / 5.83 / 5.125
Cab length: 10.29 / 11.99 / 8.98 / 8.28 / 8.58 / 9.98 / 10.99 / 11.995 / 9.5 / 12m
Cab width: 2.495 / 2.545 / 2.34 / 2.5m
Cab height: 3.2 / 3.9 / 3.7 / 3.8 / 3.98 / 3.95 / 3.11 / 3.07 / 3.115 / 3.25 / 2.5m
Front track width: 2000/2000 / 1830 / 2040/2040 / 1830/1963 / 2050 / 1920 / 1940/1940 / 1900 / 1920/1830 / 1920,1830 / 2000 / 2000/2000,2050/2050mm
rear track: 1847 / 1830,1850 / 1800 / 1810 / 1850/1850 / 2050 / 1830 / 1920/1830 / 1850 / 2050/1830mm
Curb Weight: 7.7 / 8.4 / 5.605 / 5.705 / 11.37 / 5.905 / 10.455 / 6.155 / 5.965 / 7.775 / 10.2 / 5.405 / 7.315 / 6.3 / 14.755 / 7 / 6.34 / 8.9 / 13.71 / 9.88 / 11.775 / 10.23 / 9.83 / 11.84 / 10 / 12.74ton
Rated payload: 16.605 / 15.905 / 9.8 / 9.7 / 19.435 / 9.49 / 5.655 / 7.29 / 7.98 / 20.555 / 7.79 / 9.99 / 7.99 / 18.455 / 15.95 / 8.755 / 6.465 / 10.805 / 16.995 / 14.825 / 12.98 / 14.475 / 9.82 / 18ton
GVWR: 24.5 / 15.6 / 31 / 15.59 / 20.45 / 12.005 / 13.45 / 15.95 / 30.95 / 13.39 / 15.5 / 24.95 / 30.9 / 13 / 19.9 / 24.9 / 20.015ton
Max. speed: 95 / 98 / 90km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck / Heavy-duty cargo trucks
Approach angle: 21 / 18°
departure angle: 11 / 14°
market segment: Building materials, agricultural products / Agricultural product transport, green channel, industrial product transport / Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo / Agricultural product transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo, daily industrial product transport / Express delivery, agricultural by-product transport, cold chain transport, LTL transport / Agricultural product transport, LTL transport, green channel, industrial product transport
Remarks: Optional ratios: 5.571; A/C, power windows, hydraulic tilt, ABS, tachograph, central locking, hydraulic seat / Standard: A/C, domestic steering gear, power windows, cab suspension (front spring/rear air bag), engine guard, roof air horn / 1. Cargo box sealed top, non-openable; box available in painted steel or corrugated panel style; 2. Optional semi-high roof cab per chassis; optional new high roof and semi-high roof cab. / 1. Cargo compartment roof closed and non-openable; 2. Optional front grille mask; 3. Optional new semi-high roof cab; 4. Optional right-side double door cargo box, cargo box material can be color-coated plate or corrugated plate; 5. External dimensions length/cargo box length/front overhang/rear overhang correspond one-to-one. / 1. Cargo compartment roof closed and non-openable; 2. Optional front grille mask; 3. Optional flat roof cab; 4. Optional right-side double door cargo box, cargo box material can be color-coated plate or corrugated plate. / Optional YC4E160-30 engine. 1. Cargo compartment roof closed, non-openable. 2. Optional front grille intake grille. 3. Optional flat roof cab. / 1. Optional semi-high roof cab; 2. Optional front grille; 3. Optional new cab semi-high roof and high roof. / 1. Optional front grille; 2. Optional flat-top cab. / 1. Optional front mask grille; 2. Optional high-top cab; 3. Height from cargo floor to top of rack is 2500mm; 4. Optional new semi-high-top and high-top cab. / Optional front grille and flat-roof cab. / 1. Correspondence: overall length / cargo box length / curb weight / rear overhang / wheelbase, 1) 10290/7800/6300/2610/4800+1350, 2) 10490/8000/6500/2810/4800+1350, 3) 10990/(8500,8600)/6760/(3310,2860)/(4800+1350,5250+1350); 2. Optional high-roof cab, optional front panel and bumper. / 1. Optional semi-high roof cab and new high roof, semi-high roof cab; 2. Cargo body top closed, non-openable. / 1. Cargo compartment roof closed and non-openable; 2. Optional front grille mask; 3. Optional flat roof cab; 4. Optional non-door cargo box; 5. Cargo box material can be color-coated plate or corrugated plate. Curb weight also available: 8.055 tons. / 1. Height from cargo floor to top of stake/grid: 2400 mm; 2. Optional front grille; 3. Optional flat-roof cab; 4. Optional cargo box grille appearance. / 1. Cargo compartment roof closed and non-openable; 2. Optional front grille mask; 3. Optional flat roof cab; 4. Optional non-door cargo box; 5. Cargo box material can be color-coated plate or corrugated plate. / Optional cab front mask. / Optional cab front mask, optional high roof cab / 1. Optional front grille; 2. Cargo floor to roof height 2300mm; 3. Optional high-top and semi-high-top cab; 4. Optional L-series high-top cab; 5. Optional cargo box front panel closed side panels. / 1. Optional front mask air intake grille; 2. Optional high-top cab; 3. Optional cargo box side panel appearance; cargo box side panels also optional with three or four panels. / 1. Optional front grille; 2. Cargo box top closed, non-openable / 1. Height from cargo floor to top of stake/grid: 2400 mm; 2. Optional high-roof cab; 3. Optional closed front panel for cargo box; 4. Optional new semi-high-roof cab and new high-roof cab; 5. Optional cargo box side panels and grille appearance. / Optional front grille and high-roof cab / 1. Roof enclosed, non-openable. 2. Optional front grille. This product cannot be sold from 2008-7-1. / 1. Height from cargo floor to top of stake/grid: 2400 mm; 2. Optional front grille (batch withdrawn in 2001F7) / 1. Optional front grille; 2. Optional high-top and semi-high-top cab; 3. Optional L-series high-top cab; 4. Optional cargo box panel appearance.
Front/rear suspension: 1.585/1.865 / 1.53/2.25m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai / Xichai / Dachai
Engine info: Yuchai6.5L / Yuchai 6-cylinder / Yuchai 4-cylinder / WeichaiWP10 / Xichai4110 / Dachai6.6L / Xichai 6-cylinder
Number of cylinders: 6 / 4cylinder
Cylinder arrangement: Inline
Displacement: 6.495 / 6.494 / 4.26 / 9.726 / 4.257 / 4.7 / 6.618 / 7.12 / 6.7 / 6.74L
Emission standard: China IV / China III / Euro III
Max output power: 147 / 162 / 118 / 280 / 105 / 116 / 177 / 103 / 132kW
Max hp: 200 / 220 / 160 / 380 / 140 / 150 / 240 / 180 / 210Horsepower
Max torque: 730 / 800 / 520 / 550 / 1600 / 500 / 890 / 790 / 680 / 660 / 860 / 760 / 810N·m
Max torque speed: 1200-1700 / 1300-1600 / 1500-1800 / 1600 / 1100-1400 / 1400 / 1200-1600 / 1300-1500rpm
Rated speed: 2500 / 2200 / 2600 / 2800 / 2300rpm
Engine Type: BOSCH high-pressure common rail SCR / Vertical, inline, water-cooled, four-stroke, direct injection / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / 4-stroke, inline, water-cooled, turbocharged with air-to-air intercooling / 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / 4-stroke, inline, water-cooled, turbocharged with intercooling
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Dongfeng / FAW Jiefang
shift method: Manual
Forward gears: 8 / 6 / 12Gear
FAQ
What kind of truck is JAC Gallop JAC Gallop A3 Heavy Truck Cargo Trucks?
JAC Gallop JAC Gallop A3 Heavy Truck is an export-oriented Cargo Trucks lineup with about 32 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Gallop A3 Heavy Truck Cargo Trucks?
JAC Gallop A3 Heavy Truck Cargo Trucks export reference is about $16,806 – $38,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Gallop A3 Heavy Truck Cargo Trucks cover?
JAC Gallop A3 Heavy Truck Cargo Trucks mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 160 hp / 200 hp / 220 hp / 380 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop A3 Heavy Truck Cargo Trucks?
For JAC Gallop A3 Heavy Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC Gallop A3 Heavy Truck Cargo Trucks include?
JAC Gallop A3 Heavy Truck Cargo Trucks currently lists about 32 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop A3 Heavy Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
