JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck

Export reference
From $29,347
MSRP ¥21.13M CNY
Horsepower: 200
Emission: China IV
Fuel: Diesel
Engine: Yuchai6.5L
Transmission: Fast Gear
Curb Weight:: 7.7ton
seating capacity: 3Personnel
Rated payload: 16.605ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck is a Medium-duty truck featuring 7.8m cargo length, stake body cargo body, 3Personnel volume and 16.605t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.5L engine, 200 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 200 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1241P3K1C46F
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1700+4600mm
Box length class: 7.8m
engine: YuchaiYC6J200-42
transmission: Fast Gear8JS105A
Rear Axle Ratio: 4.875
Cab length: 10.29m
Cab width: 2.495m
Cab height: 3.2m
Front track width: 2000/2000mm
rear track: 1847mm
Curb Weight: 7.7ton
Rated payload: 16.605ton
GVWR: 24.5ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 11°
market segment: Building materials, agricultural products
Remarks: Optional ratios: 5.571; A/C, power windows, hydraulic tilt, ABS, tachograph, central locking, hydraulic seat
Front/rear suspension: 1.585/1.865m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J200-42
Engine info: Yuchai6.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.495L
Emission standard: China IV
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 730N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: BOSCH high-pressure common rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS105A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 7.8m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 153
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 9/9/9+7,3/3/4+3,3/3/9+7
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
Control configuration
ABS:

Photos

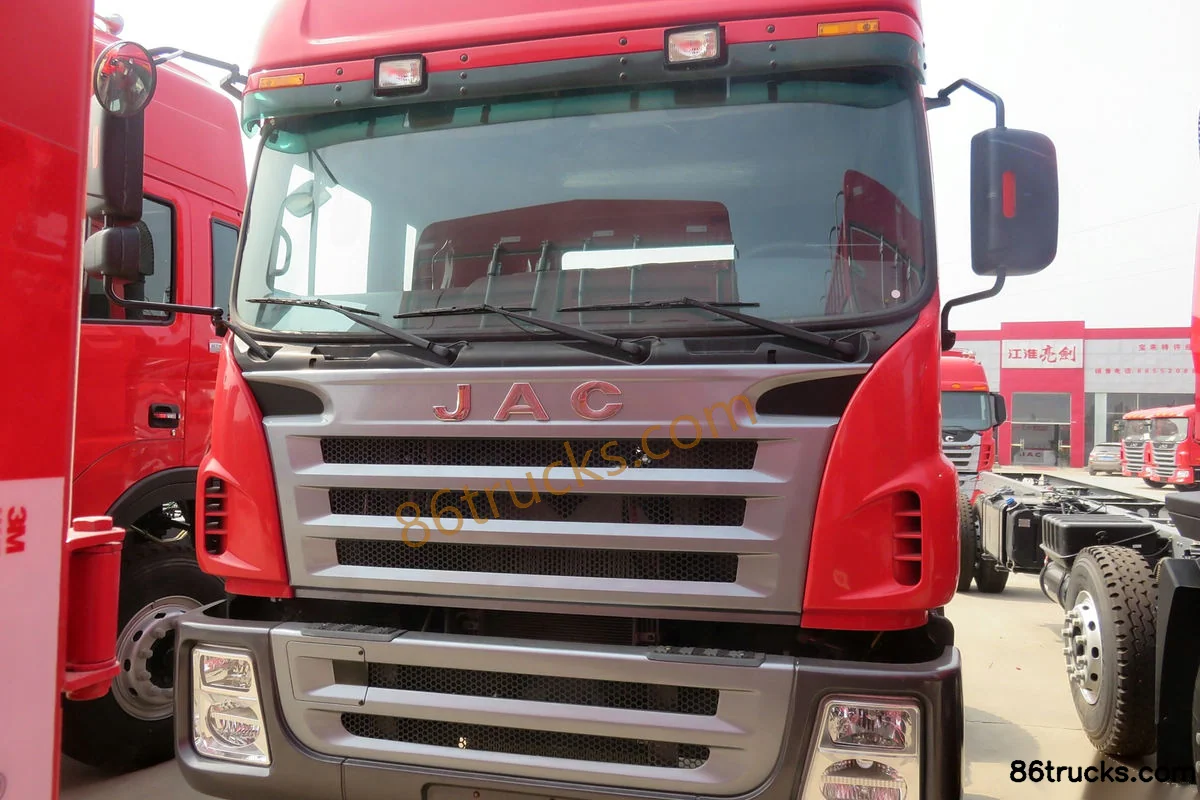

Exterior1

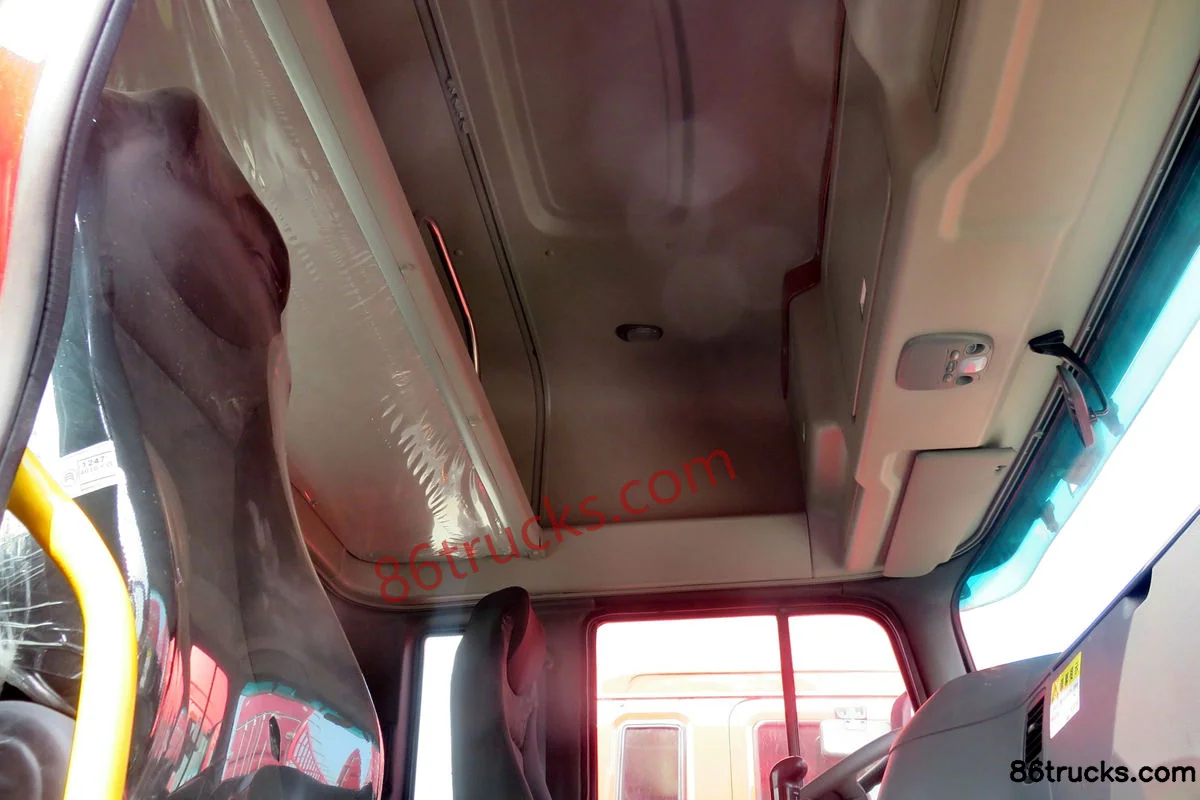

Cab1

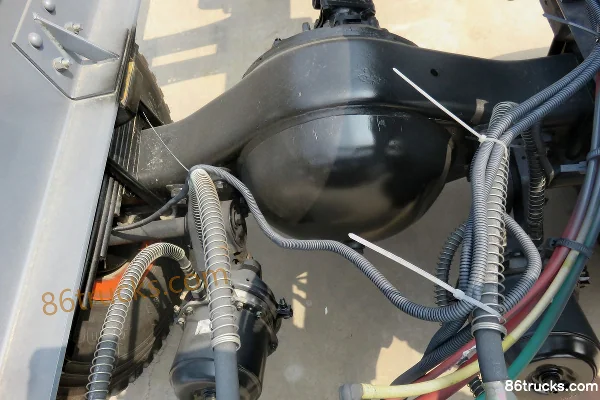

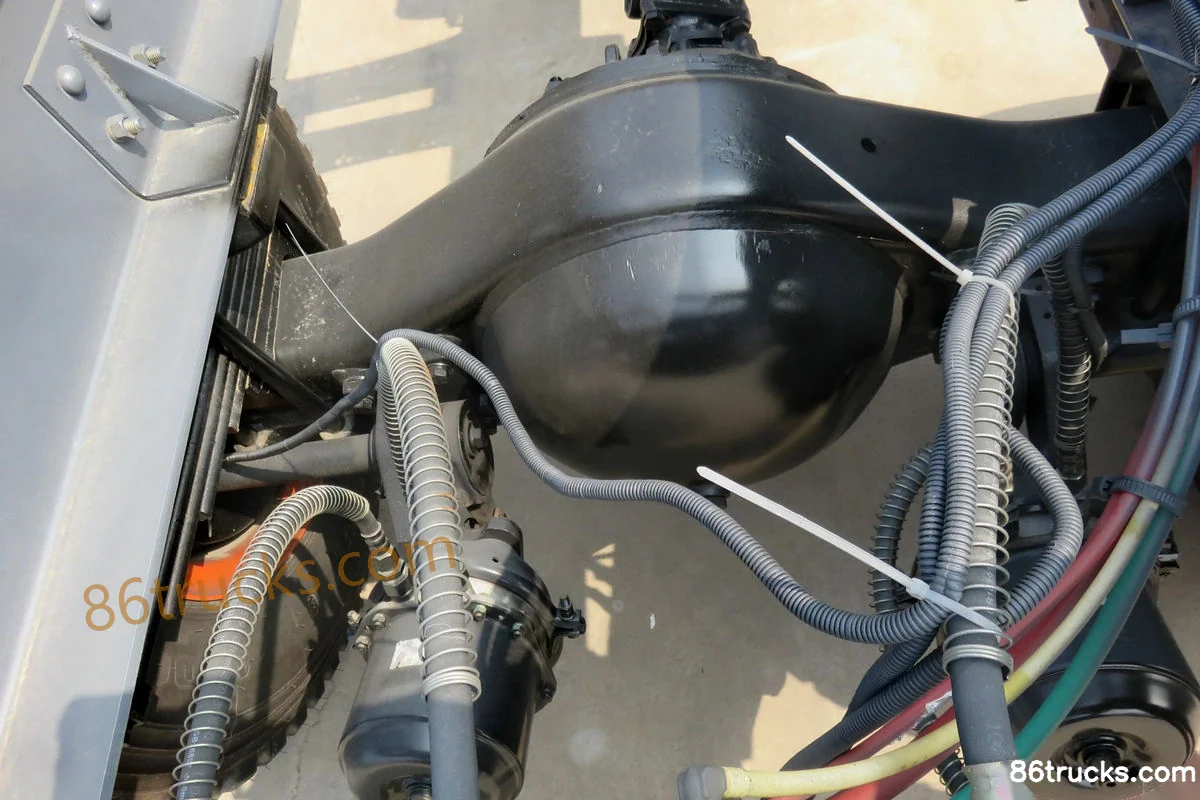

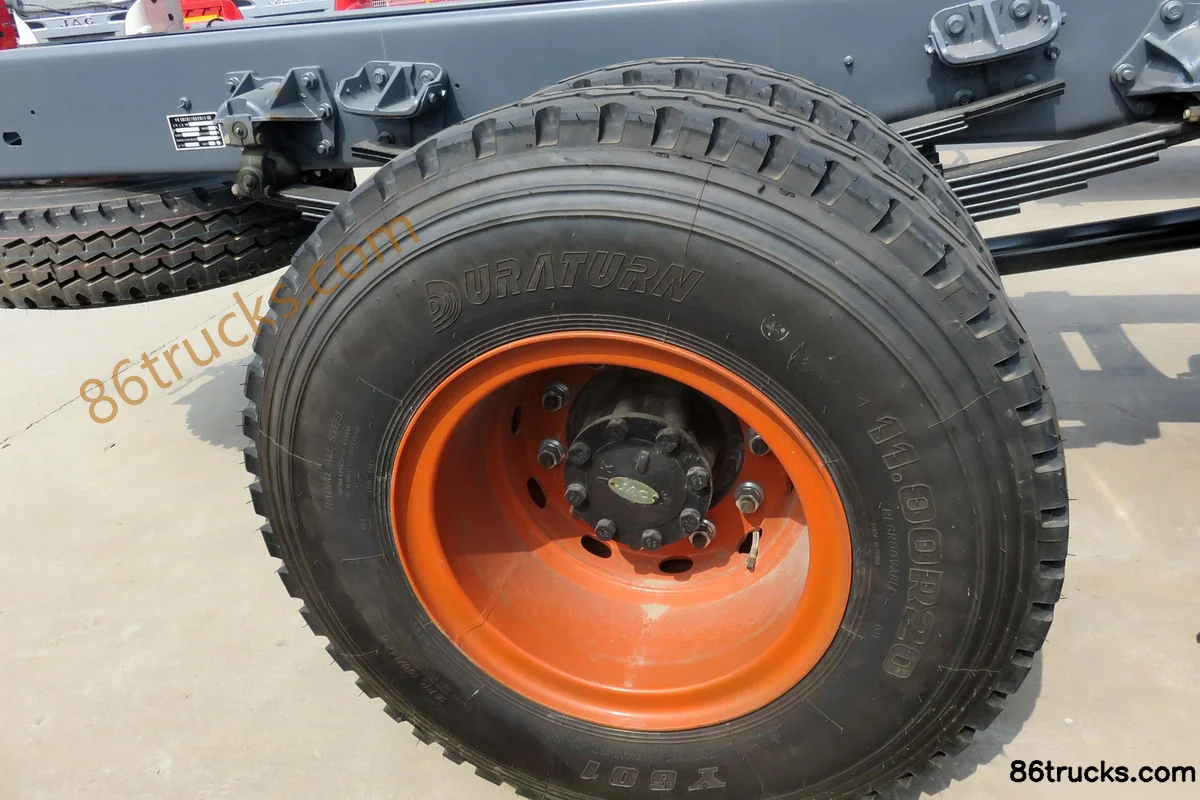

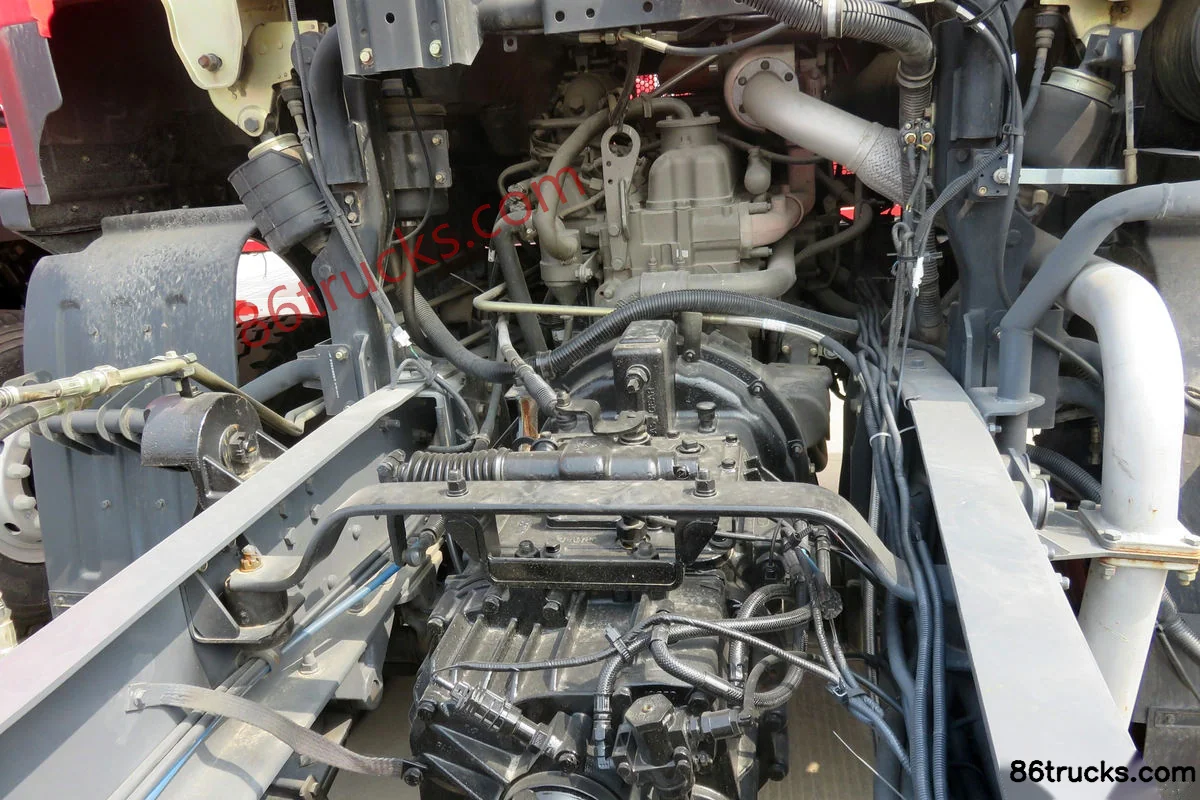

Chassis3

5 photos

FAQ

What is the export price of JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck, and what does it include?

JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck export reference is about From $29,347; MSRP is ¥21.13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck?

Key specs of JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck: Drive: 6x2; Horsepower: 200 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai6.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck suited for?

JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck differ from other variants in the same series?

JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck belongs to JAC Gallop A3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A3 Medium Truck 200 hp 6X2(8 wheels) 7.8m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
