JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck

Export reference
From $11,986
MSRP ¥8.63M CNY
Horsepower: 109
Emission: China IV
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.54ton
seating capacity: 3Personnel
Rated payload: 1.76ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck is a Light Truck featuring 3.7m cargo length, stake body cargo body, 3Personnel volume and 1.76t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 109 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1042TPG24
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.7m
engine: Nanchang JMC JX493ZLQ4
transmission: JMCJC528T8
Cab length: 5.955m
Cab width: 2.15m
Cab height: 2.28m
Front track width: 1680mm
rear track: 1570mm
Curb Weight: 2.54ton
Rated payload: 1.76ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18.3°
departure angle: 21°
market segment: Building materials, agricultural products
Remarks: Panel steel side wall cargo box, optional bamboo plywood side wall cargo box
Front/rear suspension: 1.14/1.455m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ4
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.7m
Cargo box width: 2.05m
Cargo box height: 0.38m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: Tilt cab
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Sunroof: Manual sunroof
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1660kg
rear axle allowable load: 2835kg

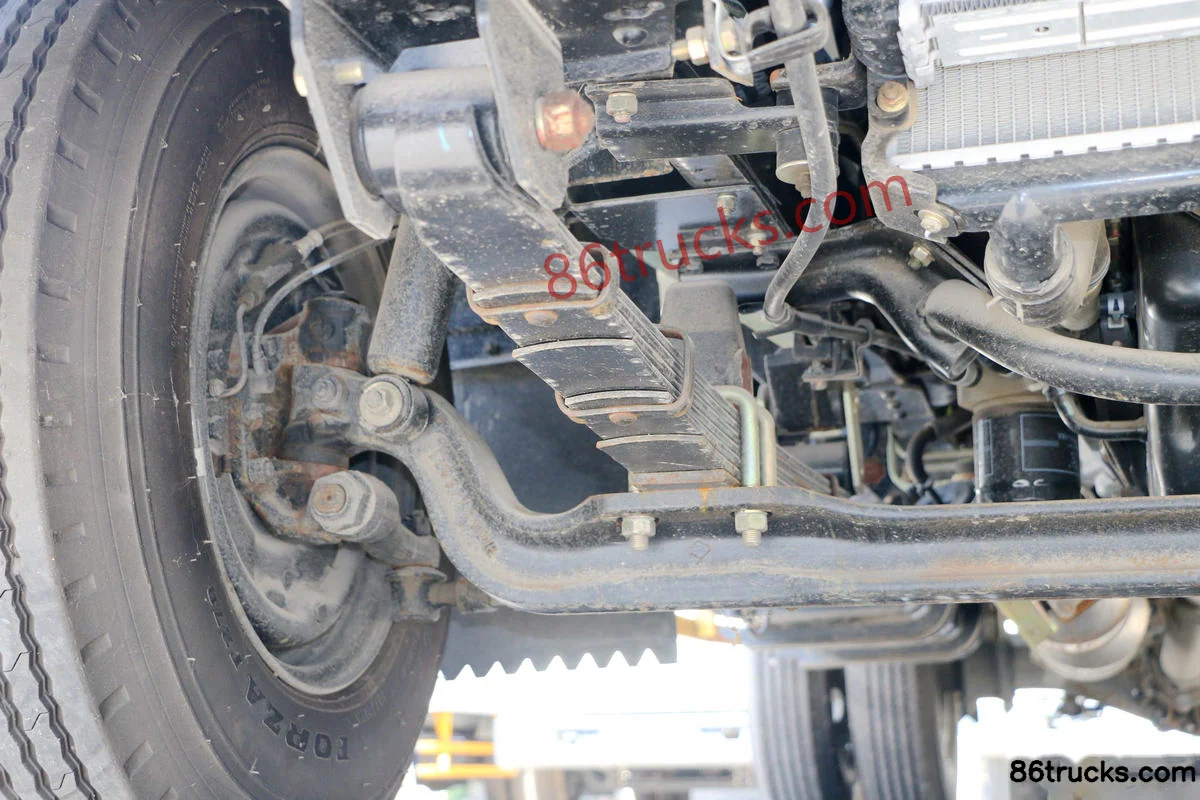

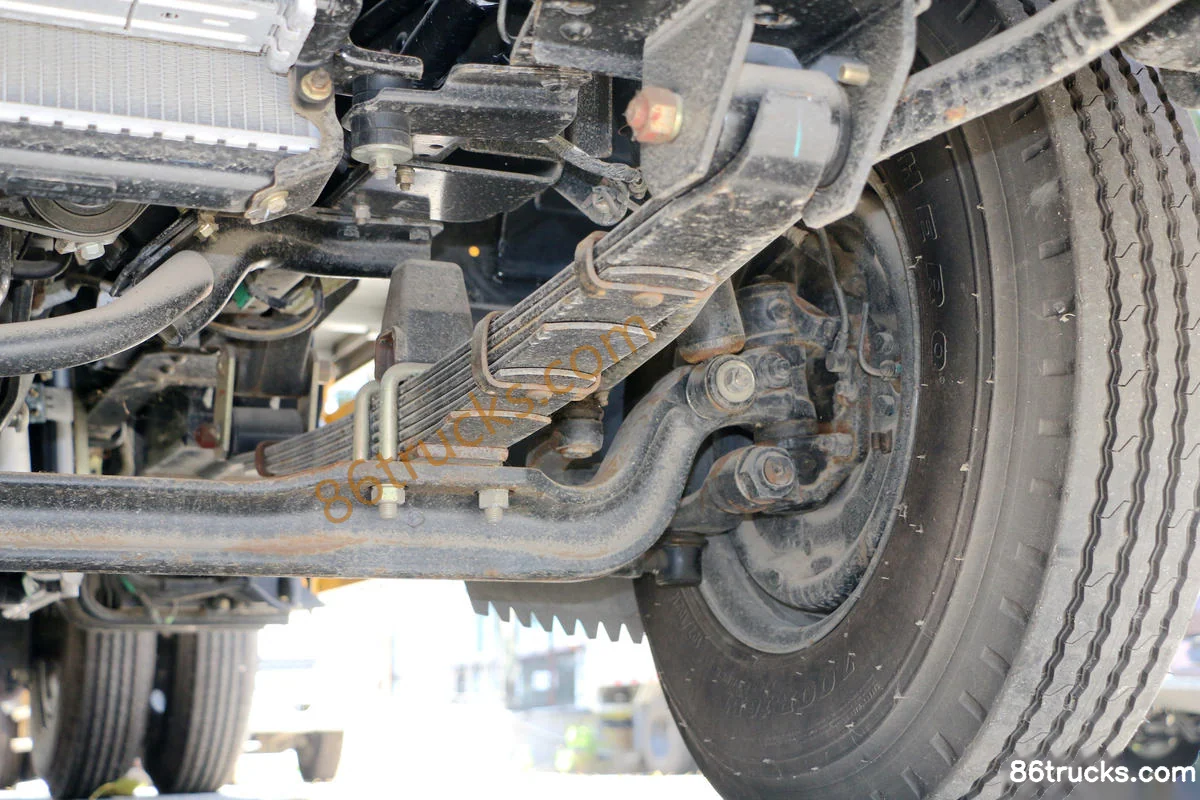

Leaf spring count: 7/6+5
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
lighting configuration
Front fog lamp:

Photos

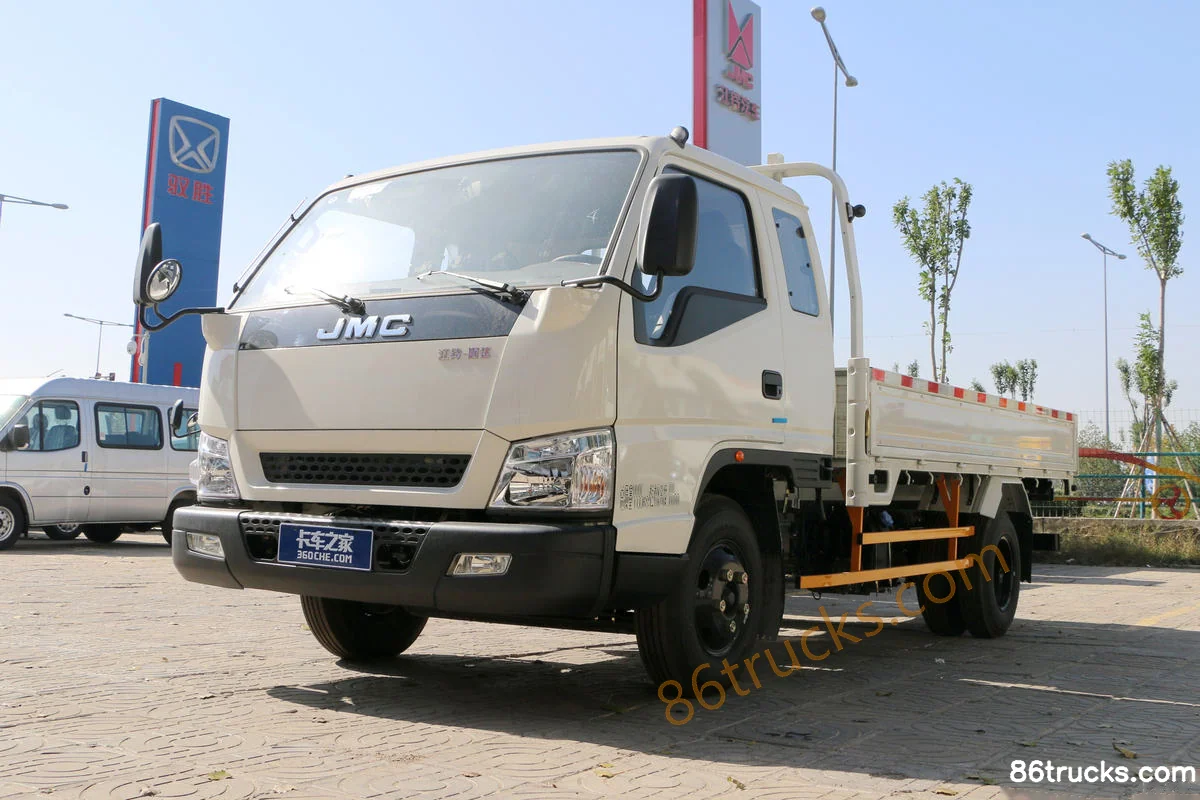

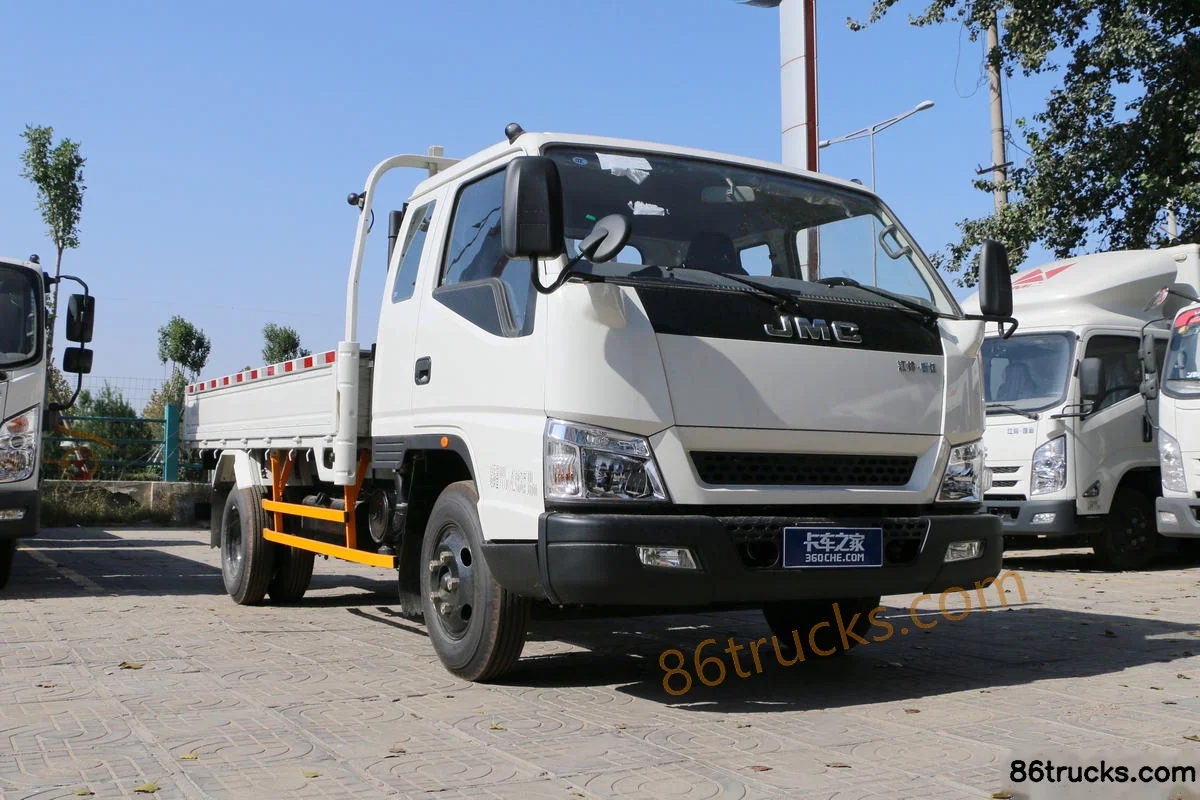

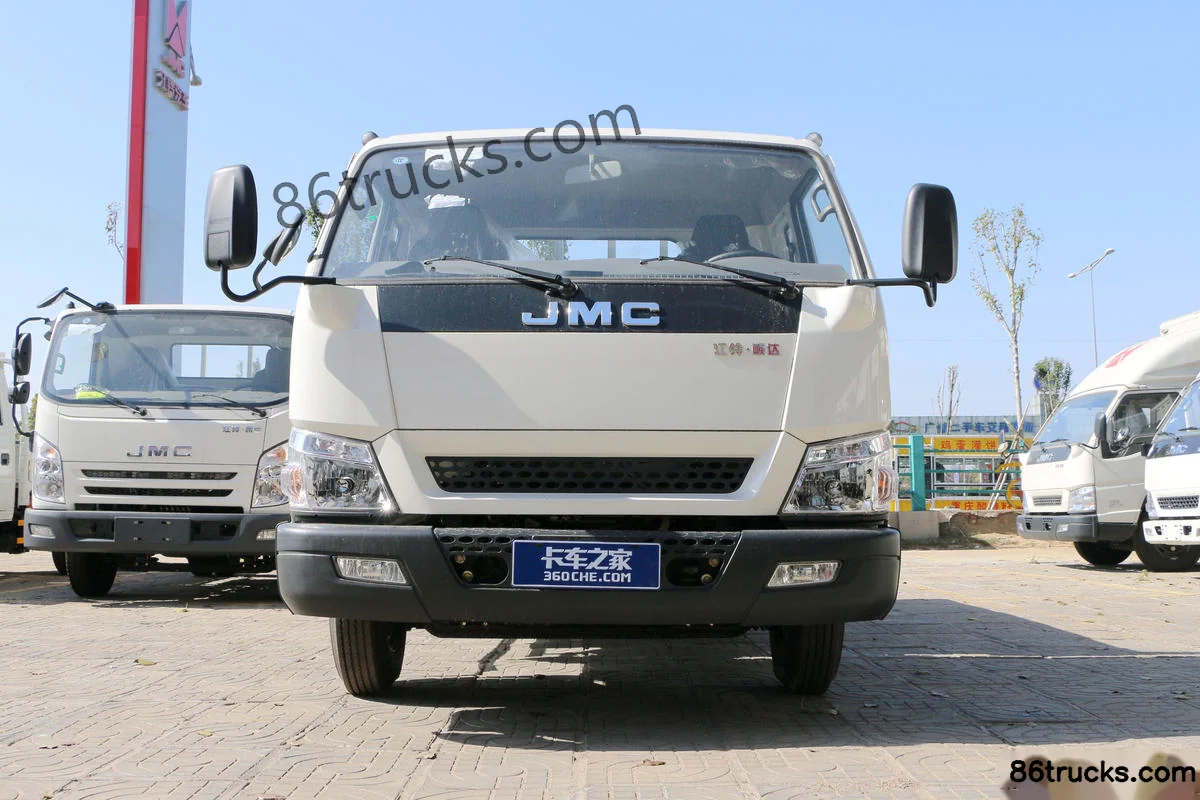

Exterior3

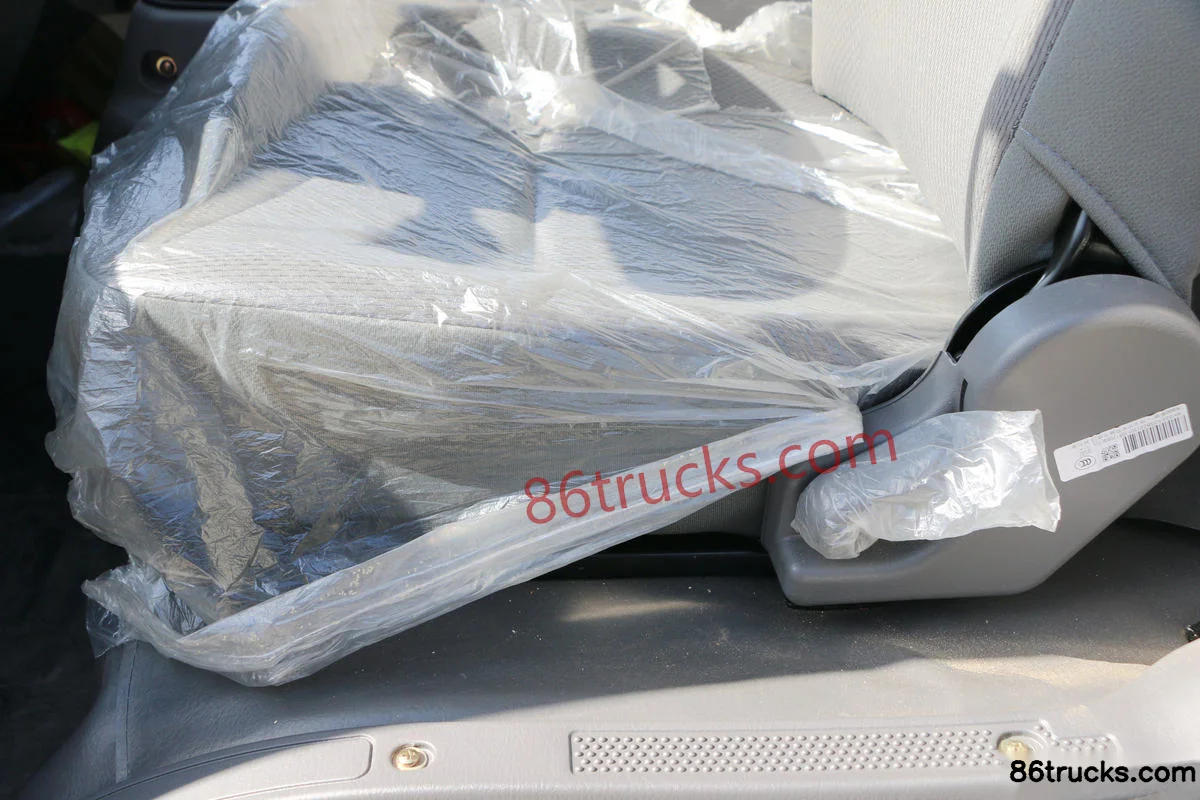

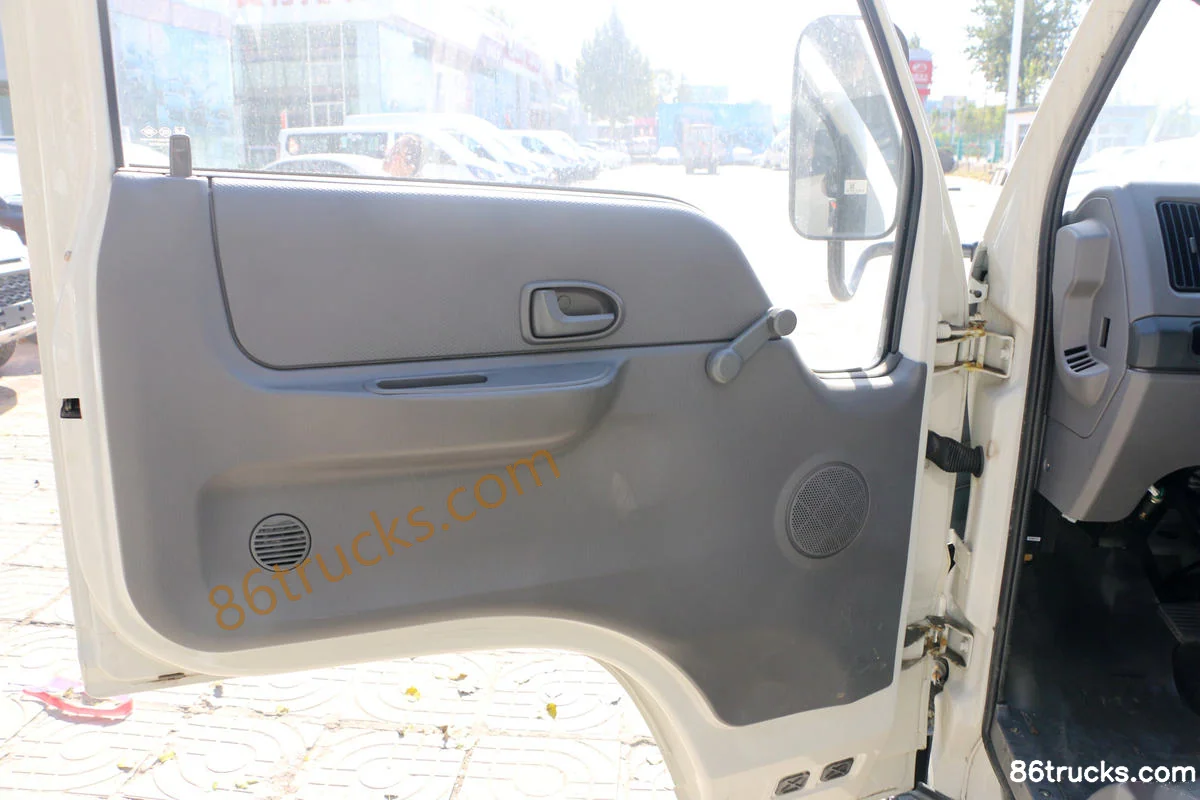

Cab3

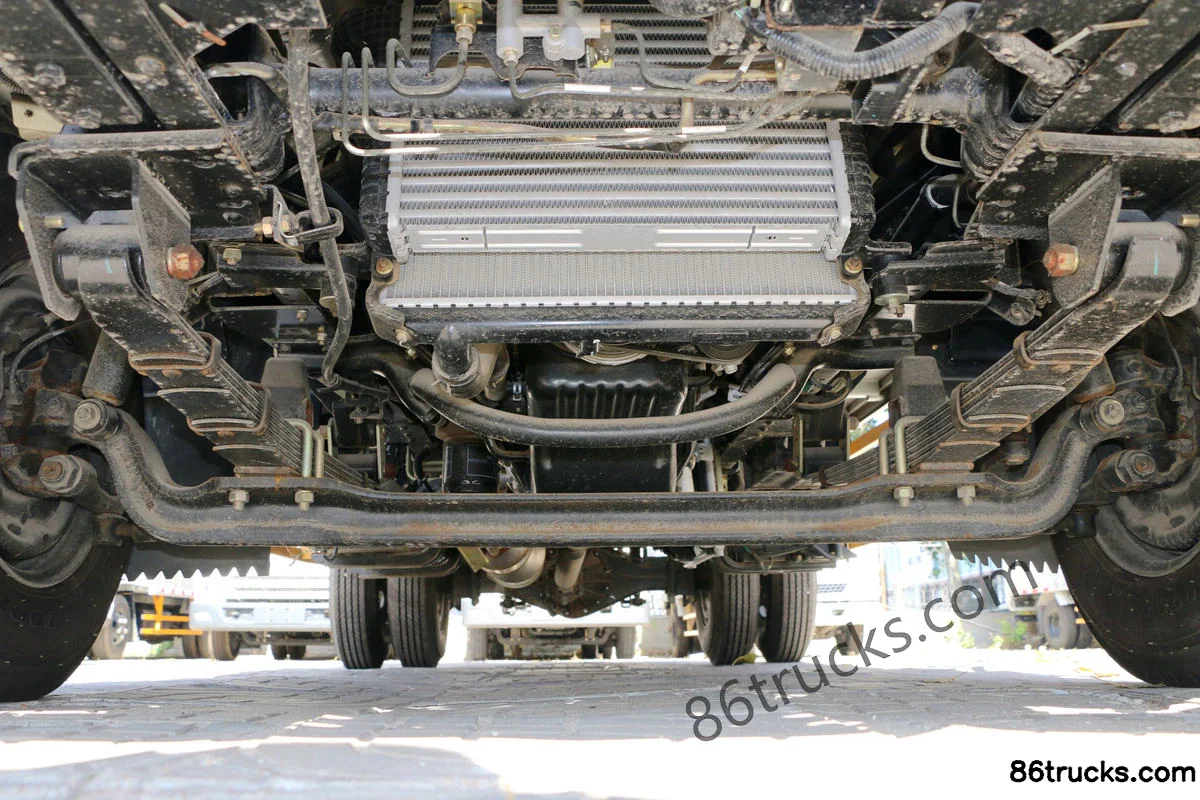

Chassis3

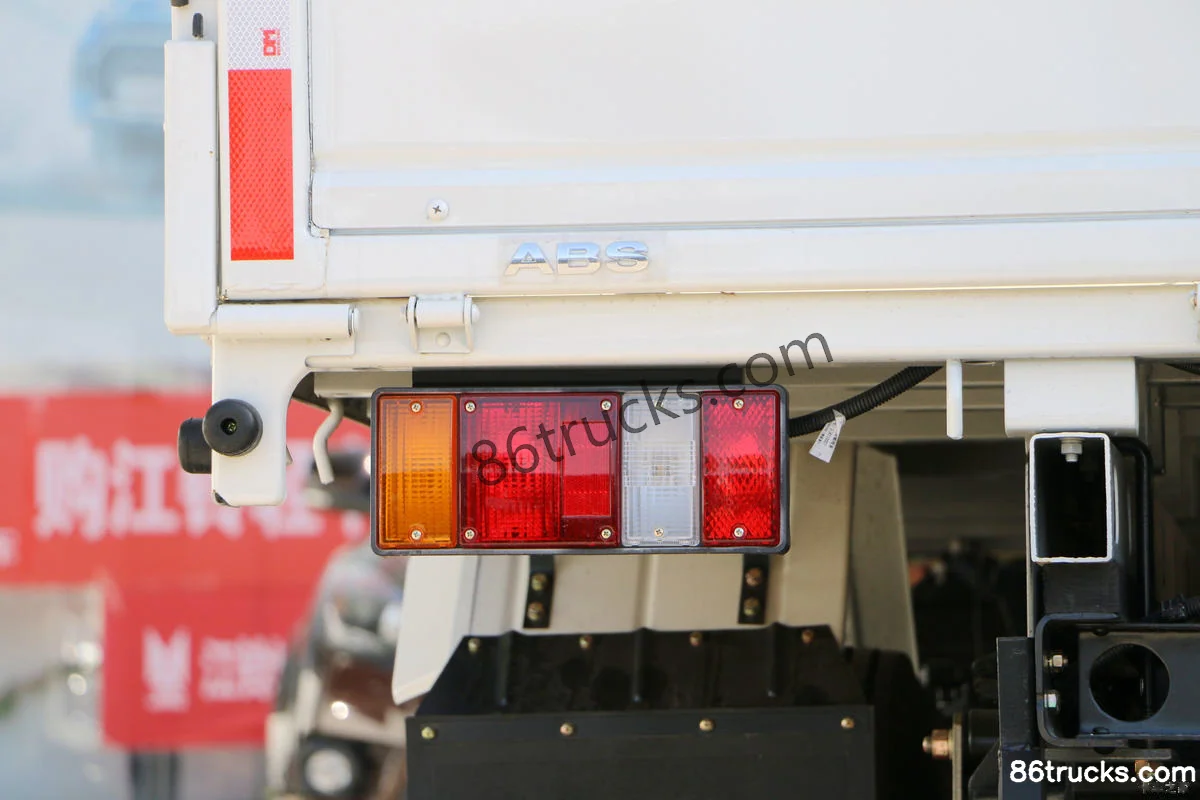

Body3

12 photos

FAQ

What is the export price of JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck, and what does it include?

JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck export reference is about From $11,986; MSRP is ¥8.63M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck?

Key specs of JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck suited for?

JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck differ from other variants in the same series?

JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck belongs to JMC Shunda wide-body light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Wide Body Standard Edition 109 hp 4X2(6 wheels) 3.7m Crew Cab Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
