JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck

Export reference
From $30,556
MSRP ¥22M CNY
Horsepower: 220
Emission: China IV
Fuel: Diesel
Engine: Yuchai6.5L
Transmission: Fast Gear
Curb Weight:: 8ton
seating capacity: 3Personnel
Rated payload: 7.82ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck is a Heavy-duty cargo trucks featuring 7.8m cargo length, Stake type cargo body, 3Personnel volume and 7.82t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.5L engine, 220 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5161CCYKR1K3
Type: stake truck
Drive type: 6X2
Wheelbase: 1700+4600mm
engine: YuchaiYC6J220-46
transmission: Fast Gear8JS105A
Rear Axle Ratio: 4.875
Cab length: 10.29m
Cab width: 2.495m
Cab height: 3.7m
Front track width: 2050/2050mm
rear track: 1850mm
Curb Weight: 8ton
Rated payload: 7.82ton
GVWR: 16.015ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: 1. Floor-to-top height of stake/grid roof 2500mm; 2. Optional front mask grille; 3. Optional high-roof cab; 4. Optional closed front panel for cargo box; 5. Optional new semi-high roof and high roof cab; 6. Side and rear underrun protection bolted connection, material Q235, rear guard ground clearance 490mm, section size 150mm×75mm; 7. Dimensions/ wheelbase/ front overhang/ rear overhang correspondence: 10290/1700+4600/1530/2460; 8. Optional front bumper, front fog lamp material, rearview mirror
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J220-46
Engine info: Yuchai6.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China IV
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 760N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS105A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.8m
Cargo box width: 2.34m
Cargo box height: 0.55m
*Cargo box interior width: 2.3399999141693
Cab parameters
Cab: High-roof double bunk
seating capacity: 3Personnel
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 300L
Chassis Specs
Front axle description: JAC Ankai dual front axle
Front axle allowable load: 5000kg
rear axle description: Dongfeng153
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 9/9/9+7

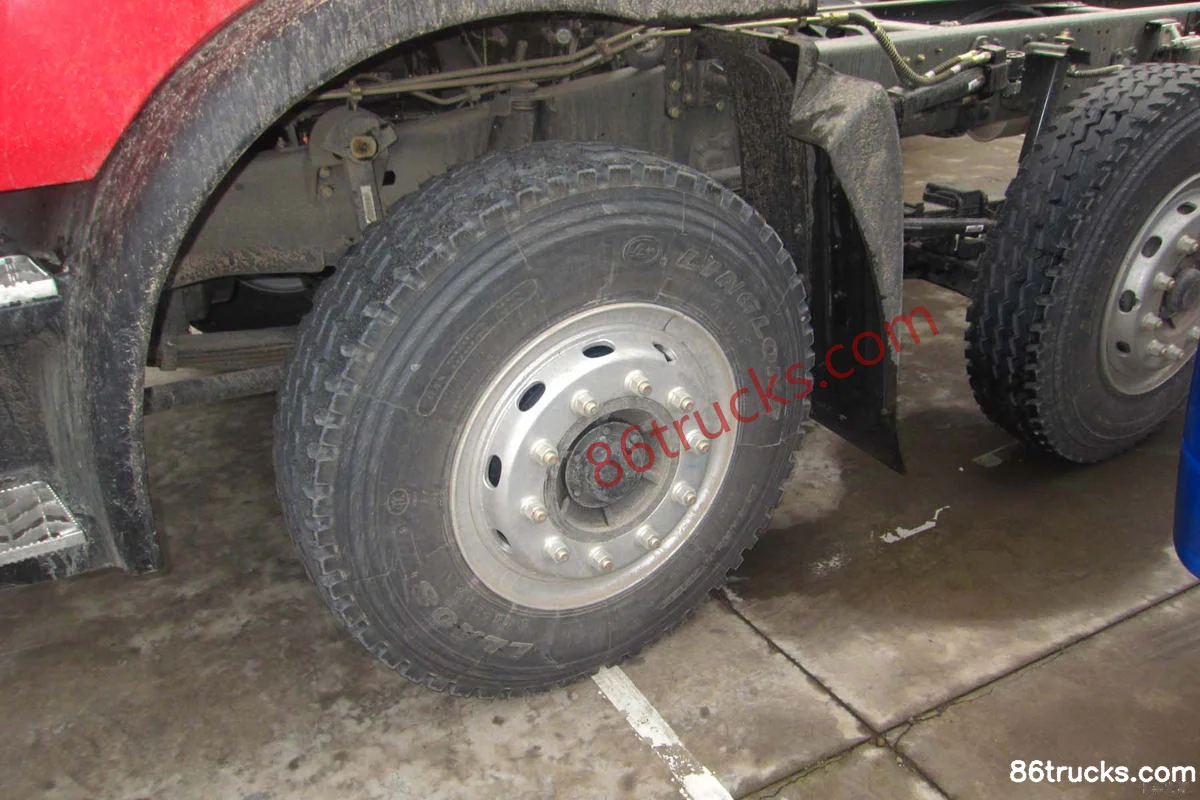

Tire
Tire Size: 10.00R20
Number of tires: 8pcs

Photos

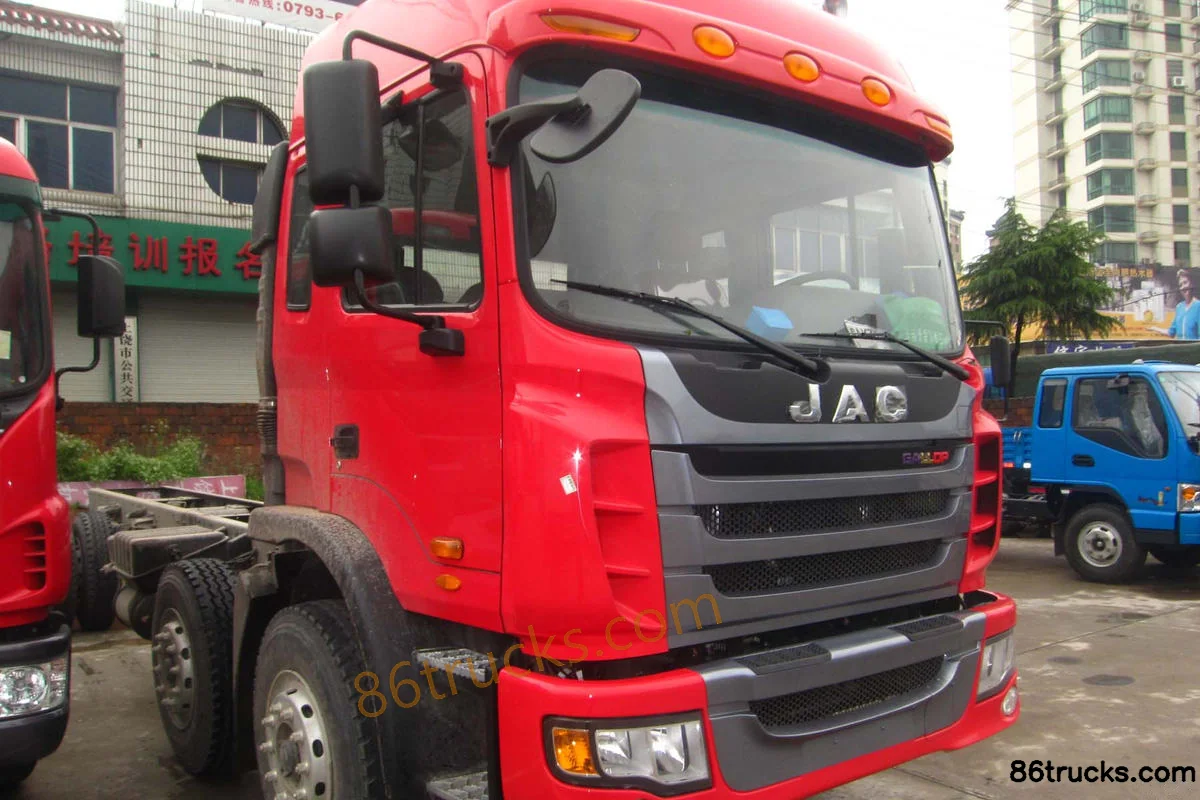

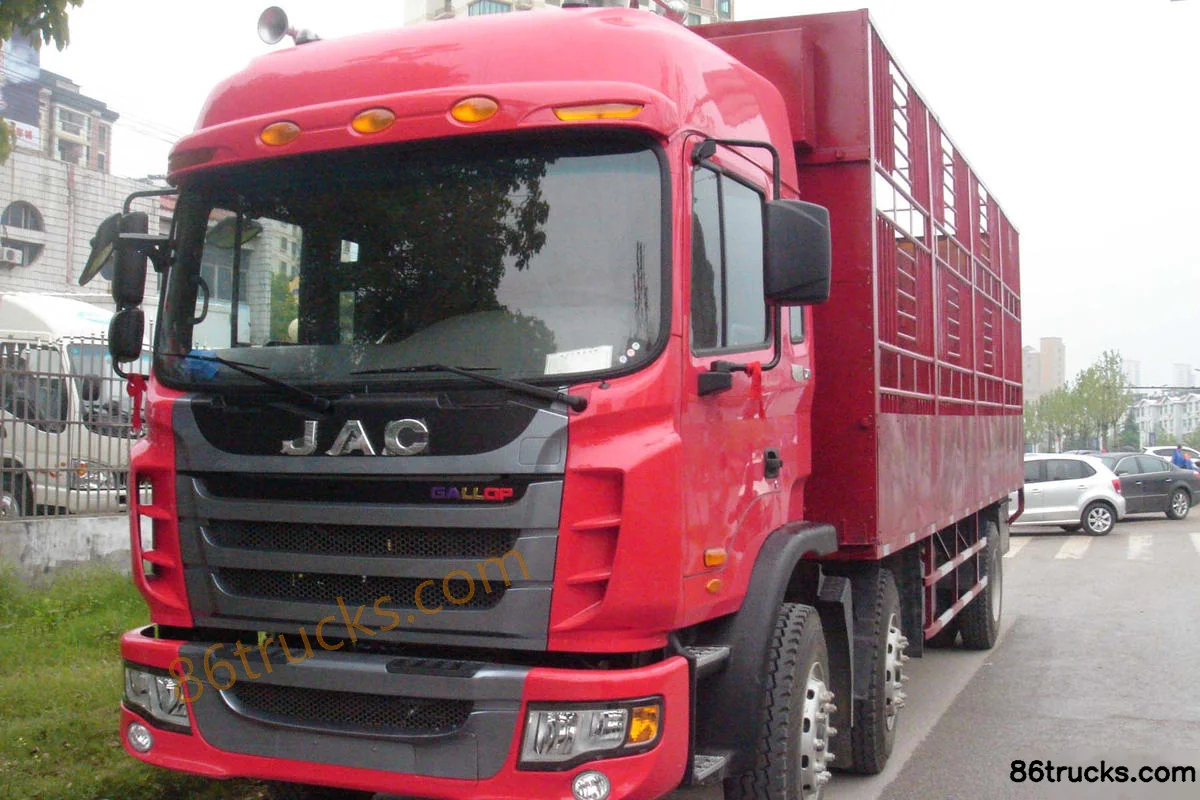

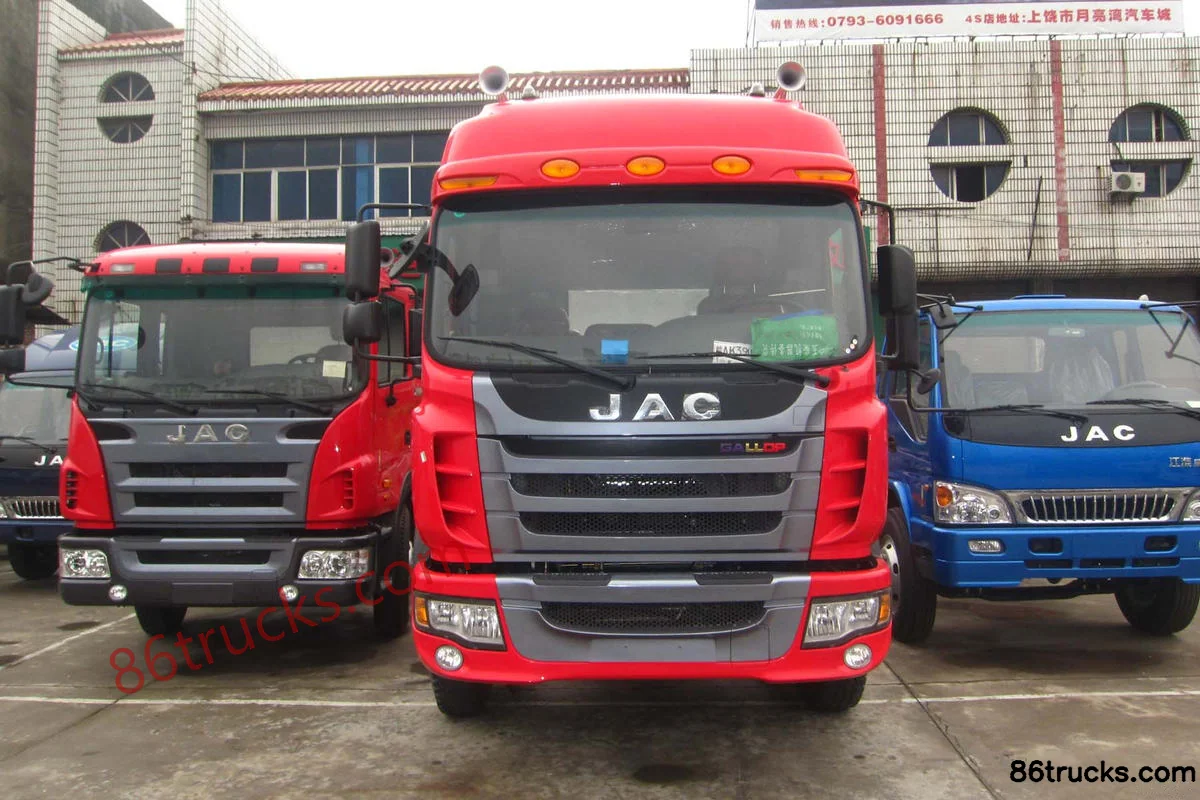

Exterior3

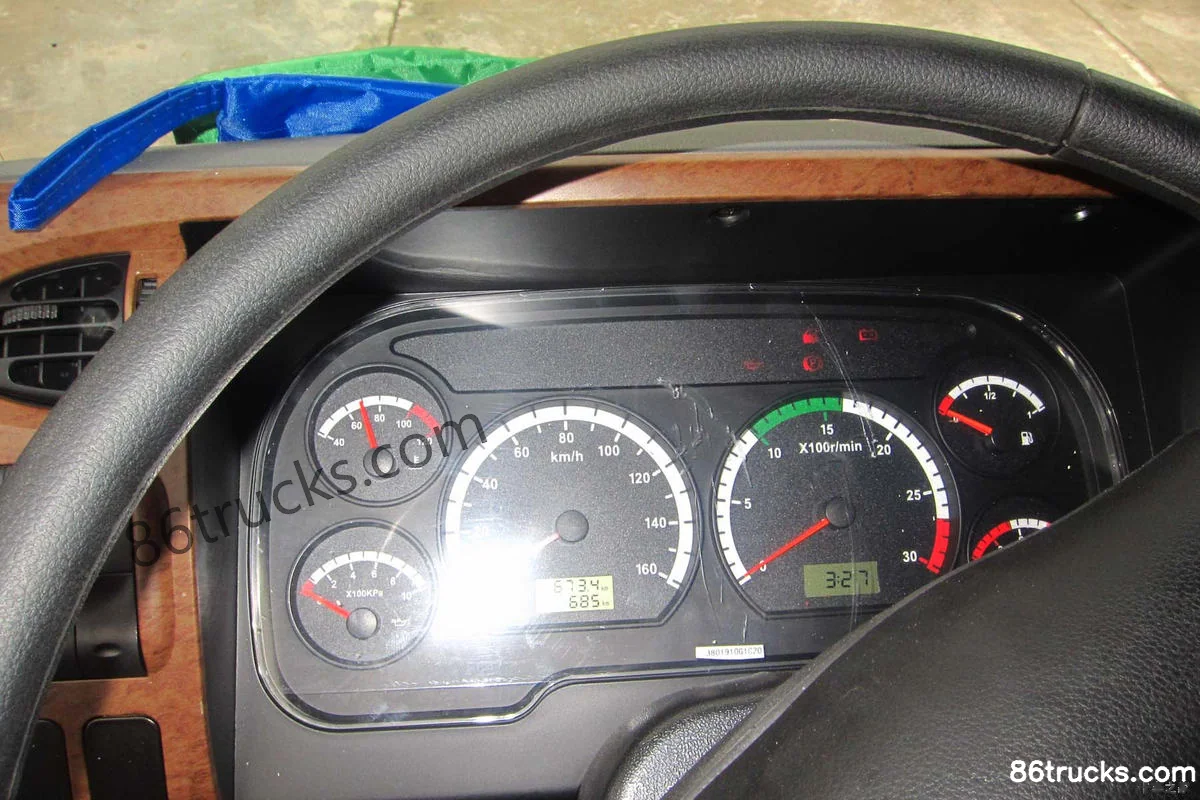

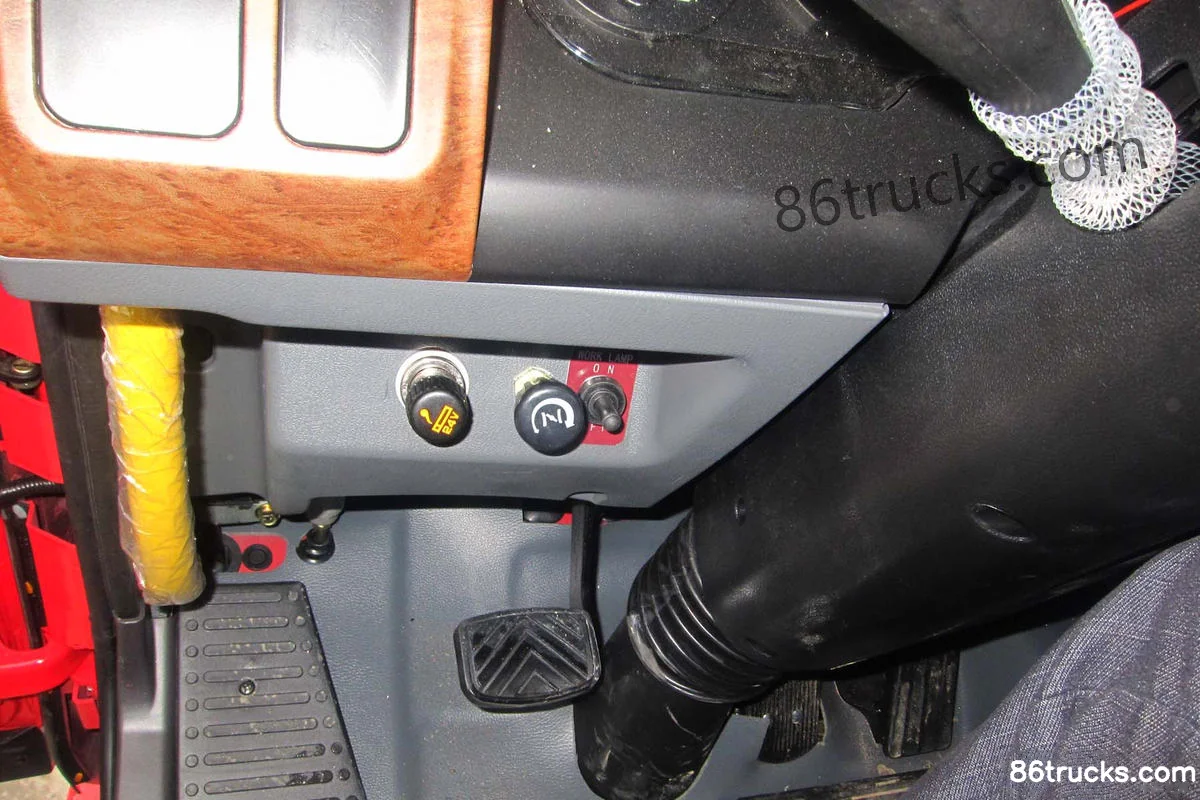

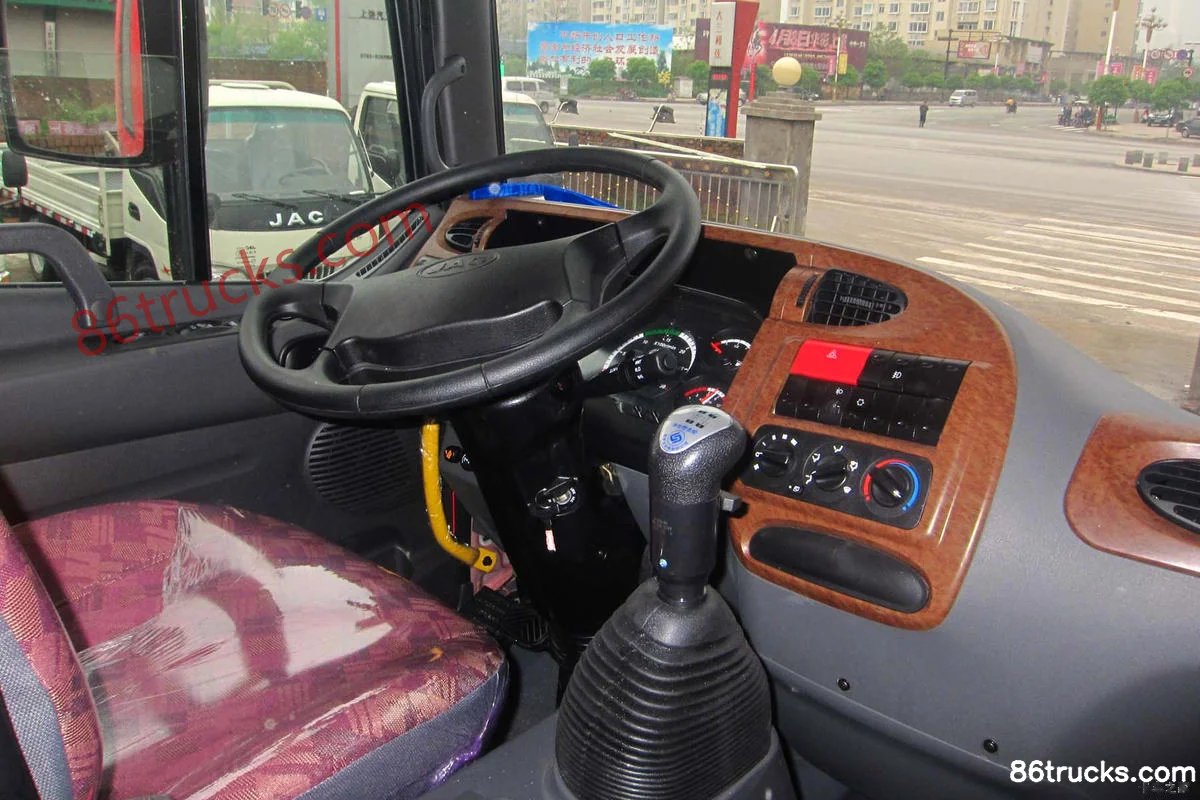

Cab3

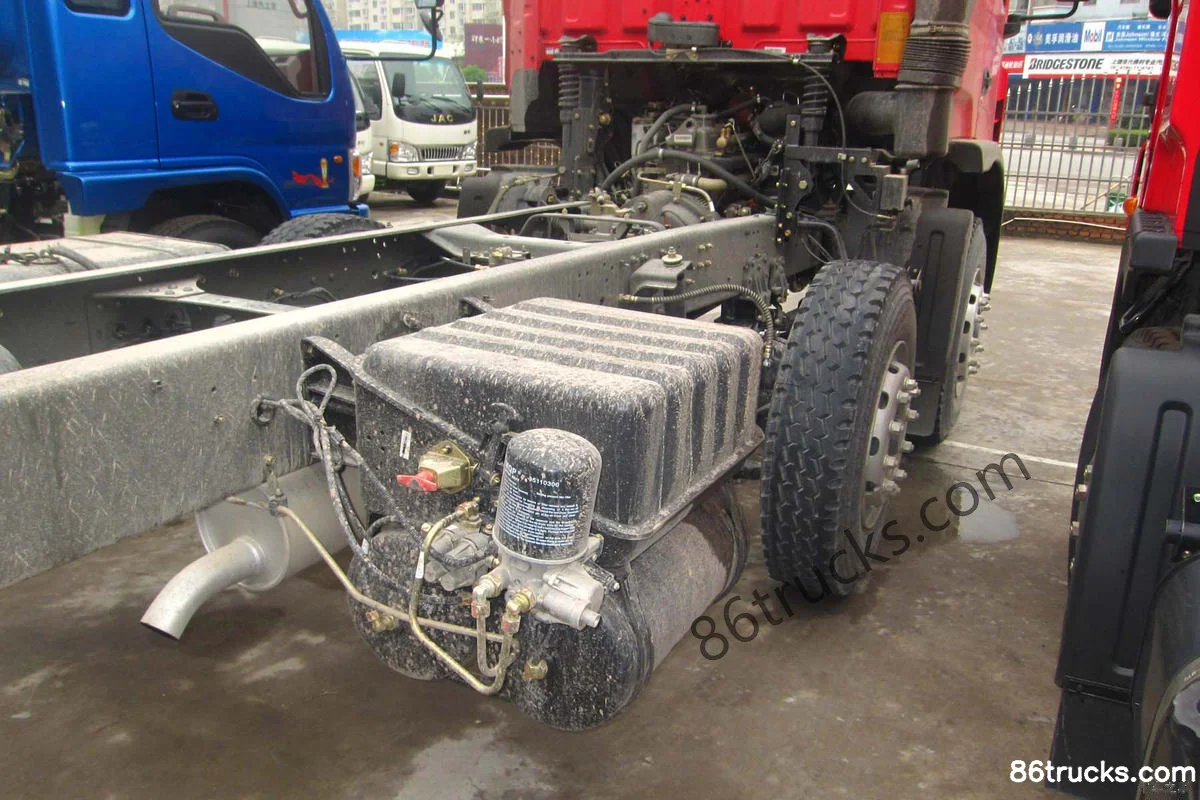

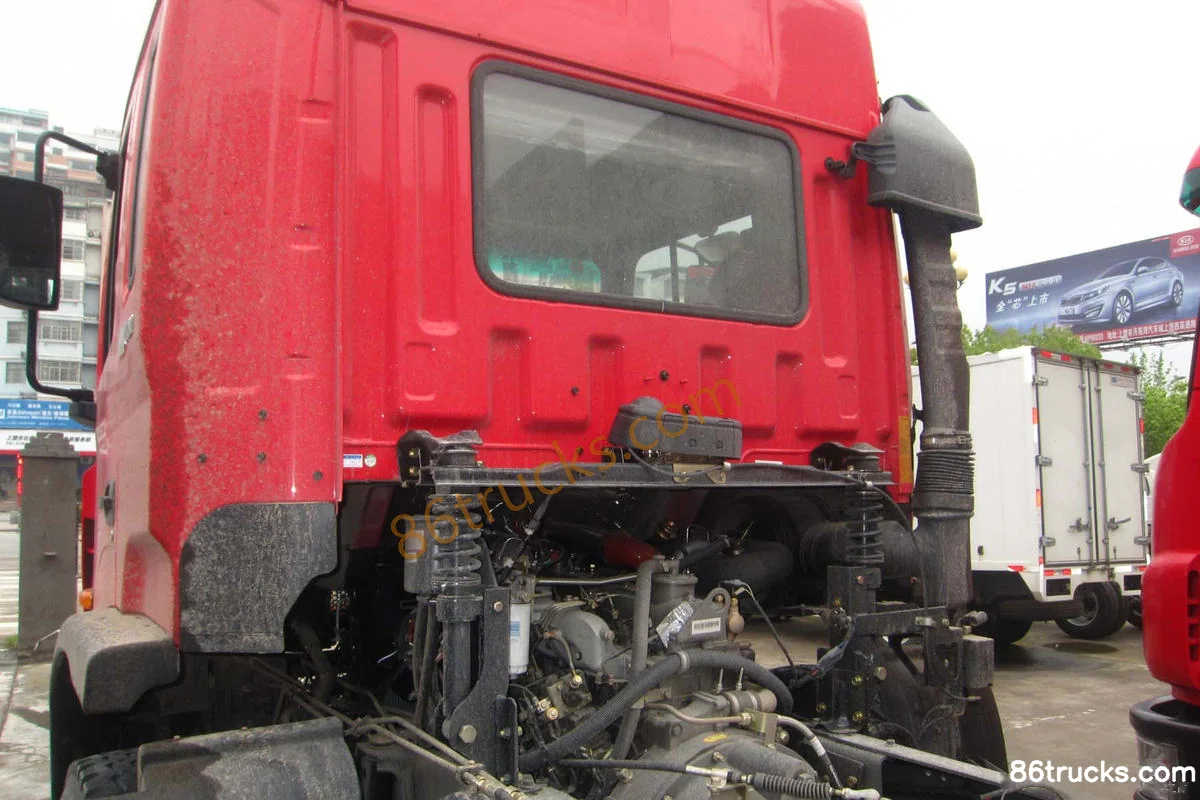

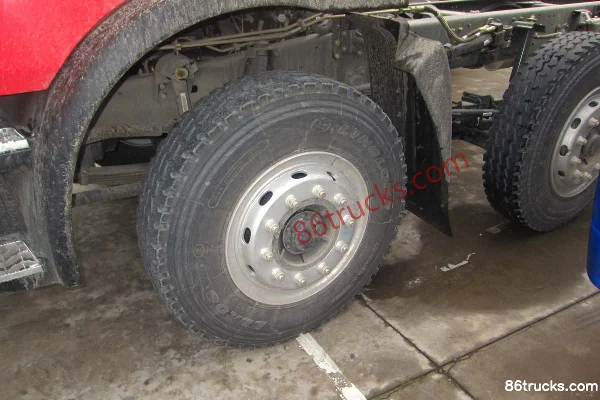

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck, and what does it include?

JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck?

Key specs of JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai6.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck suited for?

JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck differ from other variants in the same series?

JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 Series Heavy Truck 220 hp 6X2(8 wheels) Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
