Fast Gear C16JSDQXL220T 16-Speed Manual Transmission

Export reference
MSRP N/A
Max input torque:: 2200N·m
1st gear ratio:: 17.09
2nd gear ratio:: 14.13
Fast Gear C16JSDQXL220T 16-Speed Manual Transmission exterior
View more photos (3)
Transmission Model: C16JSDQXL220T
Transmission Brand: Fast Gear
Features: 1. Three-section, 2x4x2 configuration; 2. Full aluminum alloy die-cast housing, lightweight, high torque-to-weight ratio; 3. Front auxiliary box, main box, and rear auxiliary box all use twin countershaft design; 4. Full helical, fine-pitch, and barrel-shaped gear design, fully ground gears for low transmission noise; 5. Wide speed ratio range, adaptable to various working conditions, strong climbing ability; 6. Small speed ratio steps for good fuel economy; 7. Compatible with pneumatic shift assist; 8. Forced lubrication system to improve transmission lubrication; 9. Reserved external cooler interface for improved cooling under special conditions; reserved through-shaft PTO interface for expansion design; 10. Main and auxiliary box interlock structure for improved auxiliary box synchronizer reliability.

Overview

The Fast Gear C16JSDQXL220T 16-Speed Manual Transmission is a parts product with spec C16JSDQXL220T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Fast Gear
Transmission series: 16-speed series
Features: 1. Three-section, 2x4x2 configuration; 2. Full aluminum alloy die-cast housing, lightweight, high torque-to-weight ratio; 3. Front auxiliary box, main box, and rear auxiliary box all use twin countershaft design; 4. Full helical, fine-pitch, and barrel-shaped gear design, fully ground gears for low transmission noise; 5. Wide speed ratio range, adaptable to various working conditions, strong climbing ability; 6. Small speed ratio steps for good fuel economy; 7. Compatible with pneumatic shift assist; 8. Forced lubrication system to improve transmission lubrication; 9. Reserved external cooler interface for improved cooling under special conditions; reserved through-shaft PTO interface for expansion design; 10. Main and auxiliary box interlock structure for improved auxiliary box synchronizer reliability.
Max input torque: 2200N·m
1st gear ratio: 17.09
2nd gear ratio: 14.13
3rd gear ratio: 11.82
4th gear ratio: 9.77
5th gear ratio: 8.09
6th gear ratio: 6.69
7th gear ratio: 5.47
8th gear ratio: 4.52
Reverse Gear 1 Ratio: 15.73
Transmission weight: 291kg
9th gear ratio: 3.78
Transmission oil capacity: 15L
10-speed gear ratio: 3.13
11-speed gear ratio: 2.61
12-speed gear ratio: 2.16
13-speed gear ratio: 1.79
14-speed gear ratio: 1.48
15-speed gear ratio: 1.21
16-speed gear ratio:
Reverse Gear 2 Ratio: 13
Reverse Gear 3 Ratio: 3.48
Control type: Supports single-H and dual-H operation modes; single and dual levers integrated in one control.
Reverse Gear 4 Ratio: 2.88
Number of gears: 16Gear
shift type: Manual
Transmission Model: C16JSDQXL220T
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 4pcs

Photos

Exterior3

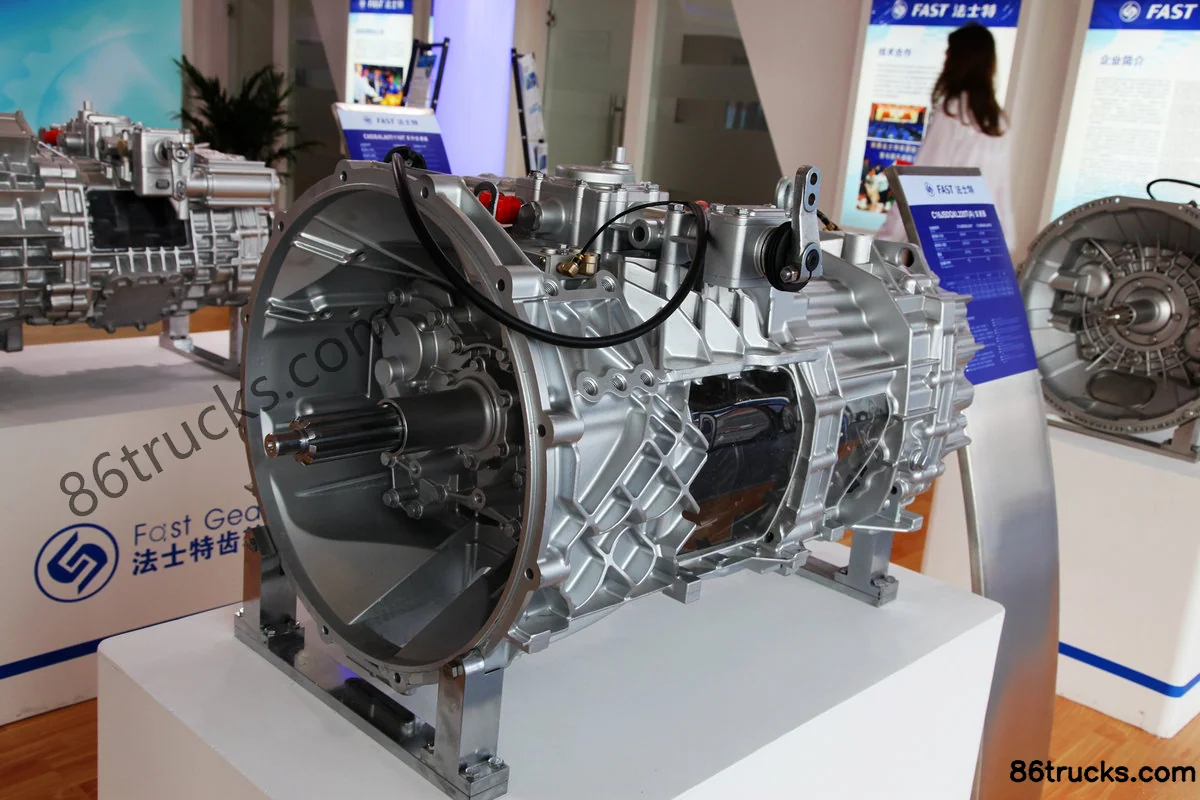

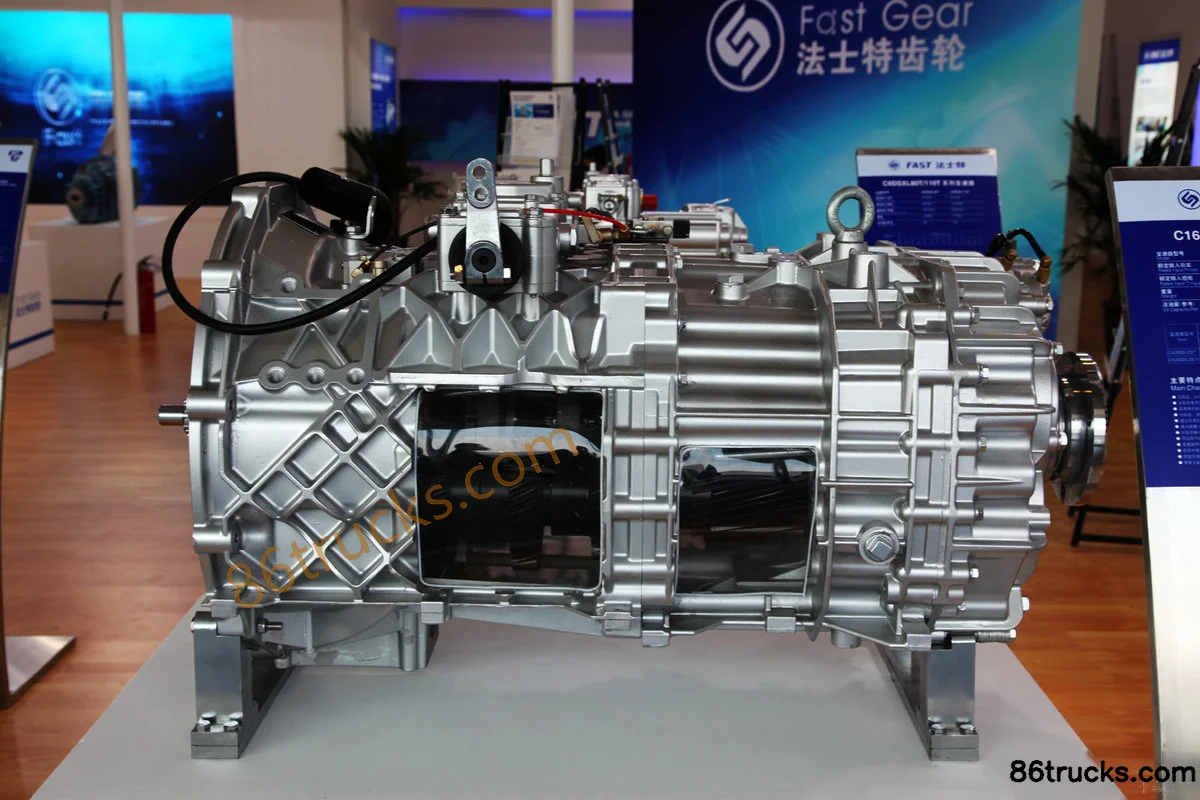

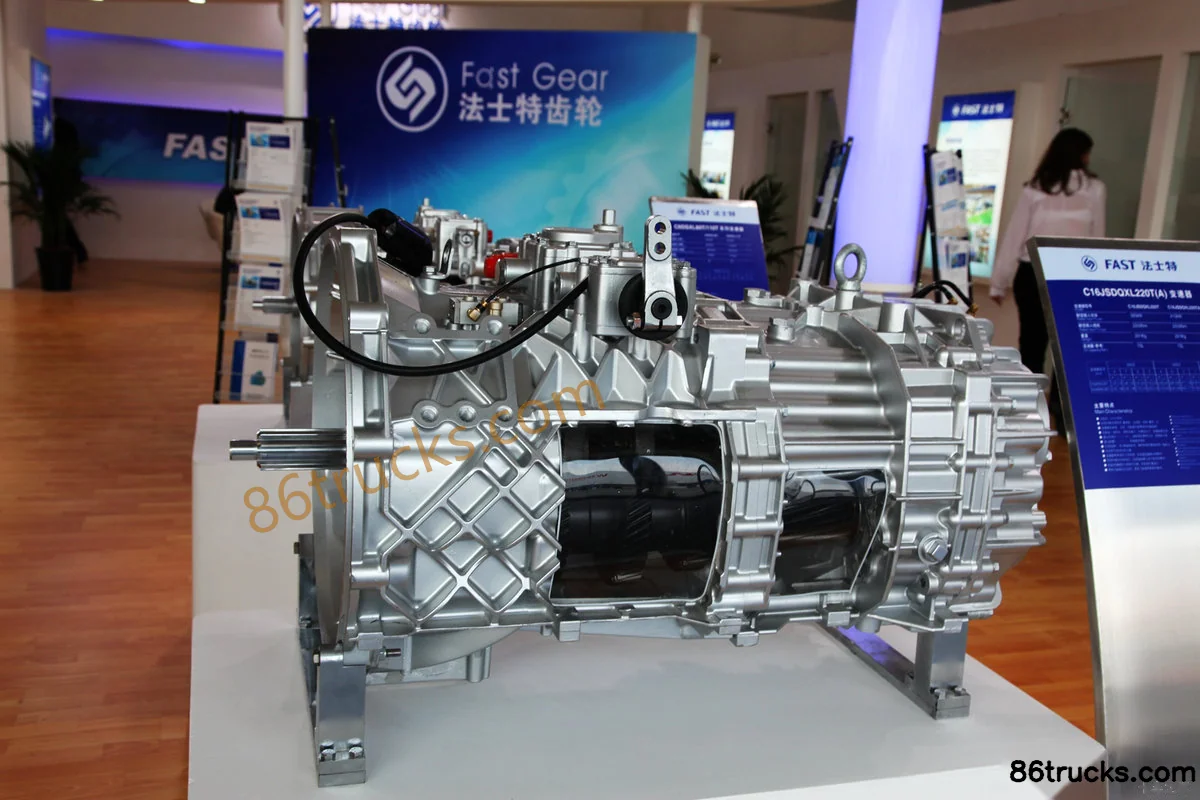

Fast Gear C16JSDQXL220T 16-Speed Manual Transmission Exterior (1) | 86Trucks Fast Gear C16JSDQXL220T 16-Speed Manual Transmission Exterior (2) | 86Trucks Fast Gear C16JSDQXL220T 16-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Fast Gear C16JSDQXL220T 16-Speed Manual Transmission suited for?

Match Fast Gear C16JSDQXL220T 16-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Fast Gear C16JSDQXL220T 16-Speed Manual Transmission differ from other variants in the same series?

Fast Gear C16JSDQXL220T 16-Speed Manual Transmission belongs to Fast Gear 16-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Fast Gear C16JSDQXL220T 16-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Fast Gear C16JSDQXL220T 16-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
