JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels)

Export reference
From $27,750
MSRP ¥19.98M CNY
Rated payload:: 1.485ton
Wheelbase:: 3365mm
Cargo box volume:: 13.44m³
Model code (announced):: HFC5041XXYEV13
Type:: enclosed cargo truck
Box length class:: 3.2m
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: JAC Motors
Curb Weight: 2.685ton

Overview

The JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels) is a Light Truck featuring 220km battery/range, JAC Motors motor, 4X2 (6 wheels) drive and 1.485t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XXYEV13
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 3.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3m
CLTC range: 220km
Curb Weight: 2.685ton
Rated payload: 1.485ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: JAC Motors
Motor 1 Model: TZ180XSWF3-1
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 50kW
Peak power: 100kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 63.75kWh
Cargo box parameters
Cargo box volume: 13.44m³
Cargo box type: Van body
Cargo box length: 3.2m
Cargo box width: 2.1m
Cargo box height: 2m
Cab parameters
Cab width: 1725mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

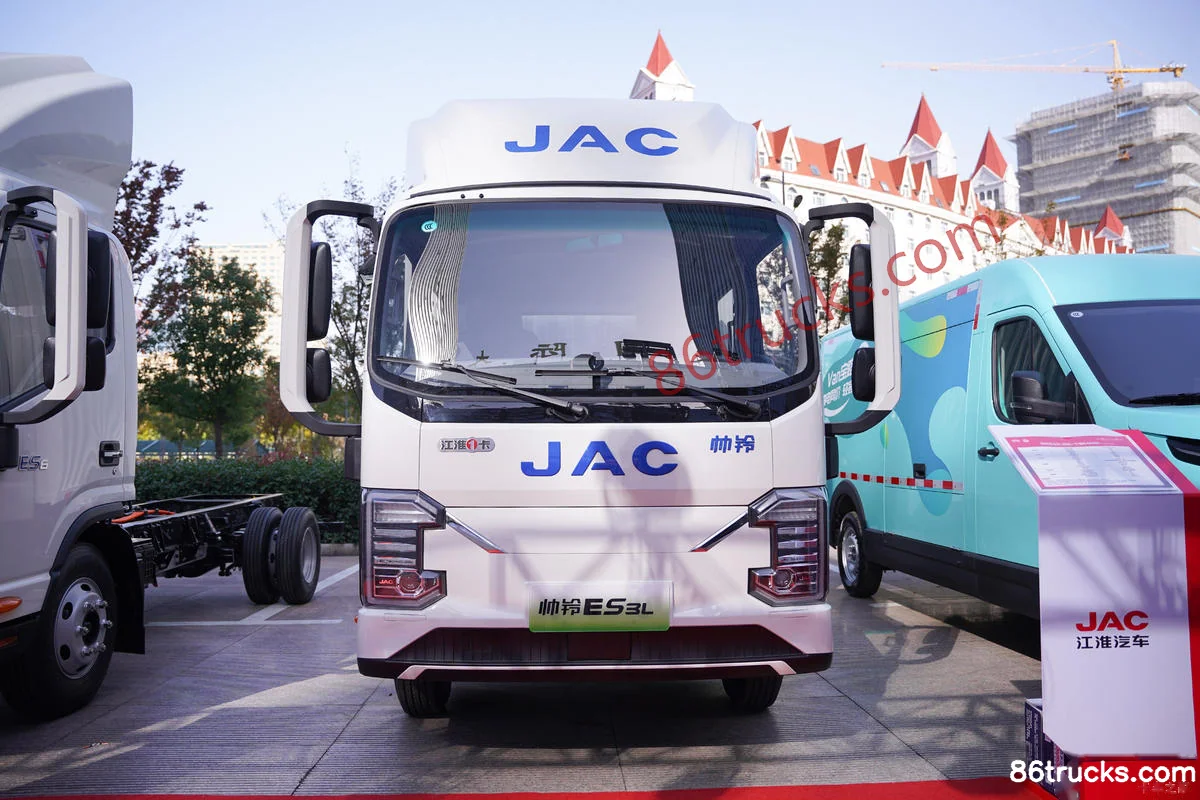

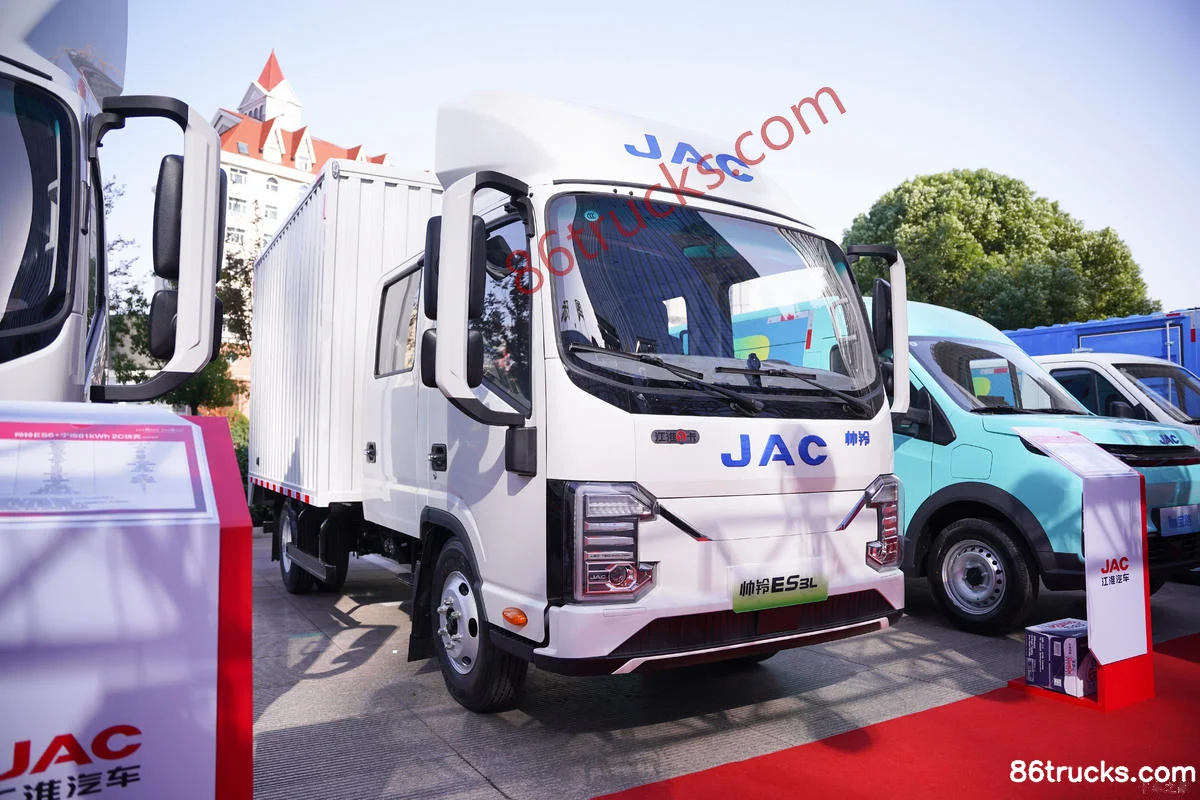

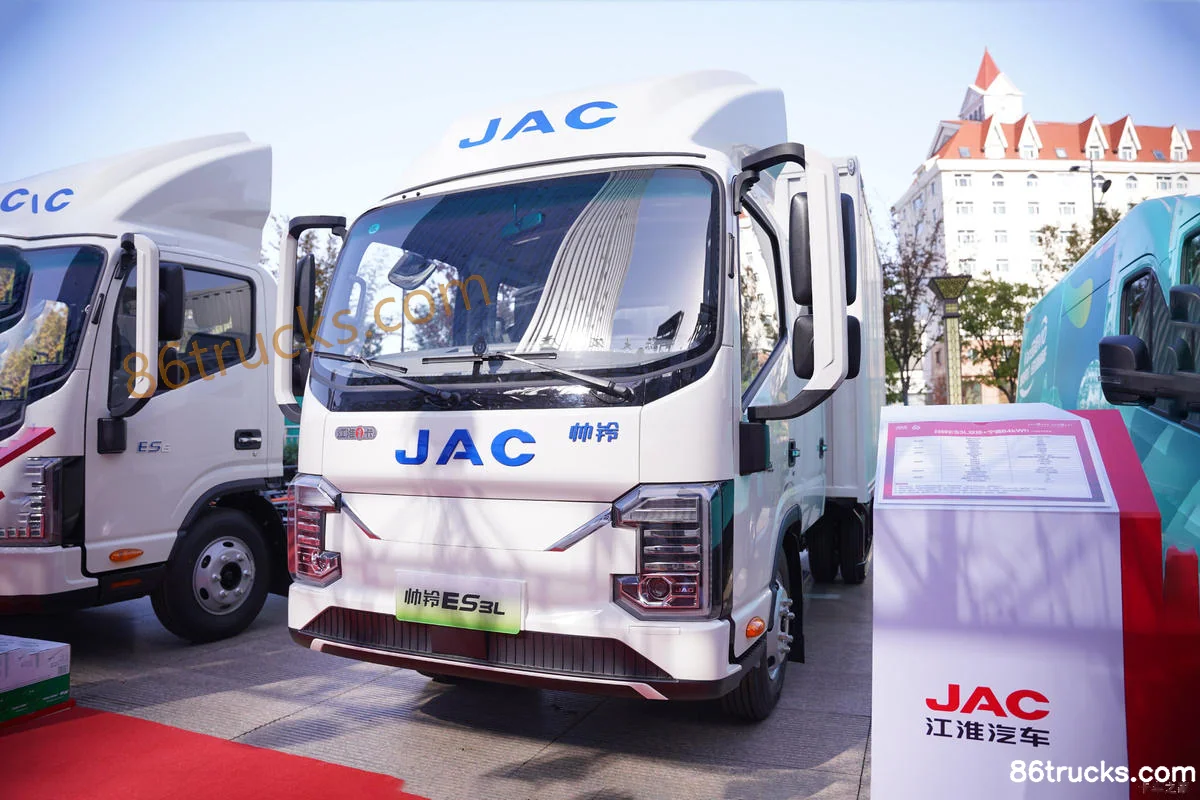

Exterior3

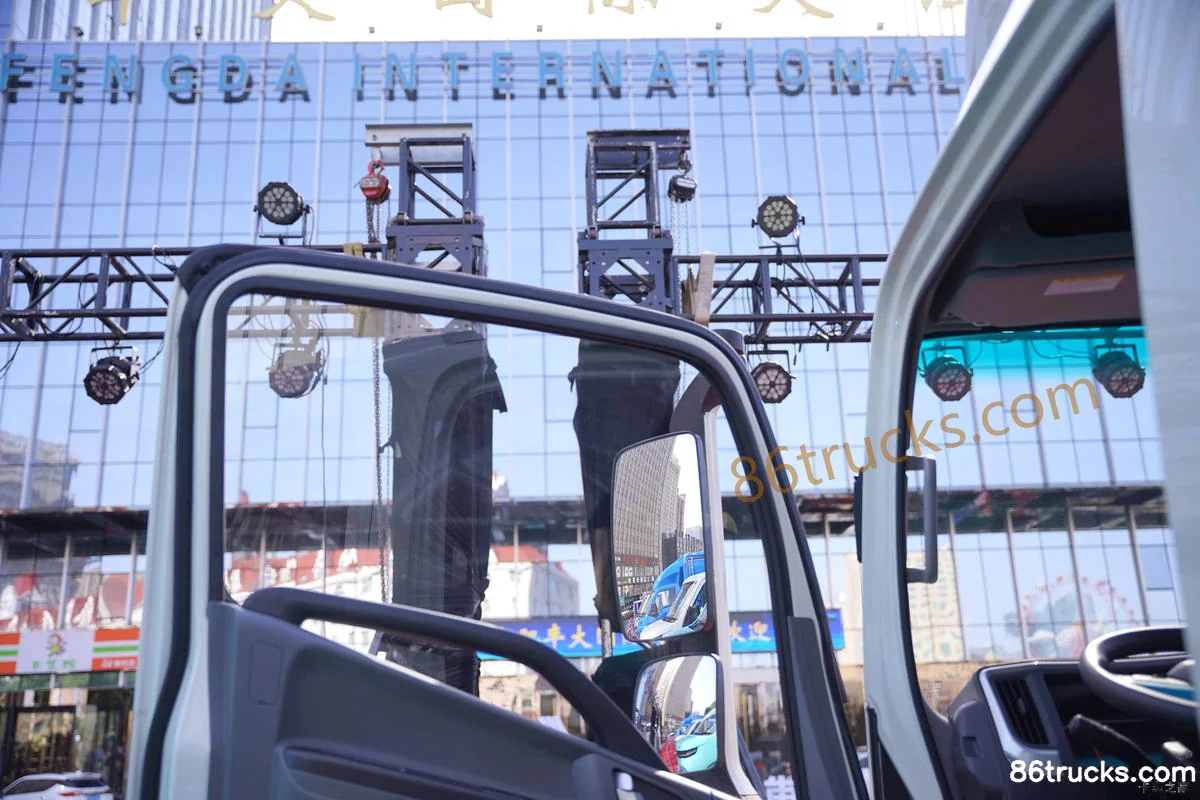

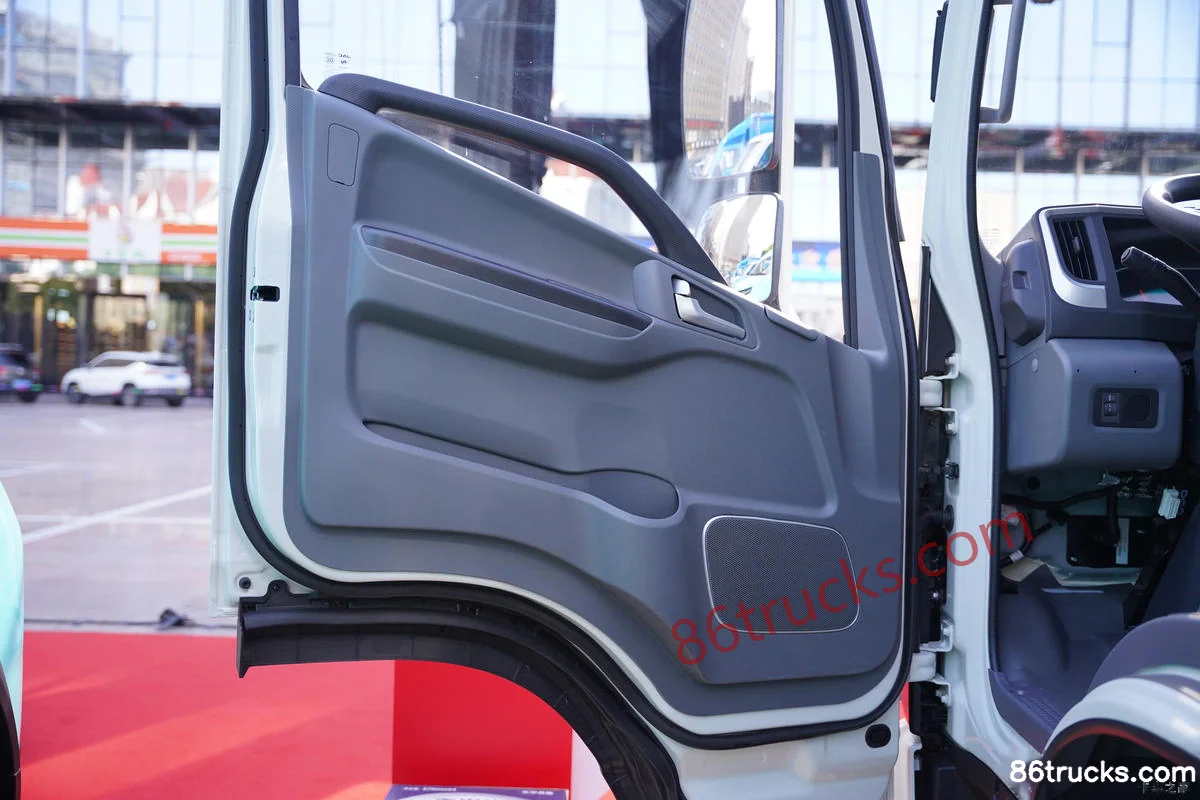

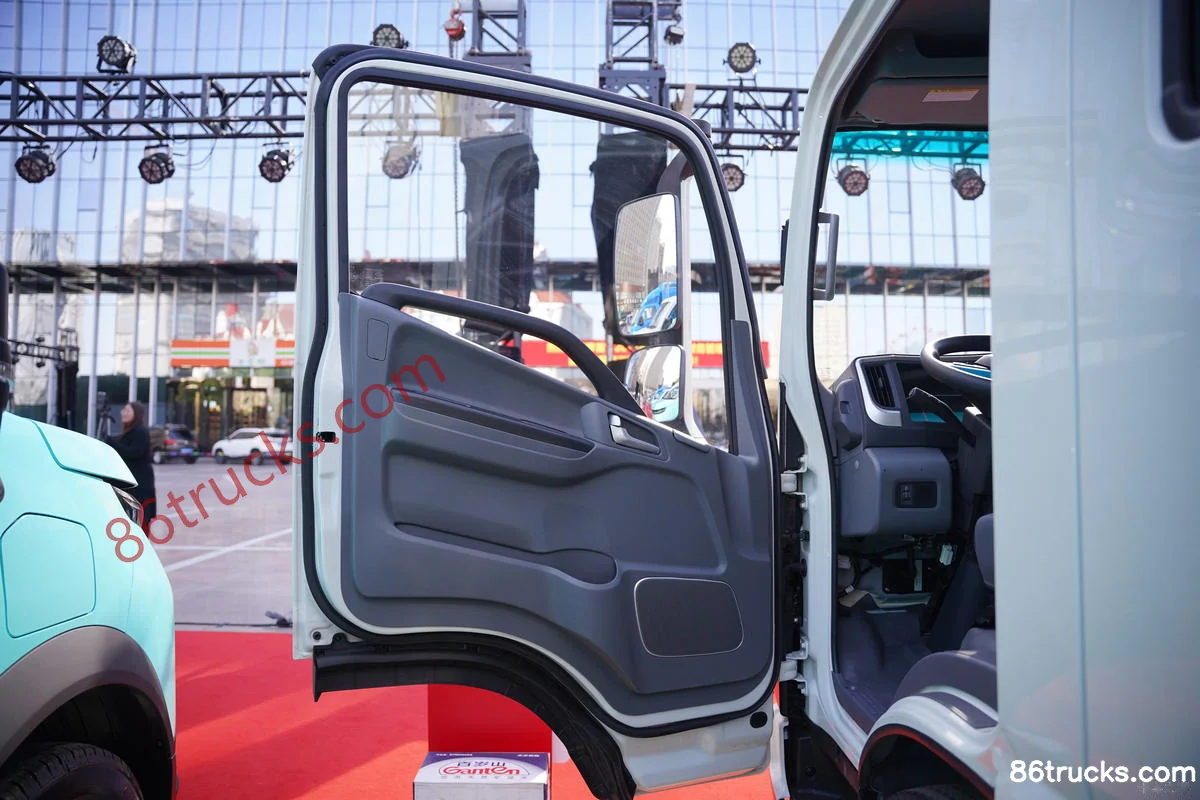

Interior3

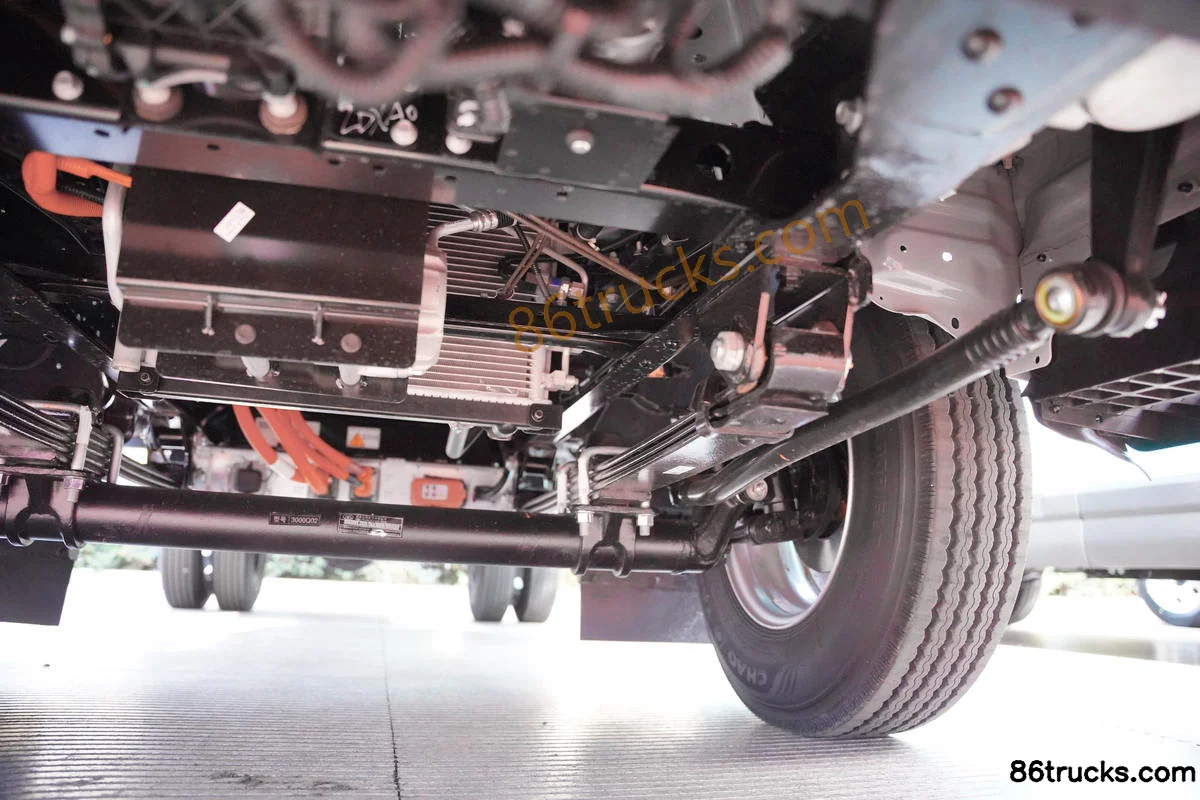

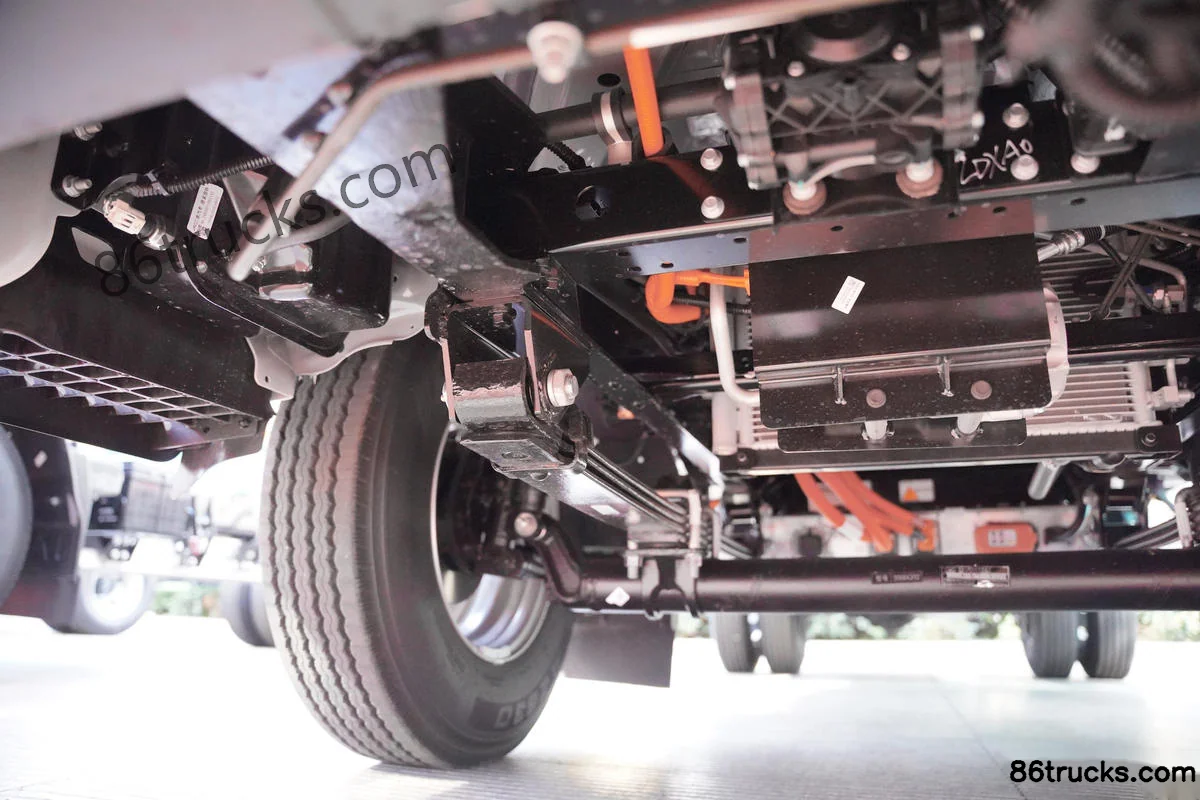

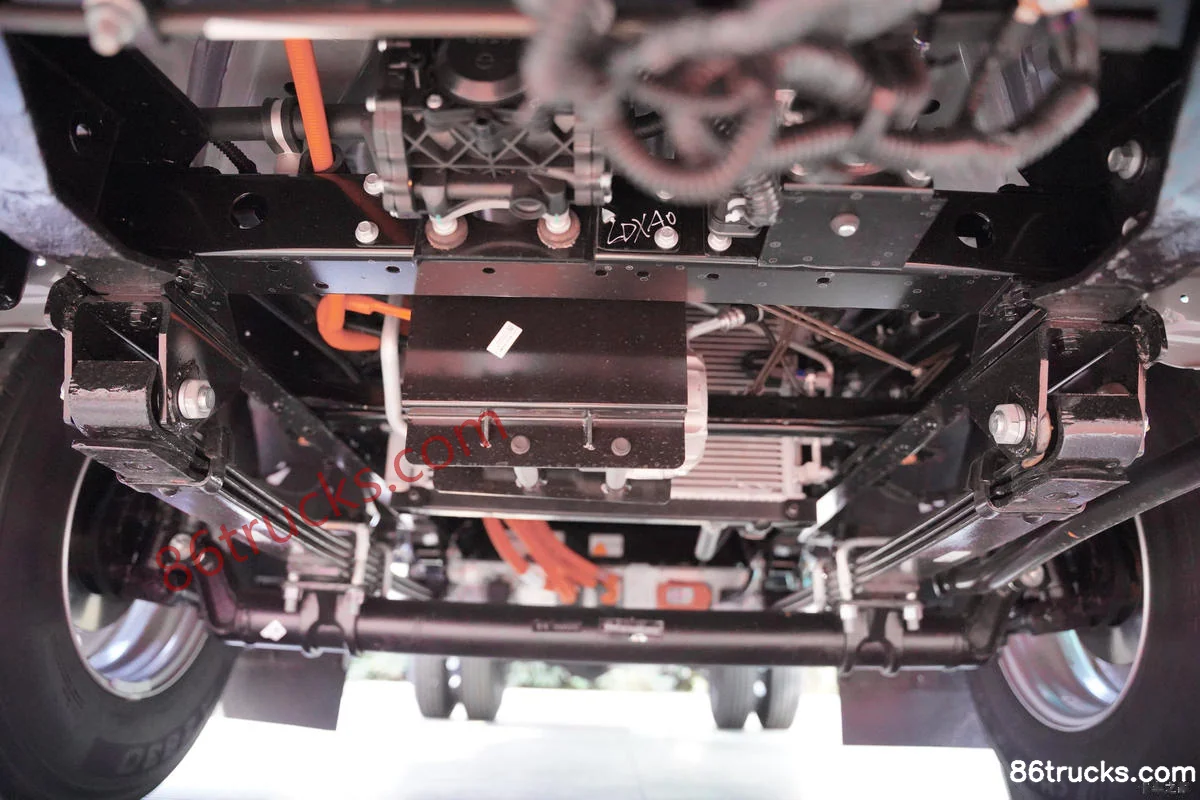

Chassis3

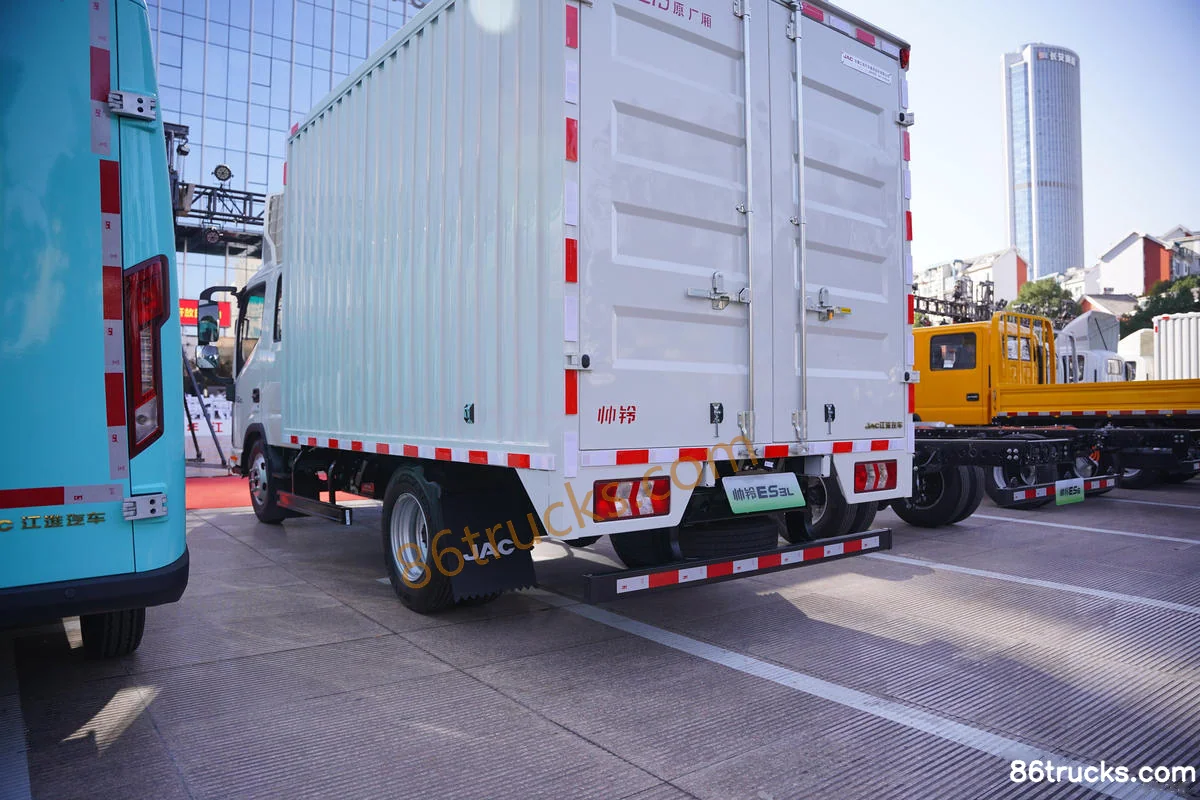

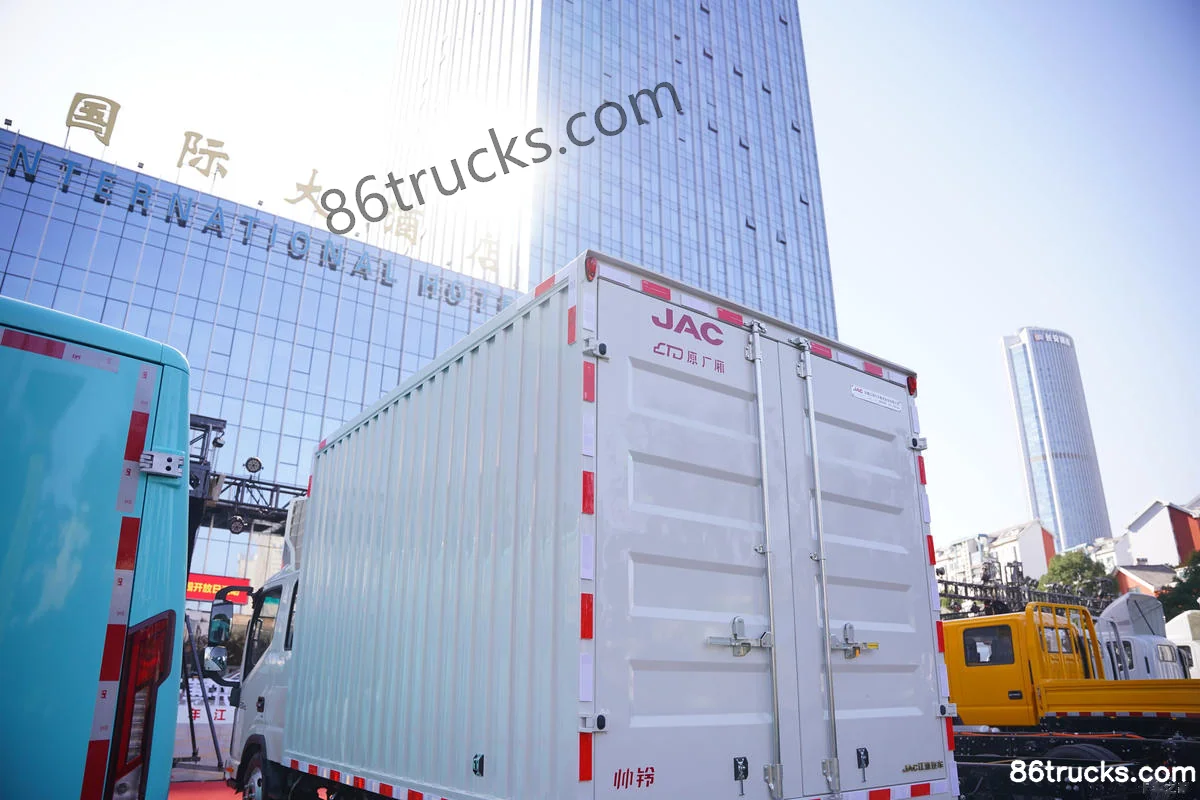

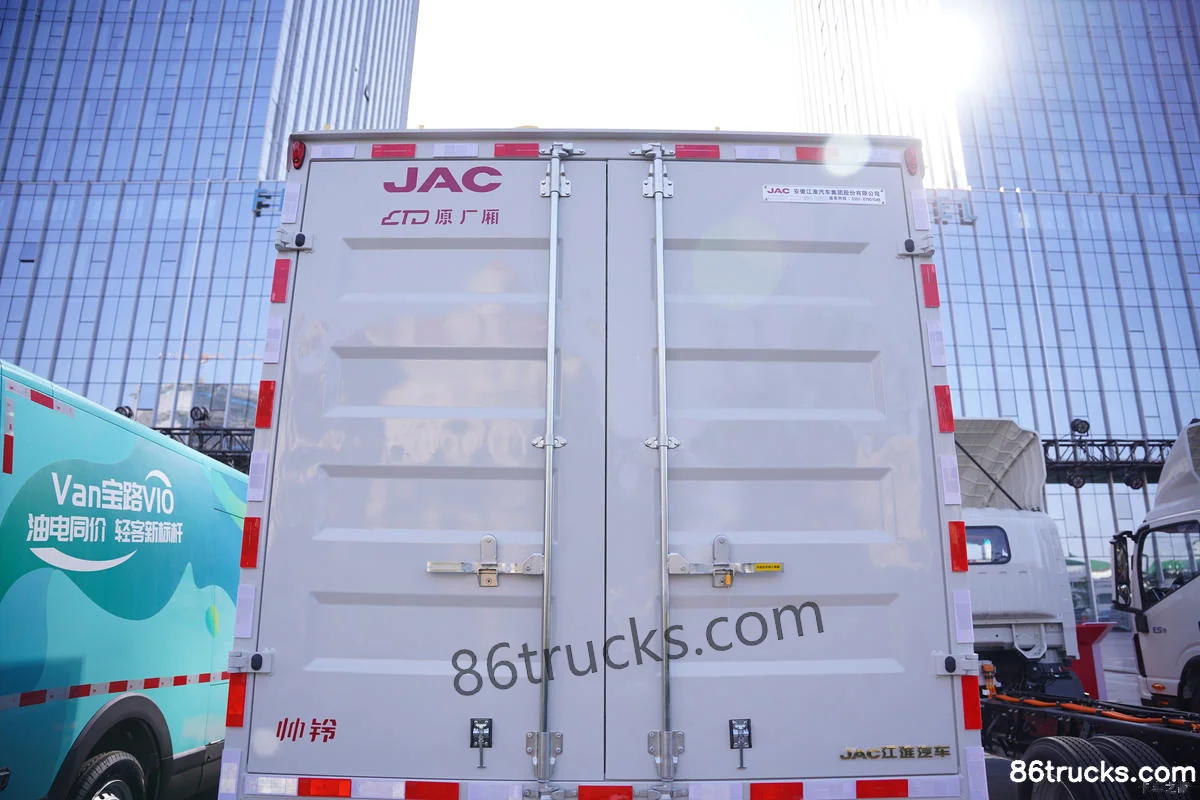

Body3

12 photos

FAQ

What is the export price of JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels), and what does it include?

JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels) export reference is about From $27,750; MSRP is ¥19.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels)?

Key specs of JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels) suited for?

JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels) belongs to JACES3 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing ES3L 4.5T 3.2m Double Row Pure Electric Van Light Truck 63.75kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
