Jindong 5T100 5-speed Manual Transmission

Export reference
MSRP N/A
Features:: Single circular arc tooth root, high contact ratio and noise-optimized helical angle gears, high gear strength, low noise; full synchronizer manual shift, 1st and 2nd gears use large-capacity dual-cone synchronizers
Max input torque:: 380N·m
1st gear ratio:: 5.057

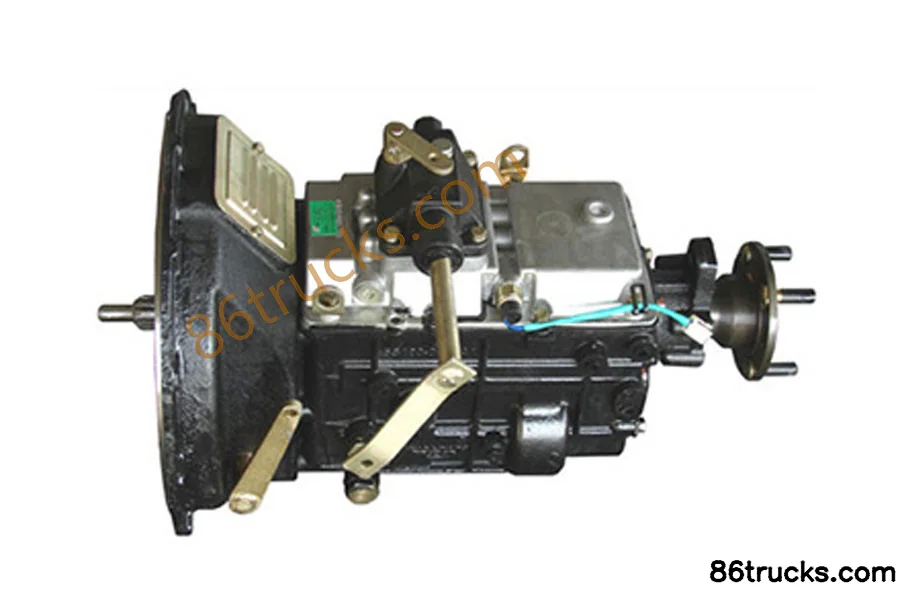

Jindong 5T100 5-speed Manual Transmission exterior
View more photos (1)
Transmission Model: 5T100
Transmission Brand: Jindong
Matching Range: 4100, 4102, 4105, 4110, 4BD1 and turbocharged engines

Overview

The Jindong 5T100 5-speed Manual Transmission is a parts product with spec 5T100.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: 4100, 4102, 4105, 4110, 4BD1 and turbocharged engines
Features: Single circular arc tooth root, high contact ratio and noise-optimized helical angle gears, high gear strength, low noise; full synchronizer manual shift, 1st and 2nd gears use large-capacity dual-cone synchronizers
Max input torque: 380N·m
1st gear ratio: 5.057
Main box center distance: 100mm
2nd gear ratio: 2.609
3rd gear ratio: 1.565
4th gear ratio:
5th gear ratio: 0.764
Reverse Gear 1 Ratio: 4.575
Transmission weight: 50kg
Transmission oil capacity: 3.3L
Number of gears: 5Gear
Transmission Model: 5T100
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

Exterior1

Jindong 5T100 5-speed Manual Transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Jindong 5T100 5-speed Manual Transmission suited for?

Match Jindong 5T100 5-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jindong 5T100 5-speed Manual Transmission differ from other variants in the same series?

Jindong 5T100 5-speed Manual Transmission belongs to Jindong 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jindong 5T100 5-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jindong 5T100 5-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
