Jindong JDS545HE 5-speed Manual Transmission
EXW
Export quote
Jindong 5-speed series transmission
Main model photos
20 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Jindong JDS545HE 5-speed Manual Transmission | — | ||
| Jindong 5T100 5-speed Manual Transmission | — | ||
| Jindong JDS530HB 5-speed Manual Transmission | — | ||
| Jindong JD530 5-speed Manual Transmission | — | ||
| Jindong JD5T28E 5-speed Manual Transmission | — |

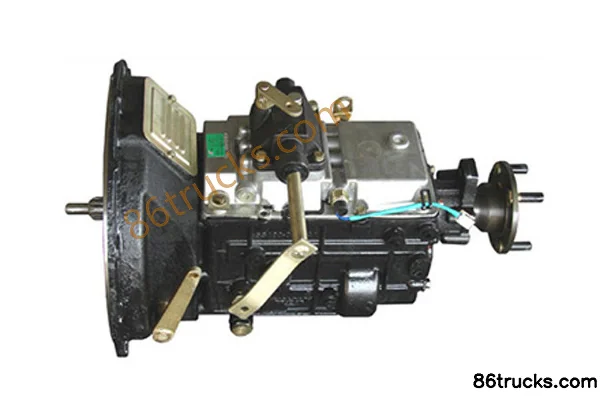

Jindong 5T100 5-speed Manual Transmission
EXW
Export quote

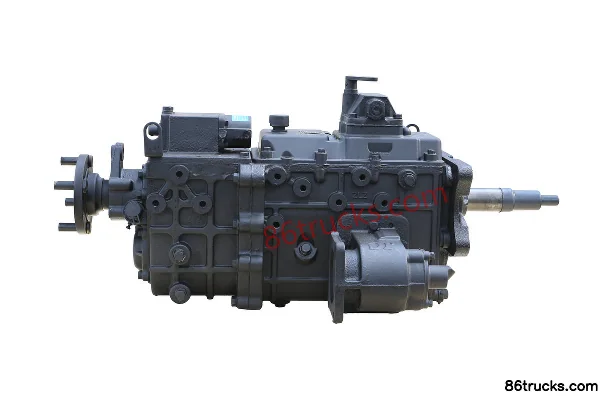

Jindong JDS530HB 5-speed Manual Transmission
EXW
Export quote
Jindong JD530 5-speed Manual Transmission
EXW
Export quote
Jindong JD5T28E 5-speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series / 5
Matching Range: Matches engines such as 4100/4102, BJ493ZLQ3, etc. Can also be matched with various engines like 4102, 4105, 4108, 4110, CA4113, YC4D120-21, etc. / 4100, 4102, 4105, 4110, 4BD1 and turbocharged engines / Compatible with 490, 495, 4100, 4102, 4105 and other gasoline and diesel engines / Can be equipped with 495, 4100, 4105, 4BT3.9, 4BD1 and other gasoline or diesel engines. / Matches engines such as 4100/4102, BJ493ZLQ3, etc. / Mainly matched with 4100/4102 engines, applicable models: 1–2.5 ton light trucks, 6–7 m minibuses / 1. Compatible with 4108, 4110, YC4120-2C, CA4113 and other diesel engines; 2. This transmission is suitable for dump trucks, special vehicles, low-speed engineering vehicles, and other models. / Mainly matched with 4100/4102/4105 and similar engines / For various diesel engines such as 4108, 4110, YC4120-2C, CA4113 / OEM partners: Shandong Wuzheng: Aochi 2000 cargo version. Foton: Knight 4560, Knight 3800. Dongfeng: Dongfeng (26 seats and below). FAW Qingdao: Hu V light truck upgraded. NAVECO: Yuejin Pioneer series. Shandong Shifeng: Fengshun 3, Fengchi 2000. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo. Shenyang Jinbei: Jinbei Nuclear Power. Shandong Tangjun: Ouling crane 4102, 4105. / OEM partners: Foton: Knight 4560, Knight 3800. Dongfeng: Dongfeng (26 seats and below). NAVECO: Yuejin Pioneer series. Shenyang Jinbei: Jinbei Nuclear Power; Engines: YC4F115, CY4102-C3C, YC2115ZQ, CA4102ZQ, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102, YC4D120-21, YC4E135-21, YC4108Q / OEM partners: Dongfeng: Dongfeng (26 seats and below). FAW Qingdao: Hu V light truck upgraded. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo. NAVECO: Yuejin Pioneer series; Engines: YC4F115, CY4102-C3C, SL2110, YC2115ZQ, CA190, CA4100, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102 / OEM partners: Shandong Wuzheng: Aochi 2000 cargo version. Foton: Knight 4560. Dongfeng: Dongfeng (26 seats and below). NAVECO: Yuejin Pioneer series. Shandong Shifeng: Fengshun 3. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo. Shenyang Jinbei: Jinbei Nuclear Power; Engines: YC4F115, CY4102-C3C, SL2110, YC2115ZQ, CA190, CA4100, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102 / Foton: Knight 4560. Dongfeng: Dongfeng (26 seats and below). NAVECO: Yuejin Kaituo series. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo. Shenyang Jinbei: Jinbei Nuclear Power; Engines: YC4F115, CY4102-C3C, SL2110, YC2115ZQ, CA190, CA4100, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102 / Dongfeng (2nd Auto Works): Dongfeng (26 seats and below). NAVECO: Yuejin Kaituo series. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo; Engines: YC4F115, CY4102-C3C, SL2110, YC2115ZQ, CA190, CA4100, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102 / For various diesel engines such as 4102, 4105, 4108, 4110 / FAW Qingdao: Hu V light truck upgraded. NAVECO: Yuejin Kaituo series. Shandong Shifeng: Fengshun 3, Fengchi 2000; Engines: JDS2102, SL2105, SL3105, CA490, CA4100, YZ4105QF, CY4102-C3F, SL2110, SD4100, CA4110ZQ / Shandong Wuzheng: Aochi 2000 Deluxe. Foton: Knight 3800. Dongfeng (26 seats & below); Engine: JDS2102, SL2105, SL3105, CA490, CA4100, YZ4105QF, CY4102-C3F, SL2110, SD4100, CA4110ZQ / FAW Qingdao: Hu V light truck upgraded. Hangzhou Xingdi: Baoshi Fuxing, Fuqiang. JDS2102, SL2105, SL3105, CA490, CA4100, YZ4105QF, CY4102-C3F, SL2110, SD4100, CA4110ZQ / Can be equipped with 495, 4100, 4105, CA4D32 and other gasoline or diesel engines. / Compatible with 4100/4102/4105 engines for various buses and medium-duty cargo trucks. Main OEMs: Foton, Dongfeng, NAVECO, Hangzhou Xingdi Group, Shenyang Jinbei. / Hangzhou Xingdi: Baoshi Fuxing, Fuqiang. Fujian Longma: JDS2102, SL2105, SL3105, CA490, CA4100, YZ4105QF, CY4102-C3F, SL2110, SD4100, CA4110ZQ / Hangzhou Xingdi: Baoshi Fuxing, Fuqiang. Fujian Longma: JDS2102, SL2105, SL2110, CA490, CA4100 / Can be equipped with 490, 495, 498, 4100, 4102 and other engines. / Foton: Knight 3800, Knight 4560, Yuwei, Jieshun 485, 490, 495, 4102 diesel engines, 486, 488, 491, 492 gasoline engines. / Foton: Knight 3800, Knight 4560, Yuwei, Jieshun. 380, 475, 480 diesel engines, 4D18E
Features: Reverse gear uses sliding sleeve; 2nd, 3rd, 4th, 5th gears use lock-pin synchronizer for smooth shifting and easy operation; auxiliary box uses sliding sleeve type, with reverse taper on engagement teeth to effectively prevent gear jumping or dropping. / Single circular arc tooth root, high contact ratio and noise-optimized helical angle gears, high gear strength, low noise; full synchronizer manual shift, 1st and 2nd gears use large-capacity dual-cone synchronizers / 1. JD5T28E transmission is manufactured strictly to Isuzu Motor Co., Ltd. MSB standard, suitable for domestic light trucks, passenger cars, etc., fully interchangeable with domestic similar products such as 5T88, 5T95, MSB, 528, etc. 2. Composite tooth profile and lead modification: low noise, high load capacity. 3. Aluminum alloy clutch housing, side cover, and shift fork for light weight. / The 5T500 transmission is integrated based on the EQ140/145, with torque covering the full range of EQ140/145; its shifting performance is improved. Second/third gears use the most advanced dual-cone synchronizers currently adopted in commercial vehicles on the market, while fourth/fifth gears use ZF short-stroke steel-based molybdenum-sprayed slider synchronizers, improving shifting performance by 20%, making gear engagement lighter, smoother, and with better feel. The external mounting dimensions are identical to EQ140, allowing direct interchange of the assembly. The strength of all gear teeth in the transmission has been reinforced, increasing the service life of each gear. Optional EQ140 front/rear auxiliary boxes, parking brake, and PTO are available; the control method and gear ratios are fully consistent with EQ140. / 1. JD5T35E is an improved shift performance version based on 535; external mounting dimensions identical to 535. 2. 1st/reverse sliding sleeve; 2nd/3rd slider synchronizer; 4th/5th slider synchronizer; improved JD5T35E offers clearer shifts, longer life, higher load capacity, better overload performance. 3. With front and rear auxiliary boxes; auxiliary box can be manual or pneumatic. 4. Overdrive version can use 4/5 shift mechanism to eliminate U-shift pattern. / 1. JDS545 and JDS540T have basically same structure; five forward gears, one reverse; difference: JDS545 has longer housing and stronger gears. 2. 1st/reverse sliding sleeve; 2nd/3rd, 4th/5th lock-pin synchronizer. 3. Remote or direct shift control. 4. With front and rear auxiliary boxes; manual or pneumatic auxiliary box. 5. Optional parking brake and PTO. / 1. 5 forward gears + 1 reverse; 2. Reverse and 1st: sliding sleeve; 2nd/3rd, 4th/5th: lock-pin synchronizer; 3. Remote or direct shift; 4. Front and rear auxiliary boxes; auxiliary box: manual or pneumatic; 5. Optional parking brake and PTO. / 1. 5 forward gears + 1 reverse; 2. Reverse and 1st: sliding sleeve; 2nd/3rd: lock-pin synchronizer; 4th/5th: lock-ring synchronizer; 3. Remote or direct shift; 4. Front and rear auxiliary boxes; auxiliary box: manual or pneumatic; 5. Optional parking brake and PTO.
Max input torque: 430 / 380 / 300 / 280 / 500 / 350 / 390 / 250 / 200 / 150N·m
1st gear ratio: High: 7.311 Low: 12.794 / 5.057 / High: 6.802 Low: 10.271 / 6.802 / High: 5.594 Low: 4.717 / 5.594 / 5.017 / 4.717 / High: 7.311 Low: 10.923 / 5.606 / 5.056 / High: 4.763 Low: 7.116 / High: 6.3 Low: 9.412 / High: 7.311 Low: 14.841 / High: 7.311 Low: 17.13 / High: 4.763 Low: 9.207 / High: 7.311 Low: 11.012 / 4.763 / 7.311 / High: 4.763 Low: 8.335 / High: 7.311 Low: 10.923/12.794 / High: 7.311 Low: 14.132 / 5.71 / High: 5.056 Low: 7.636 / High: 6.802 Low: 14.08/10.25 / High: 6.802 Low: 13.148 / High: 9.49 Low: 19.644 / 11.216 / 5.568 / 5.17 / 4.605
2nd gear ratio: High: 4.312 Low: 7.546 / 2.609 / High gear: 3.878 Low gear: 5.856 / 3.878 / High gear: 2.814 Low gear: 2.513 / 2.814 / 2.673 / 2.513 / High: 4.312 Low: 6.442 / 3.08 / 2.534 / High gear: 2.808 Low gear: 4.195 / High: 3.714 Low: 5.549 / High: 4.312 Low: 8.753 / High: 4.312 Low: 10.1 / High gear: 2.808 Low gear: 5.428 / High: 4.312 Low: 6.492 / 2.808 / 4.312 / High gear: 2.808 Low gear: 4.914 / High: 4.312 Low: 6.442/7.546 / High: 4.312 Low: 8.335 / 3.37 / High gear: 2.534 Low gear: 3.826 / High gear: 3.878 Low gear: 8.027/5.884 / High: 3.878 Low: 7.496 / High: 5.411 Low: 11.201 / 5.72 / 2.879 / 2.832 / 2.88 / 2.693
Main box center distance: 100 / 121.125 / 88 / 90 / 85 / 70mm
synchronizer: Slider synchronizer / double-cone synchronizer / Slider-type synchronizer / Yes
3rd gear ratio: High: 2.45 Low: 4.288 / 1.565 / High: 2.267 Low: 3.423 / 2.267 / High: 1.660 Low: 1.679 / 1.66 / 1.585 / 1.679 / High: 2.45 Low: 3.66 / 1.744 / 1.509 / High: 1.594 Low: 2.381 / High: 2.109 Low: 3.151 / High: 2.45 Low: 4.974 / High gear: 2.45 Low gear: 5.74 / High: 1.594 Low: 3.052 / High: 2.45 Low: 3.69 / 1.594 / 2.45 / High: 1.594 Low: 2.79 / High: 2.45 Low: 3.66/4.288 / High: 2.45 Low: 4.736 / 2.19 / High: 1.509 Low: 2.279 / High: 2.267 Low: 4.692/3.416 / High: 2.267 Low: 4.382 / High gear: 2.728 Low gear: 5.647 / 2.938 / 1.634 / 1.645
4th gear ratio: High: 1.534 Low: 2.685 / 1 / High: 1.424 Low: 2.147 / 1.424 / High: 1 Low: 1 / High gear: 1.534 Low gear: 2.292 / High: 1 Low: 1.494 / High: 1.323 Low: 1.977 / High: 1.534 Low: 3.114 / High: 1.534 Low: 3.594 / High: 1.534 Low: 2.292 / High: 1 Low: 1.933 / High: 1.534 Low: 2.31 / 1.534 / High: 1 Low: 1.75 / High: 1.534 Low: 2.292/2.685 / High gear: 1.534 Low gear: 2.965 / High gear: 1.534 Low gear: 2.31 / 1.47 / High: 1 Low: 1.507 / High: 1.424 Low: 2.948/2.146 / High: 1.424 Low: 2.749 / High: 1.588 Low: 3.287 / 1.588
5th gear ratio: High: 1 Low: 1.75 / 0.764 / High: 1 Low: 1.51 / 1 / High: 0.794 Low: 0.785 / 0.794 / 0.77 / 0.785 / High gear: 1 Low gear: 1.75 / High: 1 Low: 1.494 / 0.799 / 0.761 / High: 0.756 Low: 1.129 / High: 1 Low: 2.03 / High: 1 Low: 2.343 / High: 0.756 Low: 1.461 / High: 1 Low: 1.506 / 0.756 / High: 0.756 Low: 1.323 / High: 1 Low: 1.494/1.75 / High: 1 Low: 1.933 / High: 0.761 Low: 1.149 / High: 1 Low: 2.07/1.507 / High gear: 1 Low gear: 2.07 / 0.814 / 0.839
Auxiliary box center distance: 87 / 121.125 / 100mm
Reverse Gear 1 Ratio: High: 7.66 Low: 13.405 / 4.575 / High: 6.154 Low: 9.293 / 6.154 / High: 5.334 Low: 4.497 / 5.334 / 4.783 / 4.497 / High: 7.66 Low: 11.444 / High: 4.99 Low: 7.455 / 6.9 / High: 7.66 Low: 15.55 / High: 7.66 Low: 17.95 / High: 4.99 Low: 9.646 / High: 7.66 Low: 11.537 / 4.99 / 7.66 / High: 4.99 Low: 8.733 / High: 7.66 Low: 11.444/13.405 / High: 7.66 Low: 14.807 / 5.98 / High: 4.575 Low: 6.907 / High: 6.154 Low: 12.82/9.2 / High: 6.154 Low: 11.896 / High: 12.48 Low: 25.48 / 12.497 / 5.011 / 4.306 / 3.816
Transmission weight: 164 / 50 / 132 / 100 / 66 / 56 / 140 / 96 / 125 / 120 / 64 / 58 / 44kg
Transmission oil capacity: 5.5+3.5 / 3.3 / 3.2+1.2 / 3.5 / 2.7 / 5.5+1.2 / 5.5 / 4.765+3.2 / 4.575+3.5 / 5.5+1.1 / 3.5+1.2 / 3.5+1.1 / 1.7 / 1.1L
Control type: Cable shift, international gear pattern / Available with remote control and direct control
Number of gears: 5Gear
shift type: Manual
Transmission Model: JDS545HE / 5T100 / JDS530HB / JD530 / JD5T28E / JDS5T28E / JDS5T500 / JDS5T38 / JDS5T35E / JDS545CH / JDS545H / JDS545CQ / JDS545Q / JDS545C / JDS545 / JDS540CH / JDS540TH / JDS540Q / JDS540TQ / JDS540TC / JDS540T / JDS535H / JDS530H / JDS530Q / JDS535 / JDS530 / JDS528H / JDS526 / JDS525 / JDS520 / JDS515
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
FAQ
What kind of truck is Jindong Jindong 5-speed series transmission?
Jindong Jindong 5-speed series is an export-oriented transmission lineup with about 40 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Jindong 5-speed series transmission include?
Jindong 5-speed series transmission currently lists about 40 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jindong 5-speed series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
