Jindong JD530 5-speed Manual Transmission

Export reference
MSRP N/A
Max input torque:: 300N·m
1st gear ratio:: 6.802
2nd gear ratio:: 3.878
Transmission Model: JD530
Transmission Brand: Jindong
Matching Range: Can be equipped with 495, 4100, 4105, 4BT3.9, 4BD1 and other gasoline or diesel engines.

Overview

The Jindong JD530 5-speed Manual Transmission is a parts product with spec JD530.

Model Specs

Legend: ● Standard ○ Optional - N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: Can be equipped with 495, 4100, 4105, 4BT3.9, 4BD1 and other gasoline or diesel engines.
Max input torque: 300N·m
1st gear ratio: 6.802
2nd gear ratio: 3.878
3rd gear ratio: 2.267
4th gear ratio: 1.424
5th gear ratio:
Reverse Gear 1 Ratio: 6.154
Transmission weight: 100kg
Transmission oil capacity: 3.5L
Number of gears: 5Gear
Transmission Model: JD530
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

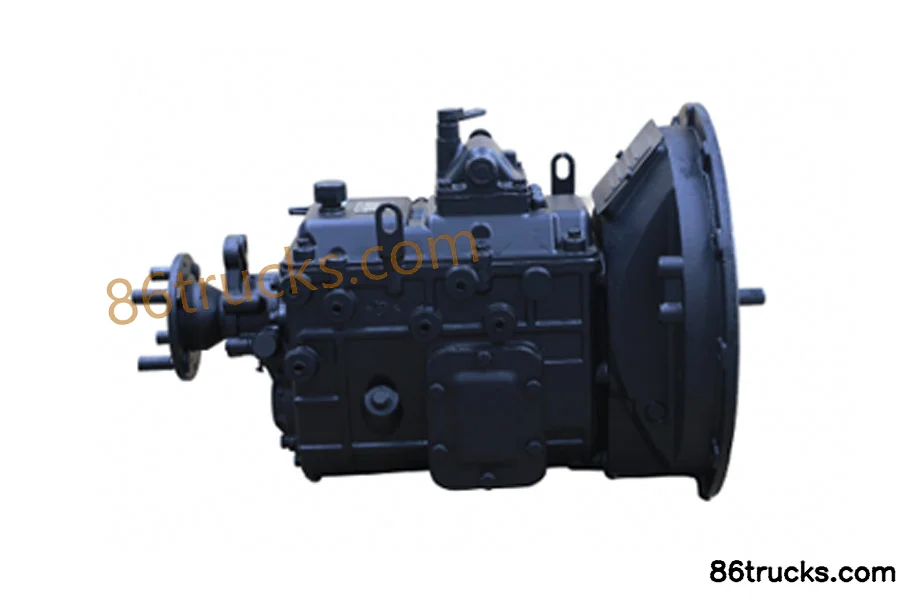

Exterior1

1 photos

FAQ

What transport jobs is Jindong JD530 5-speed Manual Transmission suited for?

Match Jindong JD530 5-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jindong JD530 5-speed Manual Transmission differ from other variants in the same series?

Jindong JD530 5-speed Manual Transmission belongs to Jindong 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jindong JD530 5-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jindong JD530 5-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
