FAW Jiefang CA6TBX075M1 6-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA6TB(X) Series transmission
Main model photos
9 photos
Models
On sale

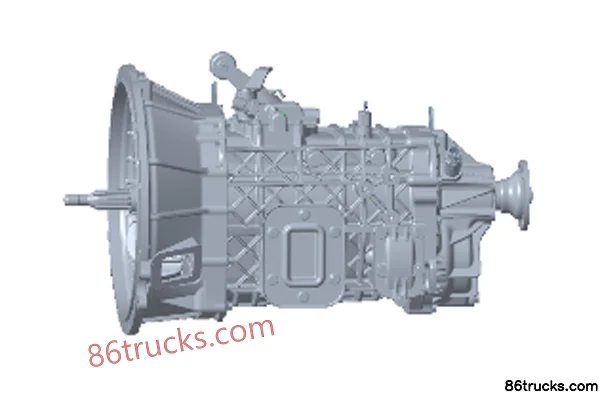

FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission
EXW
Export quote

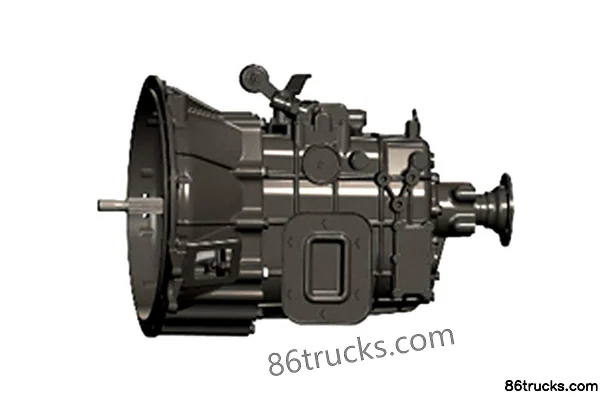

FAW Jiefang CA6TBX051M 6-speed manual transmission
EXW
Export quote
FAW Jiefang CA6TBX036M Overdrive 6-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA6TBX062M1 6-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA6TB(X) Series
Matching Range: For various on-road cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with rated input torque of 530-750 Nm / Matches engines with 130-150 hp and rated input torque of 300-450 Nm, suitable for 3-ton China V and China VI light-duty cargo trucks, etc. / Matches engines with 150-160 hp and rated input torque of 450-510 Nm, suitable for 4-ton China V and China VI light-duty cargo trucks, etc. / Matched with 130-150 hp engine, rated input torque 300-400 Nm, suitable for 3-ton China V and China VI light cargo trucks, etc. / Medium truck / For various on-road cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with rated input torque of 735-900 Nm / This series of transmissions is suitable for various highway cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with a rated input torque of 735-835 N·m. / This series of transmissions is suitable for various highway cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with a rated input torque of 520-685 N·m.
Features: FAW Group CA6TBX075M1 mechanical synchromesh transmission. It has 6 forward gears and 1 reverse gear, offering light and flexible shifting, stable performance, and high reliability, with better cost-effectiveness than similar products. This product is the designated supporting product for FAW Group export vehicles, exported to Russia, Kazakhstan, Uzbekistan, the Middle East, and other countries and regions. / FAW Group's new-generation full-aluminum housing light-duty transmission for lightweight light truck market demands. Features 6 forward gears and 1 reverse gear, compact and lightweight with high load capacity—premium choice for light trucks. Includes clutch housing and release mechanism; optional hand brake, left-side PTO, etc. / FAW Group CA6TBX051M transmission has 6 forward gears and 1 reverse gear. It features a compact structure, small size, light weight, and strong load capacity, making it the preferred transmission for high-end light trucks. This product comes with a clutch housing and release mechanism, and optional left-hand or right-hand PTO and other accessories. / FAW Group's new-generation light-duty vehicle transmission with 6 forward gears and 1 reverse gear. Compact, lightweight, and high load capacity—ideal for premium light trucks. Includes clutch housing and release mechanism; optional hand brake, left-side PTO, etc. / FAW Group 6T138 series transmission is a mechanical synchromesh transmission with 6 forward gears and 1 reverse gear. It offers light and flexible shifting, stable performance, and high reliability. It is the designated supporting product for FAW Group export vehicles, exported to Russia, Kazakhstan, Uzbekistan, the Middle East, and other countries and regions. Since its market launch, it has been well received by users for its stable and reliable performance and good handling, with cumulative production exceeding 800,000 units. / 1st and reverse gear use sliding sleeve, 2nd-6th gear use single-cone synchronizer, optional dual-cone synchronizer, forward one / Direct gear, 1st and reverse with sliding gear sleeve, 2nd-6th with single-cone synchronizer, optional dual-cone synchronizer, further
Max input torque: 750 / 450 / 510 / 400 / 620 / 835 / 735 / 900 / 685 / 610 / 520N·m
1st gear ratio: 5.864 / 5.975 / 6.239 / 5.979 / 6.515 / 7.285 / 8.405 / 6.352 / 5.942 / 6.367 / 7.64
Main box center distance: 123 / 99 / 115 / 138mm
synchronizer: Yes / Full synchronizer / 2-6 gears with synchronizer
2nd gear ratio: 3.525 / 3.269 / 3.743 / 3.435 / 3.916 / 4.193 / 4.838 / 3.656 / 3.42 / 3.624 / 4.834
3rd gear ratio: 2.111 / 1.993 / 2.217 / 1.862 / 2.345 / 2.485 / 2.867 / 2.167 / 2.027 / 2.311 / 2.856
4th gear ratio: 1.286 / 1.343 / 1.382 / 1.279 / 1.428 / 1.563 / 1.803 / 1.363 / 1.275 / 1.895
5th gear ratio: 1 / 1.195 / 1.378 / 1.337
6th gear ratio: 0.733 / 0.779 / 0.767 / 0.78 / 0.813 / 1 / 0.739 / 0.783 / 0.82 / 0.847 / 0.796
Reverse Gear 1 Ratio: 5.455 / 5.697 / 5.783 / 5.701 / 6.06 / 6.777 / 7.818 / 5.909 / 5.527 / 6.057 / 2.724 / 7.107
Transmission weight: 149 / 82 / 130 / 115 / 125 / 190kg
Transmission oil capacity: 7/7.5 (with PTO) / 3.4/3.8 (with PTO) / 5.56/6 (with PTO) / 3.6/4.0 (with PTO) / 9/9.5 / 9/9.5 (PTO) / 7/7.5 (PTO)L
Control type: Manual / direct control, remote single/double lever control / Can be directly operated or remotely operated with single or dual lever, optional shift booster. / Can be directly operated or remotely operated with single or dual lever, optional shift booster
Number of gears: 6Gear
shift type: Manual
Transmission Model: CA6TBX075M1 / CA6TBX045M1 / CA6TBX051M / CA6TBX036M / CA6TBX062M1 / CA6TB085M / CA6TBX075M / CA6TB075M / CA6TBX085M / CA6TBX090M / CA6TBX070M / CA6TBX062M / CA6TB053M
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
FAQ
What kind of truck is FAW Jiefang FAW Jiefang CA6TB(X) Series transmission?
FAW Jiefang FAW Jiefang CA6TB(X) Series is an export-oriented transmission lineup with about 24 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does FAW Jiefang CA6TB(X) Series transmission include?
FAW Jiefang CA6TB(X) Series transmission currently lists about 24 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang CA6TB(X) Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
