FAW Jiefang CA6TBX051M 6-speed manual transmission

Export reference
MSRP N/A
Features:: FAW Group CA6TBX051M transmission has 6 forward gears and 1 reverse gear. It features a compact structure, small size, light weight, and strong load capacity, making it the preferred transmission for high-end light trucks. This product comes with a clutch housing and release mechanism, and optional left-hand or right-hand PTO and other accessories.
Max input torque:: 510N·m
1st gear ratio:: 6.239

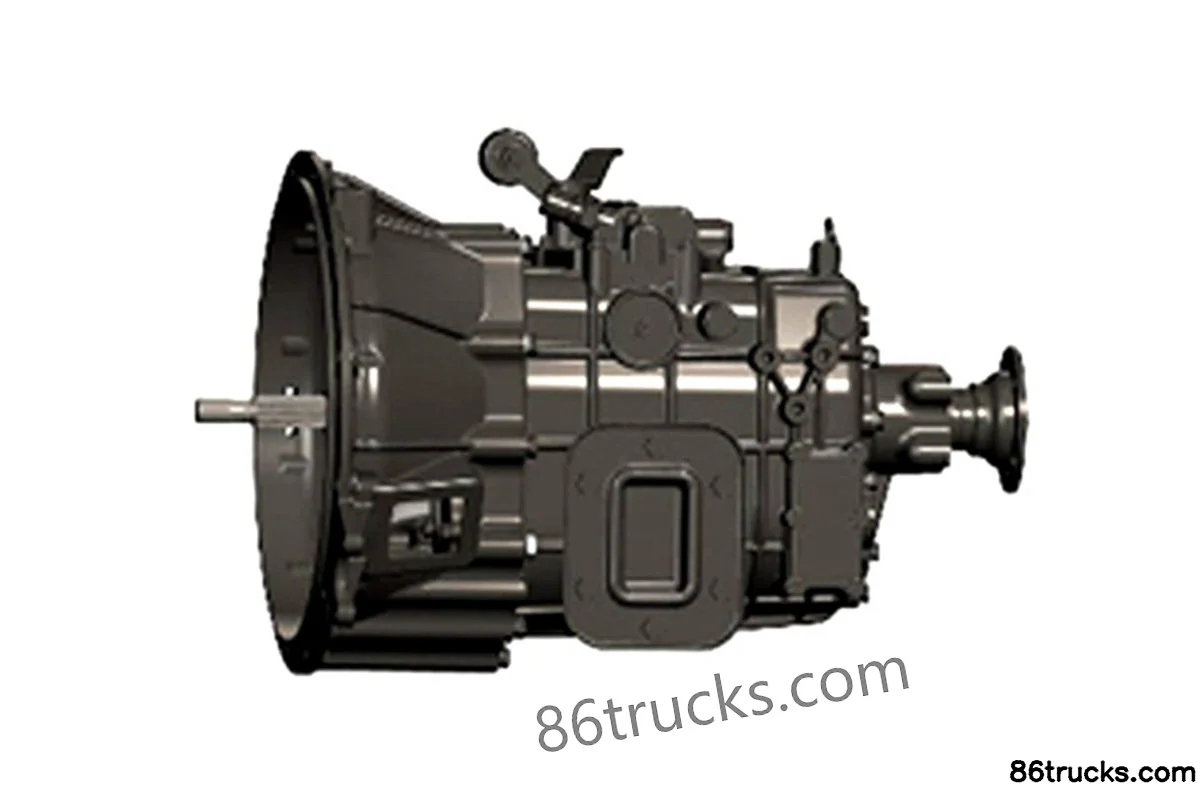

FAW Jiefang CA6TBX051M 6-speed manual transmission exterior
View more photos (1)
Transmission Model: CA6TBX051M
Transmission Brand: FAW Jiefang
Matching Range: Matches engines with 150-160 hp and rated input torque of 450-510 Nm, suitable for 4-ton China V and China VI light-duty cargo trucks, etc.

Overview

The FAW Jiefang CA6TBX051M 6-speed manual transmission is a parts product with spec CA6TBX051M.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA6TB(X) Series
Matching Range: Matches engines with 150-160 hp and rated input torque of 450-510 Nm, suitable for 4-ton China V and China VI light-duty cargo trucks, etc.
Features: FAW Group CA6TBX051M transmission has 6 forward gears and 1 reverse gear. It features a compact structure, small size, light weight, and strong load capacity, making it the preferred transmission for high-end light trucks. This product comes with a clutch housing and release mechanism, and optional left-hand or right-hand PTO and other accessories.
Max input torque: 510N·m
1st gear ratio: 6.239
synchronizer: Yes
Main box center distance: 115mm
2nd gear ratio: 3.743
3rd gear ratio: 2.217
4th gear ratio: 1.382
5th gear ratio:
6th gear ratio: 0.767
Reverse Gear 1 Ratio: 5.783
Transmission weight: 130kg
Transmission oil capacity: 5.56/6 (with PTO)L
Number of gears: 6Gear
Transmission Model: CA6TBX051M
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

Photos

Exterior1

FAW Jiefang CA6TBX051M 6-speed manual transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is FAW Jiefang CA6TBX051M 6-speed manual transmission suited for?

Match FAW Jiefang CA6TBX051M 6-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA6TBX051M 6-speed manual transmission differ from other variants in the same series?

FAW Jiefang CA6TBX051M 6-speed manual transmission belongs to FAW Jiefang CA6TB(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA6TBX051M 6-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA6TBX051M 6-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
