Sinotruk HW95509STC 9-speed Manual Transmission
EXW
Export quote
Sinotruk HW9-Speed Series transmission

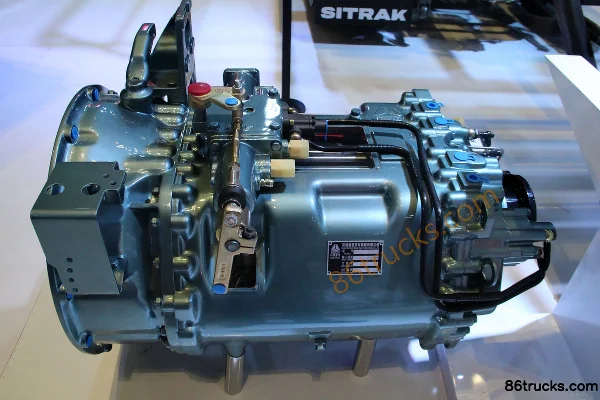

Main model photos
4 photos
Models
On sale
Sinotruk HW13709XSTCL 9-Speed Manual Transmission
EXW
Export quote
Sinotruk HW13709XSTL 9-Speed Manual Transmission
EXW
Export quote
Sinotruk HW13709XST 9-speed manual transmission
EXW
Export quote
Sinotruk HW16709XSTC 9-speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Sinotruk / Sinotruk China Sinotruk
Transmission series: HW9-speed series
Features: Single countershaft, full synchronizer
Matching Range: Suitable for on-road use and construction vehicles.
Max input torque: 950 / 1300 / 1350 / 1650 / 1900 / 1800N·m
1st gear ratio: 9.51 / 13.12 / 13.116 / 10.848 / 15.117 / 9.509 / 12.47 / 12.68
synchronizer: No
Main box center distance: 155mm
2nd gear ratio: 6.43 / 8.87 / 8.868 / 7.346 / 10.238 / 6.429 / 8.79 / 8.46
Low Gear 1: 15.28
3rd gear ratio: 4.74 / 6.54 / 6.538 / 5.239 / 7.301 / 6.17 / 6.26
4th gear ratio: 3.48 / 4.81 / 4.805 / 3.75 / 5.228 / 3.484 / 4.375 / 4.64
5th gear ratio: 2.53 / 3.48 / 3.484 / 2.693 / 3.75 / 2.526 / 2.85 / 3.38
6th gear ratio: 1.85 / 2.55 / 2.545 / 1.959 / 2.693 / 1.845 / 2.01 / 2.5
7th gear ratio: 1.36 / 1.88 / 1.877 / 1.397 / 1.947 / 1.41 / 1.85
8th gear ratio: 1 / 1.38 / 1.379 / 1.394 / 1.37
Reverse Gear 1 Ratio: 8.72 / 12.02 / 12.023 / 9.643 / 13.438 / 8.717 / 14.06 / 11.36
Transmission weight: 327 / 347 / 382 / 362kg
Transmission oil capacity: 9.5 / 10.5 / 14 / 12L
9th gear ratio: 0.73 / 1 / 0.718 / 0.725
Number of gears: 9Gear
shift type: Manual
Transmission Model: HW95509STC / HW13709XSTCL / HW13709XSTL / HW13709XST / HW16709XSTC / HW16709XST / HW13709XSTC / HW19709XST / HW18709
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
FAQ
What kind of truck is Sinotruk Sinotruk HW9-Speed Series transmission?
Sinotruk Sinotruk HW9-Speed Series is an export-oriented transmission lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Sinotruk HW9-Speed Series transmission include?
Sinotruk HW9-Speed Series transmission currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HW9-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
