FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission

Export reference
MSRP N/A
Features:: FAW Group's new-generation full-aluminum housing light-duty transmission for lightweight light truck market demands. Features 6 forward gears and 1 reverse gear, compact and lightweight with high load capacity—premium choice for light trucks. Includes clutch housing and release mechanism; optional hand brake, left-side PTO, etc.
Max input torque:: 450N·m
1st gear ratio:: 5.975

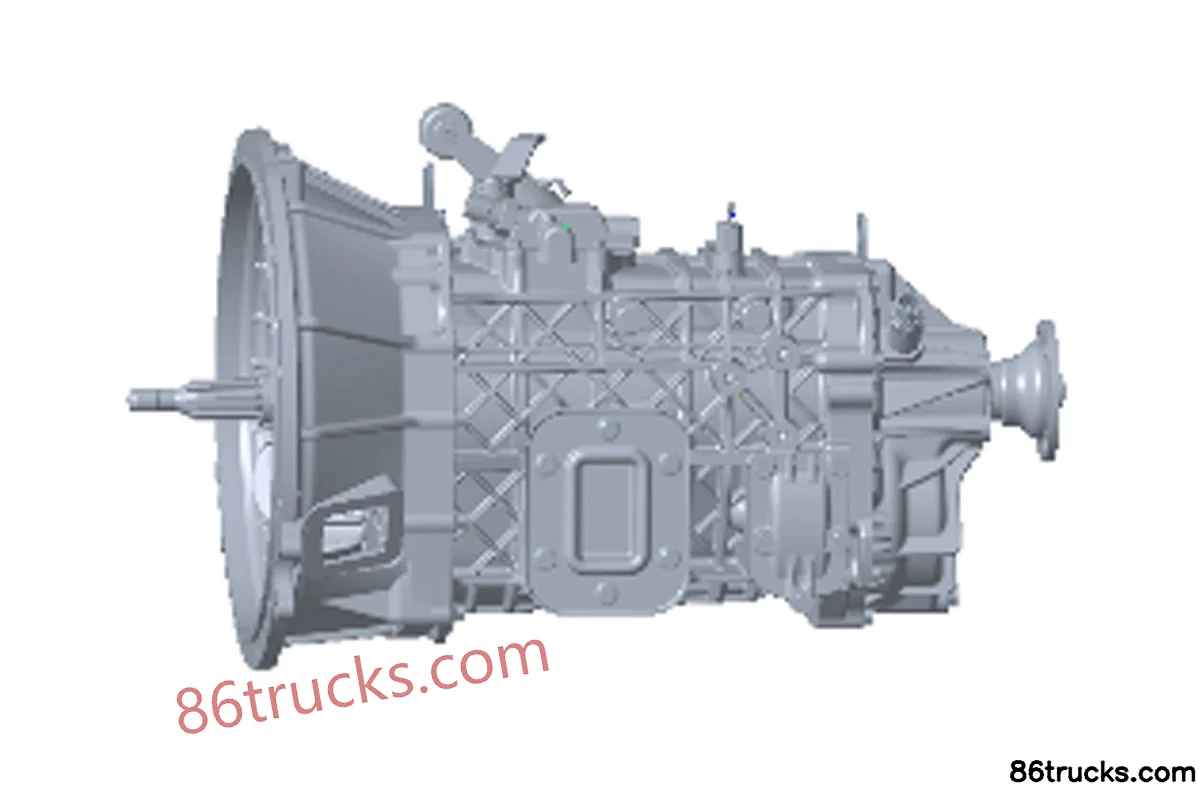

FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission exterior
View more photos (1)
Transmission Model: CA6TBX045M1
Transmission Brand: FAW Jiefang
Matching Range: Matches engines with 130-150 hp and rated input torque of 300-450 Nm, suitable for 3-ton China V and China VI light-duty cargo trucks, etc.

Overview

The FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission is a parts product with spec CA6TBX045M1.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA6TB(X) Series
Matching Range: Matches engines with 130-150 hp and rated input torque of 300-450 Nm, suitable for 3-ton China V and China VI light-duty cargo trucks, etc.
Features: FAW Group's new-generation full-aluminum housing light-duty transmission for lightweight light truck market demands. Features 6 forward gears and 1 reverse gear, compact and lightweight with high load capacity—premium choice for light trucks. Includes clutch housing and release mechanism; optional hand brake, left-side PTO, etc.
Max input torque: 450N·m
1st gear ratio: 5.975
synchronizer: Yes
Main box center distance: 99mm
2nd gear ratio: 3.269
3rd gear ratio: 1.993
4th gear ratio: 1.343
5th gear ratio:
6th gear ratio: 0.779
Reverse Gear 1 Ratio: 5.697
Transmission weight: 82kg
Transmission oil capacity: 3.4/3.8 (with PTO)L
Number of gears: 6Gear
Transmission Model: CA6TBX045M1
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

Photos

Exterior1

FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission suited for?

Match FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission differ from other variants in the same series?

FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission belongs to FAW Jiefang CA6TB(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA6TBX045M1 6-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
