Sinotruk HW12707TC(R9.06) 7-speed manual transmission
EXW
Export quote
Sinotruk HW7-Speed Series transmission
Main model photos
2 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HW12707TC(R9.06) 7-speed manual transmission | — | ||
| Sinotruk HW12707TC 7-speed manual transmission | — | ||
| Sinotruk HW10707TC 7-speed manual transmission | — |
Sinotruk HW12707TC 7-speed manual transmission
EXW
Export quote

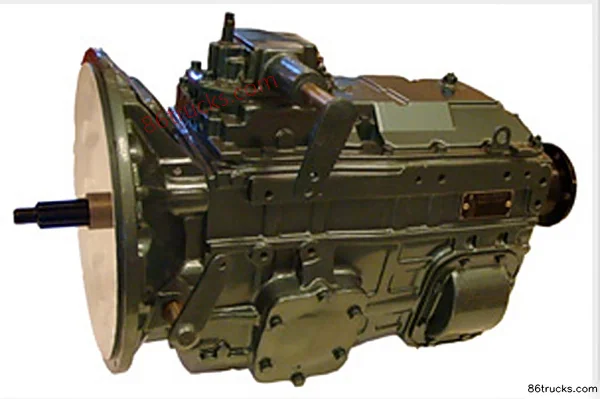

Sinotruk HW10707TC 7-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW7-speed series
Features: Full synchronizer
Matching Range: Suitable for highway vehicles and construction vehicles with input torque of 950-1150 Nm / Suitable for matching input torque 830-1000 Nm highway vehicles, engineering vehicles.
Max input torque: 1150 / 1000N·m
1st gear ratio: 9.2 / 8.39 / 8.4
synchronizer: Yes
2nd gear ratio: 6.08 / 5.55 / 5.52
3rd gear ratio: 3.98 / 3.63 / 3.62
4th gear ratio: 2.51 / 2.29 / 2.36
5th gear ratio: 1.59 / 1.45 / 1.54
6th gear ratio:
7th gear ratio: 0.83 / 0.76 / 0.79
Reverse Gear 1 Ratio: 9.06 / 8.26 / 8.63
Transmission weight: 327 / 280kg
Transmission oil capacity: 14.5 / 12.5L
Number of gears: 7Gear
shift type: Manual
Transmission Model: HW12707TC / HW10707TC
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
FAQ
What kind of truck is Sinotruk Sinotruk HW7-Speed Series transmission?
Sinotruk Sinotruk HW7-Speed Series is an export-oriented transmission lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Sinotruk HW7-Speed Series transmission include?
Sinotruk HW7-Speed Series transmission currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HW7-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
