Jindong JDS545HE 5-speed Manual Transmission

Export reference
MSRP N/A
Features:: Reverse gear uses sliding sleeve; 2nd, 3rd, 4th, 5th gears use lock-pin synchronizer for smooth shifting and easy operation; auxiliary box uses sliding sleeve type, with reverse taper on engagement teeth to effectively prevent gear jumping or dropping.
Max input torque:: 430N·m
1st gear ratio:: High: 7.311 Low: 12.794

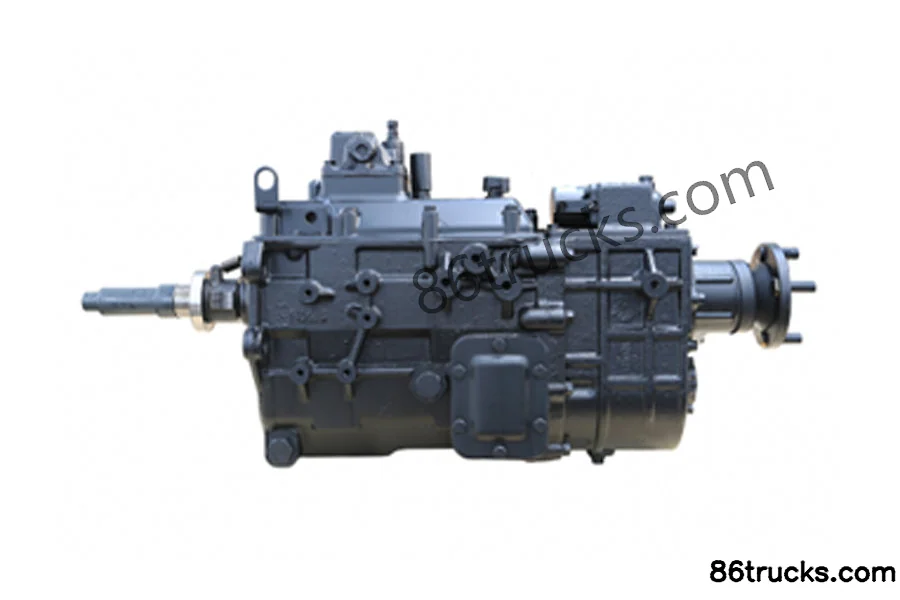

Jindong JDS545HE 5-speed Manual Transmission exterior
View more photos (1)
Transmission Model: JDS545HE
Transmission Brand: Jindong
Matching Range: Matches engines such as 4100/4102, BJ493ZLQ3, etc. Can also be matched with various engines like 4102, 4105, 4108, 4110, CA4113, YC4D120-21, etc.

Overview

The Jindong JDS545HE 5-speed Manual Transmission is a parts product with spec JDS545HE.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: Matches engines such as 4100/4102, BJ493ZLQ3, etc. Can also be matched with various engines like 4102, 4105, 4108, 4110, CA4113, YC4D120-21, etc.
Features: Reverse gear uses sliding sleeve; 2nd, 3rd, 4th, 5th gears use lock-pin synchronizer for smooth shifting and easy operation; auxiliary box uses sliding sleeve type, with reverse taper on engagement teeth to effectively prevent gear jumping or dropping.
Max input torque: 430N·m
1st gear ratio: High: 7.311 Low: 12.794
2nd gear ratio: High: 4.312 Low: 7.546
3rd gear ratio: High: 2.45 Low: 4.288
4th gear ratio: High: 1.534 Low: 2.685
5th gear ratio: High: 1 Low: 1.75
Reverse Gear 1 Ratio: High: 7.66 Low: 13.405
Transmission weight: 164kg
Transmission oil capacity: 5.5+3.5L
Number of gears: 5Gear
Transmission Model: JDS545HE
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

Exterior1

Jindong JDS545HE 5-speed Manual Transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Jindong JDS545HE 5-speed Manual Transmission suited for?

Match Jindong JDS545HE 5-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jindong JDS545HE 5-speed Manual Transmission differ from other variants in the same series?

Jindong JDS545HE 5-speed Manual Transmission belongs to Jindong 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jindong JDS545HE 5-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jindong JDS545HE 5-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
