Jindong JD5T28E 5-speed Manual Transmission

Export reference
MSRP N/A
Max input torque:: 280N·m
1st gear ratio:: High: 5.594 Low: 4.717
Main box center distance:: 121.125mm

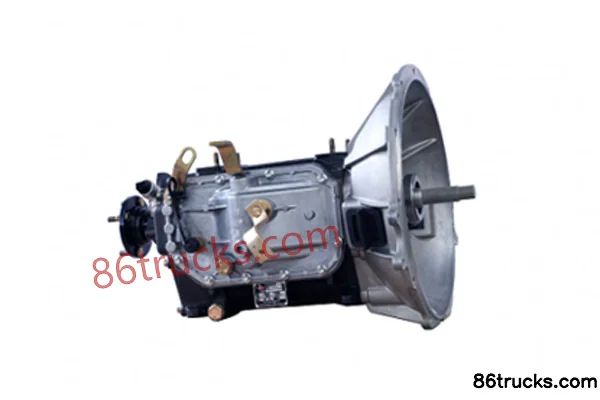

Jindong JD5T28E 5-speed Manual Transmission exterior
View more photos (1)
Transmission Model: JD5T28E
Transmission Brand: Jindong
Matching Range: Matches engines such as 4100/4102, BJ493ZLQ3, etc.

Overview

The Jindong JD5T28E 5-speed Manual Transmission is a parts product with spec JD5T28E.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: Matches engines such as 4100/4102, BJ493ZLQ3, etc.
Max input torque: 280N·m
1st gear ratio: High: 5.594 Low: 4.717
Main box center distance: 121.125mm
2nd gear ratio: High gear: 2.814 Low gear: 2.513
3rd gear ratio: High: 1.660 Low: 1.679
4th gear ratio: High: 1 Low: 1
5th gear ratio: High: 0.794 Low: 0.785
Auxiliary box center distance: 87mm
Reverse Gear 1 Ratio: High: 5.334 Low: 4.497
Transmission weight: 66kg
Transmission oil capacity: 2.7L
Number of gears: 5Gear
Transmission Model: JD5T28E
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

Exterior1

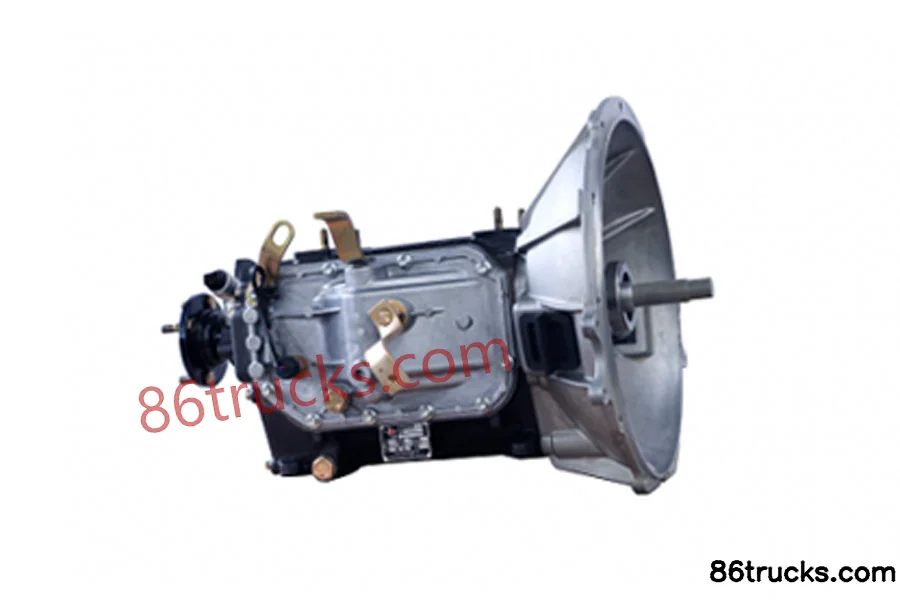

Jindong JD5T28E 5-speed Manual Transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Jindong JD5T28E 5-speed Manual Transmission suited for?

Match Jindong JD5T28E 5-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jindong JD5T28E 5-speed Manual Transmission differ from other variants in the same series?

Jindong JD5T28E 5-speed Manual Transmission belongs to Jindong 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jindong JD5T28E 5-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jindong JD5T28E 5-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
