Fast Gear 10JSX100A 10-speed manual transmission
EXW
Export quote
Fast Gear 10-Speed Series transmission

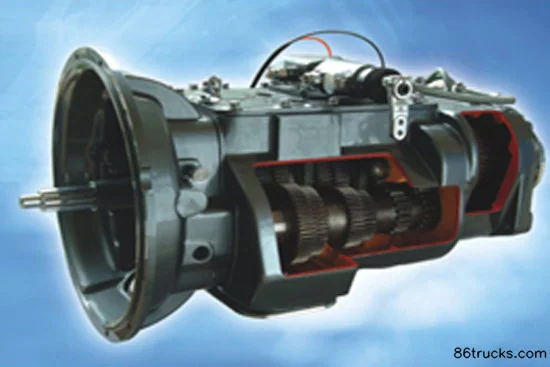

Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Fast Gear 10JSX100A 10-speed manual transmission | — | ||
| Fast Gear 10JSX95A 10-speed manual transmission | — | ||
| Fast Gear 10JSX95 10-speed manual transmission | — | ||
| Fast Gear 10JS90-B 10-speed manual transmission | — | ||
| Fast Gear 10JS90A-B 10-Speed Manual Transmission | — |
Fast Gear 10JSX95A 10-speed manual transmission
EXW
Export quote
Fast Gear 10JSX95 10-speed manual transmission
EXW
Export quote
Fast Gear 10JS90-B 10-speed manual transmission
EXW
Export quote
Fast Gear 10JS90A-B 10-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Fast Gear
Transmission series: 10-speed series
Features: 1. Main-auxiliary box combined design, dual countershaft, power split, unique structure; 2. Small center distance, compact size, light weight; 3. Both main and auxiliary boxes use synchronizer structure, auxiliary transmission adopts new double-cone lock-ring synchronizer with non-metallic friction material for high reliability; 4. Large first gear ratio adapts to various working conditions, strong climbing ability; reasonable gear arrangement, small ratio steps for fuel efficiency; gears use full 'fine tall tooth' optimized design for high strength, long life, low noise; multiple PTO options for full vehicle modification requirements.
Matching Range: This series of transmissions is suitable for various highway trucks, long-distance coaches, buses, etc.
Max input torque: 1100 / 950 / 900 / 2000 / 2200 / 1600 / 700 / 1800 / 1400 / 1200 / 800 / 220 / 1500N·m
1st gear ratio: 12.051 / 7.75 / 8.566 / 15.545 / 12.09 / 14.94 / 11.03 / 15.29 / 15.55 / 12.74 / 15.02 / 14.96 / 14.15 / 15.24 / 14.86 / 12.69 / 10.98 / 14.95 / 11.17
Main box center distance: 116 / 105mm
2nd gear ratio: 8.777 / 5.997 / 6.628 / 10.795 / 8.4 / 11.15 / 8.12 / 14.48 / 10.8 / 9.43 / 11.02 / 11.16 / 10.38 / 12.44 / 9.29 / 8.2
synchronizer: Yes
3rd gear ratio: 6.526 / 4.635 / 5.122 / 7.677 / 5.97 / 8.28 / 5.98 / 8.74 / 7.68 / 6.67 / 8.17 / 7.77 / 8.71 / 8.07 / 8.09 / 6.75 / 6.09 / 6.08
4th gear ratio: 4.738 / 3.506 / 3.875 / 5.552 / 4.32 / 6.09 / 4.46 / 6.19 / 5.55 / 4.83 / 6 / 5.74 / 6.17 / 6.02 / 4.9
5th gear ratio: 3.471 / 2.768 / 3.059 / 4.318 / 3.36 / 4.46 / 3.3 / 4.48 / 4.32 / 3.53 / 4.34 / 3.58 / 3.28 / 3.32
Auxiliary box center distance: 116mm
6th gear ratio: 2.543 / 2.211 / 3.6 / 2.8 / 3.35 / 2.47 / 3.42 / 2.64 / 3.37 / 3.26 / 3.33 / 2.59 / 2.46 / 2.5
7th gear ratio: 1.852 / 1.711 / 2.5 / 1.94 / 1.83 / 2.79 / 1.95 / 2.47 / 2.39 / 1.9 / 1.84 / 1.85
8th gear ratio: 1.377 / 1.322 / 1.778 / 1.38 / 1.86 / 1.34 / 1.95 / 1.78 / 1.83 / 1.79 / 2.47 / 1.81 / 1.36
Reverse Gear 1 Ratio: 11.229 / 7.785 / 8.604 / 14.034 / 10.92 / 15.07 / 10.55 / 14.65 / 14.03 / 13.73 / 15.22 / 13.03 / 14.6 / 14.24 / 13.75 / 10.69 / 14.55
Transmission weight: 222 / 195 / 345 / 325 / 285 / 300~345 / 300 / 370 / 230 / 346 / 310 / 356kg
9th gear ratio: 1 / 1.286 / 1.36 / 1.38 / 1.29 / 1.34 / 1.32 / 1.35
Transmission oil capacity: 8 / 6 / 15 / 14.5 / 12.5 / 12~15 / 12 / 14 / 7.5 / 13 / 13.5L
10-speed gear ratio: 0.732 / 0.789 / 1 / 0.78 / 0.74 / 0.73
Reverse Gear 2 Ratio: 2.37 / 2.22 / 3.25 / 2.53 / 3.27 / 2.84 / 3.41 / 3.38 / 3 / 3.19 / 2.8 / 2.39 / 3.26
Control type: Single-lever or dual-lever control, also direct control / Single H, single lever, dual lever / Single H control, clear gear positions, flexible and convenient shifting, diverse control options: single lever, dual lever, or direct control.
Number of gears: 10Gear
shift type: Manual
Transmission Model: 10JSX100A / 10JSX95 / 10JS90-B / 10JS90A-B / 10JSDX200T / 10JSD220K / 10JSD200K / 10JSD160K / 10JS90 / 10JSD220TB / 10JSD200TB / 10JSD180TB / 10JSD160TB / 10JSD140TB / 10JSD120TB / 10JSDQX180T / 10JSDX220T / 10JSDX180T / 10JSDX140T / 10JS80T / 10JSDX220B / 10JSDX180B / 10JSDX140B / 10JSDX220A / 10JSDX180A / 10JSDX140A / 10JSDX180K / 10JSD140K / 10JSD180K / 10JSDX180 / 10JSDX140 / 10JSD150 / 10JS95T / 10JS90A / 10JS160T / 10JSX220A / 10JSX200A / 10JSX180A / 10JSX160A / 10JSX200 / 10JSX180 / 10JSX160 / 10JSQX200A / 10JSQX180A / 10JSQX160A / 10JSQX200 / 10JSQX180
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
FAQ
What kind of truck is Fast Gear Fast Gear 10-Speed Series transmission?
Fast Gear Fast Gear 10-Speed Series is an export-oriented transmission lineup with about 83 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Fast Gear 10-Speed Series transmission include?
Fast Gear 10-Speed Series transmission currently lists about 83 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Fast Gear 10-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
