FAW Jiefang F5N Steer Axle

Export reference
MSRP N/A
Application Scope:: J6, J7 standard steering axle
Front/rear track width:: 1950mm
Brake:: drum brake / disc brake
FAW Jiefang F5N Steer Axle exterior
View more photos (3)
Axle Model: FAW Jiefang F5N Steering Axle
Brake size: Φ400×135
Axle Type: Steering axle

Overview

The FAW Jiefang F5N Steer Axle is a parts product with spec FAW Jiefang F5N Steering Axle and Φ400×135 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: FAW Jiefang F5N Steering Axle
Axle Type: Steering axle
Application Scope: J6, J7 standard steering axle
Rated axle load: 5000ton
Front/rear track width: 1950mm
Brake: drum brake / disc brake
Transmission Ratio: 45°
Brake size: Φ400×135
Max output torque: 46000N·m
Wheel Bolts: Φ285.75/Φ335mm
Remarks: I-beam large-section front axle, high-performance non-quenched and tempered steel, high load capacity verified by rigorous bench and road tests; integral single-degree-of-freedom stamped-welded brake, stable and reliable braking; maintenance-free tie rod.

Photos

Exterior3

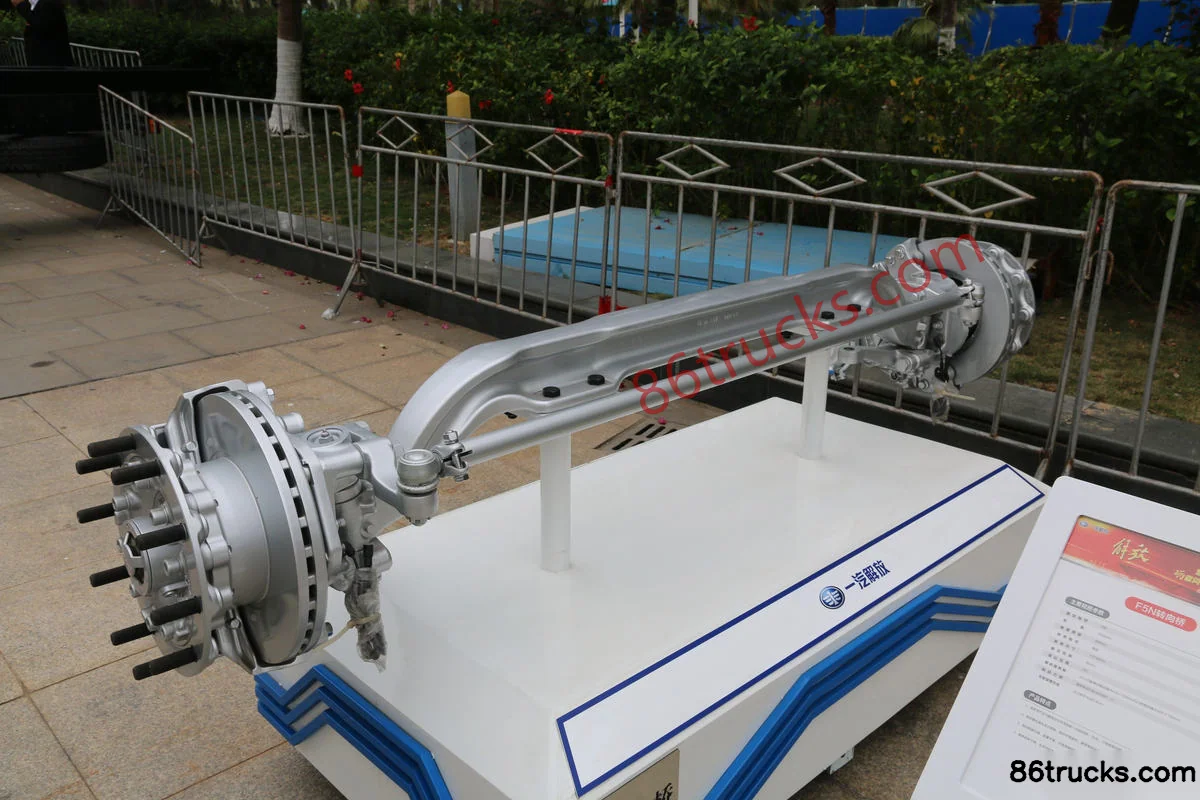

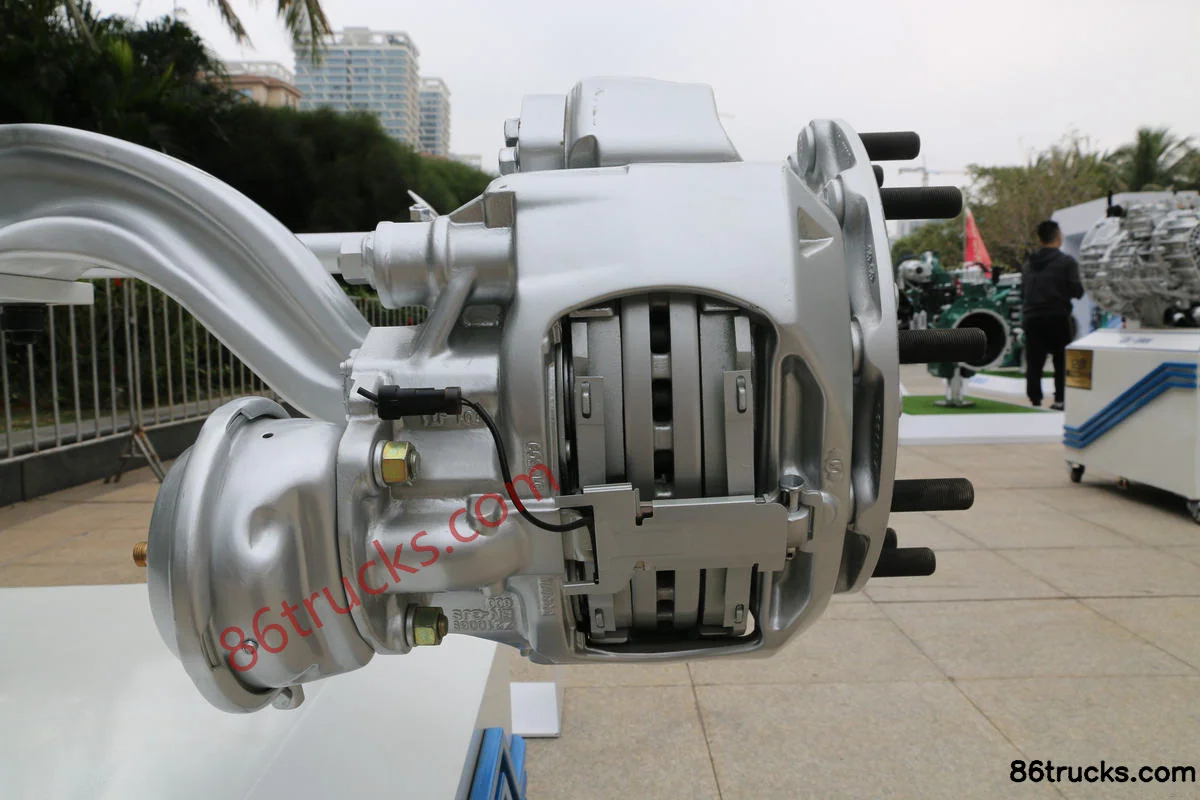

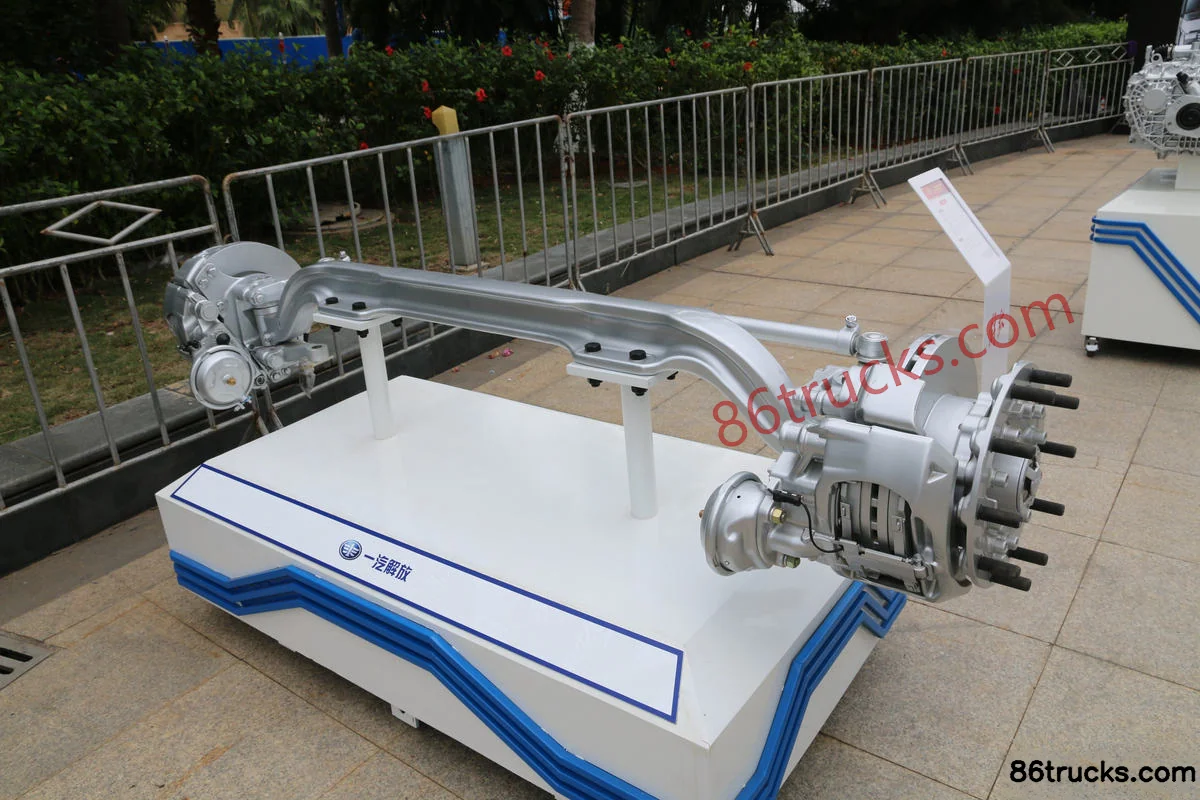

FAW Jiefang F5N Steer Axle Exterior (1) | 86Trucks FAW Jiefang F5N Steer Axle Exterior (2) | 86Trucks FAW Jiefang F5N Steer Axle Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is FAW Jiefang F5N Steer Axle suited for?

Match FAW Jiefang F5N Steer Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang F5N Steer Axle differ from other variants in the same series?

FAW Jiefang F5N Steer Axle belongs to FAW Jiefang Steering Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang F5N Steer Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang F5N Steer Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
