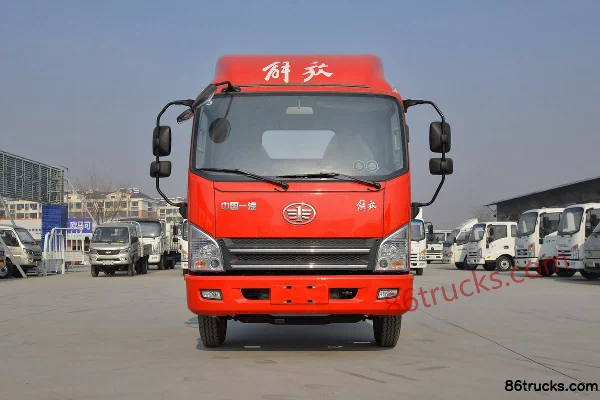

FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI)

Export reference
From $21,528
MSRP ¥15.5M CNY
Horsepower: 184
Emission: China VI
Fuel: Diesel
Engine: Yunnei Dewei D40
Transmission: Fast Gear
Curb Weight:: 4.33ton
seating capacity: 3Personnel
Rated payload: 7.47ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) is a Light Truck featuring 5.8m cargo length, stake body cargo body, 3Personnel volume and 7.47t payload. Its segment focus covers LTL transport and daily bulk goods, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D40 engine, 184 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 184 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1120P40K46L5E6A84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4700mm
Box length class: 5.8m
engine: Yunnei PowerD40TCIF1
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.333
Cab length: 7.995m
Cab width: 2.42m
Cab height: 2.475m
Front track width: 1706mm
rear track: 1678mm
Curb Weight: 4.33ton
Rated payload: 7.47ton
GVWR: 11.995ton
Max. speed: 95km/h
Origin: Qingdao, Chengdu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
market segment: LTL transport, daily bulk goods
Remarks: Front brake: disc brake optional
Front/rear suspension: 1.155/2.14m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD40TCIF1
Engine info: Yunnei Dewei D40
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4L
Emission standard: China VI
Max output power: 135kW
Max hp: 184Horsepower
Max torque: 660N·m
Max torque speed: 1200-2000rpm
Rated speed: 2300rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 0.55m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 4360kg
Frame Dimensions: 216*865mm
rear axle allowable load: 7635kg
Axle ratio: 4.333
Leaf spring count: 3/3+3
Aluminum wheels:
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: Frameless wiper blade
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Standard drum brake, optional disc brake
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

0 photos

FAQ

What is the export price of FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI), and what does it include?

FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) export reference is about From $21,528; MSRP is ¥15.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI)?

Key specs of FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI): Drive: 4x2; Horsepower: 184 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Dewei D40; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) suited for?

FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) differ from other variants in the same series?

FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI) belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 184 hp 4X2(6 wheels) 5.8m Semi-row Flatbed Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
