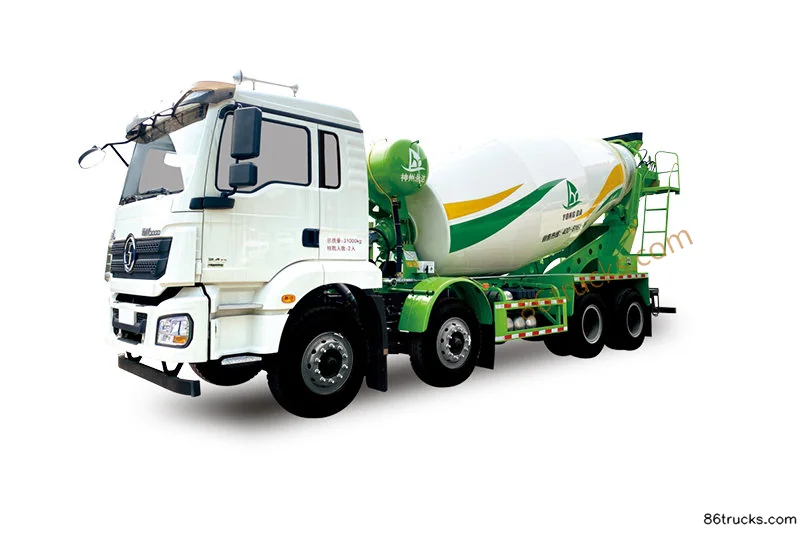

SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30)

Export reference
From $66,667
MSRP ¥48M CNY
Fuel: Diesel
Curb Weight:: 14.21ton
Wheelbase:: 1800+3000+1400mm
Tire Size:: 11.00R20 radial tire
Cab dimensions:: 10.3×2.55×3.995m
Truck Type:: concrete mixer truck
Rated payload: 16.66ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) is a concrete mixer truck featuring 16.66t payload, 14.21ton GVW, 8X4 (12 wheels) drive and Extended semi-high roof cab cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3×2.55×3.995m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Pingdingshan, Henan
Front/rear track width: Front: 2036/2036mm; Rear: 1860/1860
Wheelbase: 1800+3000+1400mm
Curb Weight: 14.21ton
Rated payload: 16.66ton
Max. speed: 80km/h
Front/rear suspension: 1.525/2.575m
Body Parameters
Mixing drum capacity: 7.6m³
Vehicle certification code: AYD5312GJBSX30
Body Brand: Shenzhou Yongda
Engine parameters
Engine Model: WeichaiWP7.340E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2100rpm
Engine Type: Electronic high-pressure common rail + SCR
Chassis Specs
Chassis Series: Delong M3000
Chassis Model: SX5310GJBMB6
Front axle description: MAN 5.5T drum brake front axle
rear axle description: 16T STR double reduction axle
Axle ratio: 5.73
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD120T
Cab parameters
Cab: Extended semi-high roof cab
Tire
Tire Size: 11.00R20 radial tire
Number of tires: 12pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30), and what does it include?

SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) export reference is about From $66,667; MSRP is ¥48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30)?

Key specs of SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) suited for?

SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) differ from other variants in the same series?

SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30) belongs to Shenzhou Yongda (Shenzhou Yongda) SHACMAN Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000 340 hp 8X4(12 wheels) 7.6 m³ concrete mixer truck (Shenzhou Yongda brand) (AYD5312GJBSX30)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
