JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh

Export reference
MSRP N/A
Wheelbase:: 3750mm
Cargo box volume:: 10
Model code (announced):: JX5040XXYTJA-M6BEV
Cab length:: 5.998m
GVWR:: 4.15ton
Max. speed:: 110km/h

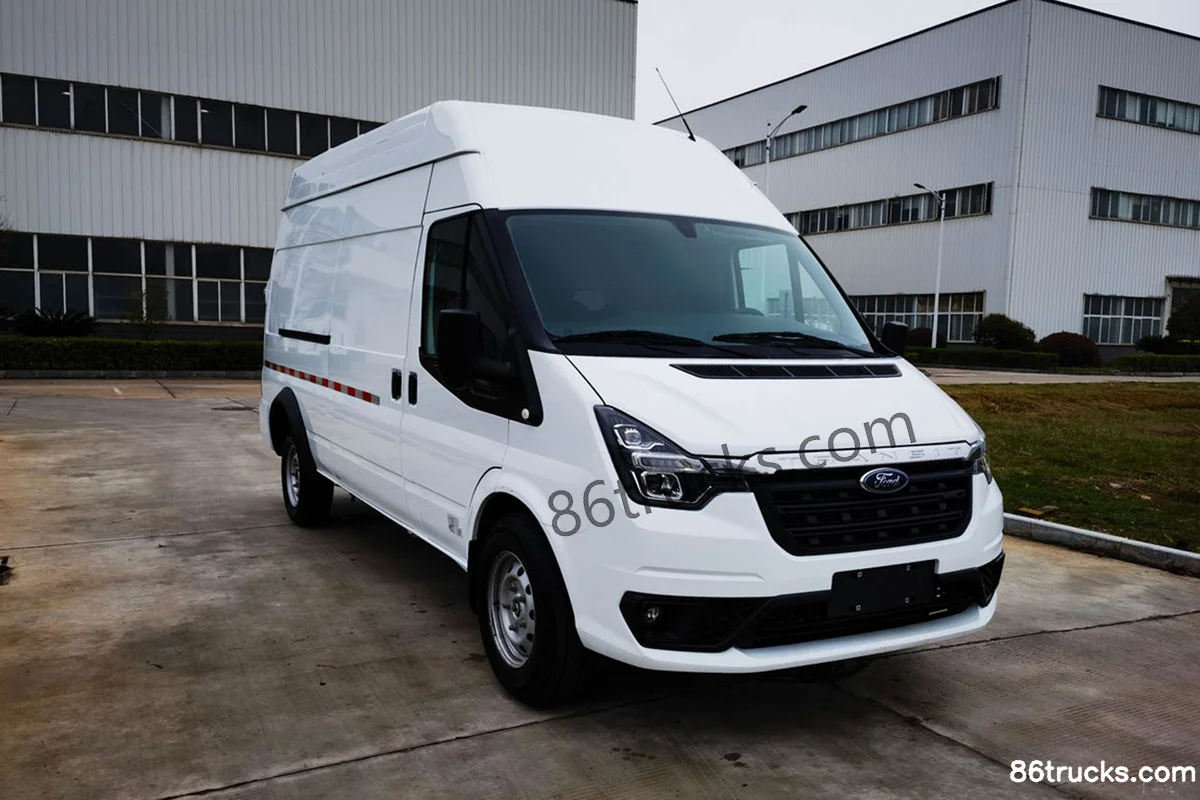

JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh exterior
View more photos (1)
Battery Brand: CATL
Motor 1 Brand: Square
Curb Weight: 2.58ton
Rated payload: 1.375ton

Overview

The JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh is a Electric Panel Van featuring CATL battery/range, Square motor, 1.375t payload and 10 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5040XXYTJA-M6BEV
Wheelbase: 3750mm
Cab length: 5.998m
Cab width: 2.098m
Cab height: 2.36m
Curb Weight: 2.58ton
Rated payload: 1.375ton
GVWR: 4.15ton
Max. speed: 110km/h
Remarks: Color touchscreen, power steering
Front/rear suspension: 0.973/1.275m
Energy Type: Electric
electric motor
Motor 1 Brand: Square
Motor 1 Model: TZ220XSFDM60B
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
total peak torque: 150N·m
total rated torque: 150N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.8h
Battery capacity: 60.16kWh
Body parameters
Cargo box volume: 10
Max body depth: 3.565
Max body width: 1.748
Cargo Box Height: 1.614
Body Parameters
Seat count: 3Seats
Cab parameters
Seat rows: 3
Wheel brake
Front tire specification: 215/75R16LT
Rear Wheel Specification: 215/75R16LT
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Reverse Radar:

Photos

Exterior1

JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh suited for?

JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh differ from other variants in the same series?

JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh belongs to JMC Transit EV (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Transit EV 4.2T 5.998m Electric Long Wheelbase Panel Van (Medium Roof) 60.16kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
