ZOOMLION 350-ton All Terrain Crane

Export reference
MSRP N/A
Max travel speed:: 70km/h
Max gradeability:: 45%
Min turning radius:: 12.75m
Min ground clearance:: 305cm
Rated lifting capacity:: 350ton
Max lift height:: 62m

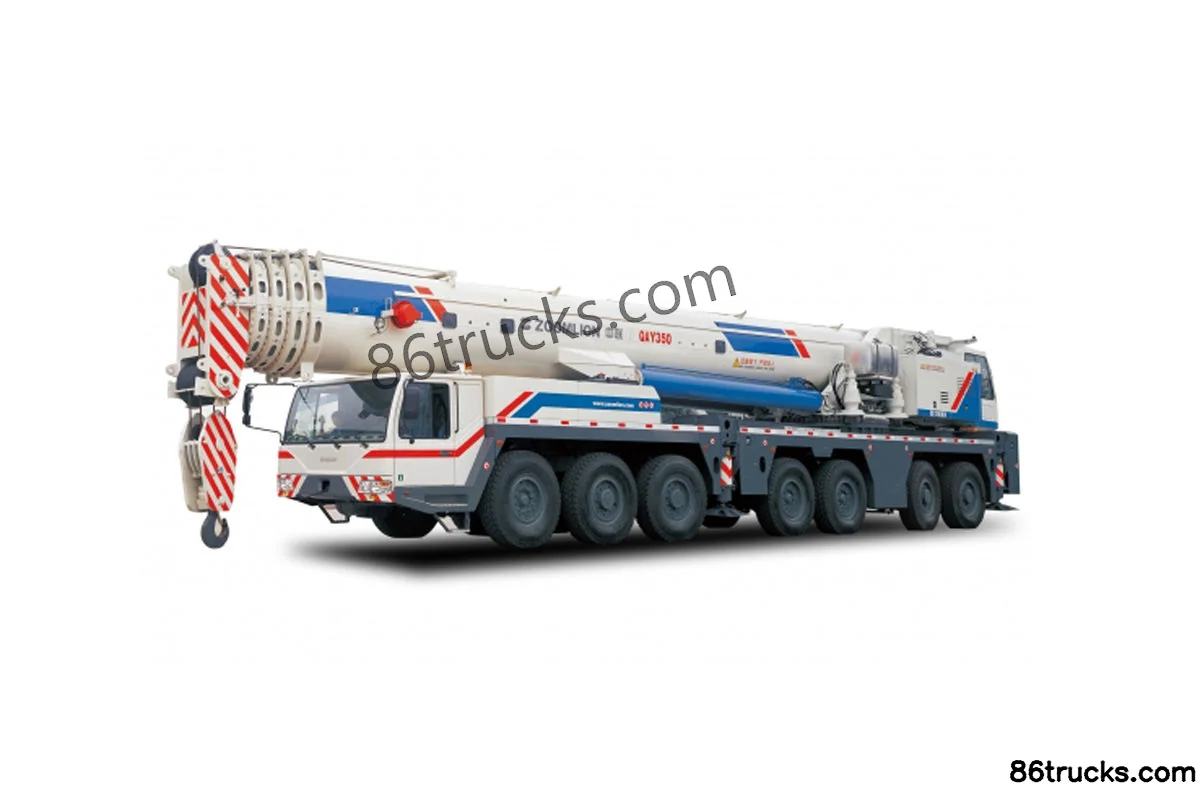

ZOOMLION 350-ton All Terrain Crane exterior
View more photos (1)
Operating weight: 84ton
Max output power: 420kW
Machine dimensions: L×W×H: 19.98×3×4m
Model: QAY350V533

Overview

The ZOOMLION 350-ton All Terrain Crane is a crane truck featuring 84ton GVW and 420kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 19.98×3×4m
Model: QAY350V533
Operating weight: 84ton
Max travel speed: 70km/h
Max gradeability: 45%
Min turning radius: 12.75m
Min ground clearance: 305cm
Lifting capacity
Rated lifting capacity: 350ton
Max lift height: 62m
auxiliary jib length: 42m
auxiliary jib installation angle: 30°
Operating Parameters
Boom full raise/lower time: 12.5sec
Swing Speed: 1.4r/min
Max hoisting speed of main winch: 145m/min
Auxiliary winch max lift speed: 64m/min
Outrigger span: longitudinal × lateral: 9×9m
Boom elevation angle range: 82°
Boom full extension time: 90sec
Engine parameters
Engine Model: Mercedes-BenzOM502LA
Max output power: 420kW
Rated speed: 1800rpm

Photos

Exterior1

ZOOMLION 350-ton All Terrain Crane Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is ZOOMLION 350-ton All Terrain Crane suited for?

ZOOMLION 350-ton All Terrain Crane is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does ZOOMLION 350-ton All Terrain Crane differ from other variants in the same series?

ZOOMLION 350-ton All Terrain Crane belongs to ZOOMLION All-Terrain Crane (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZOOMLION 350-ton All Terrain Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZOOMLION 350-ton All Terrain Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
