Dachi DC6J90T 6-speed manual transmission

Export reference
MSRP N/A
Features:: Mechanical 6-speed manual transmission with full synchronizers. Can be front-mounted or rear-mounted.
Max input torque:: 883N·m
1st gear ratio:: 6.196

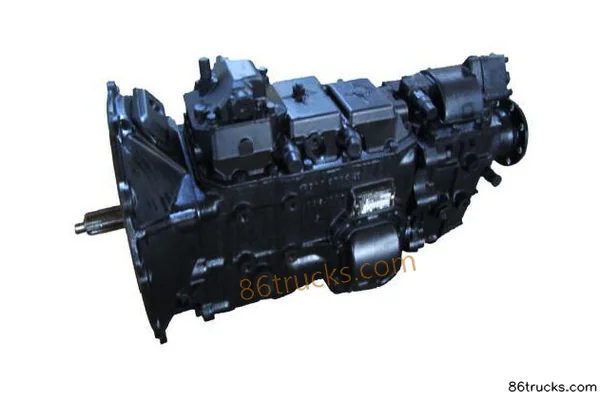

Dachi DC6J90T 6-speed manual transmission exterior
Transmission Model: DC6J90T
Transmission Brand: Dachi
Matching Range: Suitable for cargo trucks, buses, and special vehicles

Overview

The Dachi DC6J90T 6-speed manual transmission is a parts product with spec DC6J90T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Dachi
Transmission series: DC6J series
Matching Range: Suitable for cargo trucks, buses, and special vehicles
Features: Mechanical 6-speed manual transmission with full synchronizers. Can be front-mounted or rear-mounted.
Max input torque: 883N·m
1st gear ratio: 6.196
synchronizer: Yes
Main box center distance: 148mm
2nd gear ratio: 3.776
3rd gear ratio: 2.32
4th gear ratio: 1.463
5th gear ratio:
6th gear ratio: 0.712
Reverse Gear 1 Ratio: 6.189
Transmission weight: 195kg
Transmission oil capacity: 9.5L
Number of gears: 6Gear
shift type: Manual
Transmission Model: DC6J90T
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

Photos

0 photos

FAQ

What transport jobs is Dachi DC6J90T 6-speed manual transmission suited for?

Match Dachi DC6J90T 6-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dachi DC6J90T 6-speed manual transmission differ from other variants in the same series?

Dachi DC6J90T 6-speed manual transmission belongs to Dachi DC6J Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dachi DC6J90T 6-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dachi DC6J90T 6-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
