Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck

Export reference
From $29,264
MSRP ¥21.07M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yuchai6.5L
Transmission: Fast Gear
Curb Weight:: 8.7ton
seating capacity: 3Personnel
Rated payload: 15.605ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck is a Medium-duty truck featuring 7.8m cargo length, Stake type cargo body, 3Personnel volume and 15.605t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.5L engine, 220 hp, 6X2 (8 wheels) drive and China V emissions.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5255CCY-FA
Type: stake truck
Drive type: 6X2
Wheelbase: 1800+4300mm
Box length class: 7.8m
engine: YuchaiYC6J220-52
transmission: Fast Gear8JS85C
Cab length: 10.265m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 1886/1886mm
rear track: 1864mm
Curb Weight: 8.7ton
Rated payload: 15.605ton
GVWR: 24.5ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 11°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.36/2.805m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J220-52
Engine info: Yuchai6.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.8m
Cargo box width: 2.45m
Cargo box height: 2.5m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab suspension: 4-point mechanical suspension
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 1153
rear axle allowable load: 11500kg
Leaf spring count: 10/10/10+9
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

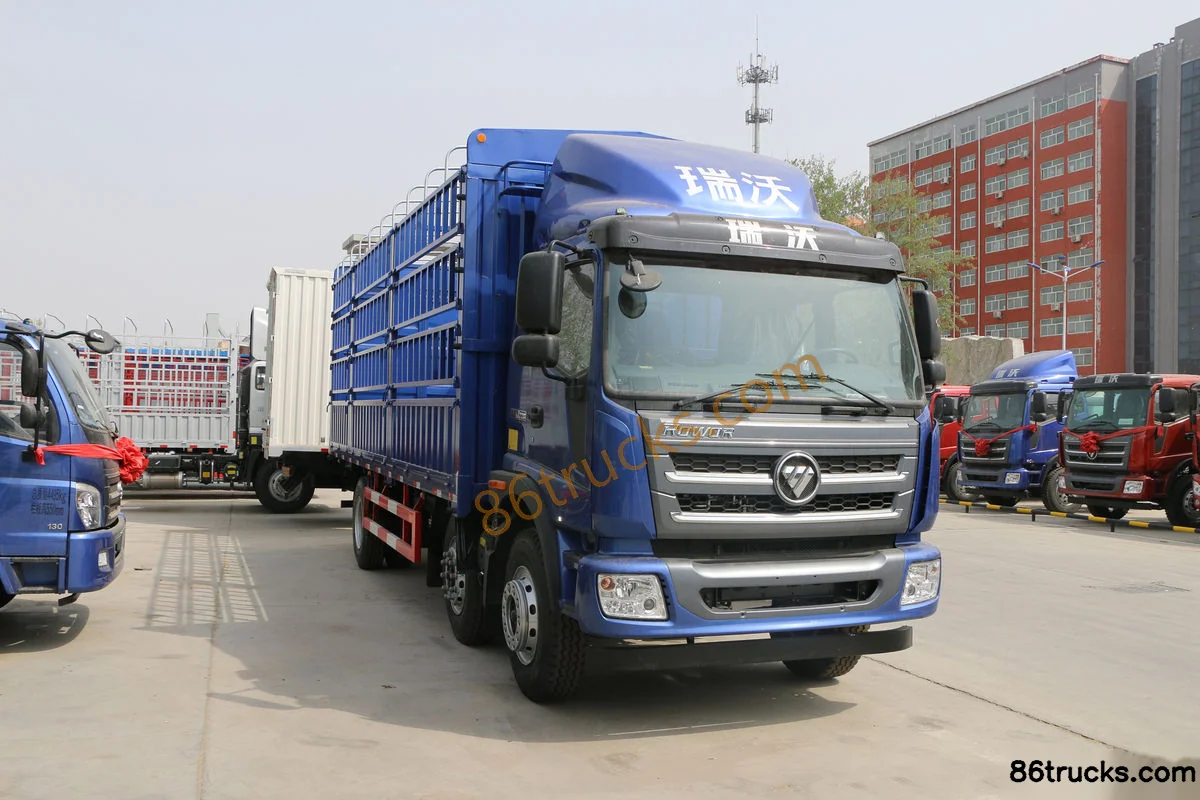

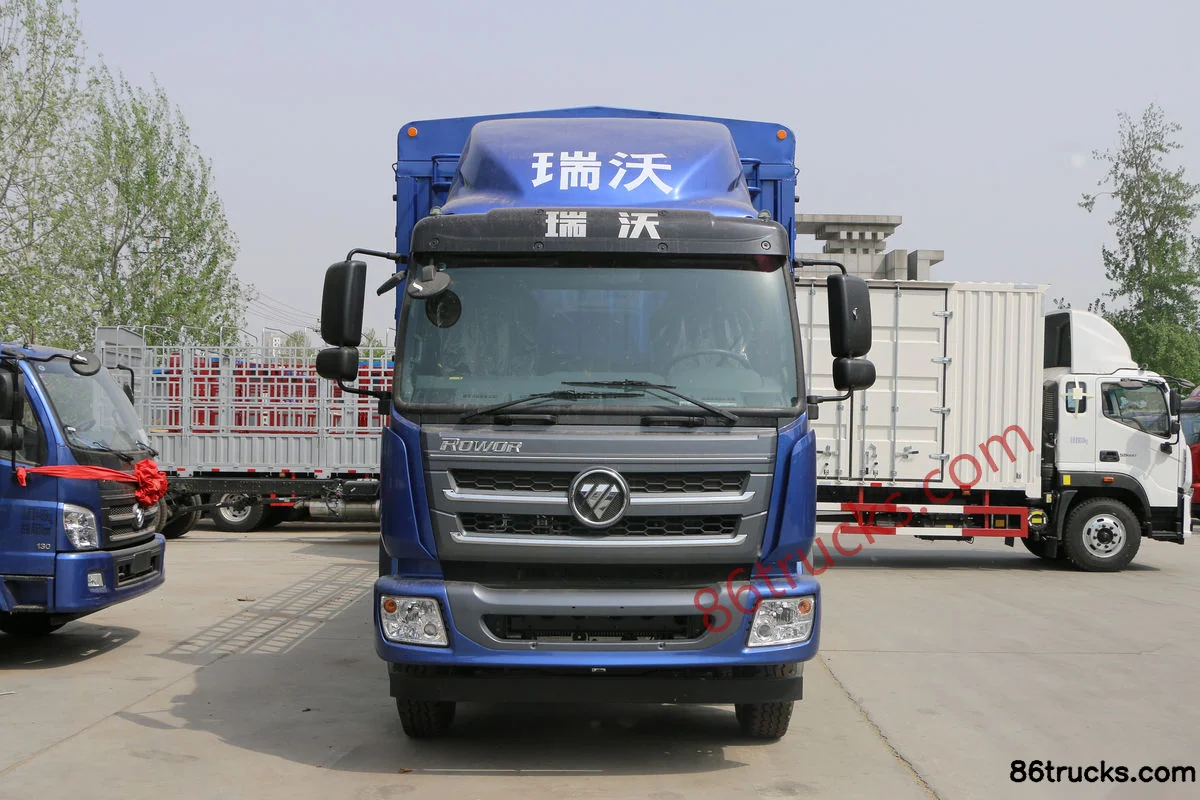

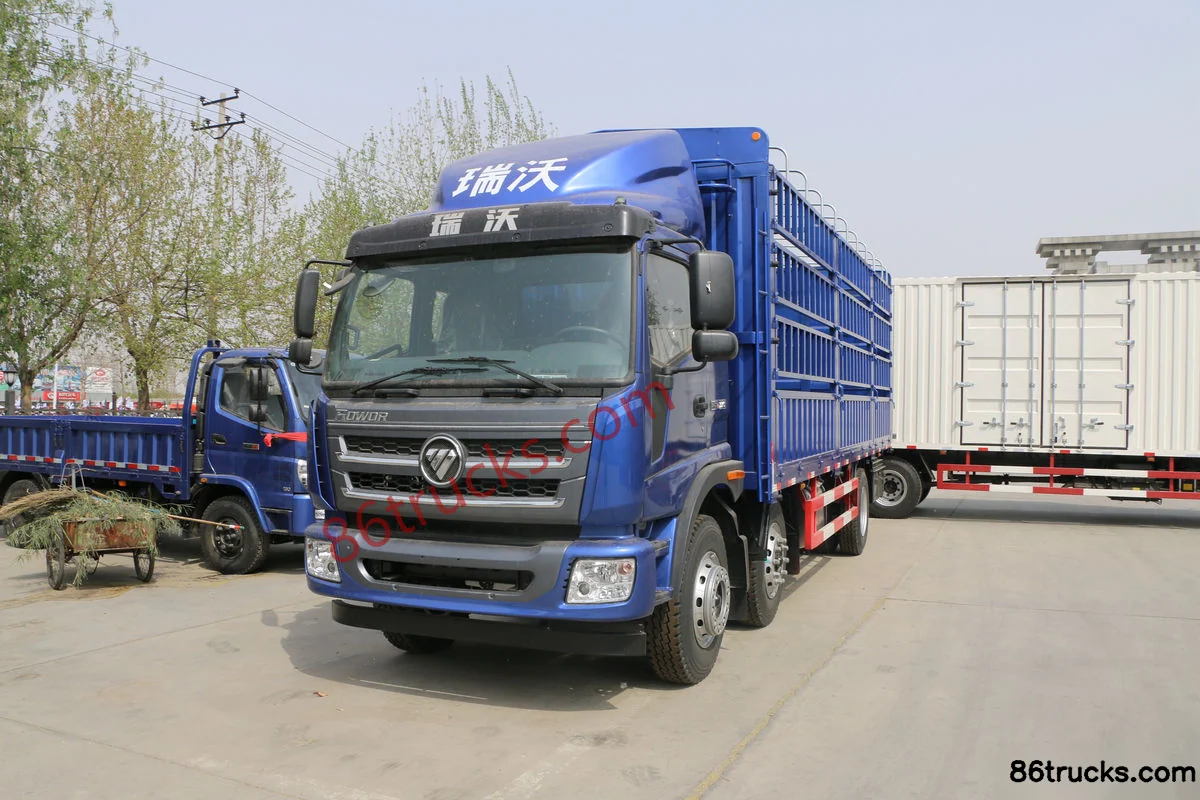

Exterior3

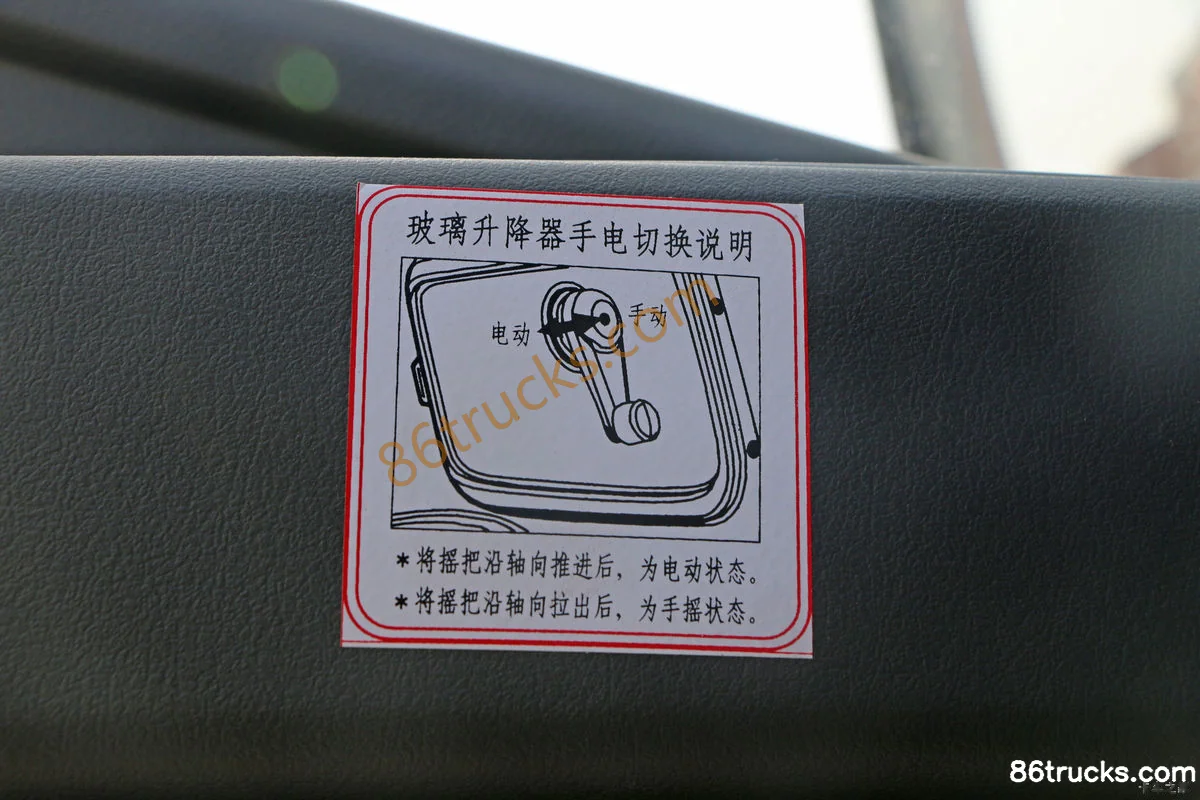

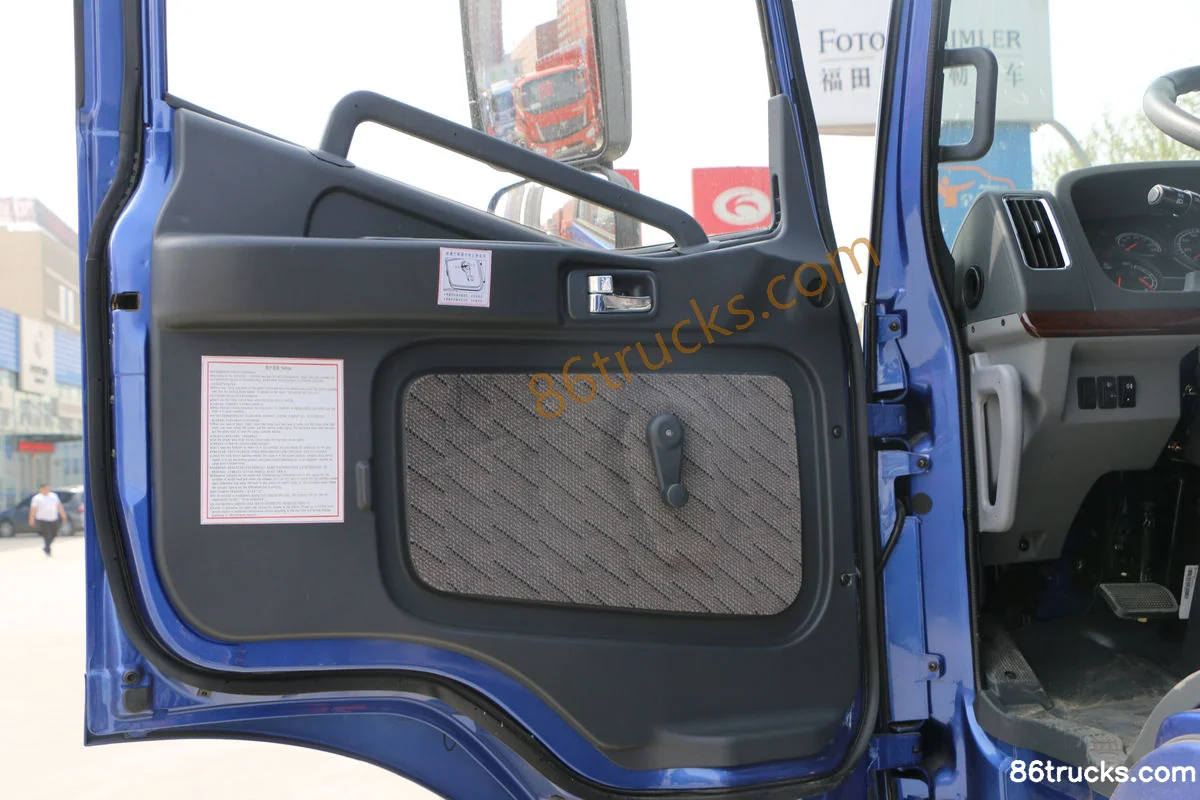

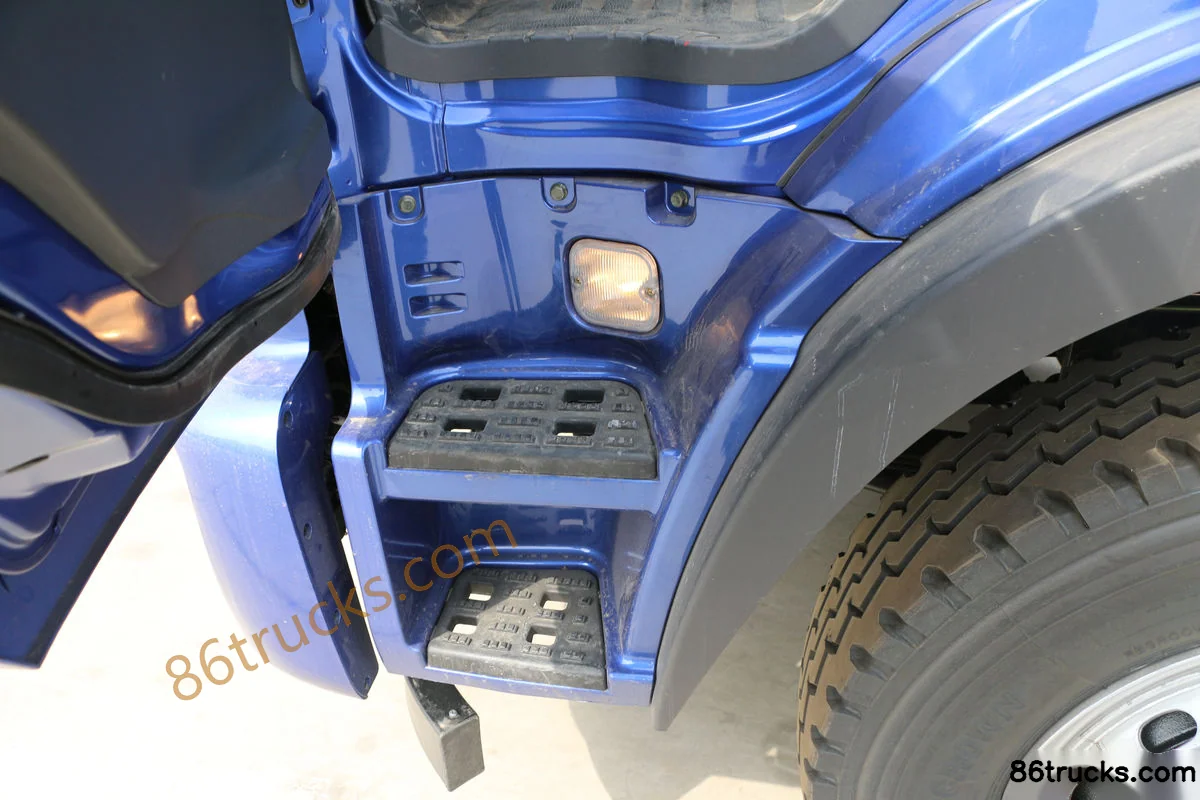

Cab3

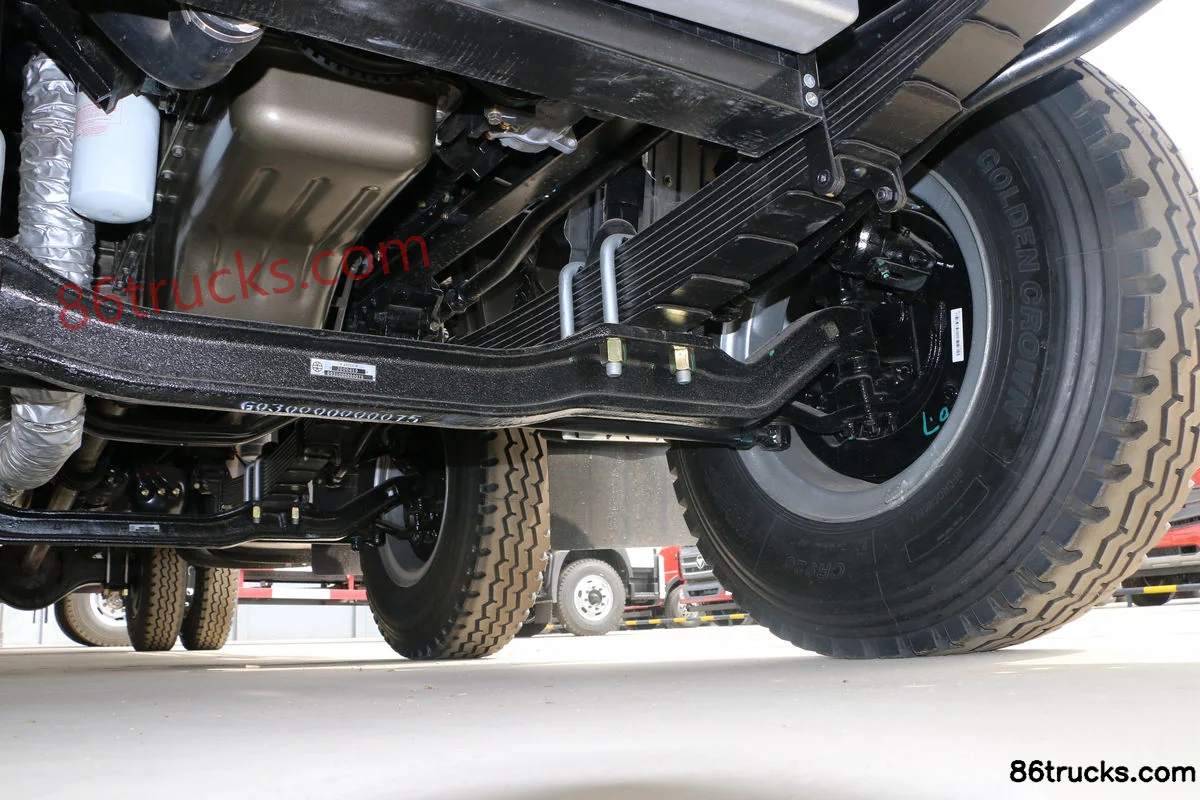

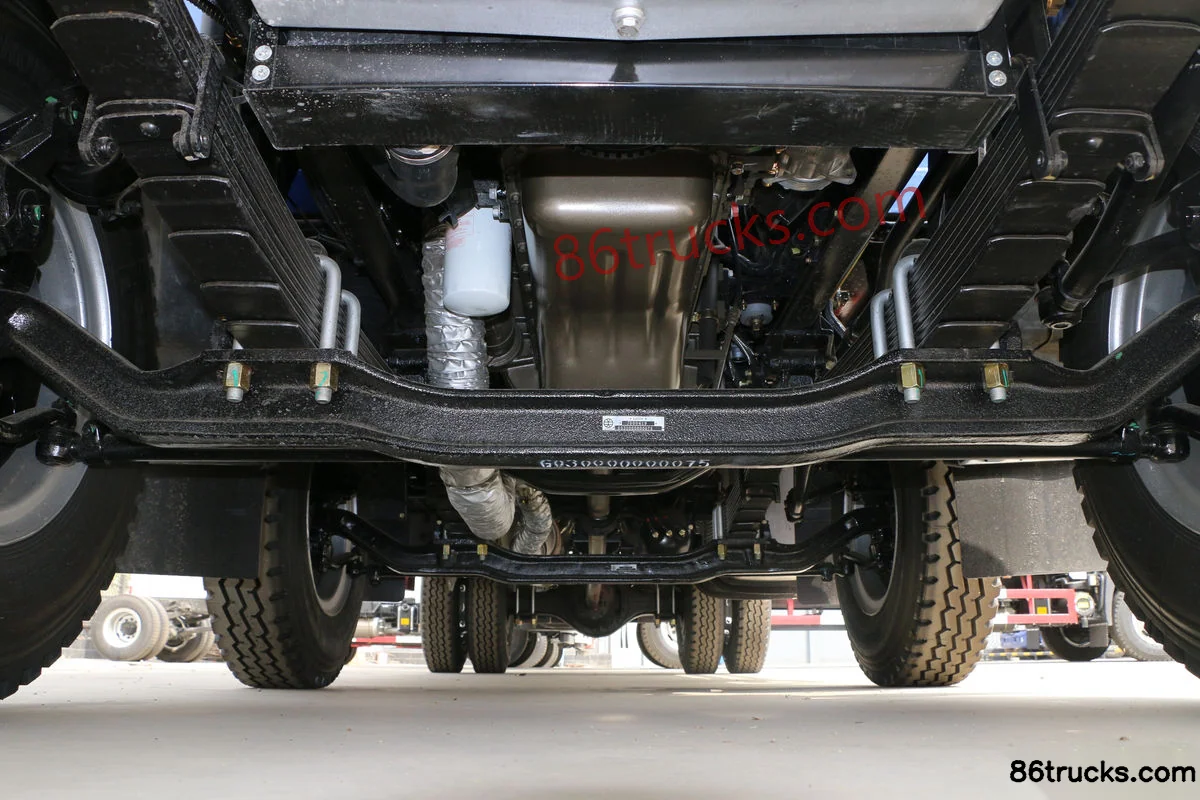

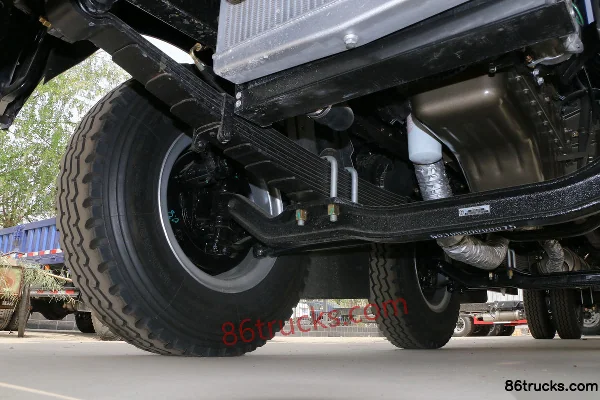

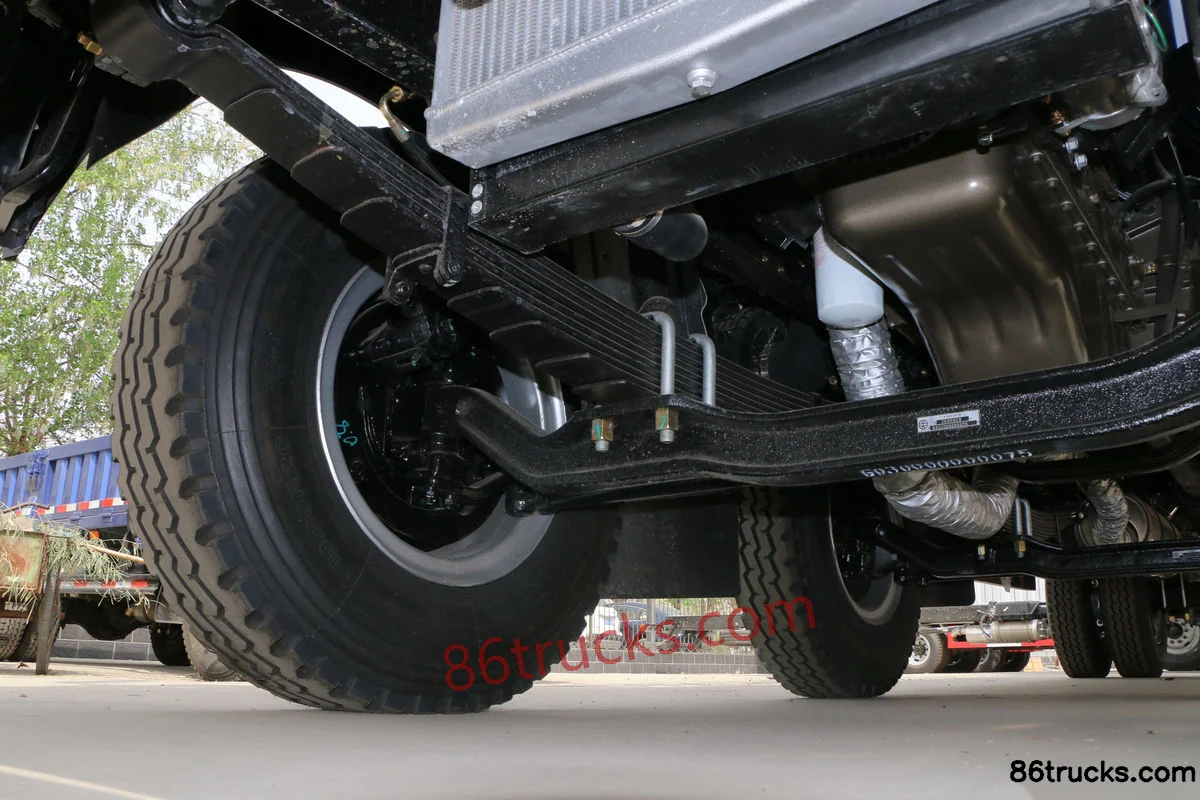

Chassis3

9 photos

FAQ

What is the export price of Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck, and what does it include?

Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck export reference is about From $29,264; MSRP is ¥21.07M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck?

Key specs of Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck suited for?

Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck differ from other variants in the same series?

Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck belongs to Foton Q9 heavy-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Q9 220hp 6X2(8 wheels) 7.8m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
