Jinbei Lingshun 69hp 4X2(6 wheels) Gasoline 2.5m Double Row Van Micro Truck
EXW
Export quote
Shenyang Jinbei Lingshun mini truck Cargo Trucks

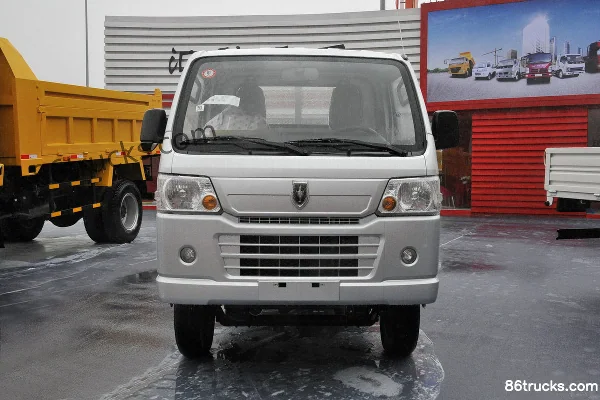

Main model photos
5 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Jinbei Lingshun 69hp 4X2(6 wheels) Gasoline 2.5m Double Row Van Micro Truck | 4x2 / 69hp / China IV | ||
| Jinbei Lingshun 69hp 4X2(6 wheels) Gasoline 2.5m Double Row Stake Micro Truck | 4x2 / 69hp / China IV | ||
| Jinbei Lingshun 69hp 4X2(6 wheels) Gasoline 2.5m Double Row Flatbed Micro Truck | 4x2 / 69hp / China IV | ||
| Jinbei Lingshun 61hp 4X2(6 wheels) Gasoline 2.5m Double Row Van Mini Truck | 4x2 / 61hp / China IV | ||
| Jinbei Lingshun 61hp 4X2(6 wheels) Gasoline 2.5m Double Row Stake Truck | 4x2 / 61hp / China IV |
Jinbei Lingshun 69hp 4X2(6 wheels) Gasoline 2.5m Double Row Stake Micro Truck
EXW
Export quote
Jinbei Lingshun 69hp 4X2(6 wheels) Gasoline 2.5m Double Row Flatbed Micro Truck
EXW
Export quote
Jinbei Lingshun 61hp 4X2(6 wheels) Gasoline 2.5m Double Row Van Mini Truck
EXW
Export quote
Jinbei Lingshun 61hp 4X2(6 wheels) Gasoline 2.5m Double Row Stake Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): SY5024XXYSZ8-K2 / SY5024CCYSZ8-K2 / SY1024SK2Z8 / SY5024XXYSZ8-B4 / SY5024CCYSZ8-B4 / SY1024SB4Z8 / SY5024XXYDAL-K2 / SY5024CCYDAL-K2 / SY1024DK2AL / SY5024XXYDAL-B4 / SY5024CCYDAL-B4 / SY1024DB4AL
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2770 / 2580mm
Box length class: 2.5 / 2.1 / 3m
Engine Model: Xin Guang HuaxiangG4AD / Xinchen Power4B10
Transmission Model: Chongqing G4AD-1700100 / QingshanMR509
Cab length: 5.03 / 4.63m
Cab width: 1.62 / 1.49m
Cab height: 2.45 / 1.93m
Front track width: 1290mm
rear track: 1260mm
Curb Weight: 1.42 / 1.3 / 1.26 / 1.37 / 1.27 / 1.24 / 1.255 / 1.19 / 1.16 / 1.12ton
Rated payload: 0.495 / 0.365 / 0.465 / 0.499 / 0.74ton
GVWR: 2.24 / 2.12 / 2.08 / 2.06 / 1.884 / 2.03 / 1.99ton
Max. speed: 90 / 95km/h
Origin: Shenyang, Liaoning
tonnage class: mini truck
Approach angle: 29°
departure angle: 17°
Front/rear suspension: 0.885/1.375 / 0.885/1.165m
Energy Type: gasoline
Engine parameters
Engine Brand: Xin Guang Huaxiang / Xinchen Power
Engine info: Xin Guang Huaxiang1.3L / Xinchen Gasoline 1.0L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 1.323 / 0.997L
Emission standard: China IV
Max output power: 51 / 45kW
Max hp: 69 / 61Horsepower
Max torque: 106 / 90N·m
Max torque speed: 2800-3200rpm
Rated speed: 5200rpm
Engine Type: Inline / Inline 4-cylinder, 4-stroke, water-cooled, naturally aspirated, 8-valve, SOHC (single overhead camshaft)
Transmission Parameters
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body / Stake type / stake body
Cargo box width: 1.56 / 1.54 / 1.41 / 1.43m
FAQ
What kind of truck is Shenyang Jinbei Shenyang Jinbei Lingshun mini truck Cargo Trucks?
Shenyang Jinbei Shenyang Jinbei Lingshun mini truck is an export-oriented Cargo Trucks lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Shenyang Jinbei Lingshun mini truck Cargo Trucks cover?
Shenyang Jinbei Lingshun mini truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 61 hp / 69 hp; Emission: China IV; Fuel: gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shenyang Jinbei Lingshun mini truck Cargo Trucks?
For Shenyang Jinbei Lingshun mini truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Shenyang Jinbei Lingshun mini truck Cargo Trucks include?
Shenyang Jinbei Lingshun mini truck Cargo Trucks currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shenyang Jinbei Lingshun mini truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
