Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI)

Export reference
MSRP N/A
Transmission: Fast Gear
Wheelbase:: 2100+2650+1350mm
Tire Size:: 11.00R20
engine:: YuchaiYCK11380N-60
Rear Axle Ratio:: 5.73
tonnage class:: Heavy truck
Drive 8X4 (12 wheels)
Horsepower 380
Emission China VI
Fuel LNG (liquefied natural gas)

Overview

The Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI) is a Heavy truck featuring 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK11380N-60 engine, 380 hp, China VI emissions and Fast Gear transmission.

China VI 380 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
Wheelbase: 2100+2650+1350mm
engine: YuchaiYCK11380N-60
transmission: Fast Gear10JSD180TB
Rear Axle Ratio: 5.73
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK11380N-60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.98L
Emission standard: China VI
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1800N·m
Max torque speed: 1000-1400rpm
Rated speed: 1700rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD180TB
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank capacity: 500L
Chassis Specs
Frame Dimensions: 300×80×7+5mm
rear axle description: HandeMAN
Axle ratio: 5.73
Leaf spring count: 3/3/4
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

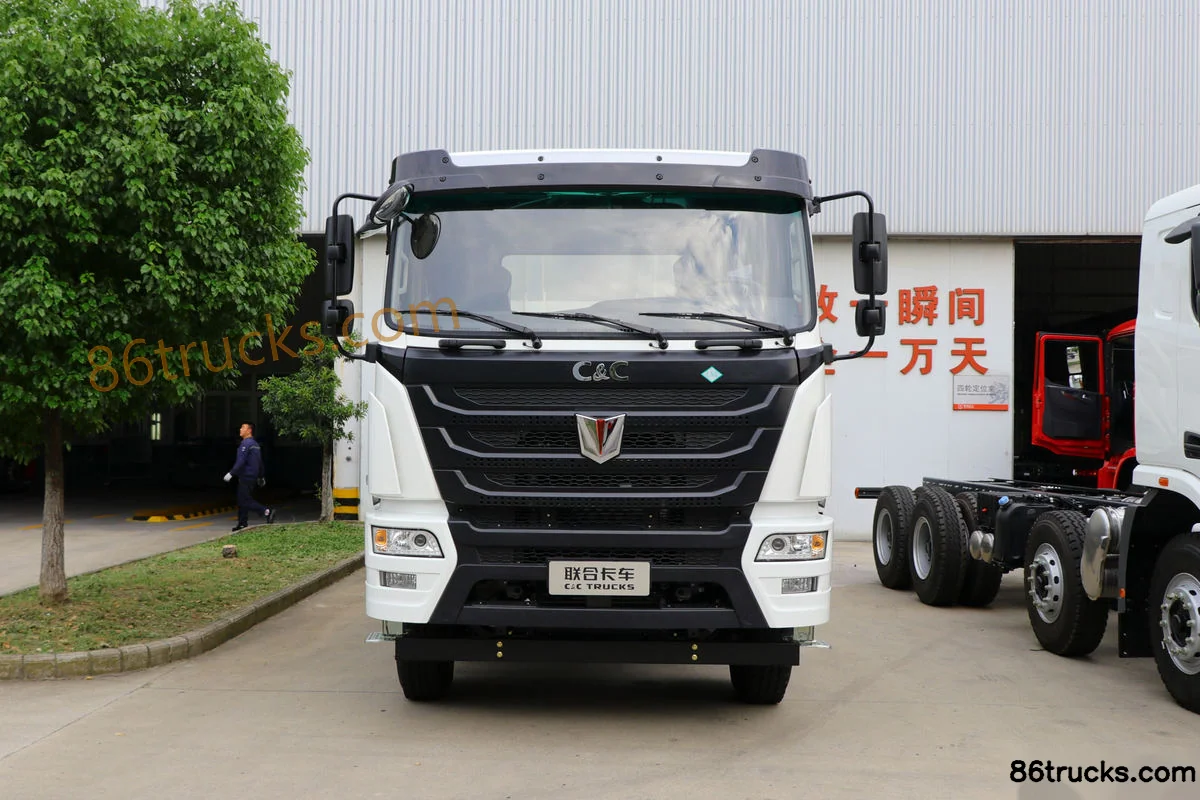

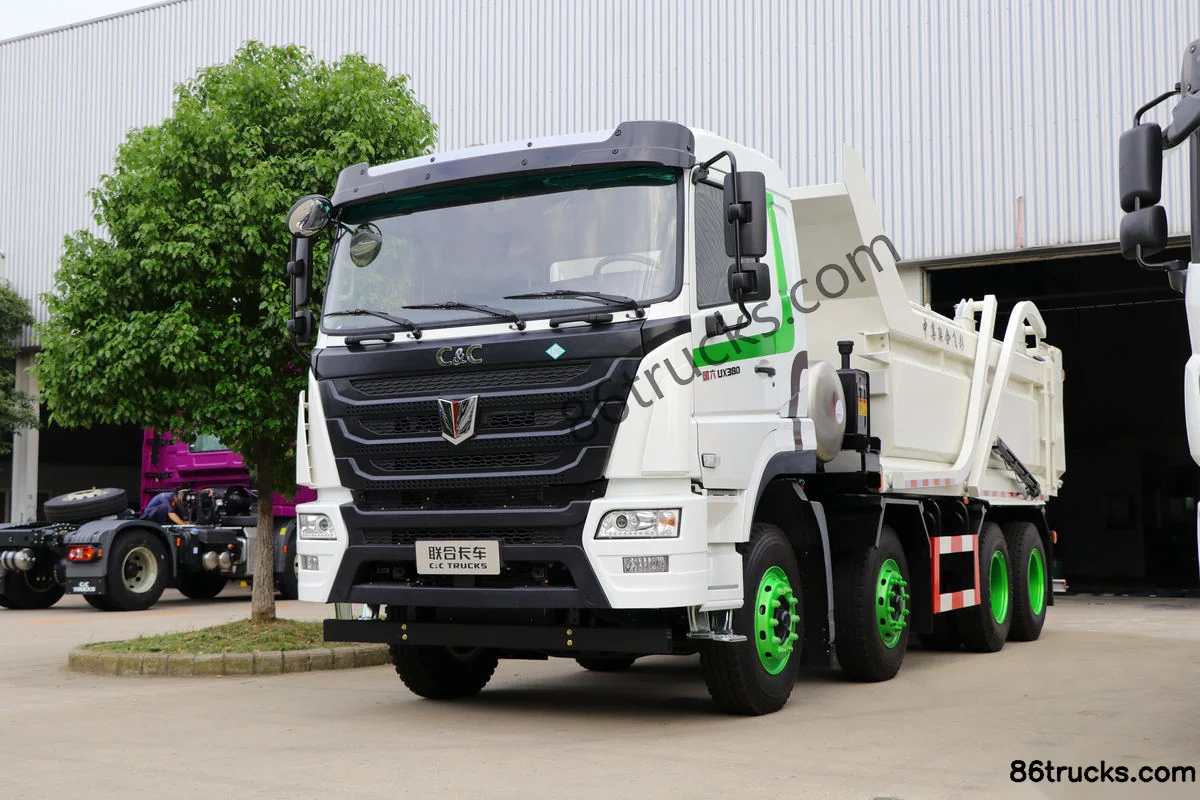

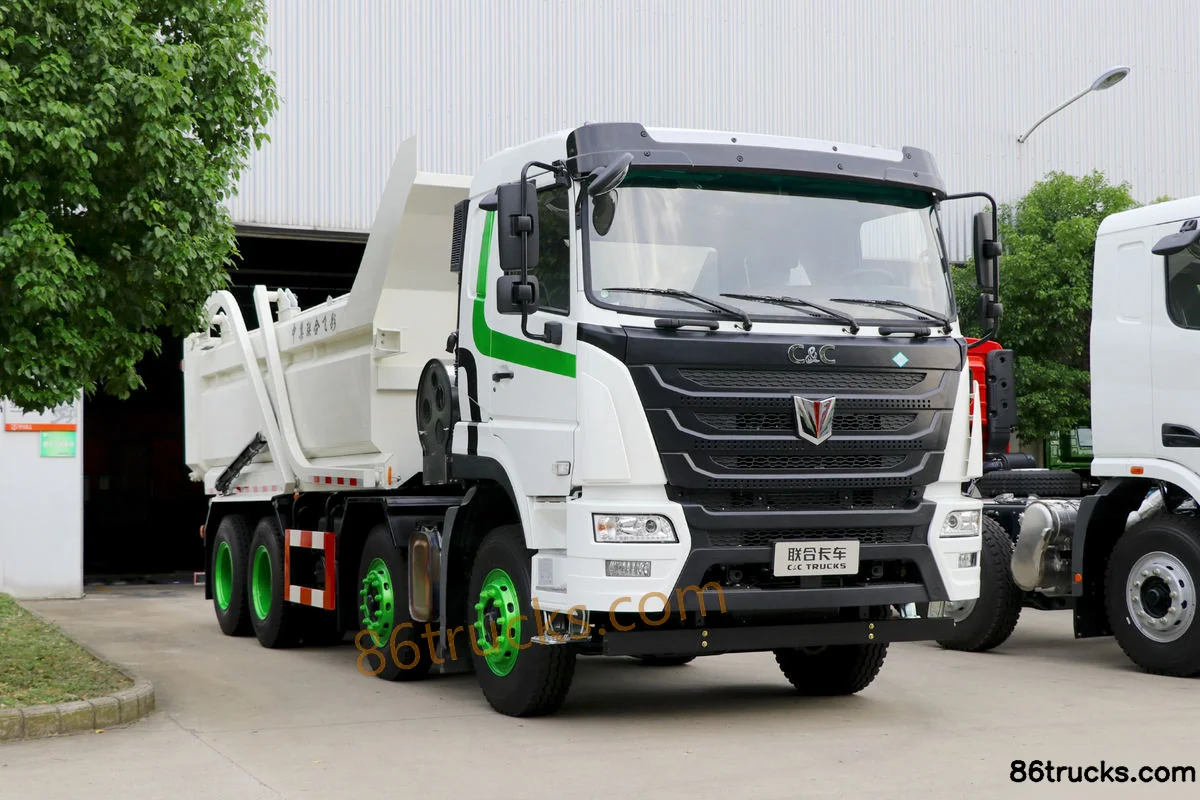

Exterior3

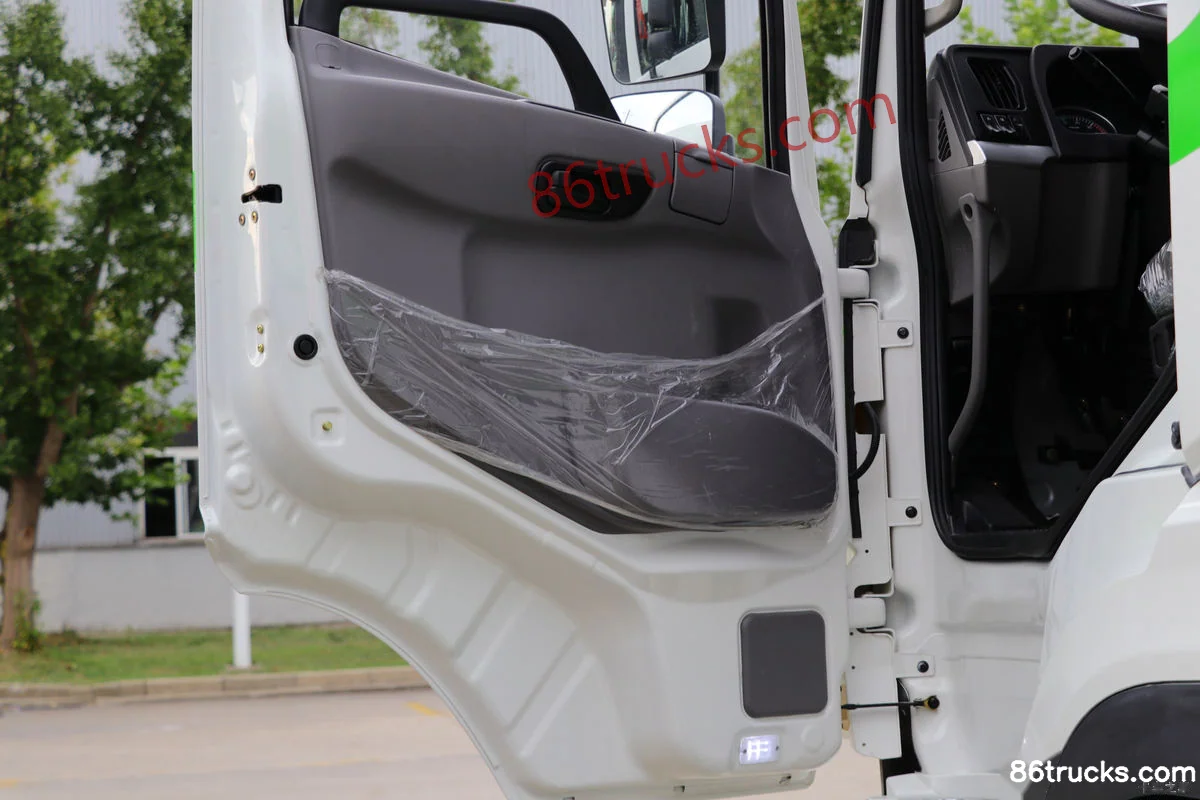

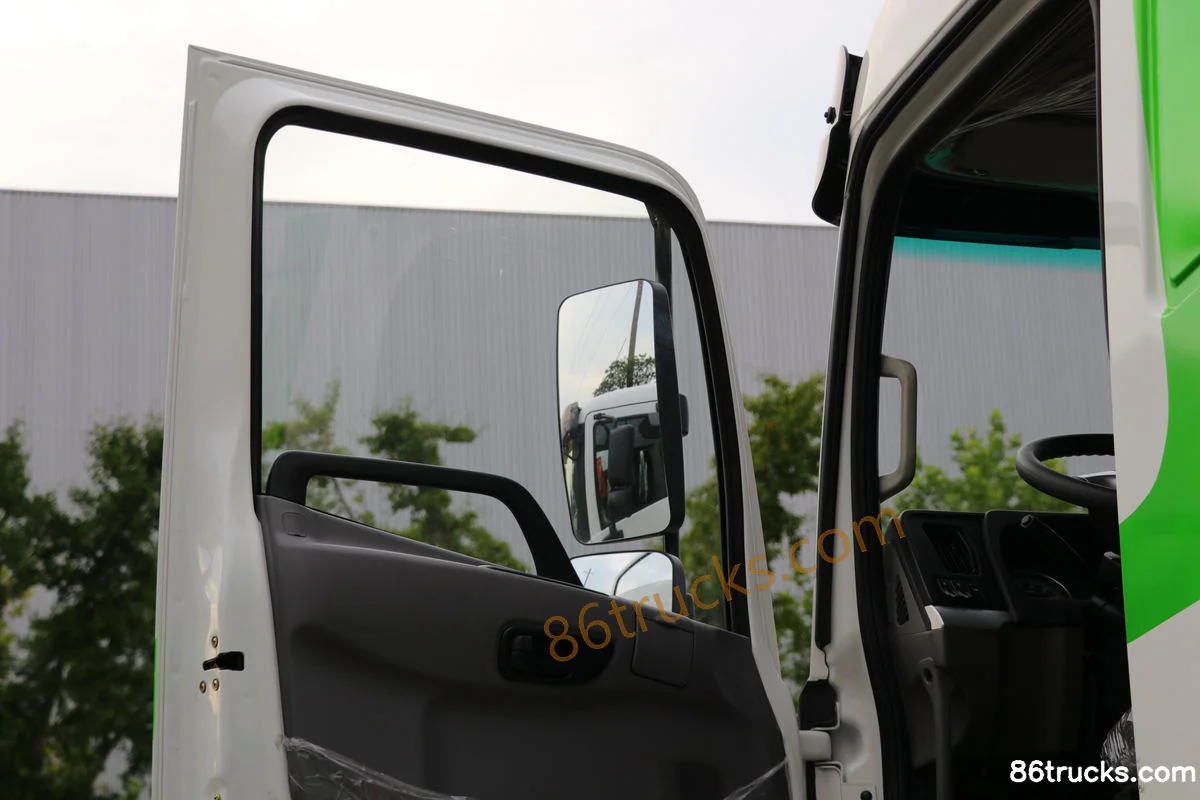

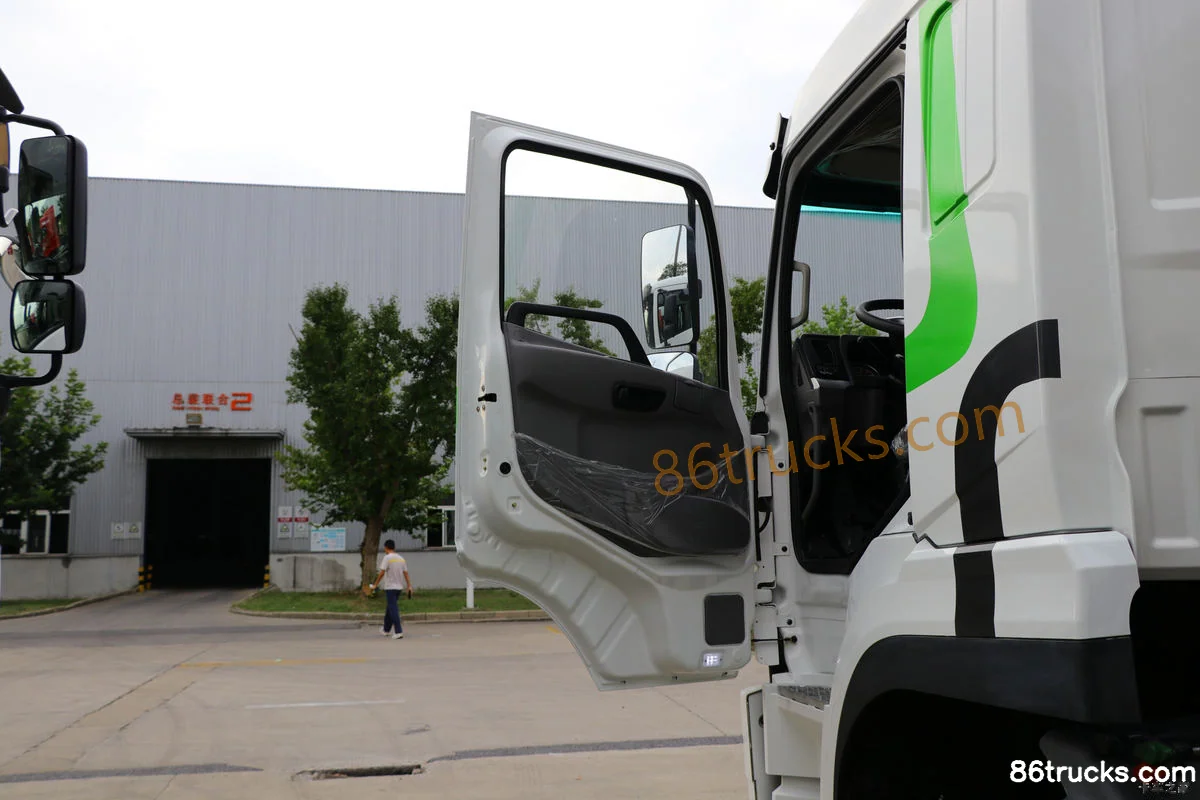

Cab3

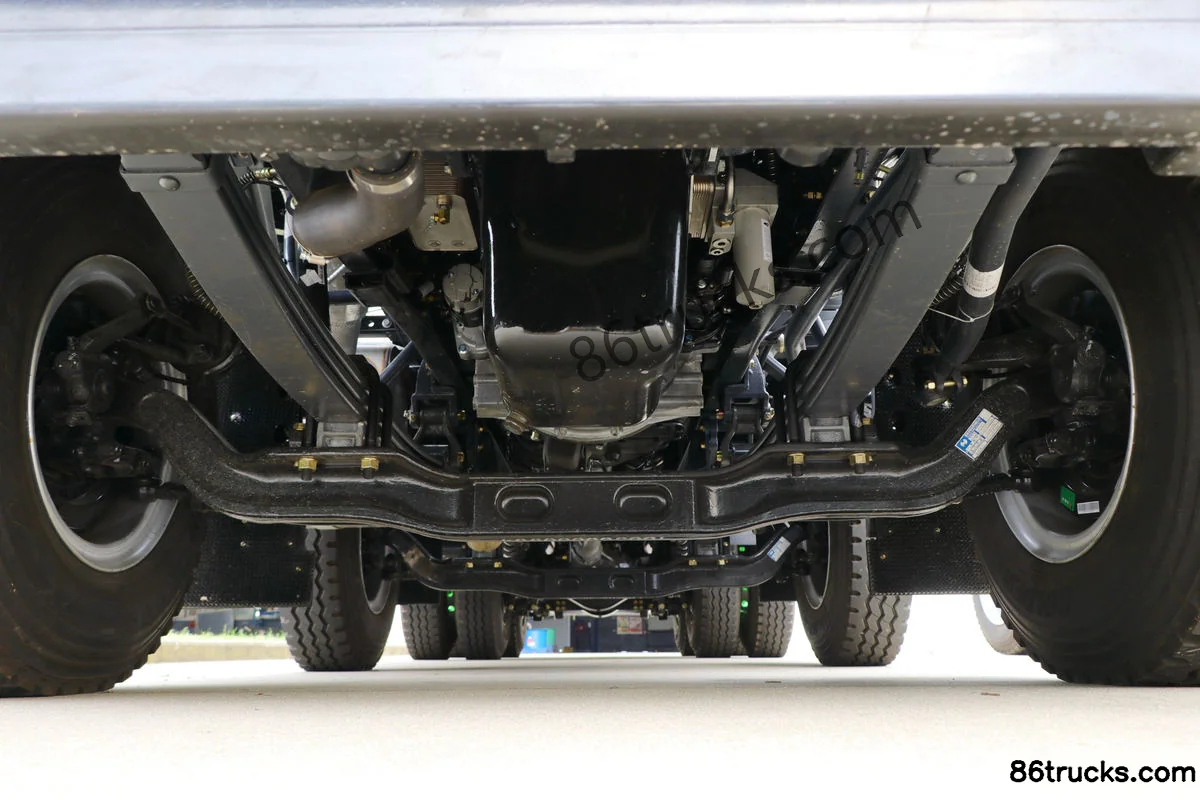

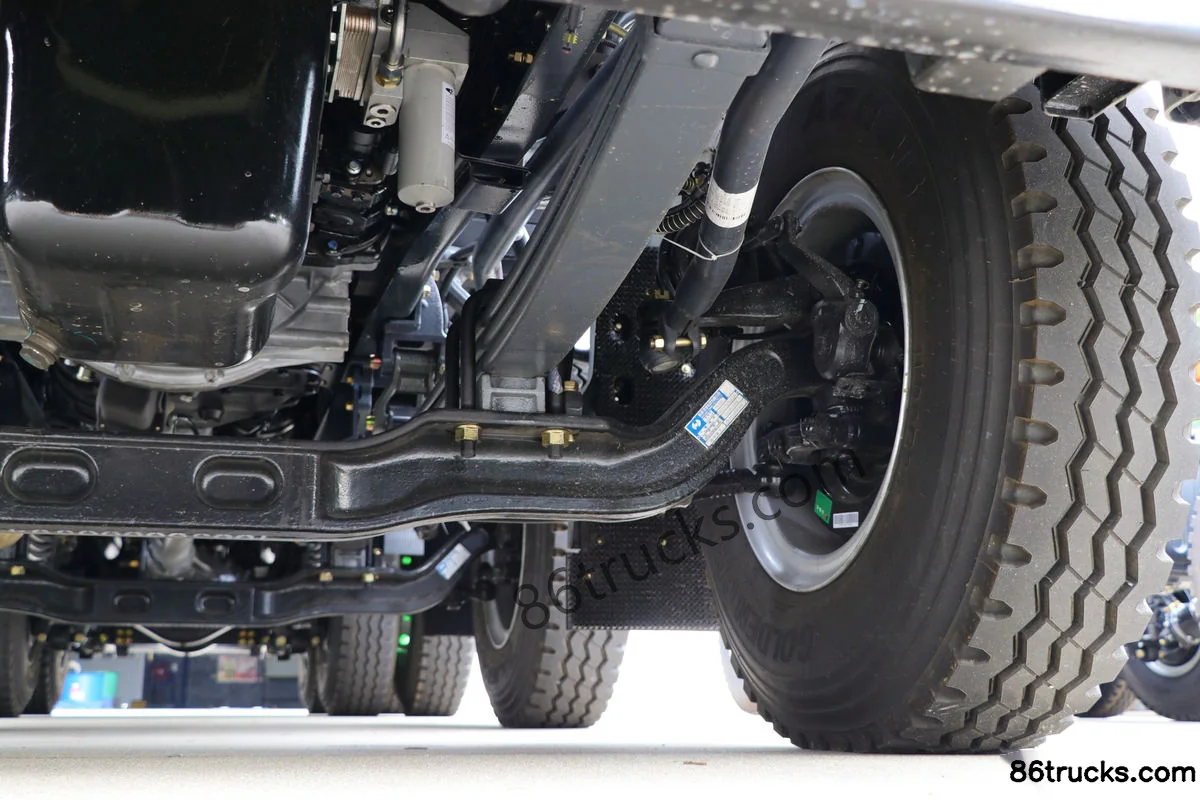

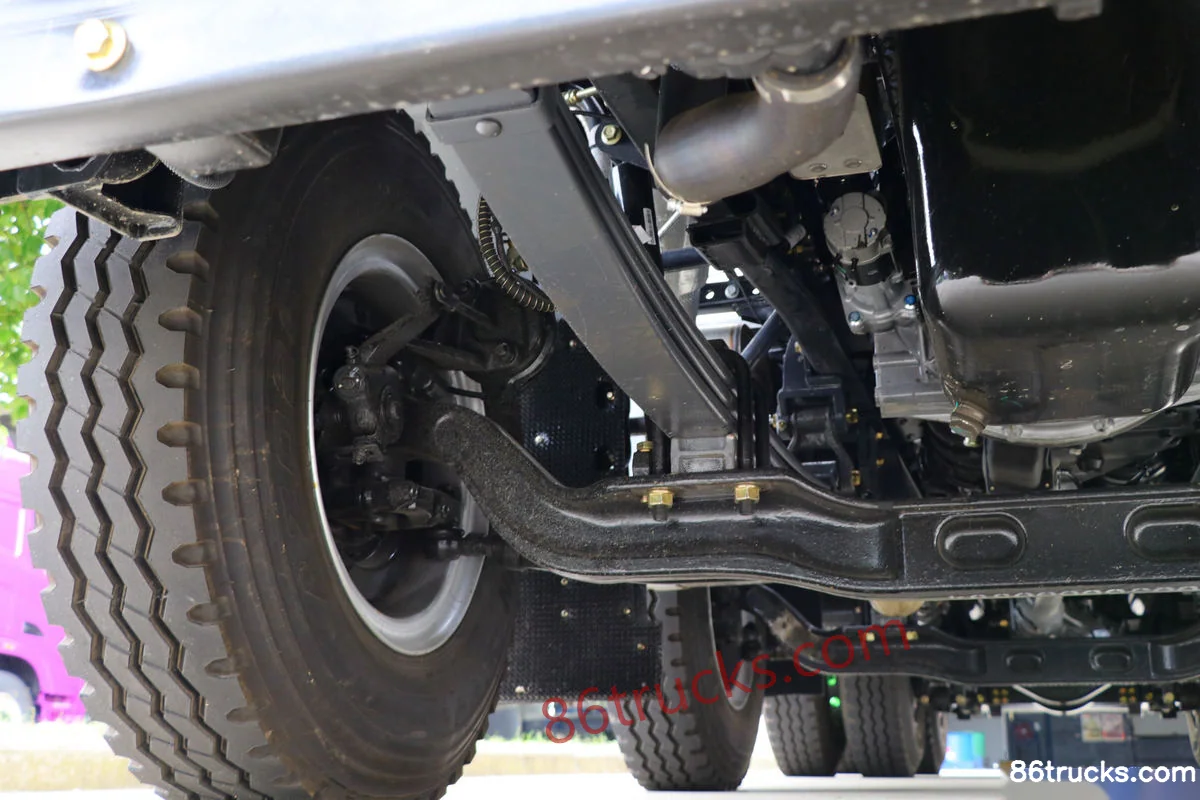

Chassis3

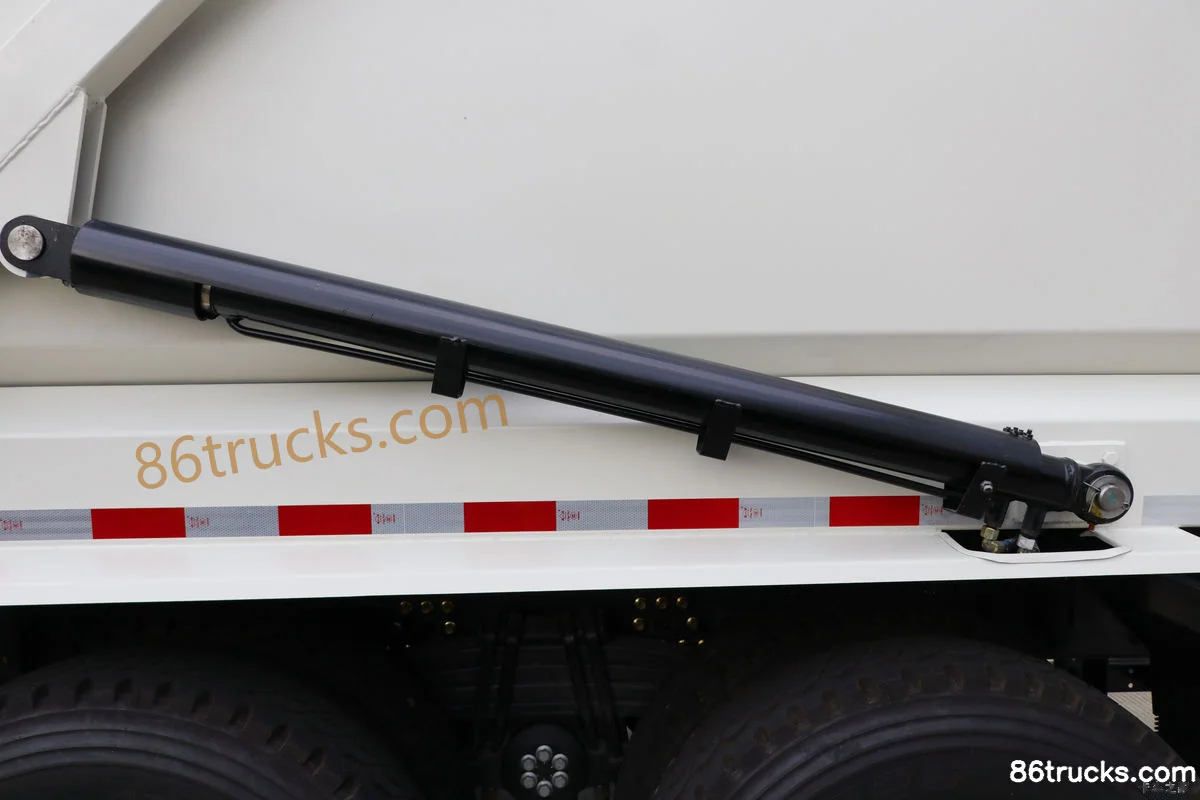

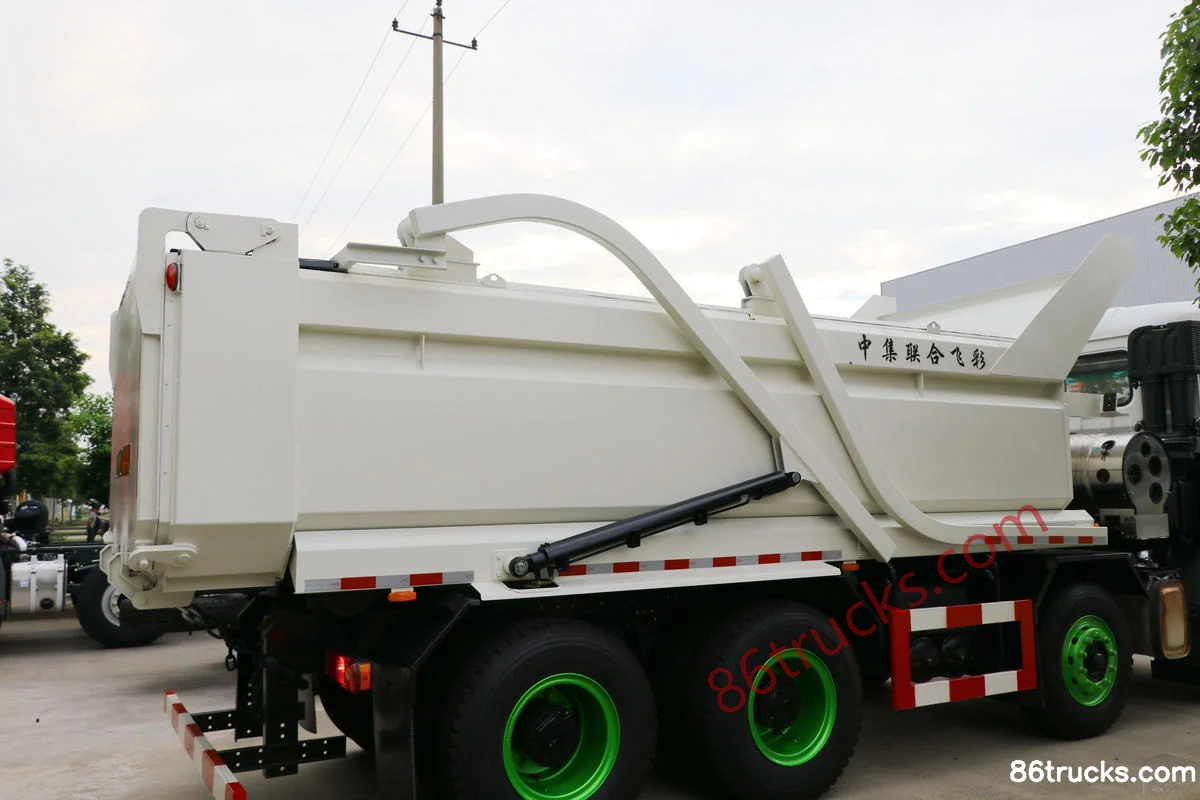

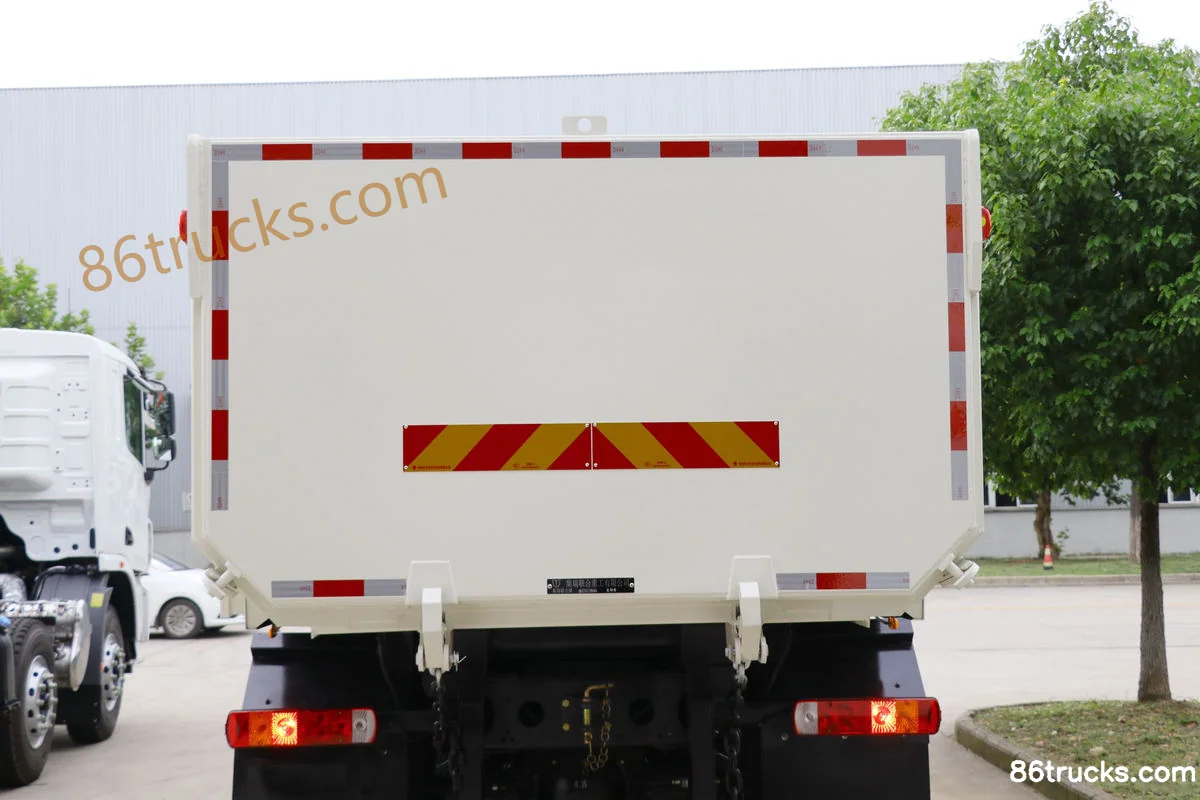

Body3

12 photos

FAQ

What emission standard does Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI)?

Key specs of Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI): Drive: 8x4; Horsepower: 380 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI) suited for?

Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI) differ from other variants in the same series?

Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI) belongs to Union Truck UX-Series (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck UX380 Heavy Truck 380hp 8X4(12 wheels) LNG Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
