SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck

Export reference
From $21,319
MSRP ¥15.35M CNY
Curb Weight:: 7.255ton
Emission: China V
Fuel: Diesel
Wheelbase:: 4600mm
Cab dimensions:: 8.45×2.5×2.86m
Truck Type:: landscaping sprinkler truck
Tank Dimensions (L×W×H): 5.1×2.05×1.45m
Rated payload: 10.55ton
Drive 4X2 (6 wheels)
Horsepower 160

Overview

The SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck is a water sprinkler truck featuring 5.1×2.05×1.45m tank capacity, 10.55t payload, 11m³ volume and 7.255ton GVW. On the powertrain side, it comes with 160 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.45×2.5×2.86m
Drive type: 4X2
Truck Type: landscaping sprinkler truck
Vehicle origin: Baoji, Shaanxi
Wheelbase: 4600mm
Front track width: 1830mm
rear track: 1810mm
Curb Weight: 7.255ton
Rated payload: 10.55ton
Max. speed: 95km/h
Front/rear suspension: 1.45/2.4m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 5.1×2.05×1.45m
Vehicle certification code: SX5182GPSGP5
Body Brand: SHACMAN Commercial Vehicle
Others: Standard: Cab: TJG201(N/2220) semi-floating structure, comfort air-suspension seat, A/C, Tianxingjian Zhiya Edition BD telematics terminal. Cab color: Pearl White. Brakes: domestic 4-channel ABS. Transmission with PTO interface. Optional: Cab: four-point mechanical suspension, central door lock, sun visor, multimedia display (without reverse camera). Brakes: aluminum air tanks.
Engine parameters
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Cargo box parameters
Box volume: 11m³
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande X6
Chassis Model: SX1182GP5
Front axle description: 148B
Frame Dimensions: 861x250/6+4 double-layermm
rear axle description: 153B
Axle ratio: 4.875
Leaf spring count: 7/9+6,8/10+6,8/10+8,9/10+6,9/10+3,3/4+3,9/11+8,9/10+8,8/10+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Cab parameters
Cab: TJG201
Tire
Tire Size: 10.00R20/16PR
Number of tires: 6pcs

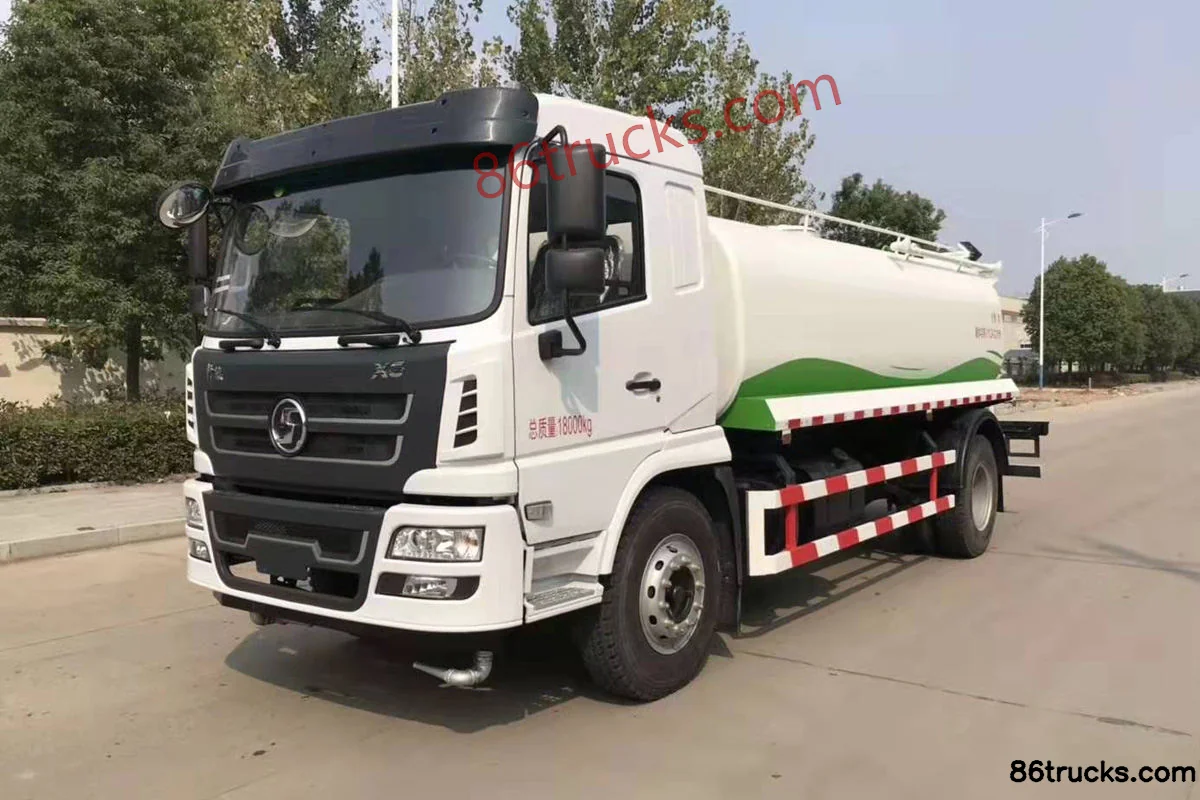

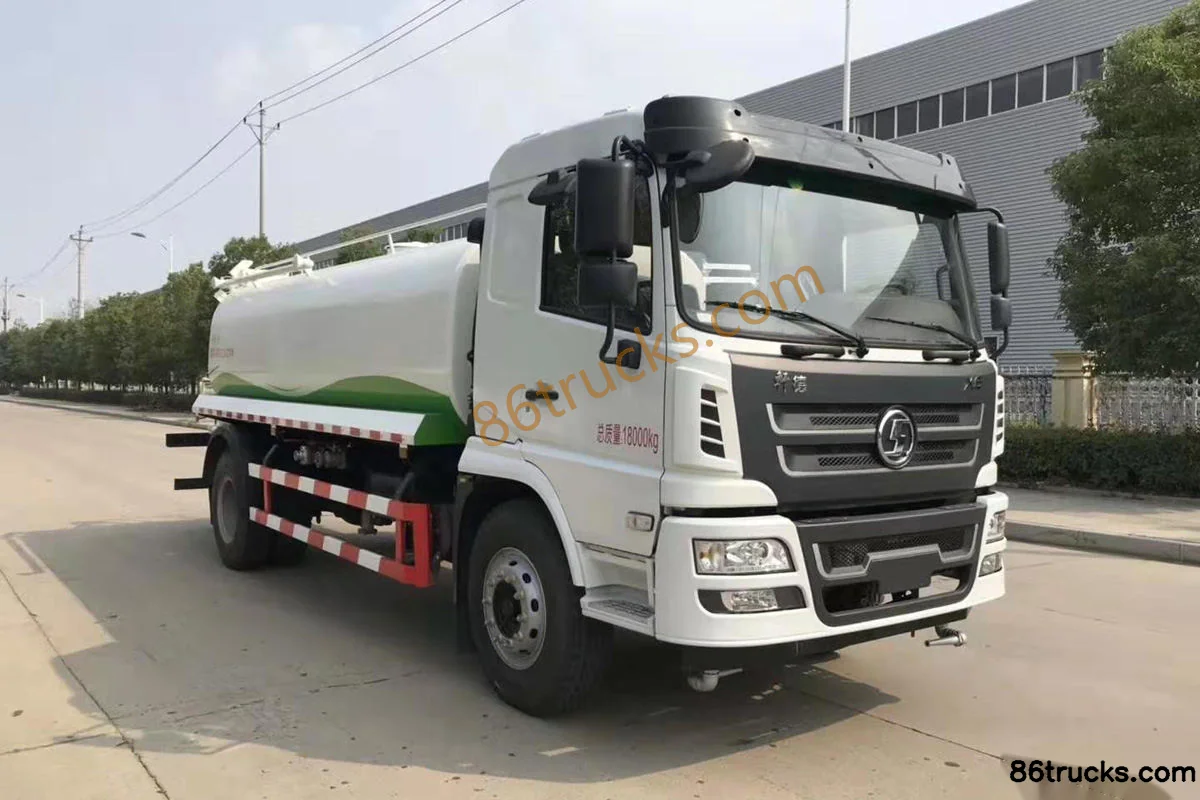

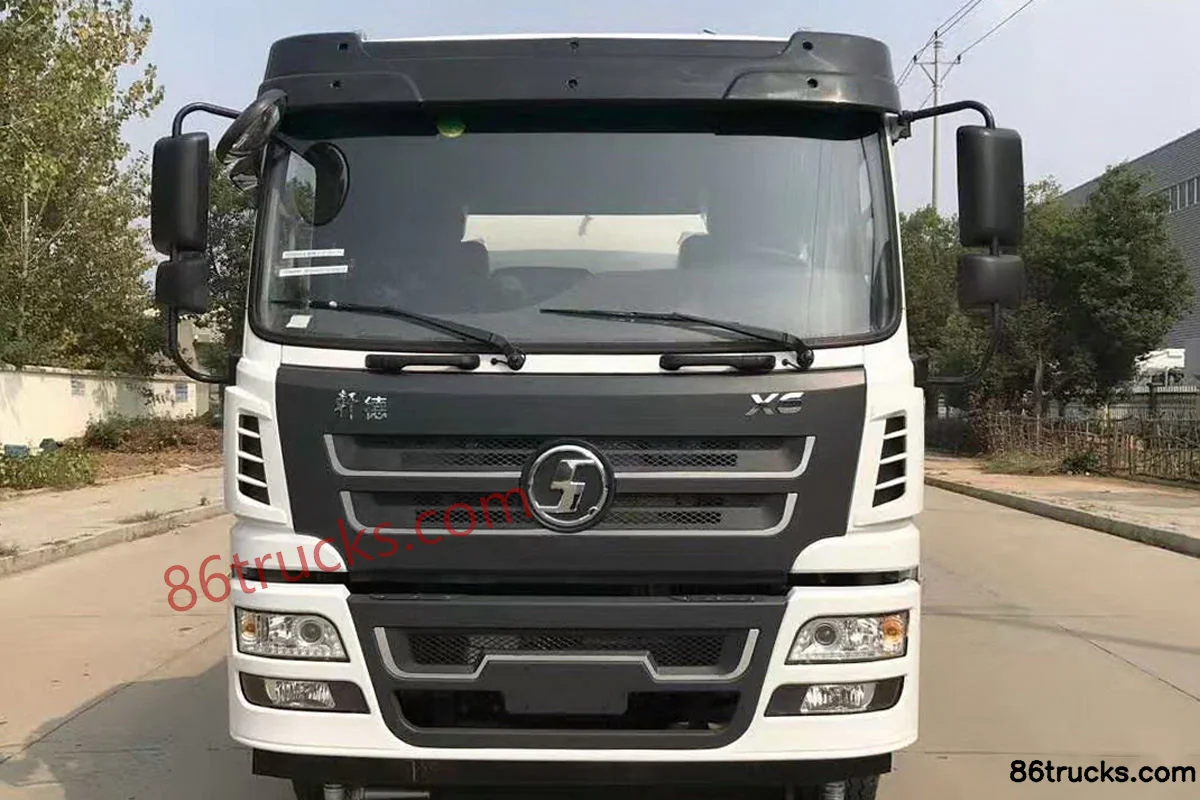

Photos

Exterior3

3 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck export reference is about From $21,319; MSRP is ¥15.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck suited for?

SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
