SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck
EXW
From $21,319
Export quote
SHACMAN Commercial Vehicle SHACMAN Xuande X6
Main model photos
385 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck | 4x2 / 160hp / China V | From $21,319 | |
| SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck | 4x2 / 160hp / China V | From $20,569 | |
| SHACMAN Commercial Vehicle Xuande X6 270 hp 6X4(10 wheels) green sprinkler truck | 6x4 / 270hp / China V | From $34,097 |
SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) green sprinkler truck
EXW
From $20,569
Export quote

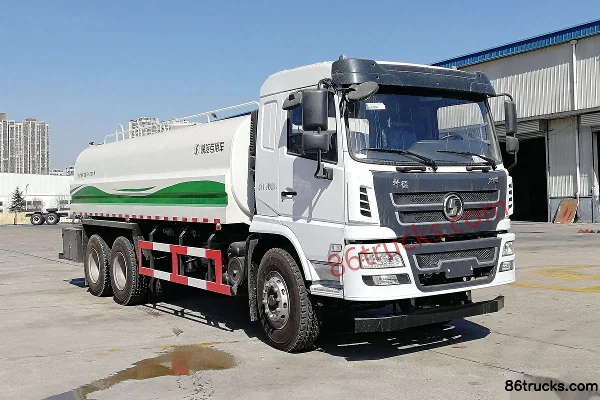

SHACMAN Commercial Vehicle Xuande X6 270 hp 6X4(10 wheels) green sprinkler truck
EXW
From $34,097
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Xuande X6 160 hp 4X2(6 wheels) Water Sprinkler Truck | 4x2 / 160hp / China IV |
Series Specs
Basic Info
Cab dimensions: 8.45×2.5×2.86 / 7.65x2.55x2.9 / 9.68x2.5x3.05 / 7.21×2.4×2.9m
Drive type: 4X2 / 6X4
Truck Type: landscaping sprinkler truck / Water Sprinkler Truck
Vehicle origin: Baoji, Shaanxi / Xi'an, Shaanxi
Wheelbase: 4600 / 3950 / 4375+1350mm
Front track width: 1830 / 1770 / 1970mm
rear track: 1810 / 1675 / 1750/1750mm
Curb Weight: 7.255 / 6.8 / 10.58 / 9.365ton
Rated payload: 10.55 / 9.005 / 13.725 / 6.44ton
Max. speed: 95 / 85 / 90km/h
Front/rear suspension: 1.45/2.4 / 1.45/2.25 / 1.45/2.505m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 5.1×2.05×1.45 / 5×2.2×1.2 / 6.3×2.25×1.46m
Vehicle certification code: SX5182GPSGP5 / SX5160GPSGP5 / SX5250GPSGP5444
Body Brand: SHACMAN Commercial Vehicle
Others: Standard: Cab: TJG201(N/2220) semi-floating structure, comfort air-suspension seat, A/C, Tianxingjian Zhiya Edition BD telematics terminal. Cab color: Pearl White. Brakes: domestic 4-channel ABS. Transmission with PTO interface. Optional: Cab: four-point mechanical suspension, central door lock, sun visor, multimedia display (without reverse camera). Brakes: aluminum air tanks.
Engine parameters
Engine Model: YuchaiYC4E160-56 / YuchaiYC6A270-50 / YuchaiYC4EG160-40
Number of cylinders: 4 / 6cylinder
Displacement: 4.26 / 7.52 / 4.73L
Emission standard: China V / China IV
Max output power: 118 / 199kW
Max hp: 160 / 270Horsepower
Rated speed: 2600 / 2300 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / BOSCH high-pressure common rail SCR
Cargo box parameters
Box volume: 11 / 9.3 / 14.3 / 10m³
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande X6
Chassis Model: SX1182GP5 / SX1160GP5 / SX1250GP5
Front axle description: 148B / 1090JK / 153B / 1090JK10
Frame Dimensions: 861x250/6+4 double-layer / 280/8+6 double-layermm
rear axle description: 153B / 145 / 457+457 / 1090
Axle ratio: 4.875 / 5.286
Leaf spring count: 7/9+6,8/10+6,8/10+8,9/10+6,9/10+3,3/4+3,9/11+8,9/10+8,8/10+3 / 8/10+6,8/10+8,9/10+6,3/4+3,9/11+8 / 9/10
Transmission Parameters
Number of gears: 8 / 9 / 6Gear
Transmission Model: Fast Gear8JS85E / Fast Gear 9JS119A (with PTO) / Fast Gear6J70T
Cab parameters
Cab: TJG201
Tire
Tire Size: 10.00R20/16PR / 11.00R20/18PR / 9.00R20
Number of tires: 6 / 10pcs
FAQ
What kind of truck is SHACMAN Commercial Vehicle SHACMAN Xuande X6 Heavy-Duty Truck water sprinkler truck?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 Heavy-Duty Truck is an export-oriented water sprinkler truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Commercial Vehicle SHACMAN Xuande X6?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 export reference is about $20,569 – $34,097. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Commercial Vehicle SHACMAN Xuande X6 cover?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 mainly covers: Drive: 4x2 / 6x4; Horsepower: 160 hp / 270 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Commercial Vehicle SHACMAN Xuande X6?
For SHACMAN Commercial Vehicle SHACMAN Xuande X6: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SHACMAN Commercial Vehicle SHACMAN Xuande X6 include?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Commercial Vehicle SHACMAN Xuande X6?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
