Dongfeng DF2001TD-485 10.0t through-drive dual drive axle

Export reference
MSRP N/A
Applicable Tire:: 12.0-20/11.0-20
Front/rear track width:: 1820-1880mm
Brake:: drum brake / disc brake
Axle Model: DF2001TD-485
Brake size: Φ410×220/22.5
Axle Type: Drive axle

Overview

The Dongfeng DF2001TD-485 10.0t through-drive dual drive axle is a parts product with spec DF2001TD-485 and Φ410×220/22.5 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: DF2001TD-485
Axle Type: Drive axle
Applicable Tire: 12.0-20/11.0-20
Front/rear track width: 1820-1880mm
Rated axle load: 2×10000ton
Brake: drum brake / disc brake
Transmission Ratio: 2.69,3.07,3.42,3.64,3.73,3.91,4.1,4.44,4.88,5.57,6.33
Brake size: Φ410×220/22.5
Max output torque: 50000×2N·m
Wheel Bolts: 10×M20×1.5/Φ335mm
Remarks: Through-type dual drive axles; stamped-welded

Photos

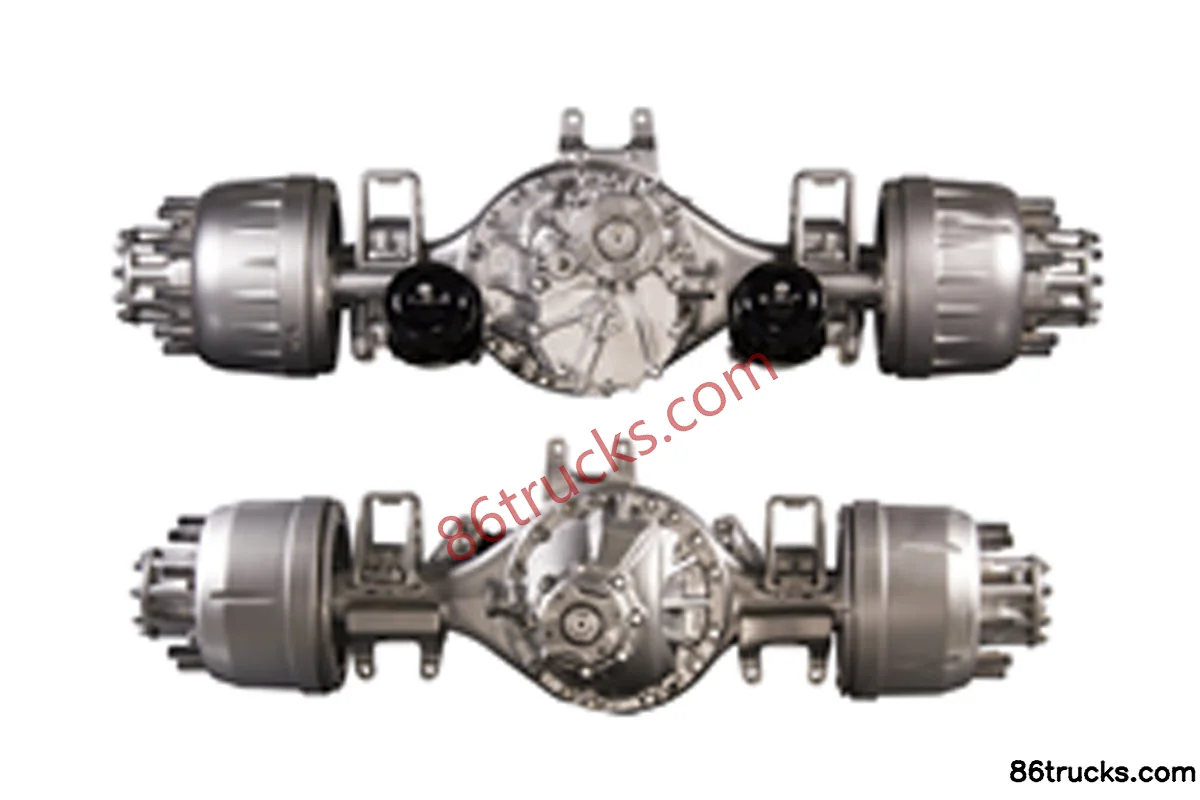

Exterior1

1 photos

FAQ

What transport jobs is Dongfeng DF2001TD-485 10.0t through-drive dual drive axle suited for?

Match Dongfeng DF2001TD-485 10.0t through-drive dual drive axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dongfeng DF2001TD-485 10.0t through-drive dual drive axle differ from other variants in the same series?

Dongfeng DF2001TD-485 10.0t through-drive dual drive axle belongs to Dongfeng drive axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DF2001TD-485 10.0t through-drive dual drive axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DF2001TD-485 10.0t through-drive dual drive axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
