CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 6.5ton
seating capacity: 3Personnel
Rated payload: 9.305ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.305t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CJ1160D5AB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYC4EG160-50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.5m
Cab height: 3.32m
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 6.5ton
Rated payload: 9.305ton
GVWR: 16ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 16°
market segment: Building materials, agricultural products
Remarks: Hydraulic tilt cab, optional A/C, anti-collision beam, aluminum fuel tank
Front/rear suspension: 1.425/2.575m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG160-50
Engine info: Yuchai 4-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.73L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: semi-floating cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6000kg
Frame Dimensions: 250(8+5)mm

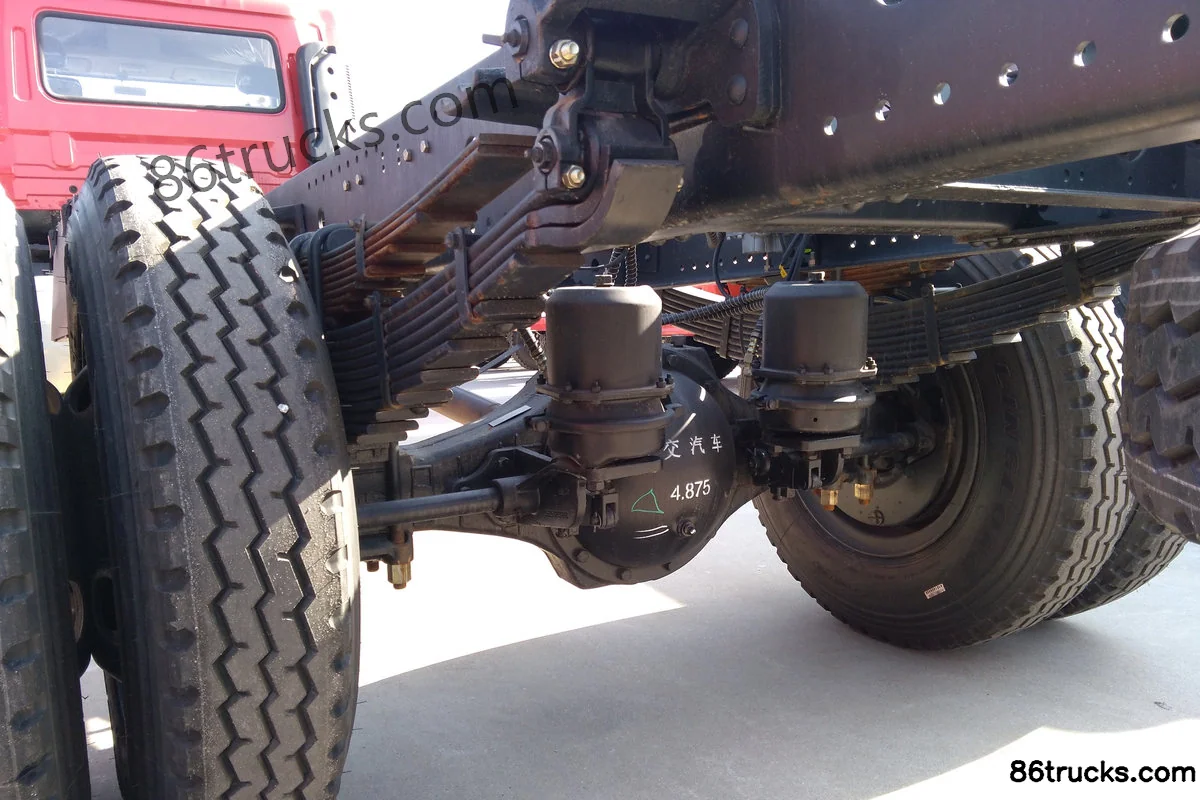

rear axle description: 9T rear axle
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:

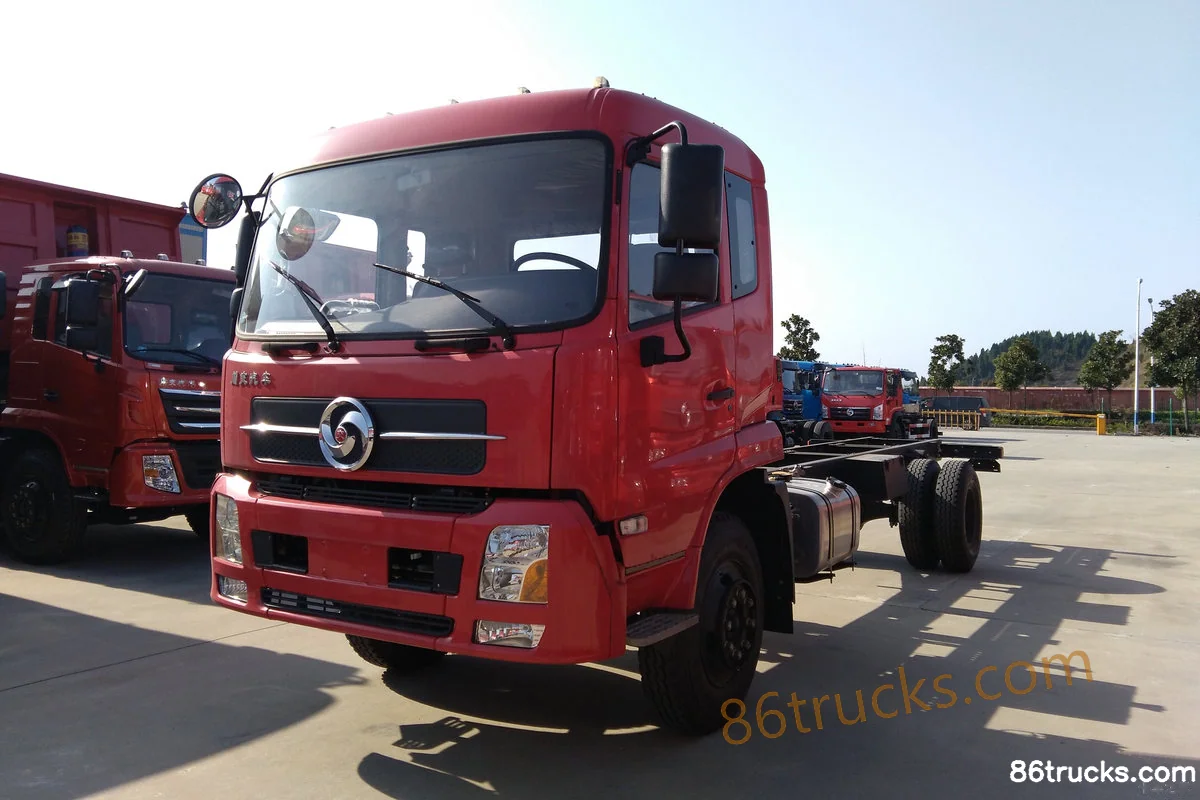

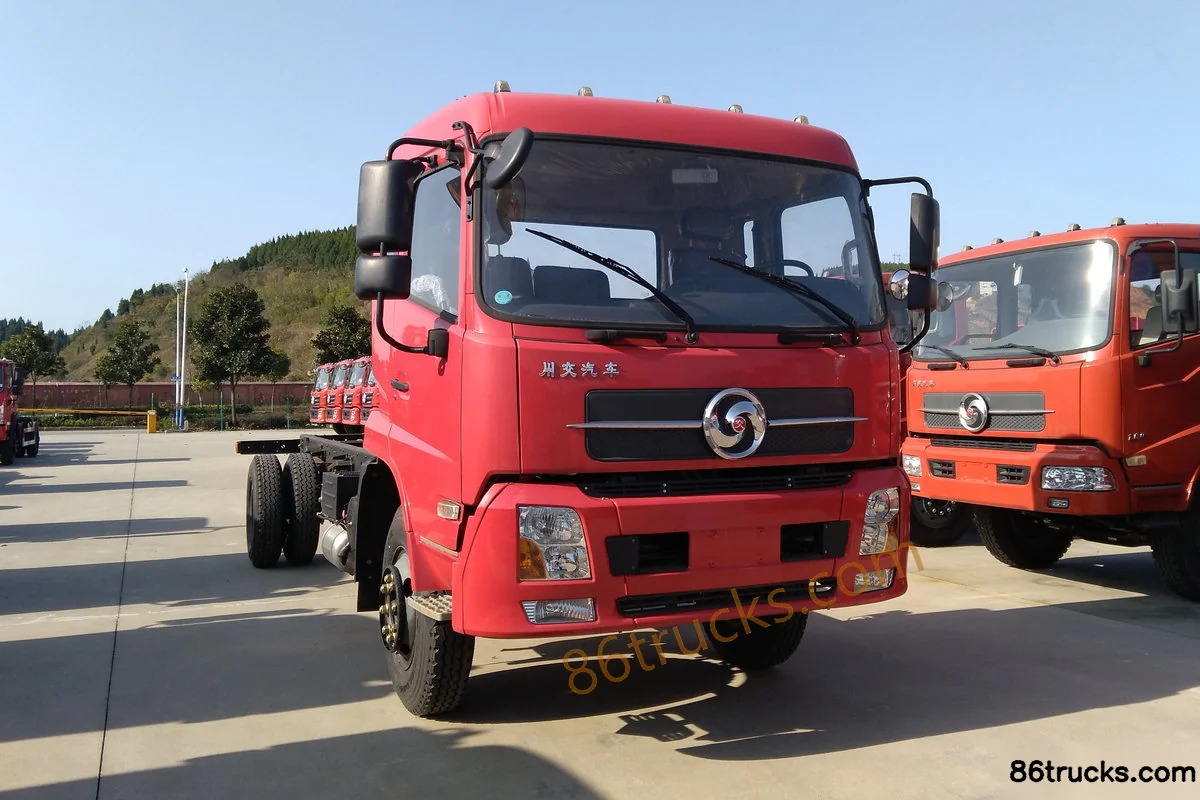

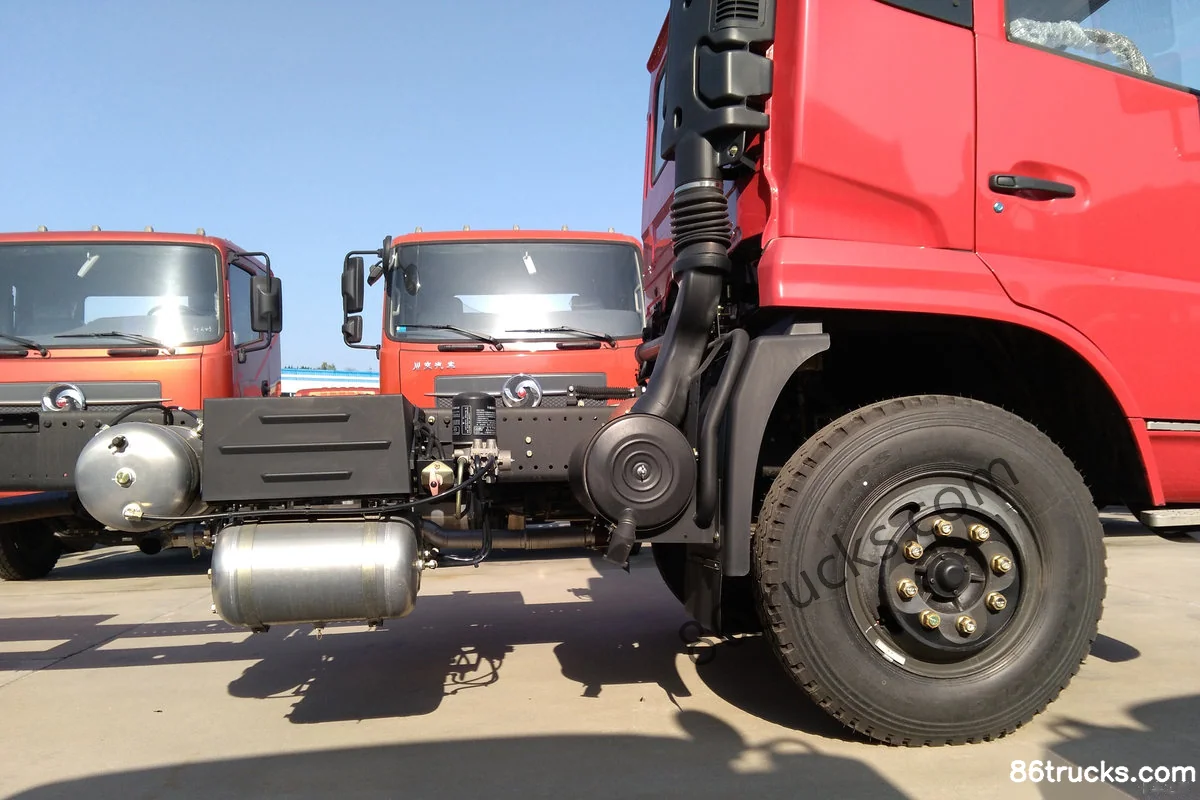

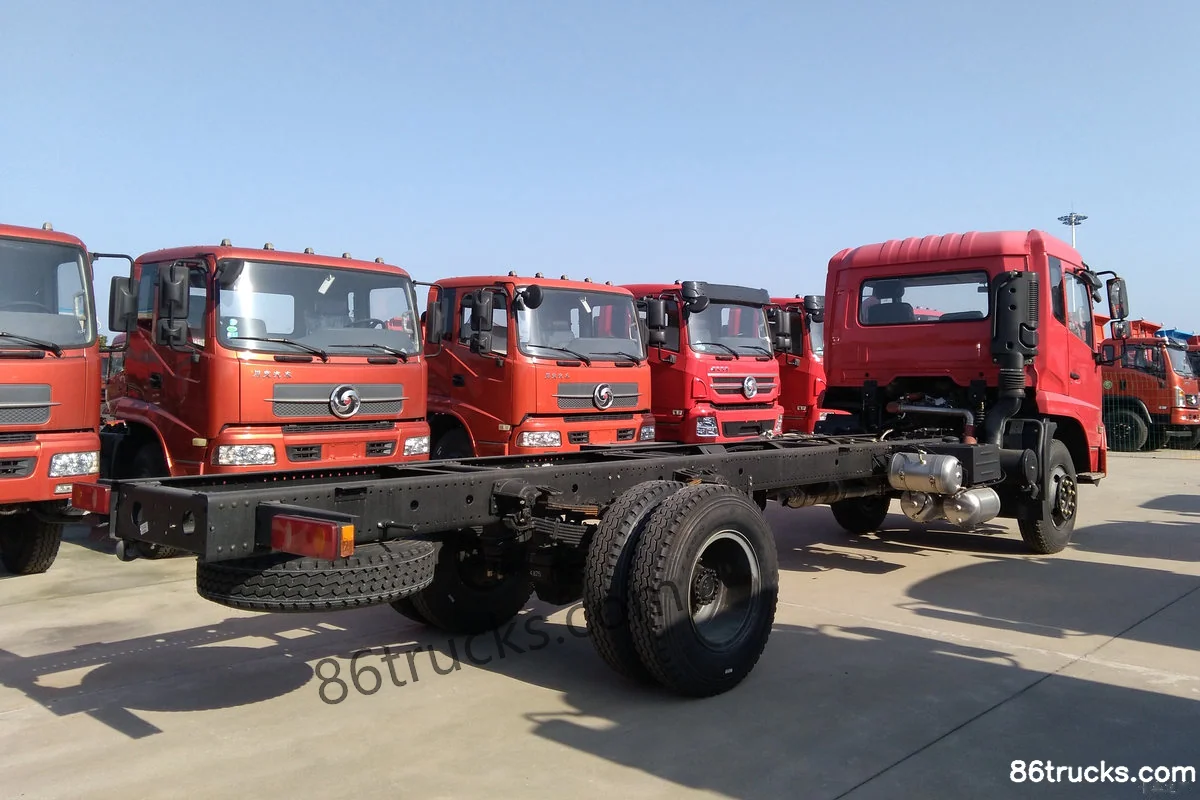

Photos

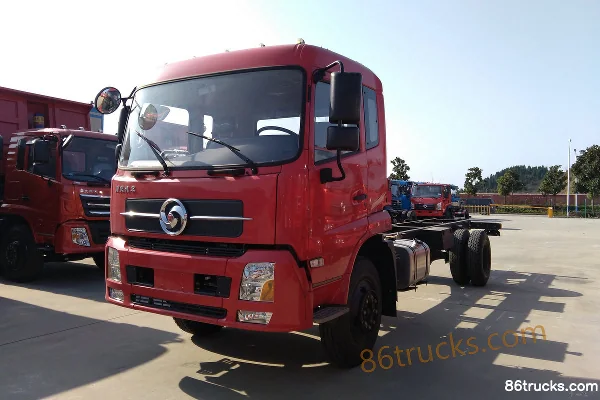

Exterior3

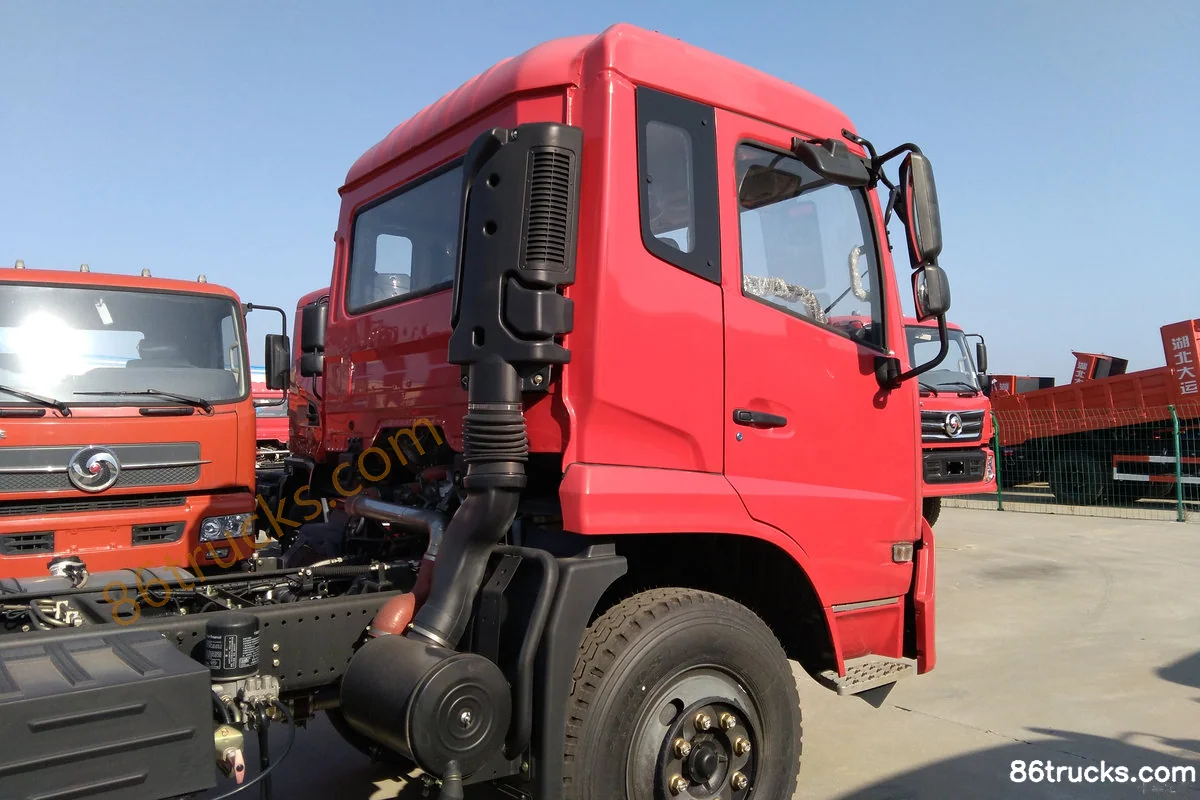

Cab3

6 photos

FAQ

What emission standard does CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Key specs of CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck suited for?

CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck differ from other variants in the same series?

CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck belongs to CHUANJIAO medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CHUANJIAO Medium Truck 160hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
