JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 260
Emission: China VI
Fuel: Diesel
Engine: Dongkang 6.2L
Transmission: Fast Gear
Curb Weight:: 8.15ton
JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 9.655ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck is a Medium-duty truck featuring 10m cargo length, Van body cargo body, 2Personnel volume and 9.655t payload. On the powertrain side, it comes with a Dongkang 6.2L engine, 260 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 260 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5181XXYP3K1A70S
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7150mm
Box length class: 10m
engine: DongfengB6.2NS6B260
transmission: Fast Gear8JS95TE-C
Rear Axle Ratio: 4.33
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2080mm
rear track: 1820mm
Curb Weight: 8.15ton
Rated payload: 9.655ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Front/rear suspension: 1.4/3.45m
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengB6.2NS6B260
Engine info: Dongkang 6.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.2L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 1020N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS95TE-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 10m
Cargo box width: 2.48m
Cargo box height: 2.8m
*Cargo box interior width: 2.48
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.33
Leaf spring count: 3/9+3
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
standard instrument cluster:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

Exterior3

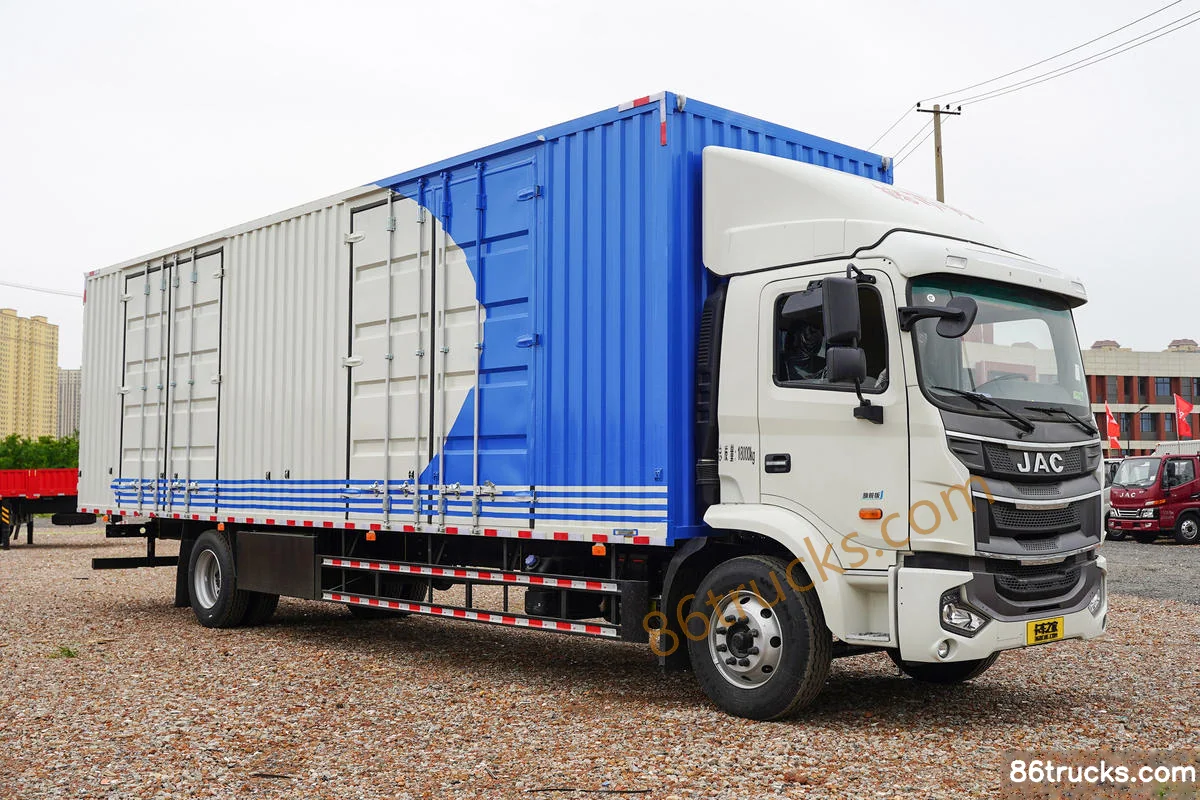

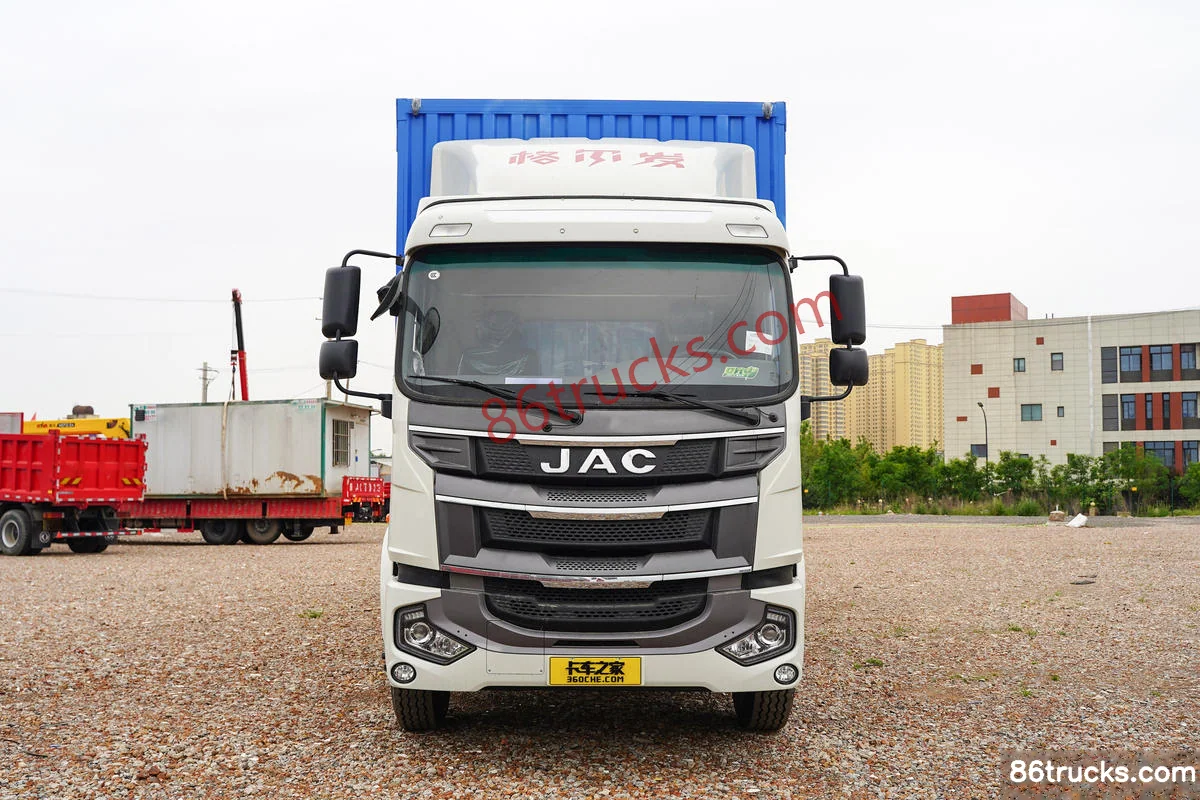

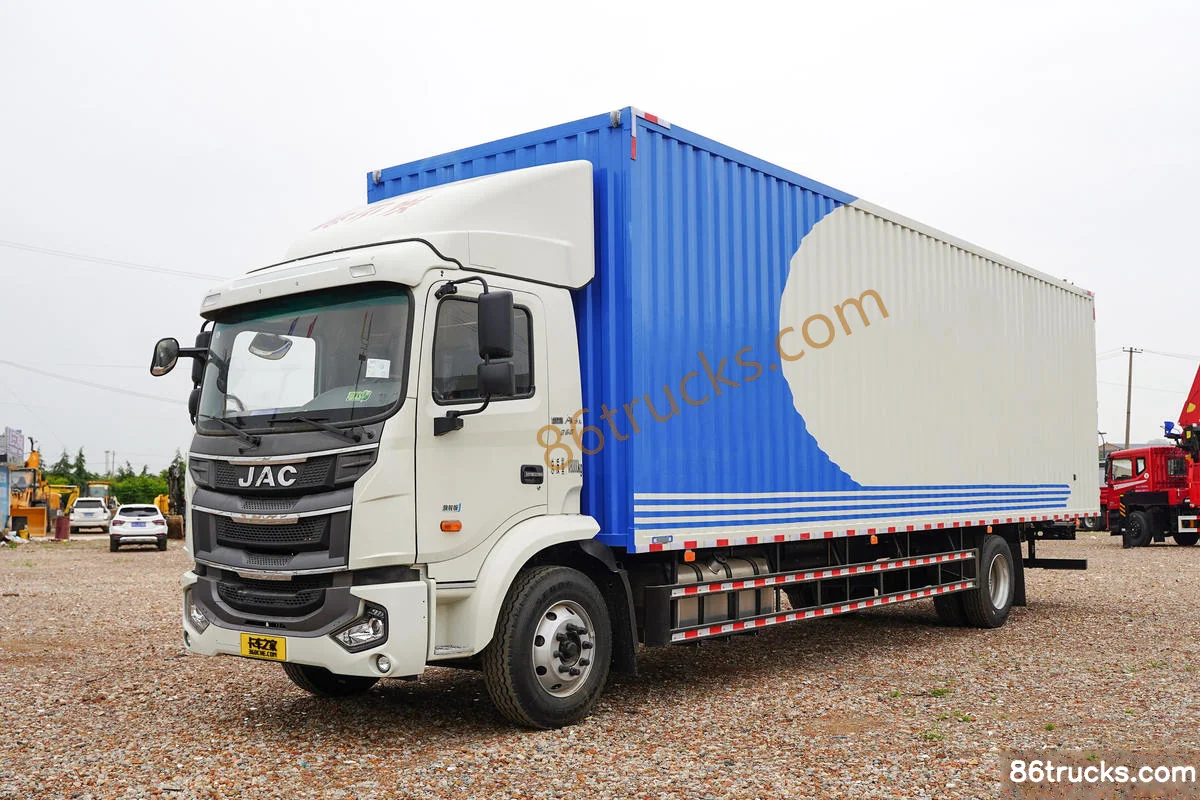

JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Exterior (1) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Exterior (2) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Exterior (3) | 86Trucks

Cab3

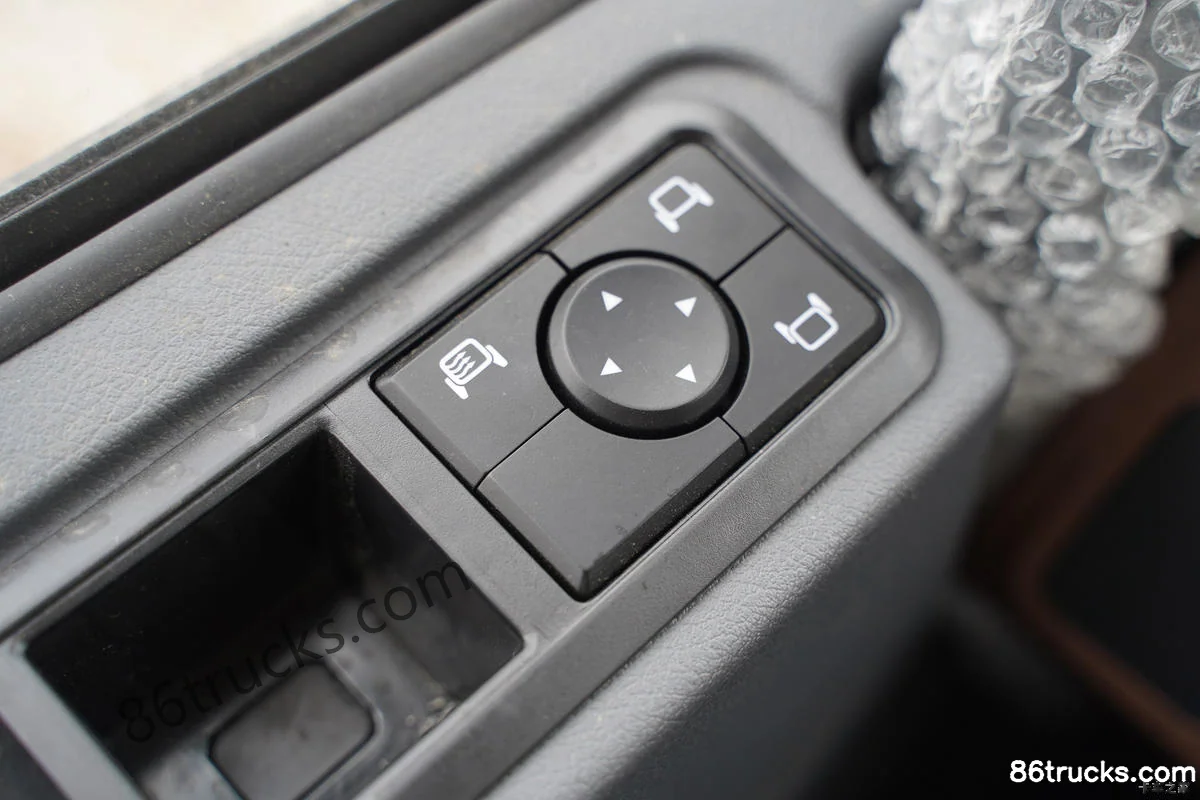

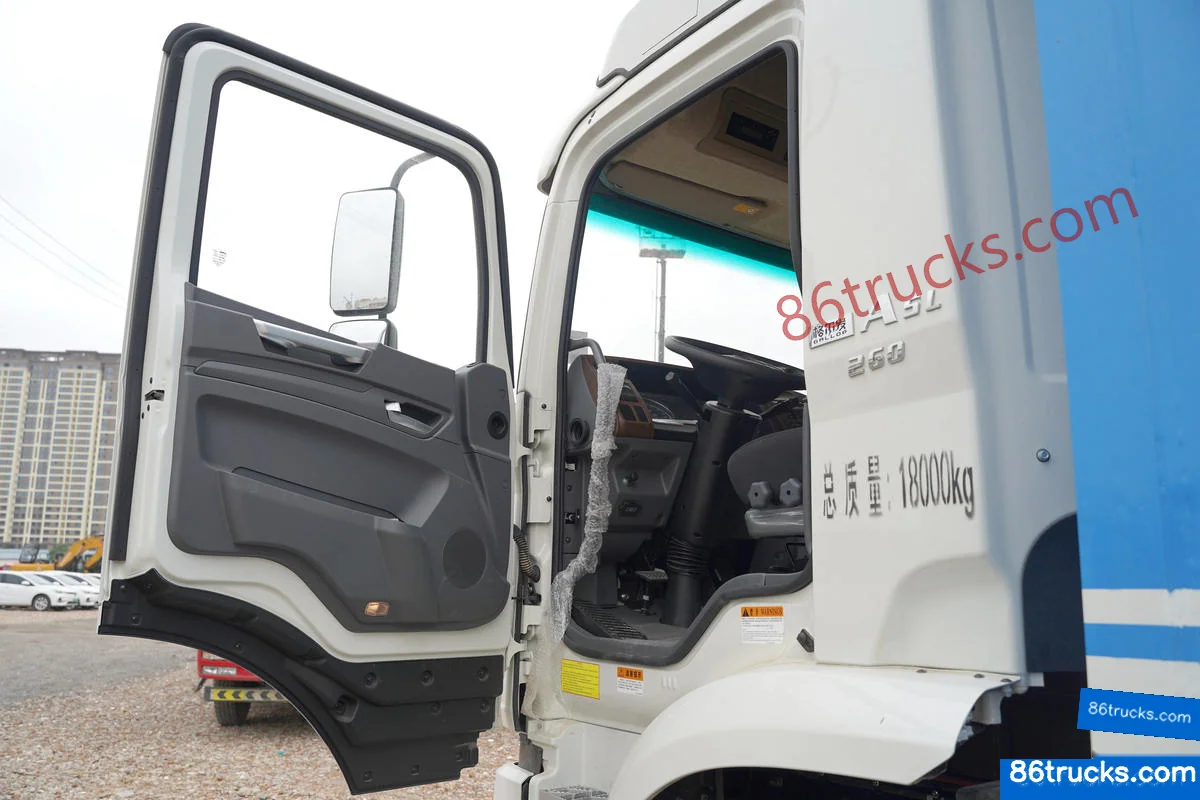

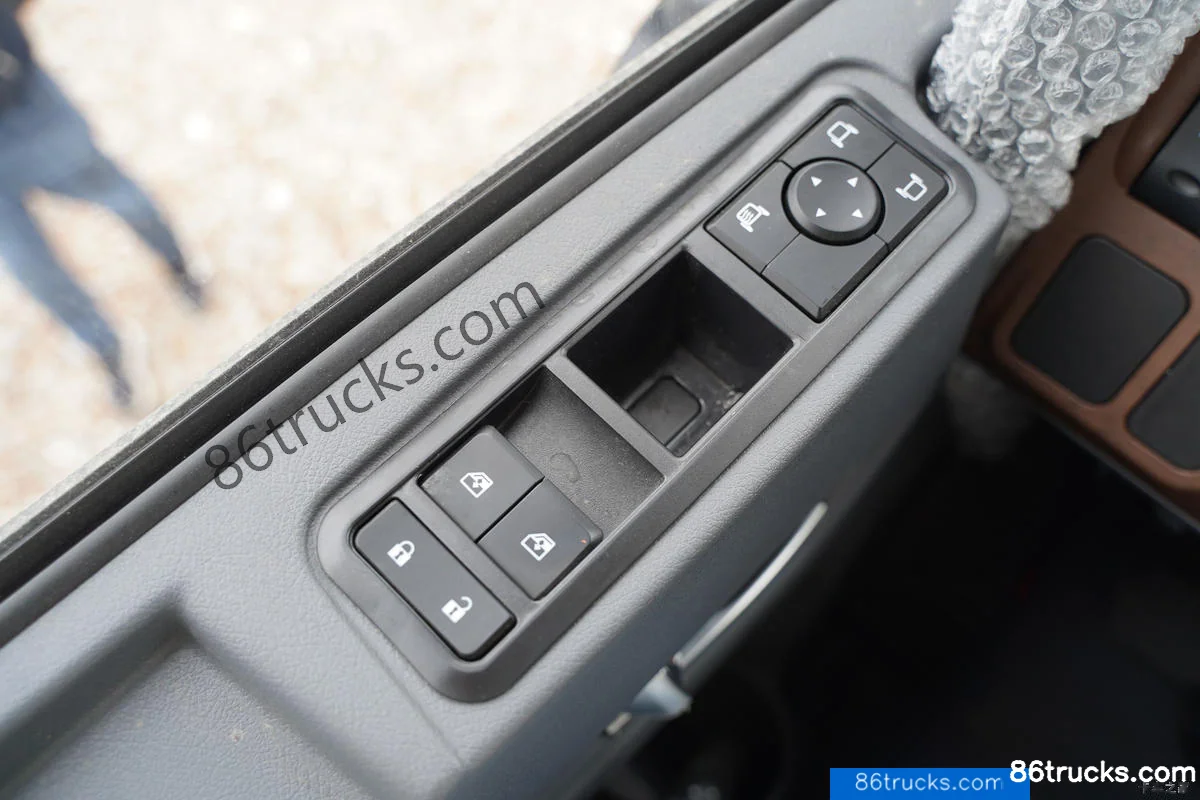

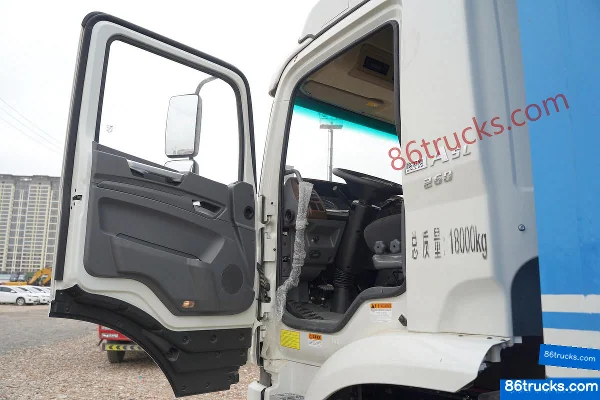

JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Cab (1) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Cab (2) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Cab (3) | 86Trucks

Chassis3

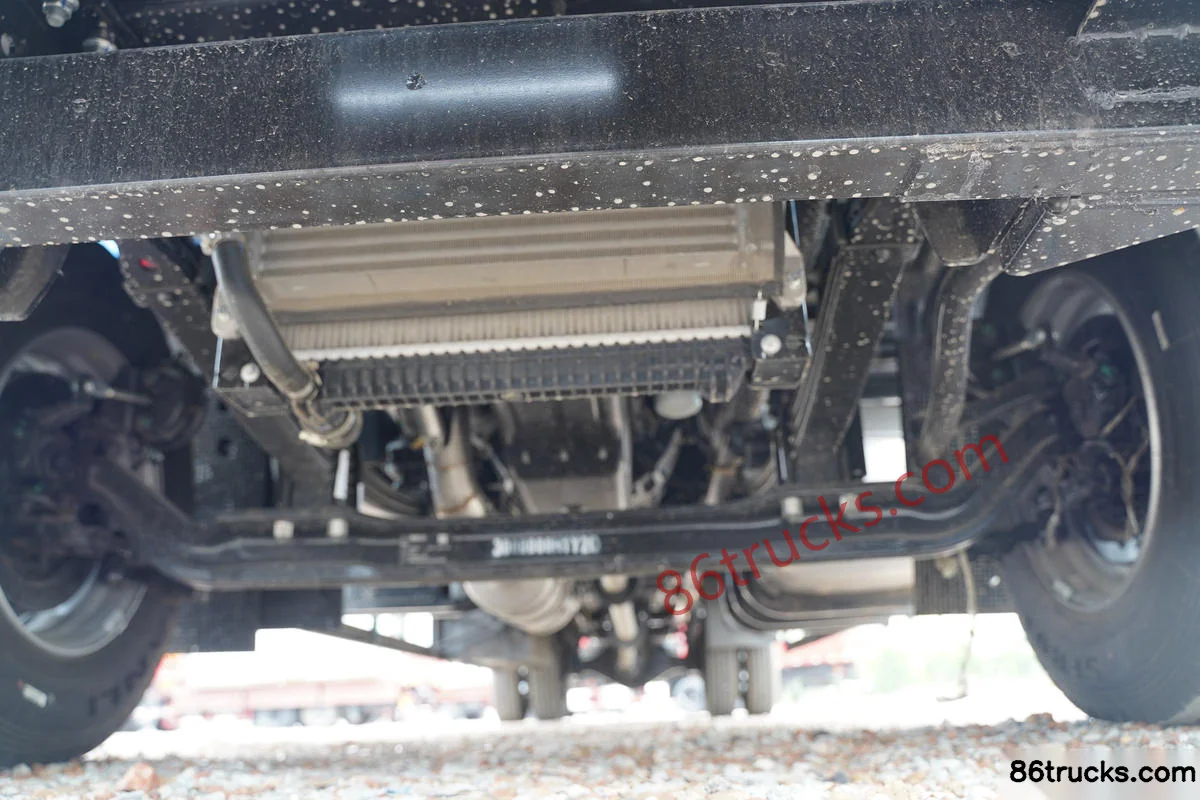

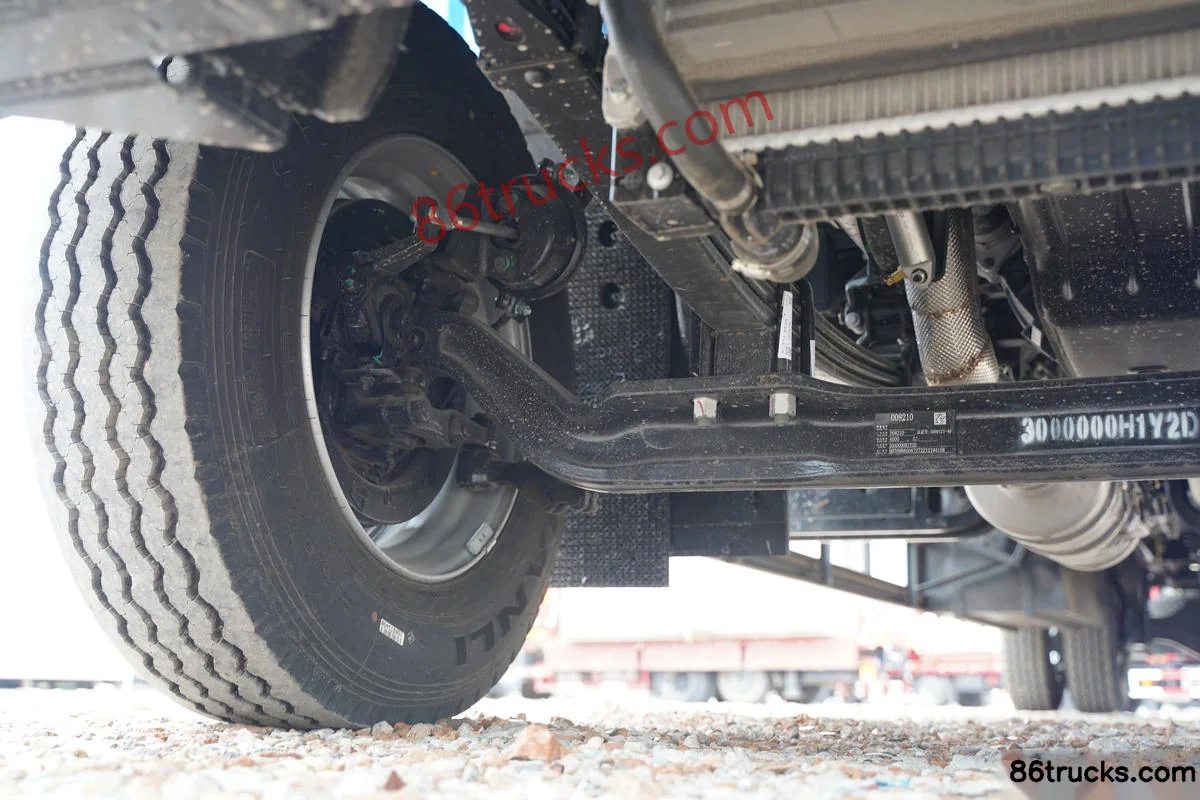

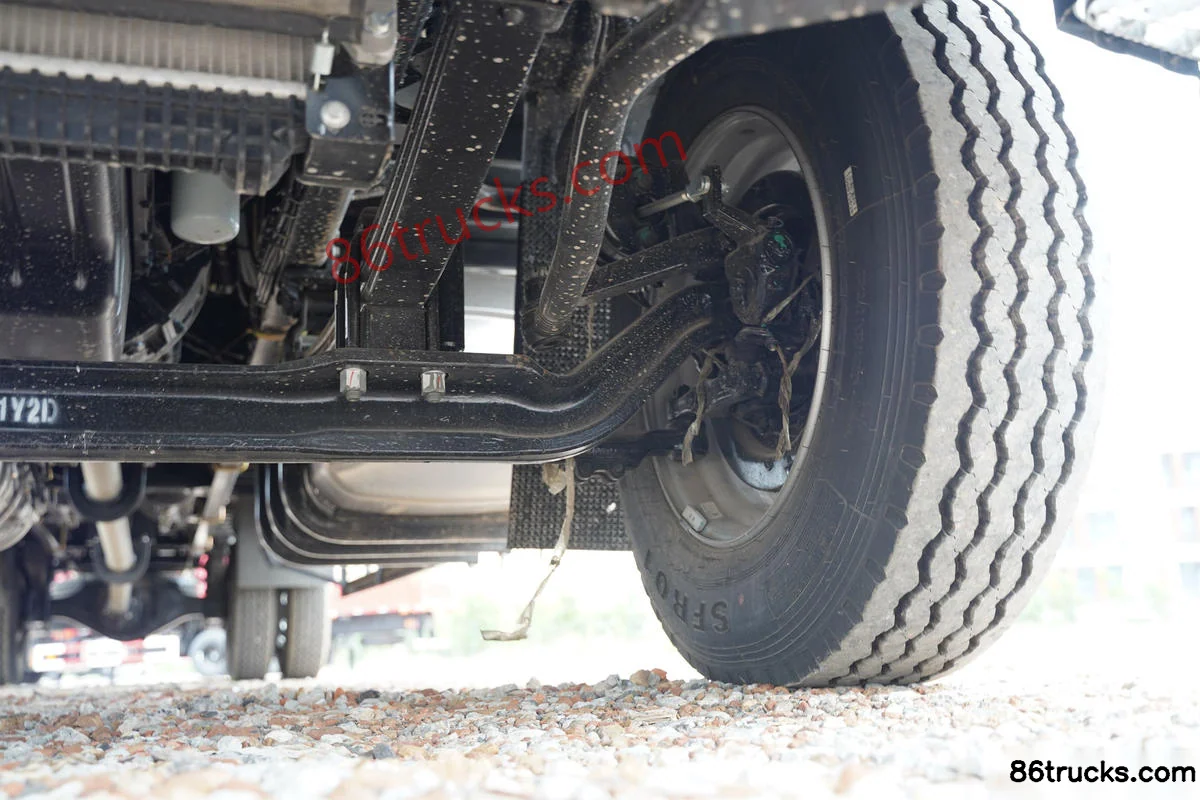

JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Chassis (1) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Chassis (2) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Chassis (3) | 86Trucks

Body3

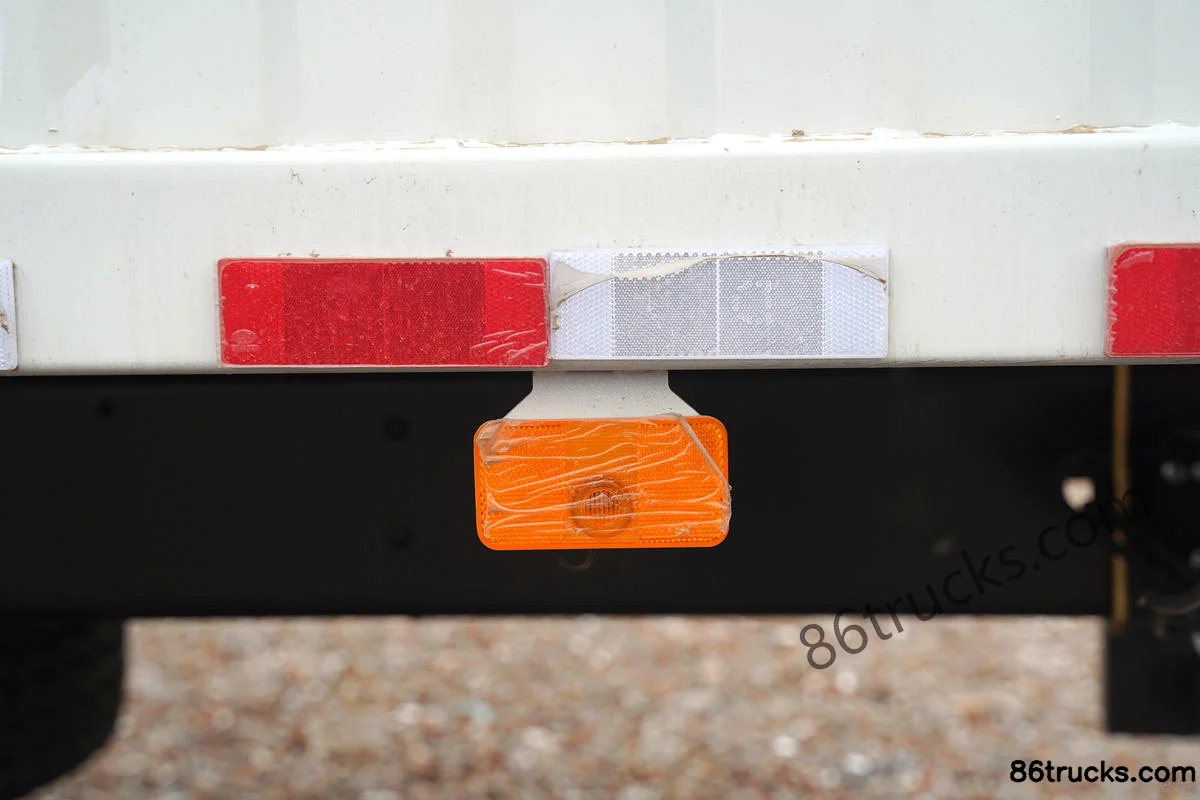

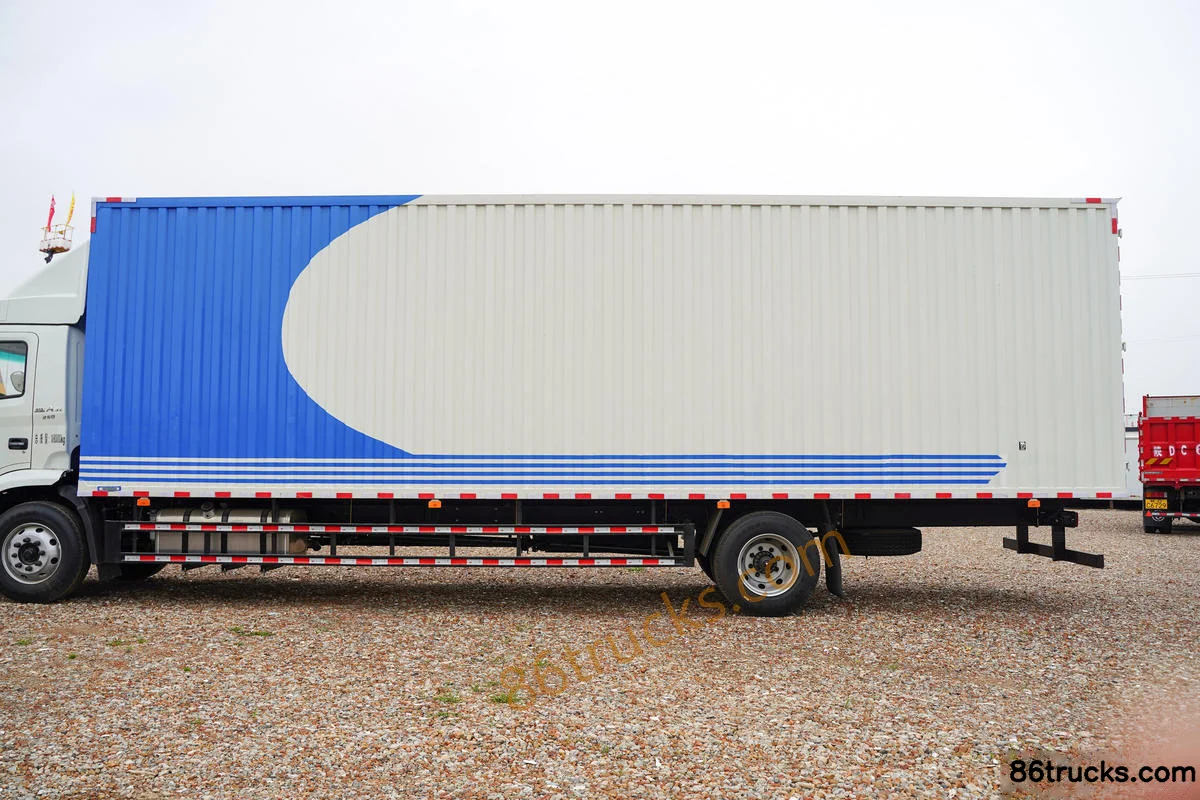

JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Body (1) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Body (2) | 86Trucks JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck?

Key specs of JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck: Drive: 4x2; Horsepower: 260 hp; Emission: China VI; Fuel: Diesel; Engine: Dongkang 6.2L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck suited for?

JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck differ from other variants in the same series?

JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5L Medium Truck Flagship Edition 260hp 4X2(6 wheels) 10m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
