Dongfeng 13.0-ton Drive Rear Axle

Export reference
MSRP N/A
Applicable Tire:: 8.0-20/11.00R20
Front/rear track width:: 1860mm
Transmission Ratio:: 3.42,3.91,4.44,4.41,4.88,5.13,5.29,5.57,6.14,6.33,6.50
Dongfeng 13.0-ton Drive Rear Axle exterior
View more photos (1)
Axle Model: 13.0t drive rear axle
Brake size: Φ410×220
Axle Type: Drive axle

Overview

The Dongfeng 13.0-ton Drive Rear Axle is a parts product with spec 13.0t drive rear axle and Φ410×220 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: 13.0t drive rear axle
Axle Type: Drive axle
Applicable Tire: 8.0-20/11.00R20
Front/rear track width: 1860mm
Rated axle load: 13000ton
Transmission Ratio: 3.42,3.91,4.44,4.41,4.88,5.13,5.29,5.57,6.14,6.33,6.50
Brake size: Φ410×220
Max output torque: 43000N·m
Rim Used: 20inch
Wheel Bolts: Φ335-10×M20mm
Remarks: Single drive axle, stamped/welded axle housing

Photos

Exterior1

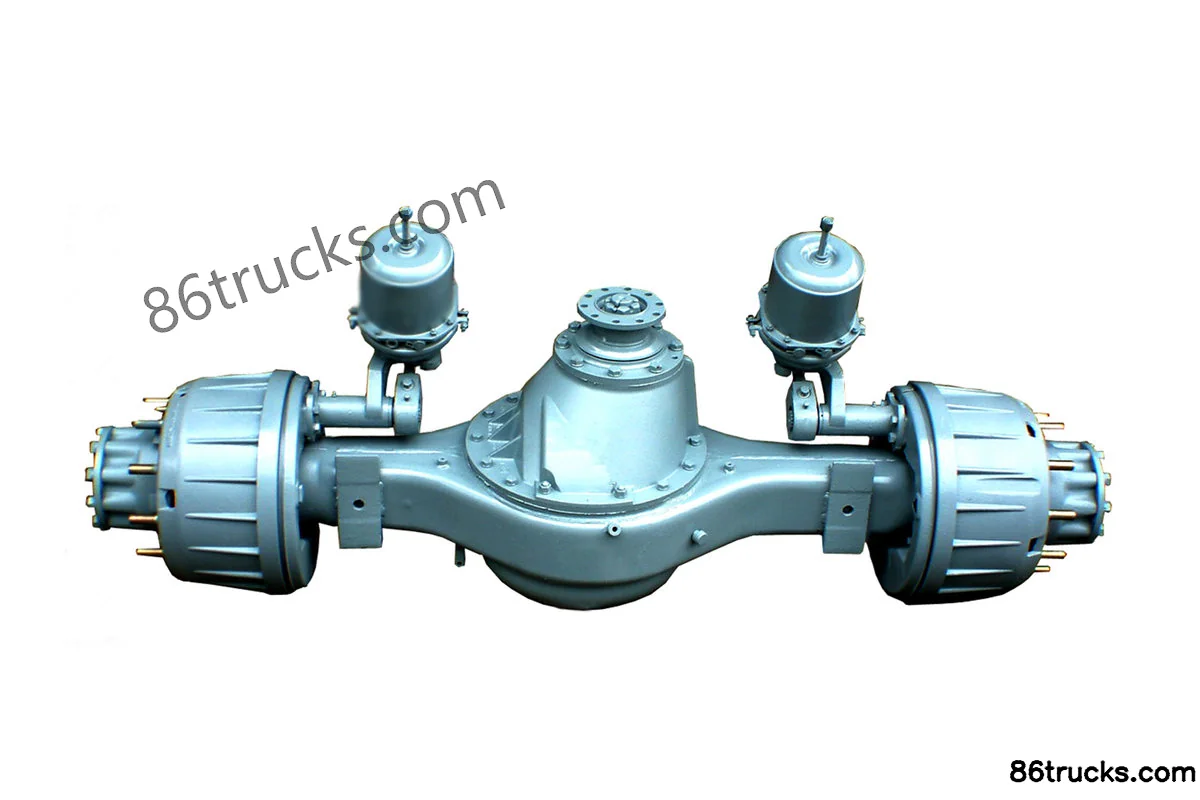

Dongfeng 13.0-ton Drive Rear Axle Exterior (1) | 86Trucks

1 photos
