Dayun Yunlong 200hp 4X2(6 wheels) 4.3m Truck-Mounted Crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3900mm
Cab dimensions:: 7.345x2.5x3.75m
Type:: truck-mounted crane
Front track width:: 1825mm
rear track:: 1800mm
Drive 4x2 (6 wheels)
Horsepower 200
Rated mass: 6.105ton
Emission China VI

Overview

The Dayun Yunlong 200hp 4X2(6 wheels) 4.3m Truck-Mounted Crane is a truck-mounted crane featuring 16.2t GVW and 4x2 (6 wheels) drive. On the powertrain side, it comes with 200 hp, China VI emissions and Diesel fuel.

China VI 200 Diesel 4x2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.345x2.5x3.75m
Type: truck-mounted crane
Drive type: 4x2
Wheelbase: 3900mm
Rated mass: 6.105ton
Front track width: 1825mm
rear track: 1800mm
GVWR: 16.2ton
Front/rear suspension: 1.3/2.145m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04200-68
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Body Parameters
Vehicle certification code: DYQ5162JSQD6AB
Body Brand: Dayun
Chassis Specs
Chassis Brand: Dayun
Chassis Series: Yunlong
Chassis Model: DYQ1162D6AA
Frame Dimensions: 800×250×(7+5+4)mm
rear axle description: 153 Shortened Axle/10t
Axle ratio: 6.333
Leaf spring count: 9/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E-C
Cargo box parameters
Cargo box length: 4.3m
Cargo box width: 2.3m
Cargo box height: 0.55m
Cab parameters
Cab: Day cab standard roof
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

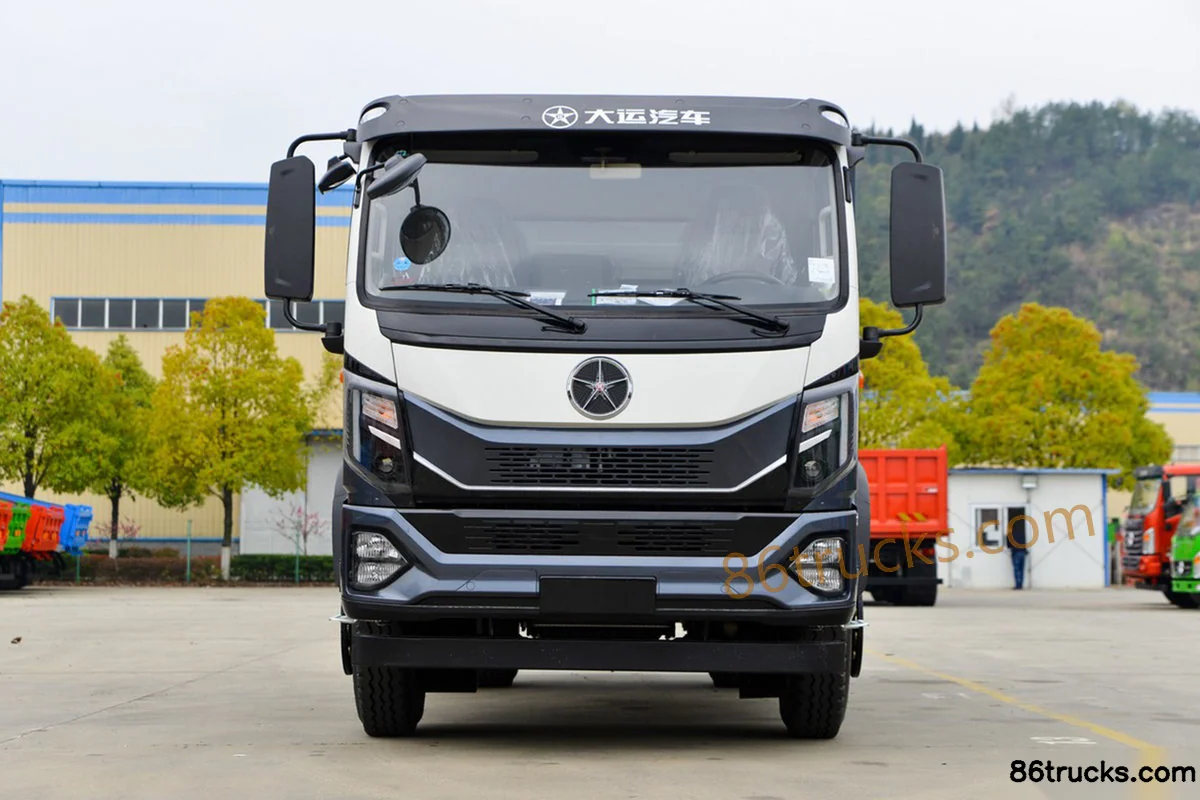

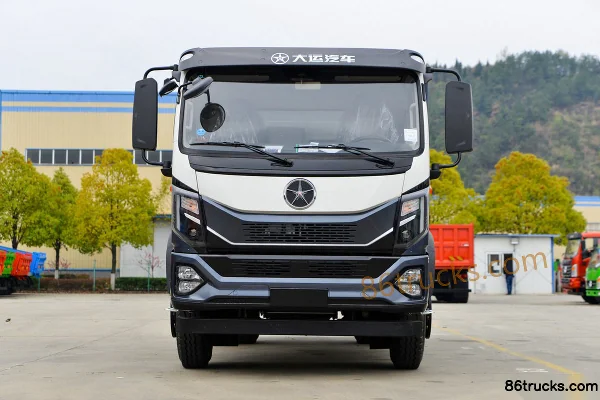

Exterior1
