Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck

Export reference
From $16,111
MSRP ¥11.6M CNY
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: Xingrui
Curb Weight:: 2.09ton
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck is a Light Truck featuring 4.13m cargo length, stake body cargo body, 2Personnel volume and 1.995t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040KDD2V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3150mm
Box length class: 4.1m
engine: Yunnei PowerD19TCIE1
transmission: Xingrui LC5T25
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 1.995m
Cab height: 2.25m
Front track width: 1492mm
rear track: 1365mm
Curb Weight: 2.09ton
Rated payload: 1.995ton
GVWR: 4.215ton
Max. speed: 95km/h
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
market segment: Urban Distribution
Front/rear suspension: 1.145/1.495m
Version: Logistics Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui LC5T25
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.13m
Cargo box width: 1.9m
Cargo box height: 0.36m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab: Single Row
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2515kg
Axle ratio: 4.33
Leaf spring count: 3/6+4
Tire
Tire Size: 195/70R15 LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

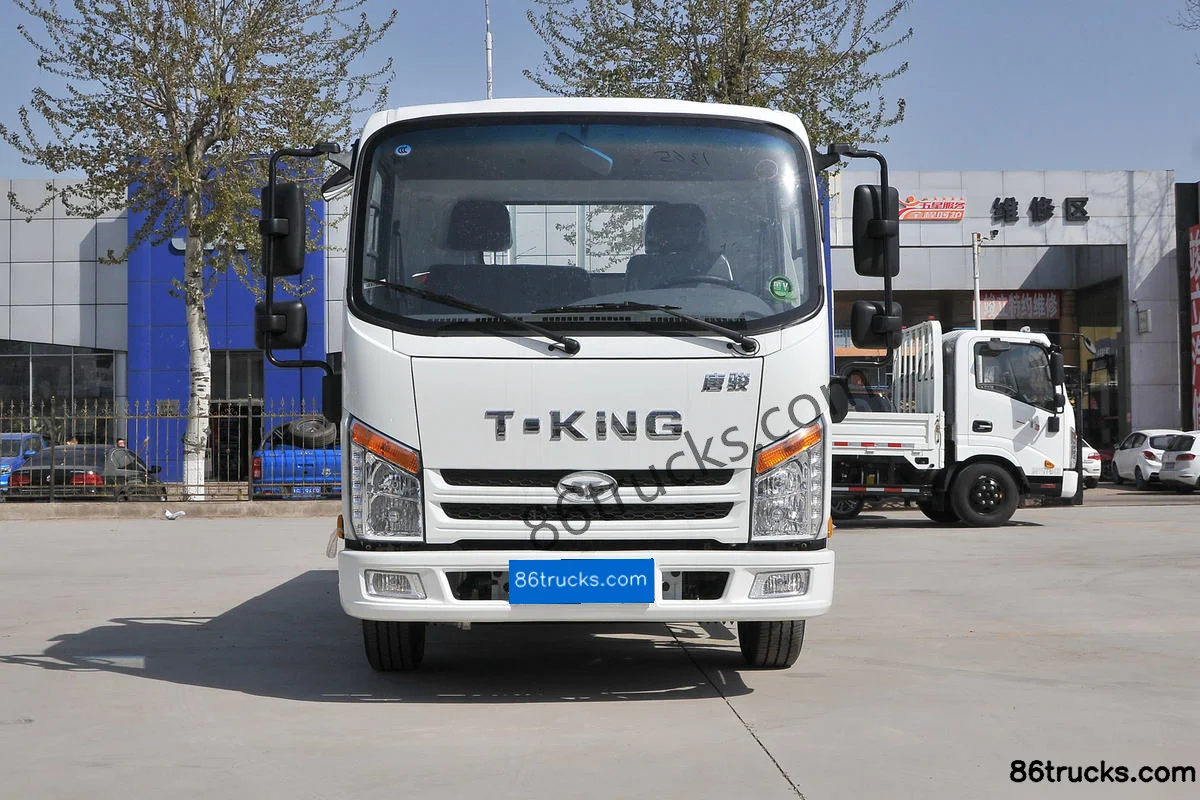

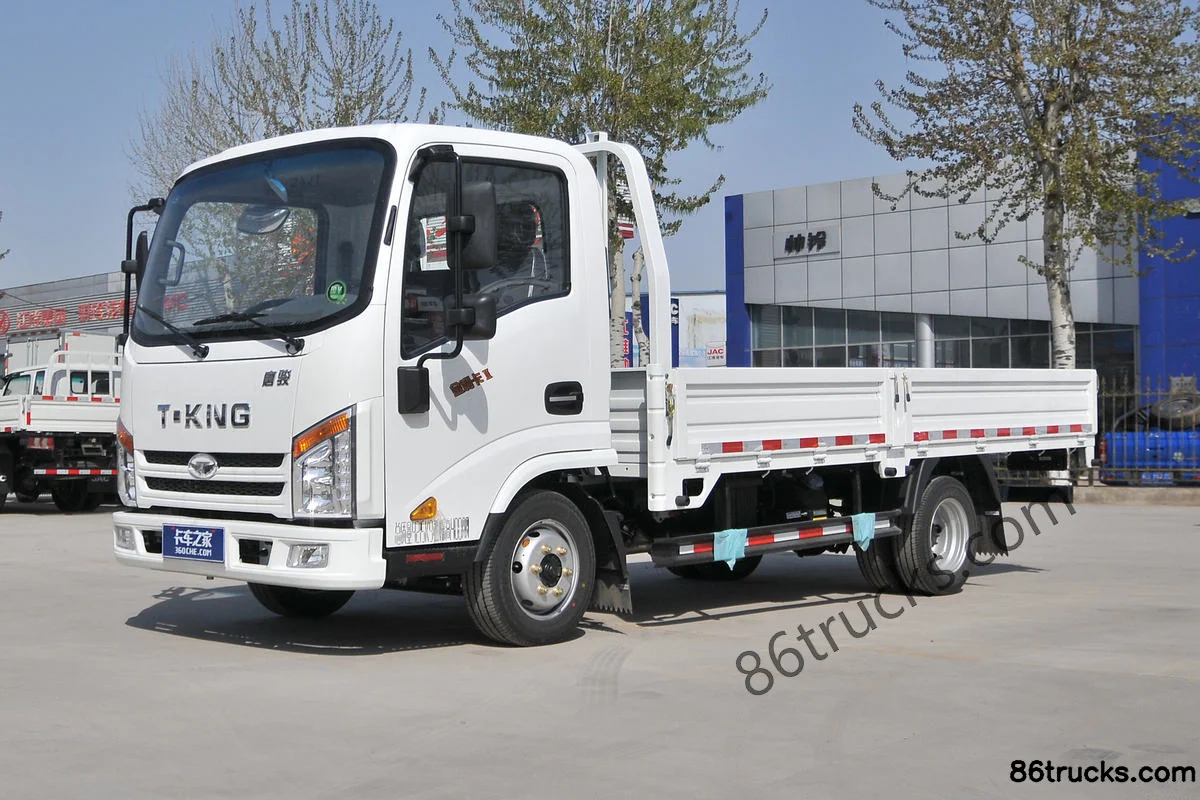

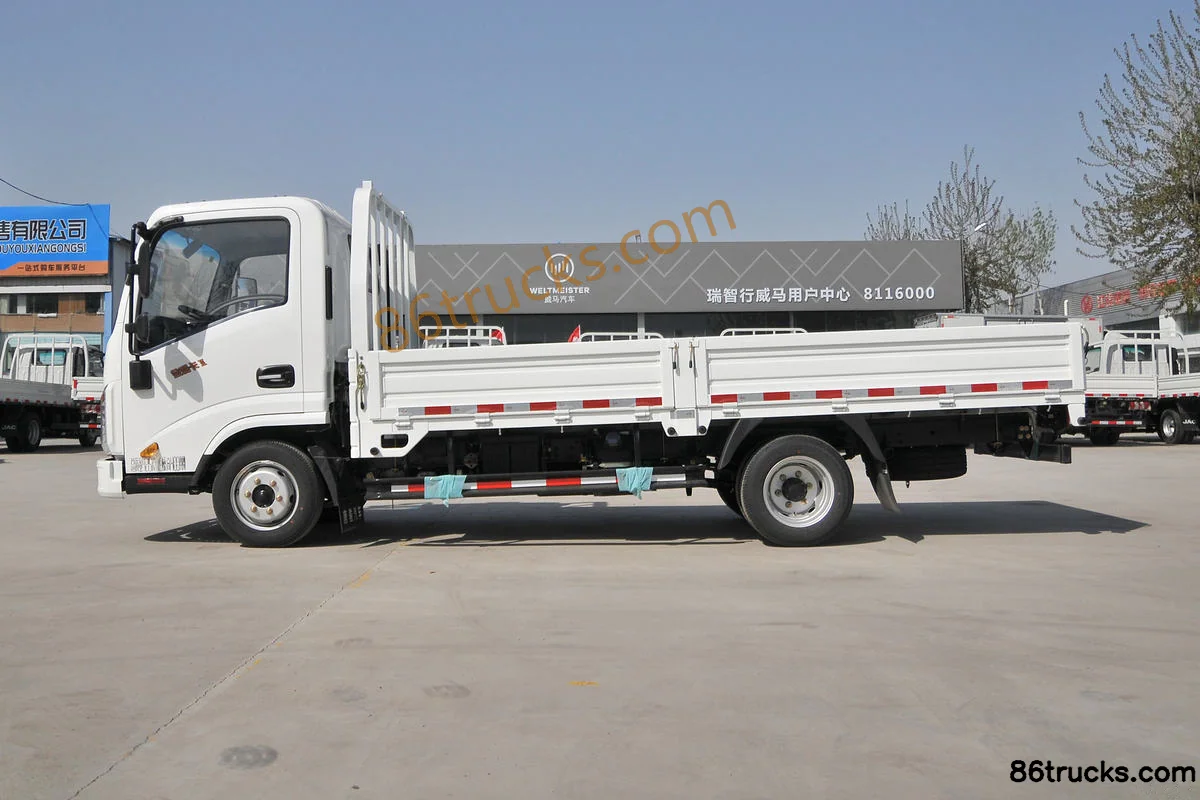

Exterior3

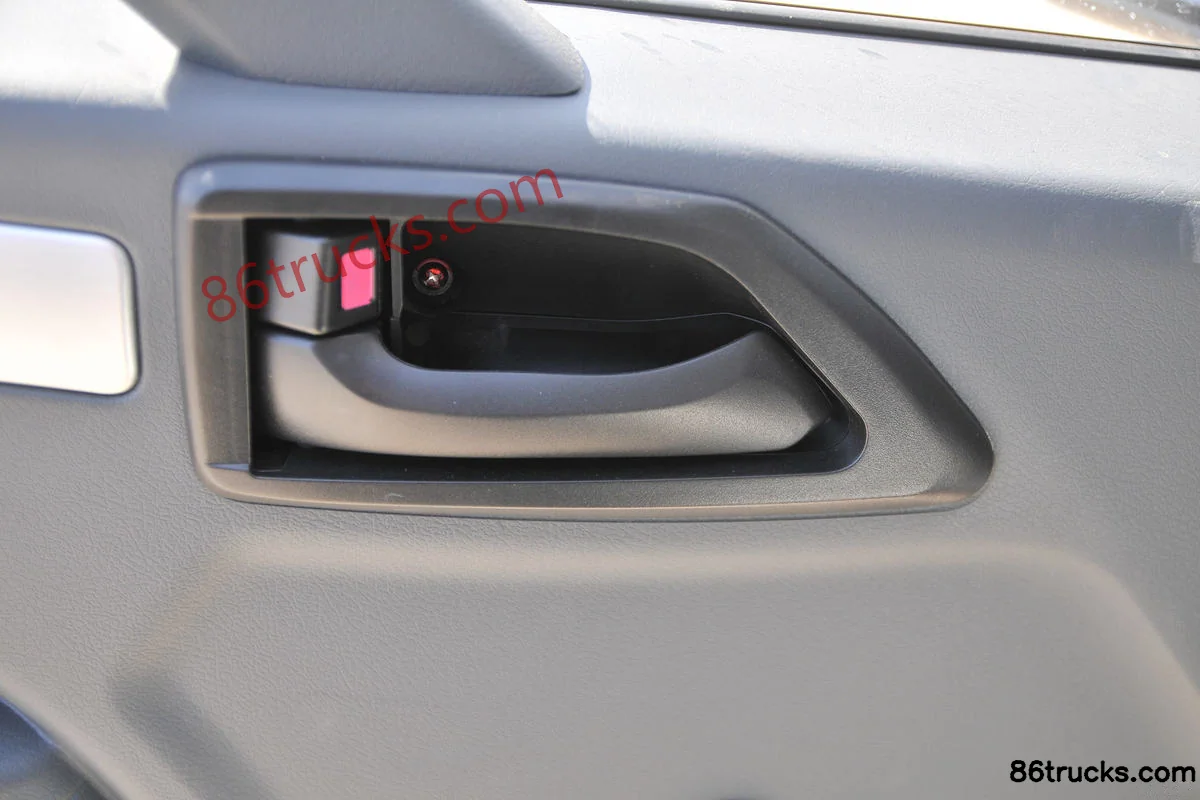

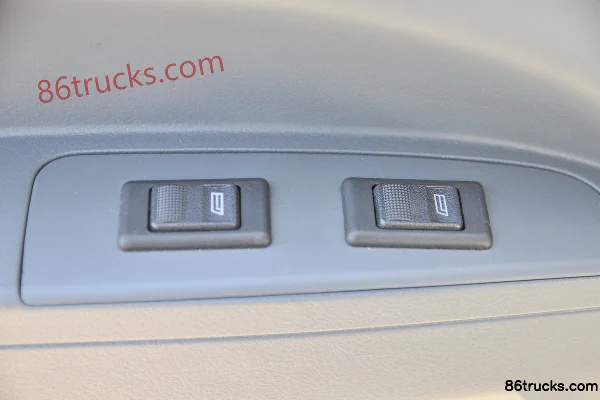

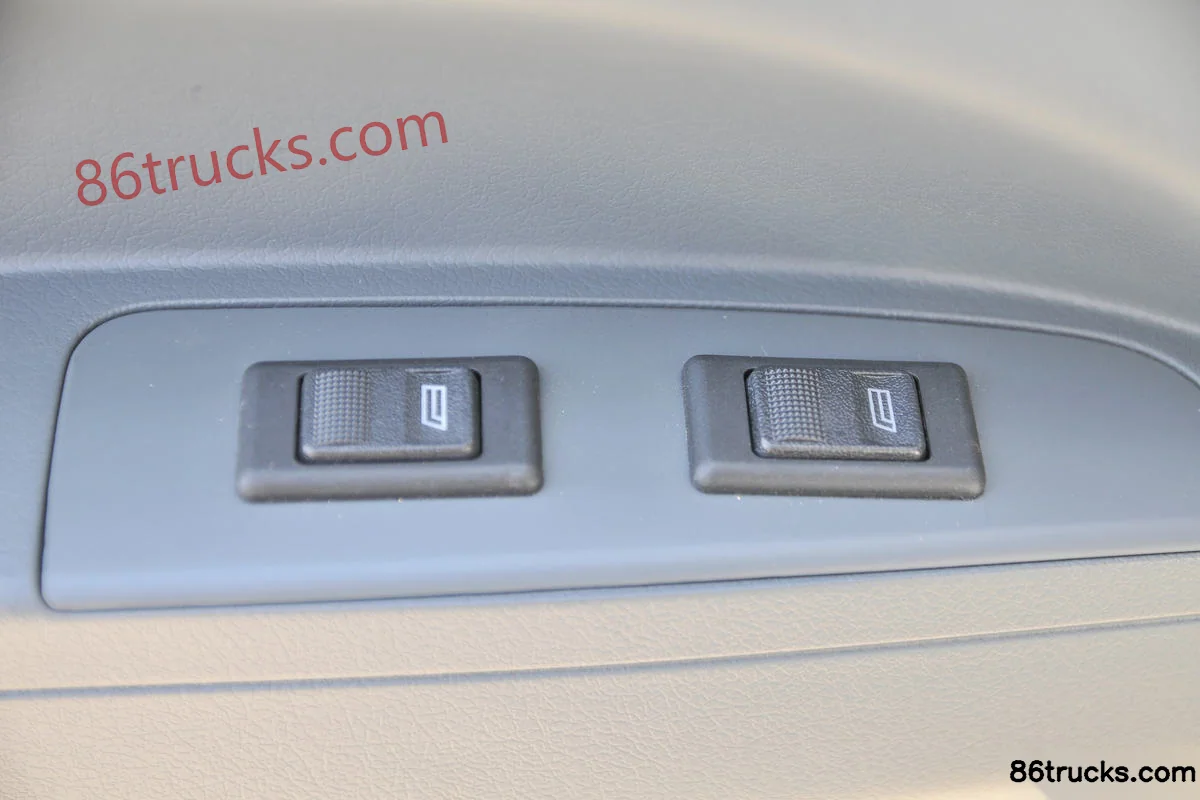

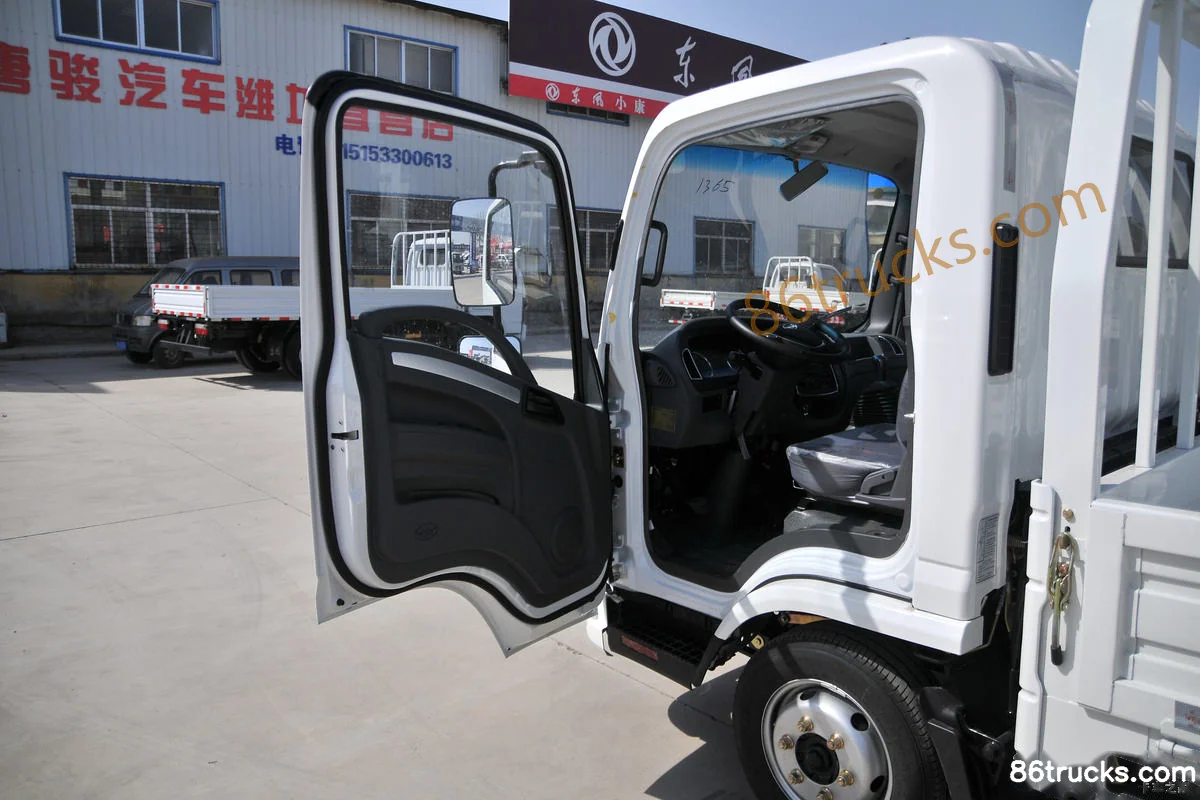

Cab3

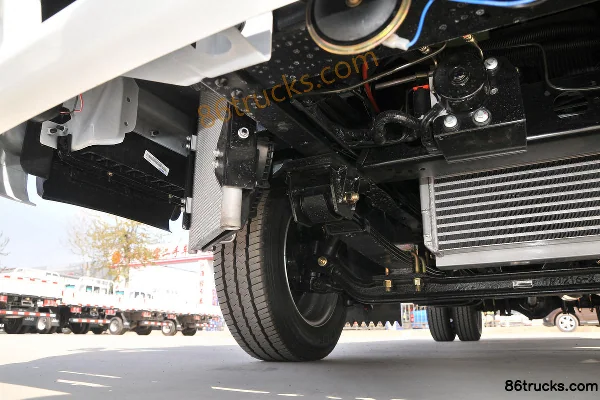

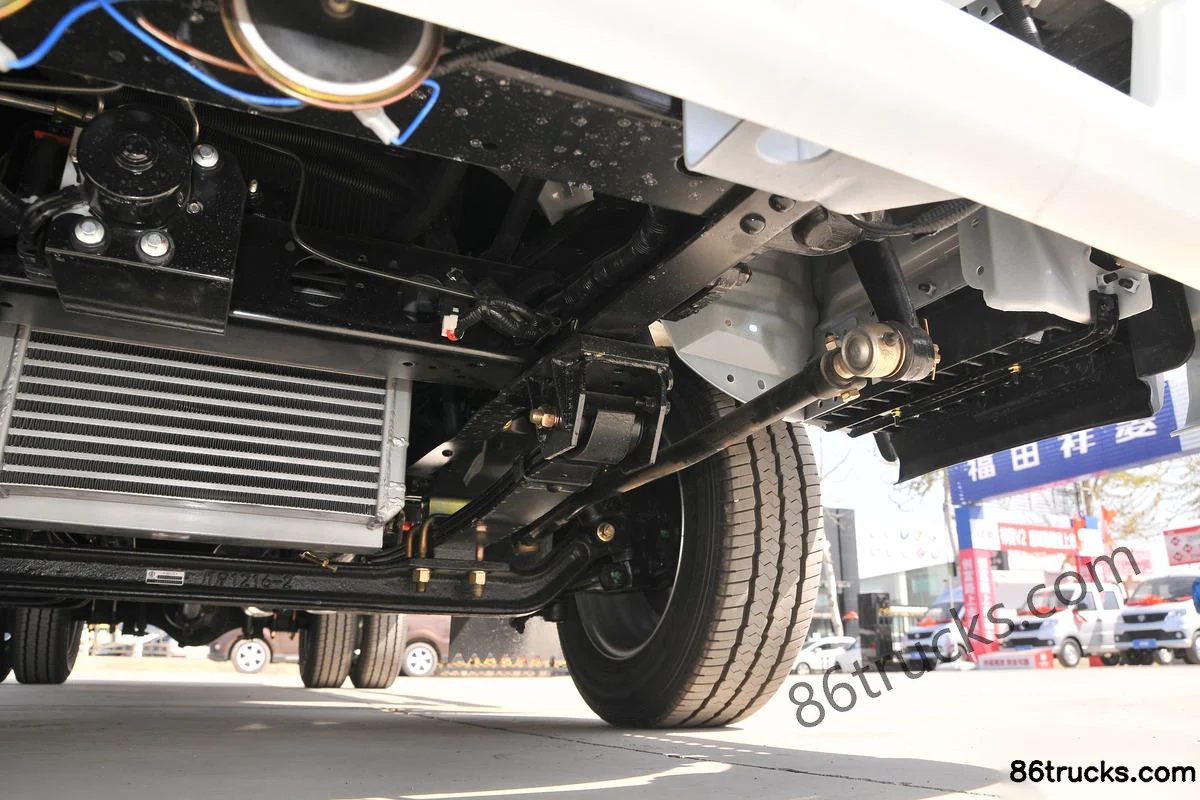

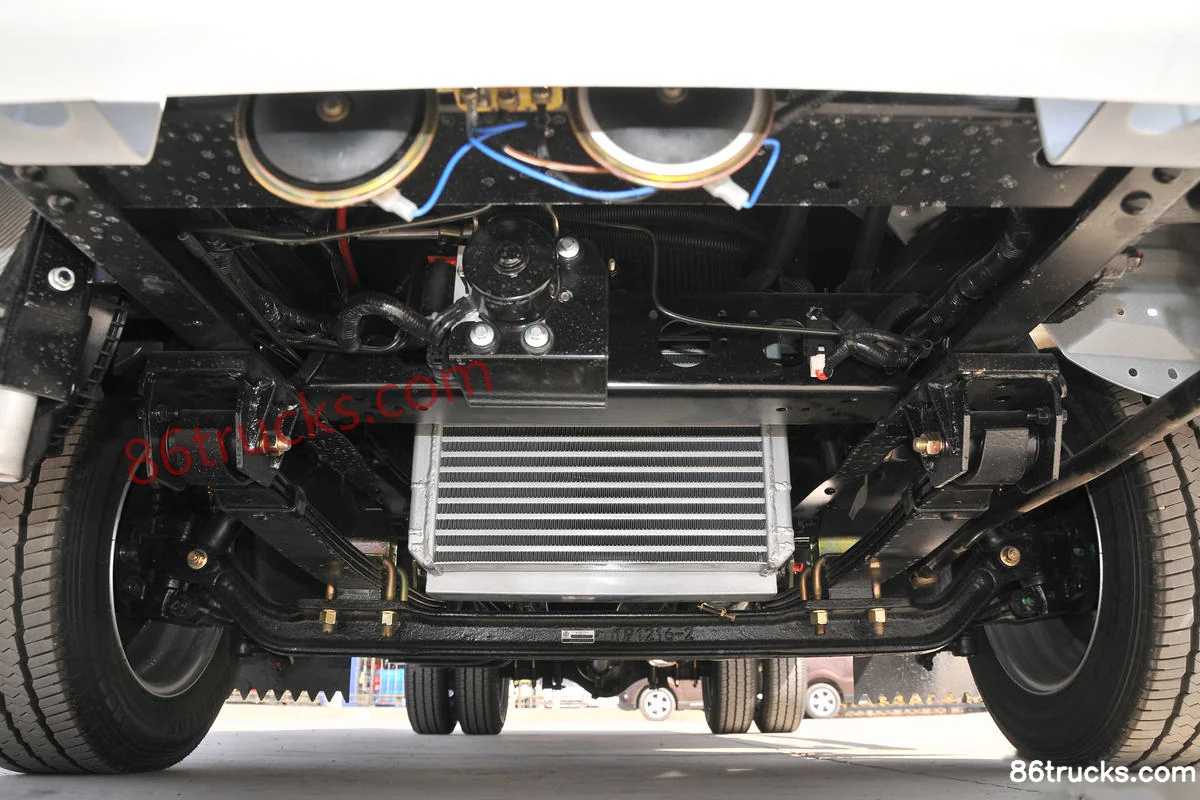

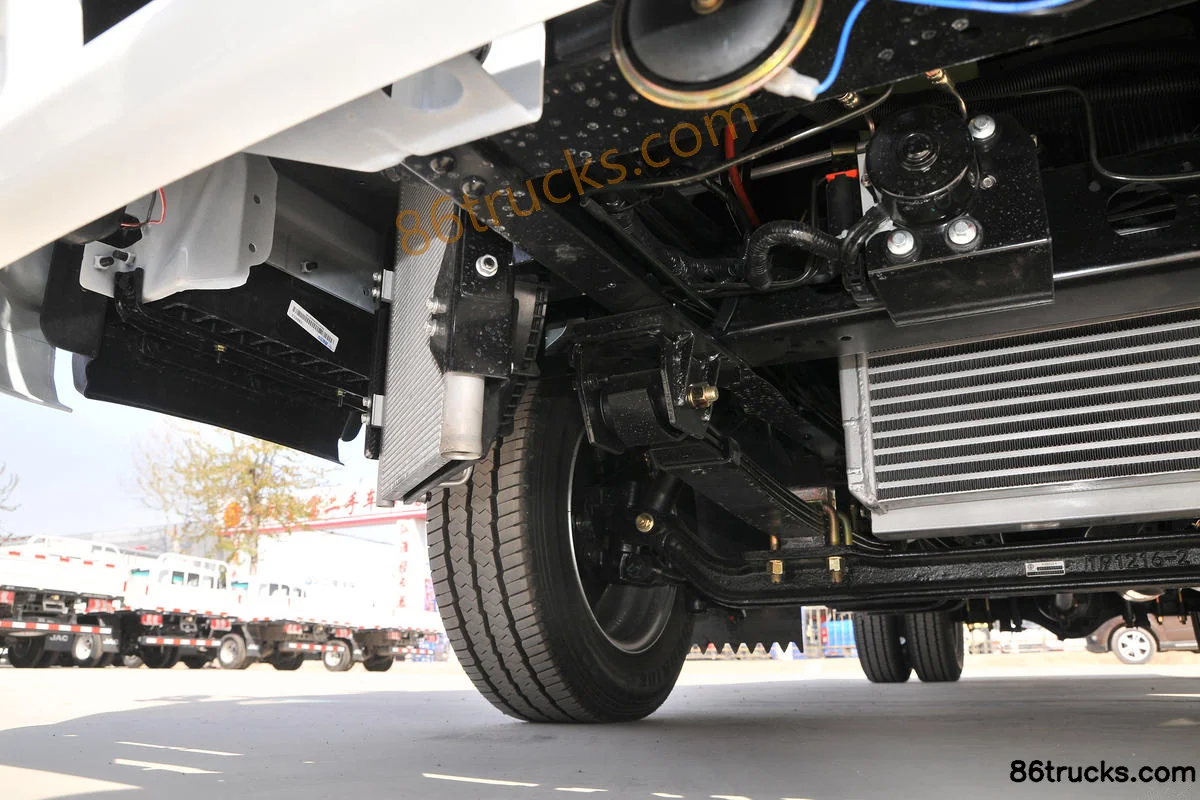

Chassis3

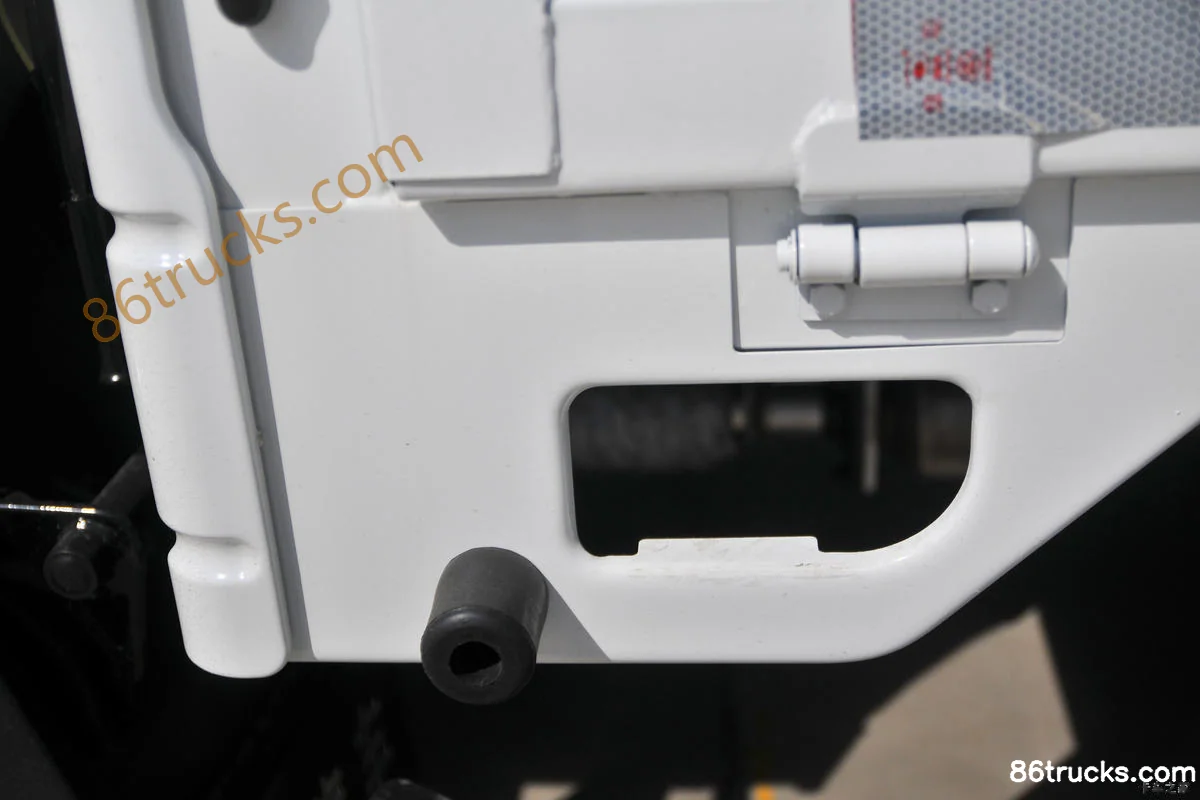

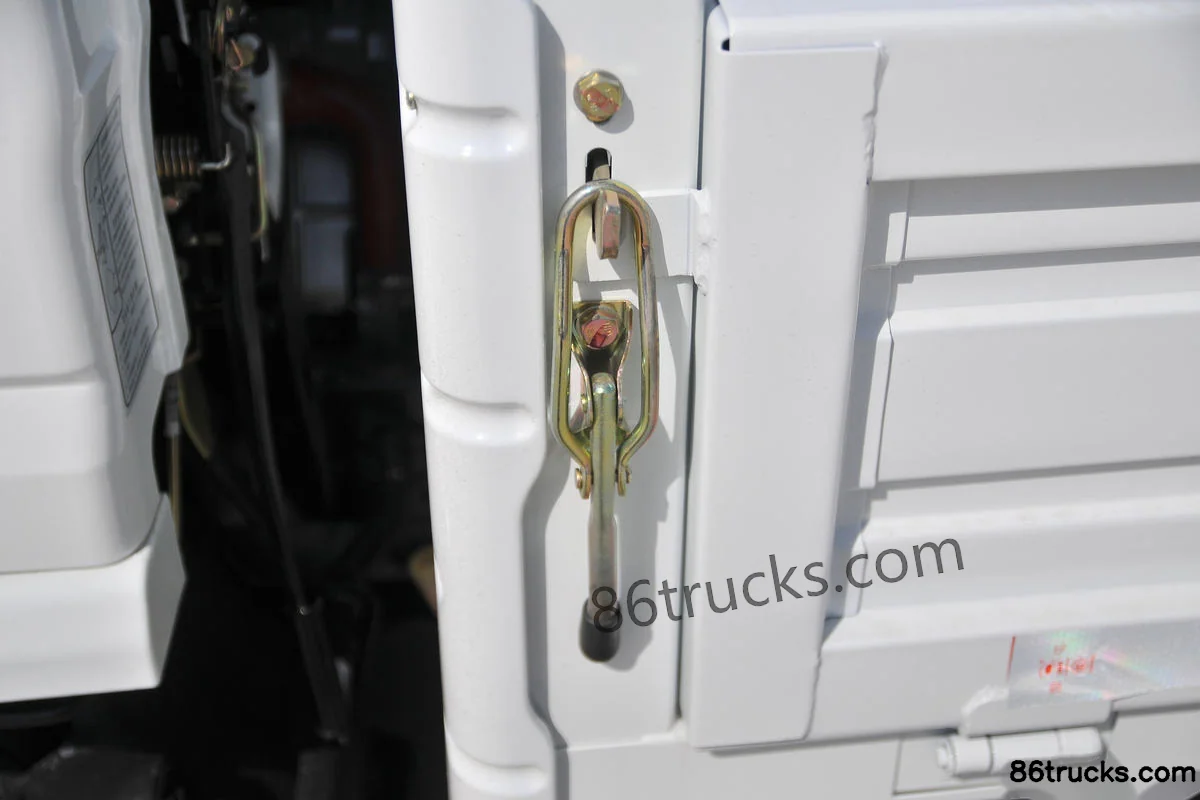

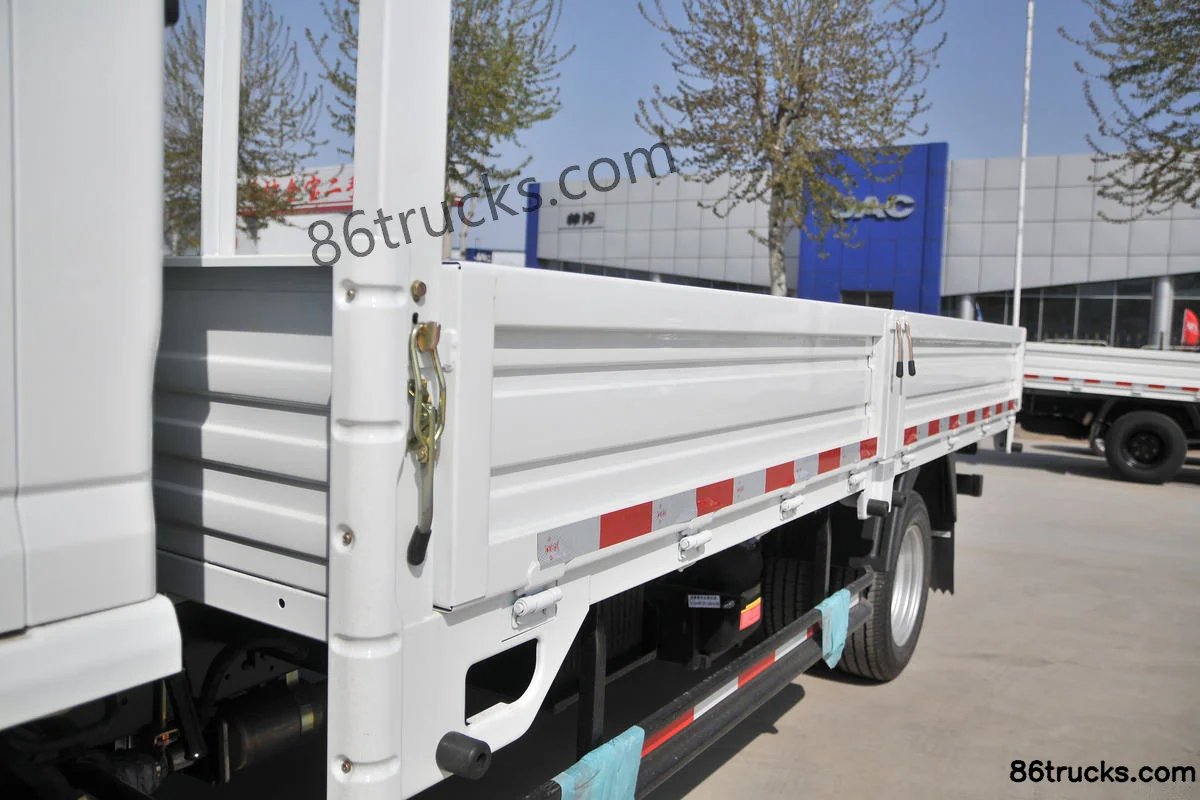

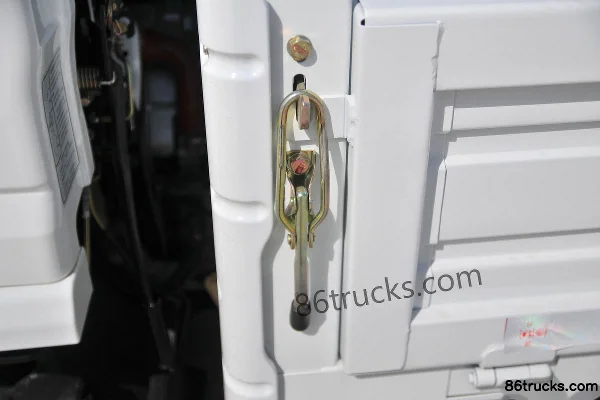

Body3

12 photos

FAQ

What is the export price of Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck, and what does it include?

Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck export reference is about From $16,111; MSRP is ¥11.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck?

Key specs of Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck suited for?

Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck differ from other variants in the same series?

Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck belongs to Jinlika II Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Jinlika II Logistics Edition 102 hp 4X2(6 wheels) 4.13m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
